STAR HOLDINGS INTERNATIONAL INC.
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6303
OWNERS MANUAL

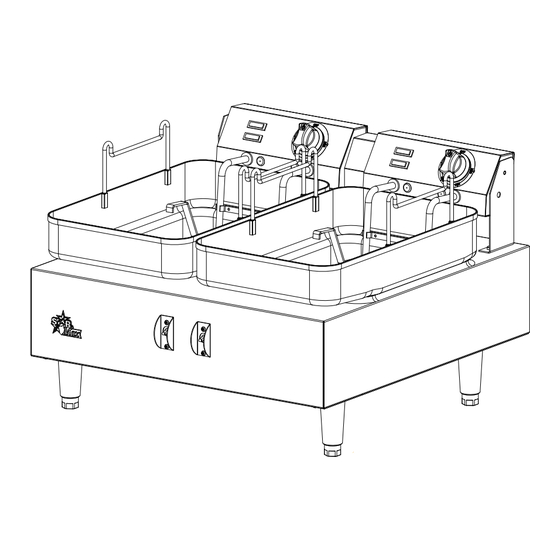

30lb COUNTERTOP
ELECTRIC FRYER
MODELS
Wells
Star
F30
530TF
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
IL3102
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your dealer if you have any questions
concerning installation, operation or maintenance of this equipment.
2M-Z21032
16
p/n
Rev. -
0114
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Star Manufacturing Star 530TF
Summary of Contents for Star Manufacturing Star 530TF
- Page 1 STAR HOLDINGS INTERNATIONAL INC. 10 Sunnen Dr., St. Louis, MO 63143 telephone: 314-678-6303 OWNERS MANUAL 30lb COUNTERTOP ELECTRIC FRYER MODELS Wells Star 530TF Includes INSTALLATION USE & CARE EXPLODED VIEW PARTS LIST WIRING DIAGRAM IL3102 IMPORTANT: DO NOT DISCARD THIS MANUAL This manual is considered to be part of the appliance and is to be given to the OWNER or MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of this appliance.
-
Page 2: Safety Symbol
MAINTENANCE & REPAIR SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Specifications
TABLE OF CONTENTS MAINTENANCE & REPAIR SPECIFICATIONS FEATURES & OPERATING CONTROLS PRECAUTIONS & GENERAL INFORMATION INSTALLATION OPERATION 5, 6 CAUTIONS FOR ALL DEEP FAT FRYERS CARE OF FAT HANDY FRYING CHART WARRANTY WIRING DIAGRAM EXPLODED VIEW & PARTS LIST 12- 14 INTRODUCTION Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life. -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS (not shown, on back) Hi- Limit Fryer Head Lifting Handle Temperature Adjustment Element Power & Heating Indicators Fryer Head Latch Basket Fryer Head Hanging Brackets Locking Pin Twin 15lb Kettles On / Off 4” Adjustable Feet Nameplate Switch IL3101... -
Page 5: Precautions And General Information
PRECAUTIONS AND GENERAL INFORMATION DANGER: BURN HAZARD Contact with cooking grid surface will cause severe burns. Use the handle to lift the grid. Avoid contact with grid surfaces. WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. -
Page 6: Unpacking And Inspection
INSTALLATION NOTE: DO NOT discard UNPACKING & INSPECTION the carton or other packing Carefully remove the appliance from the carton. Remove all protective materials until you have plastic film, packing materials and accessories from the appliance before inspected the appliance for connecting performing any installation procedure. -
Page 7: Operation
OPERATION OPERATING INSTRUCTIONS CAUTION: PLACE THE LAMINATED WARNING SIGN SUPPLIED RISK OF WITH THE FRYER IN AN AREA VISIBLE TO THE DAMAGE FRYER OPERATOR. DO NOT connect or energize this appliance until all CLEAN KETTLE BEFORE USING installation instructions are Take out baskets, push and hold element catch, lift up on element lift read and followed. - Page 8 OPERATION continued FRYING CAUTION: After fat has been added, turn the switch on and set the thermostat at HOT SURFACE 200°F (92.4° C). After the fat has melted, turn the thermostat to the desired setting. Included in this instruction booklet is a frying chart and some helpful hints on fat use.
- Page 9 CAUTIONS FOR ALL DEEP FAT FRYERS NEVER LEAVE AN OPERATING FRYER UNATTENDED RESPECT IT! REMEMBER HOT OIL IS DANGEROUS – WARNING – MAINTENANCE WARNING – INSTALLATION • Have your equipment checked regularly to • Locate your fryer in a protected place so insure its safe and properly functioning.
- Page 10 CARE OF FAT 10 POINT PROGRAM TO PRESERVE FAT AND PRODUCE THE FINEST FRIED In three to six months you may spend as much for fat FOODS as you paid for your kettle. So fat is an item you want to know all about;...
- Page 11 HANDY FRYING CHART FOOD COATING PROCEDURE TEMP MINUTES POTATOES Standard French Fries Cut in uniform pieces 1/2” 350° Blanch Only square the long way 350° 3-1/2 Brown Only 350° 3-1/2 Long Branch Cut in uniform pieces 3/4” square the long way 350°...
-
Page 12: Warranty
WARRANTY Visit our Website at: www.star-mfg.com Email: customerservice@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. -
Page 13: Wiring Diagram
WIRING DIAGRAM RIGHT HAND CONTROL LEFT HAND CONTROL HOUSING ASSEMBLY HOUSING ASSEMBLY 530015 530016 THERMOSTAT HIGH LIMIT HEATING LIGHT POWER ON LIGHT HEATING ELEMENT 2-POLE SWITCH G POWER SUPPLY BLOCK FOR SUPPLY CONNECTION USE COPPER WIRE RATED AT LEAST 90°C. MODEL 530TE MODEL 530T / TMFE30 240V 1 PH. - Page 14 EXPLODED VIEW: 530TF & F30 30lb COUNTERTOP ELECTRIC FRYER 29 30 34 1 31 30 Model: 530TF & F30 30LB Electric Fryer Nameplate SK2590 Rev. C 1/15/2016...
- Page 15 PARTS LIST: 530TF & F30 Model: 530TF & F30 Electric Deep Fat Fryer Fig No. Part Number Quantity Description Application 2C-6349 SCREW #8X3/8 B THP STL NP 2K-70229 BUSHING SHORTY HEYCO 2850 E1-Y5087 BACK-ELEMENT HOUSING 2I-Y5097 GASKET-ELEMENT HOUSING 2T-Y1668 HI-LIMIT/SAFETY T-STAT 2A-Y5109 ROD-CATCH 2A-7435...
- Page 16 PARTS LIST: 530TF & F30 continued Model: 530TF & F30 Electric Deep Fat Fryer Fig No. Part Number Quantity Description Application 2K-Y5093 BUSHING-SNAP #SB-1000-12 E1-530007 LH HOUSING SUPPORT ASSY 2E-Y5166 SWITCH-2 POLE 30 AMP 2C-8477 CLIP .125 PO STL PHOS 530TF 2M-Z15804 LOGO, STAR-MAX...
