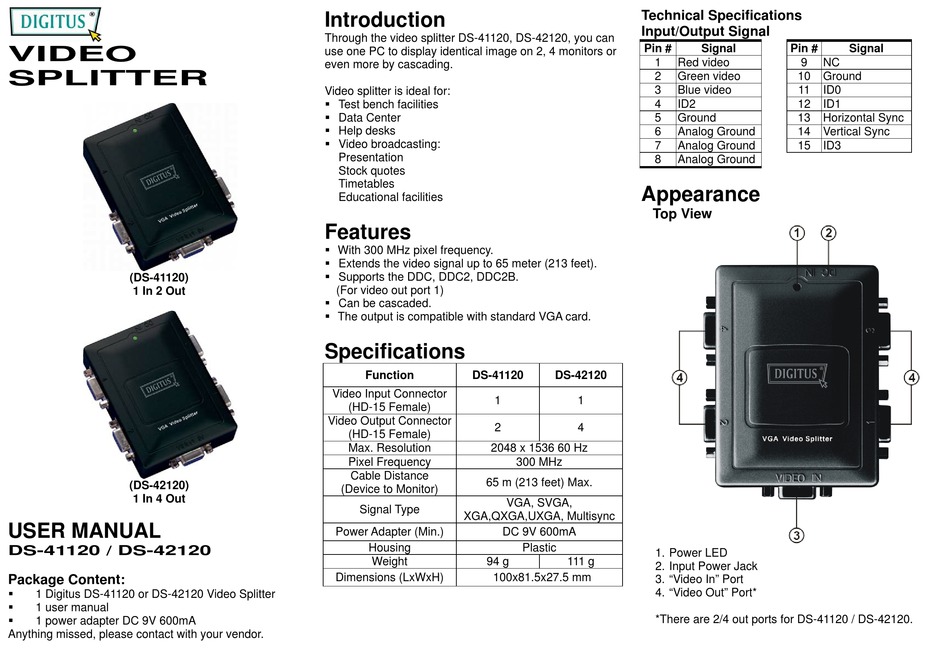

Digitus DS-41120 User Manual

VIDEO
SPLITTER
(DS-41120)
1 In 2 Out
(DS-42120)
1 In 4 Out
USER MANUAL
DS-41120 / DS-42120
Package Content:

1 Digitus DS-41120 or DS-42120 Video Splitter

1 user manual

1 power adapter DC 9V 600mA
Anything missed, please contact with your vendor.

Introduction

Through the video splitter DS-41120, DS-42120, you can
use one PC to display identical image on 2, 4 monitors or
even more by cascading.
Video splitter is ideal for:
 Test bench facilities
 Data Center
 Help desks
 Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities

Features

 With 300 MHz pixel frequency.
 Extends the video signal up to 65 meter (213 feet).
 Supports the DDC, DDC2, DDC2B.
(For video out port 1)
 Can be cascaded.
 The output is compatible with standard VGA card.

Specifications

Function DS-41120
Video Input Connector
1
(HD-15 Female)
Video Output Connector
2
(HD-15 Female)
Max. Resolution 2048 x 1536 60 Hz
Pixel Frequency
Cable Distance
65 m (213 feet) Max.
(Device to Monitor)
Signal Type
XGA,QXGA,UXGA, Multisync
Power Adapter (Min.) DC 9V 600mA
Housing
Weight 94 g
Dimensions (LxWxH) 100x81.5x27.5 mm

Technical Specifications

Input/Output Signal
Pin #
1 Red video
2 Green video
3 Blue video
4 ID2
5 Ground
6 Analog Ground
7 Analog Ground
8 Analog Ground

Appearance

Top View
DS-42120
1
4
300 MHz
VGA, SVGA,
Plastic
1. Power LED
111 g
2. Input Power Jack
3. "Video In" Port
4. "Video Out" Port*
*There are 2/4 out ports for DS-41120 / DS-42120.
Signal Pin # Signal
9 NC
10 Ground
11 ID0
12 ID1
13 Horizontal Sync
14 Vertical Sync
15 ID3
