Digitus DC-41100 User Manual

VIDEO-SPLITTER
USER MANUAL
DC-41100, DC-42100, DC-43100
Package Contents-
DC-41100, DC-42100 or DC-43100 Video Splitter
1 user manual
1 power adapter 12V 600mA for DC-41100,
DC-42100 or DC-43100
Introduction
Through the video splitter DC-41100, DC-42100,
DC-43100, you can use one PC to display identical image
on 2,4,8 monitors or even more.
Video splitter is ideal for:
Test bench facilities
Data Center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
(DC-41100)
Educational facilities
1 In 2 Out
Features
With 300 MHz pixel frequency.
Extends the video signal up to 65 meter (213 feet).
Supports the DDC, DDC2, DDC2B. (For video out port
1)
(DC-42100)
Can be cascaded.
1 In 4 Out
The output is compatible with standard VGA card.
Specifications
Function
Video Input
(DC-43100)
Connector
1 In 8 Out
(HD-15 Male)
Video Output
Connector
(HD-15 Female)
Max. Resolution
Pixel Frequency
Cable Distance
(Device to Monitor)
Signal Type
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)
mm
DC-41100 DC-42100 DC-43100
1 1 1
2 4 8
1920 x 1440 60 Hz
300 MHz
65 m (213 feet) Max.
VGA, SVGA, XGA, Multisync
DC 12V 600mA
Metal
420 g 455 g 680 g
200x75
130x75x42
x42
-1-
Technical Specifications
Input/Output Signal
Pin # Signal Pin #
1 Red video 9
2 Green video 10
3 Blue video 11
4 ID2 12
5 Ground 13
6 Analog Ground 14
7 Analog Ground 15
8 Analog Ground

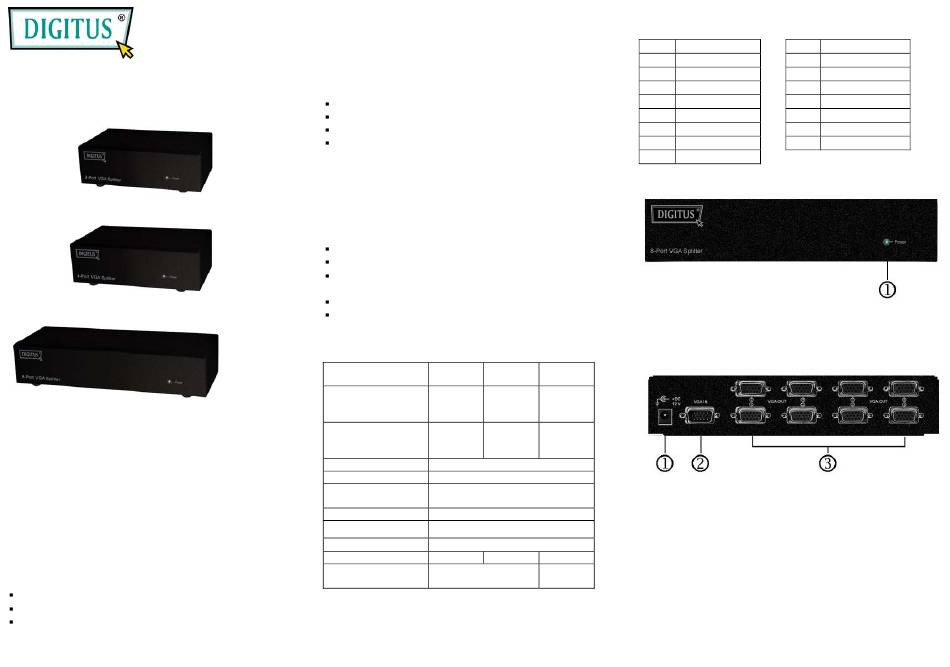

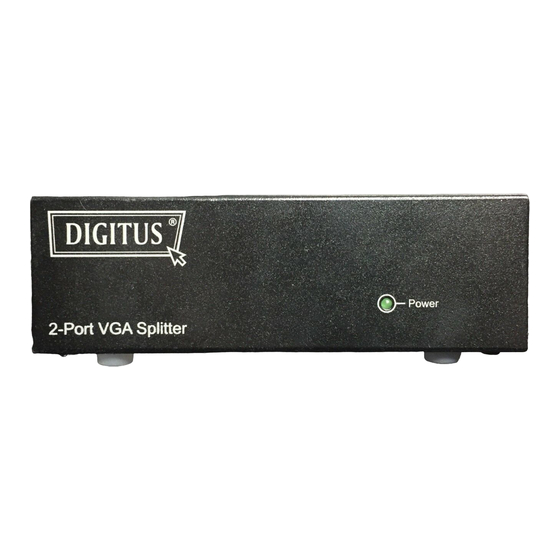

FRONT VIEW
1. Power LED
REAR VIEW
1. Input Power Jack
2. "Video In" Port
3. "Video Out" Port
*There are 2/4/8 out ports for DC-41100, DC-42100,
DC-43100.
-2-
Signal
NC
Ground
ID0
ID1
Horizontal Sync
Vertical Sync
ID3
