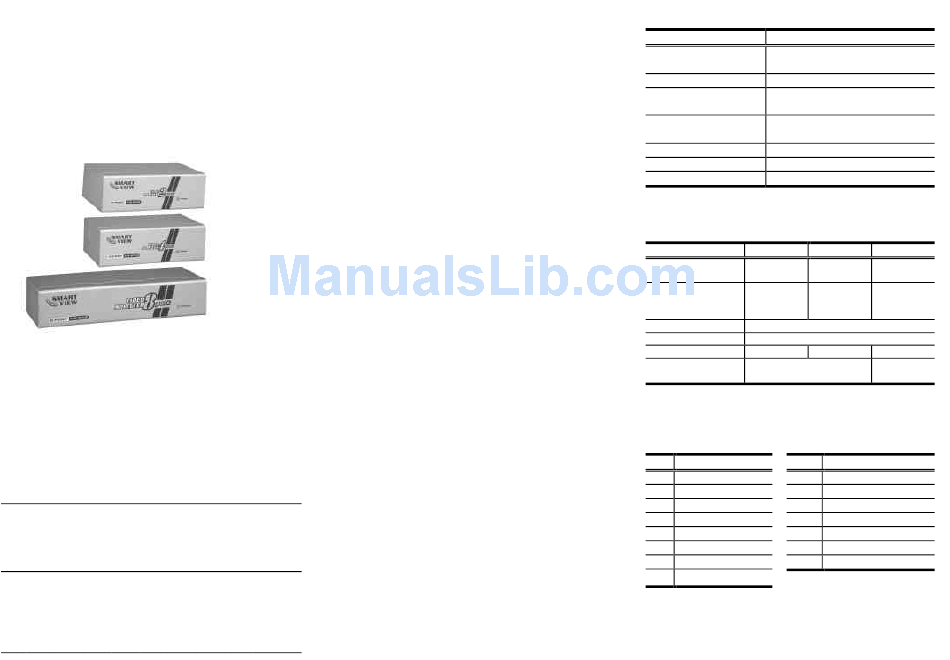

Digitus Smart View DC VS-814 User Manual

VIDEO
SPLITTER
U M
SER ANUAL
DC VS-812 / DC VS-814 / DC VS-818
Read this manual thoroughly and follow the installation
and operation procedures carefully to prevent any
damage to the unit, and/or any of the devices connected
to it.
This package contains:
§ 1 VS-812 or VS-814 or VS-818 Video Splitter
§ 1 DC 9V Power Adapter
§ 1 User Manual
If anything is damaged or missing, contact your dealer.
O
VERVIEW
These video splitters are boosting devices that duplicate
the video signal from any analog monitor source to two
(DC VS-812); four ( DC VS-814); or eight (DC VS-818)
outputs. As such, they provide fast, flexible, solutions for
situations such as:
1) Broadcasting video information (news headlines, stock
prices, airline and train schedules, etc.), to the public.
2) Monitoring harsh work environments from safe location.
3) Classroom or company training facilities.
The DC VS-812, DC VS-814, and DC VS-818 go beyond
being merely duplicators, however, in that they also
1 In 2 Out
enhance the video signals over long distance
(DC VS-812)
broadcasting of up to 65m (213').
In addition, units can be daisy chained to handle as many
1 In 4 Out
monitors as the installation requires, making them
(DC VS-814)
excellent solutions for public broadcast systems.
To achieve multiple high quality VGA, SVGA, or Multisync
1 In 8 Out
video signals over long distances, these video splitters are
(DC VS-818)
your best choice.
FEATURES
§ Ultra High 250 MHz Bandwidth
§ Enhances Video Signal for Distances up to 65 m (213')
§ Supports DDC, DDC2, DDC2B (Port 1 Only)
§ Daisy Chainable
§ All Metal Housing
§ Small Form Factor
§ Ideal for Public Broadcasting; Remote Monitoring;
Classroom and Training Facilities
Note:
1. If you connect a DDC type monitor to Video Out Port 1,
all other monitors must be able to support the highest
resolution that the DDC monitor can provide.
2. These products are designed for VGA, SVGA, and
Multisync monitors. They are not suitable for CGA, EGA,
or MONO type monitors that use digital video signals.
SPECIFICATIONS
VIDEO OUT PIN ASSIGNMENTS
-1-
Function Specification
Cable Distance
65 m (213') max.
(Device to Monitor)
Signal Type VGA, SVGA, XGA, Multisync
Video Input 1 x HDB-15 Male
Connectors
o
Operating 5 – 40 C
Temperature
o
Storage Temperature -20 – 60 C
Humidity 0 – 80% RH, Non-condensing
Housing Metal
Function DC VS-812 DC VS-814 DC VS-818
DC 9V Power
180mA 220mA
Consumption (Max.)
Video Output
2
Connectors
(HDB-15 Female)
Max. Resolution 1920 x 1440 60 Hz
Bandwidth (-3db) 250 MHz
Weight 420 g 455 g
Dimensions
130x75x42
(L x W x H) mm
No. Assignment No.
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 ID0
4 ID2 12 ID1
5 Ground 13 Horizontal Sync
6 Analog Ground 14 Vertical Sync
7 Analog Ground 15 ID3
8 Analog Ground
-2-
350mA
4 8
680 g
200x75x42
Assignment
