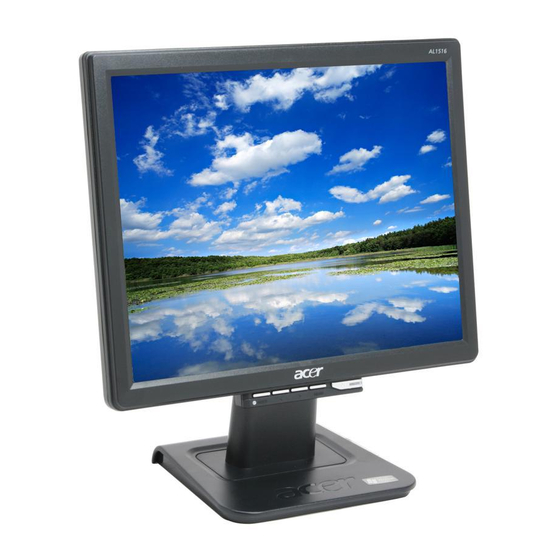

Acer AL1516 User Manual

Acer al1516: user manual
Hide thumbs


Advertisement

Quick Links

Precautions .....................................................................................................................2
SPECIAL NOTES ON LCD MONITORS..................................................................3
Package contents ............................................................................................................3
Installation instructions.................................................................................................4
Assembling the Monitor.....................................................................................................................4
Detaching the Monitor .......................................................................................................................4
Adjusting the Viewing Angle.............................................................................................................4
Connecting the Devices......................................................................................................................5
Switching the Power ..........................................................................................................................6
Adjusting display settings..............................................................................................6
External Controls ...............................................................................................................................6
OSD options ....................................................................................................................7
OSD Menu .........................................................................................................................................7
Troubleshooting .............................................................................................................9
General specifications ..................................................................................................10

Table of Contents

1

Advertisement

Table of Contents
loading

  Also See for Acer AL1516

  Related Manuals for Acer AL1516

  Summary of Contents for Acer AL1516

  • Page 1: Table Of Contents

    Precautions ...2 SPECIAL NOTES ON LCD MONITORS...3 Package contents ...3 Installation instructions...4 Assembling the Monitor...4 Detaching the Monitor ...4 Adjusting the Viewing Angle...4 Connecting the Devices...5 Switching the Power ...6 Adjusting display settings...6 External Controls ...6 OSD options ...7 OSD Menu ...7 Troubleshooting ...9 General specifications ...10 Table of Contents...
  • Page 2: Precautions

    Recycling Information We, the Acer Incorporated. care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life.
  • Page 3: Special Notes On Lcd Monitors

    SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. NOTES • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. •...
  • Page 4: Installation Instructions

    Assembling the Monitor 1. Position the monitor on top of the stand. Detaching the Monitor If you need to repackage the monitor, please separate the monitor and base, and restore them to the carton. To detach the monitor: 1. Unplug the AC power cord to make sure the power is off. 2.
  • Page 5: Connecting The Devices

    Connecting the Devices Caution: Make sure that the computer and the monitor are both disconnected from the power supply. ○ Power Code Attach the monitor to the power cord which should then be inserted into a properly grounded electric socket. ○...
  • Page 6: Switching The Power

    Switching the Power First, switch the power on to the monitor, then switch the power on to the computer. When you see the LED on the power button go green, this indicates the computer is ready for use. Allow about 10 seconds for the video signal to appear. If you do not see the green light on the power button or a video signal, check the connections.
  • Page 7: Osd Options

    Please refer to "External Controls" on Page 6. To adjust the OSD settings: 1. Press the MENU button to open the OSD menu. Press again to enter a selection of 10 functions on OSD. 2. Use the buttons marked < or >, to highlight a control, then adjust the control to the desired level.
  • Page 8 LANGUAGE: Select the OSD menu language from English, German, Spanish, Simplified Chinese, Traditional Chinese, French, Italian, and Japanese. OSD SETTING: This changes the position of the OSD window on the screen and staying time. Auto Config: System runs auto-configuration. (Optional) Input signal : Analog Input Digital Input...
  • Page 9: Troubleshooting

    Problems • Check to see if the power switch is in the ON position. Power LED is not • Ensure that the Power Cord is connected. • Check to see if the power switch is in the ON position. No Picture •...
  • Page 10: General Specifications

    Item LCD Panel Display Max resolution Pixel Pitch Color Brightness Contrast Ratio Response Time View Angle of Horizontal View Angle of Vertical External Controls Power Button Control Buttons OSD Function Contrast /Brightness Focus/Clock Position Color Language OSD setting Auto config / Input Signal Information Reset Exit...
