LED TV
32/43LT340C*
32/43LT340H*
12
14
16
20
X 2
(M4 X L16)
: Depending on model / Tergantung pada modelnya /
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32LT340C Series and is the answer not in the manual?

Questions and answers

Related Manuals for LG 32LT340C Series

Summary of Contents for LG 32LT340C Series

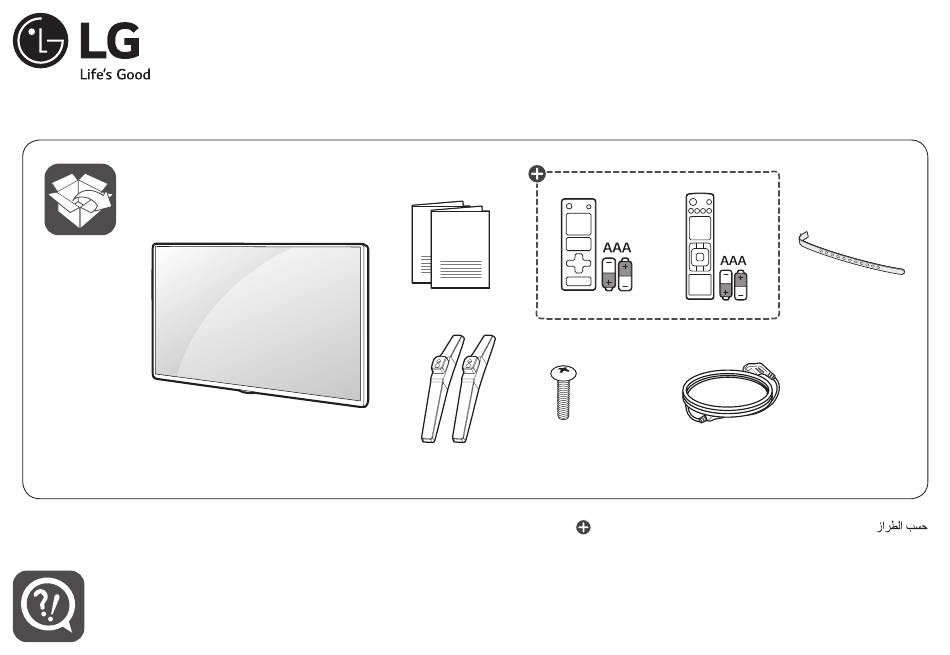

  • Page 1 LED TV 32/43LT340C* 32/43LT340H* (M4 X L16) : Depending on model / Tergantung pada modelnya / www.lg.com...
  • Page 4 H/P OUT...
  • Page 5 Satellite IN...
  • Page 6 H/P OUT...
  • Page 7 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
  • Page 8 RGB IN RGB IN VIDEO/Y P L/MONO AUDIO R AUDIO OUT RGB OUT...
  • Page 11 32LT340CBTB 32LT340CBGB 32LT340HBGB 4.90 4,90 4.85 4,85 32LT340H9GB 32LT340C9TB 43LT340C0TB 43LT340C0GB 80.8 80,8 43LT340H0GB 43LT340C9TB Power requirement / Persyaratan daya /...
  • Page 13 OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71693901* www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
  • Page 14 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials CAUTION while unit is plugged in.
  • Page 15 Unauthorized modification could void the user’s authority to operate this product. • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.

  • Page 16: Separate Purchase

    Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.

  • Page 17: Mounting On A Table

    Mounting on a Table • Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area. 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation.

  • Page 18: Using The Kensington Security System

    TV and a table. performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

  • Page 19: Satellite Dish

    Connections • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model) Connect various external devices to the TV and switch input modes to select an external device.

  • Page 20: External Speakers

    External Speakers It is recommended that you use an external USB HDD with a rated (Depending on model) voltage of 5 V of less and a rated current of 500 mA or less. External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

  • Page 21: Using Button

    Using Button Network (Depending on model) You can simply operate the TV functions, using the button. Wired network connection This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication.

  • Page 22: Using Remote Control

    Using Remote Control * To use the button, press and hold for more than 3 seconds. (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. The descriptions in this manual are based on the buttons on the remote Recalls your preferred subtitle in digital mode.
  • Page 23 (Depending on model) Selects Radio, TV and DTV programme. Number buttons Enters numbers. Accesses the saved programme list. Returns to the previously viewed programme. Adjusts the volume level. Accesses your favourite programme list. Resizes an image. Mutes all sounds. * Accesses the [Accessibility] menu. Scrolls through the saved programmes.

  • Page 24: Troubleshooting

    Troubleshooting Abnormal display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. The software version can be updated for improvement in performance. •...

  • Page 25: Specifications

    Specifications (Depending on country) Broadcasting Specifications (-T*) Digital TV Analogue TV (Depending on Country & Model) (Depending on Country) PAL B/B, PAL B/G, PAL D/K, PAL-I DVB-T/T2 Television system SECAM B/G, SECAM D/K DVB-C NTSC-M Programme coverage VHF, UHF VHF, UHF, CATV Maximum number of storable programmes 2,000 External antenna impedance...
  • Page 26 HDMI-DTV supported mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.50 60.00...

  • Page 27: Supported Audio Formats

    My Media Supported Files Supported Audio Formats • Maximum data transfer rate: 20 Mbps (Mega bit per second) File • External supported subtitle formats: *.srt, *.smi, *.sub (Only for Item Info type SubViewer 1.0/2.0), *.ass, *.ssa, *.txt Bit rate 32 Kbps - 320 Kbps Supported Photo Formats Sample freq.

  • Page 28: Supported Video Formats

    Audio AAC, AC3 LG Electronics will also provide open source code to you on CD-ROM Video MPEG-2, MPEG-4 Part2, XViD, H.264/AVC for a charge covering the cost of performing such distribution (such...
  • Page 29 IR CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button (INPUT) Remote control Button...

  • Page 30: External Control Device Setup

    EXTERNAL CONTROL Phone jack Type (Depending on model) DEVICE SETUP • You need to purchase the phone-jack to RS-232C cable required for the connection between the PC and the TV, which is specified in the manual. RS-232C Setup * For other models, connect to the USB port. •...

  • Page 31: Communication Parameters

    RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations Data (Standard RS-232C cable) Command1 Command2 (Hexadecimal) 1 Power 00 to 01 2 [Aspect Ratio] (See p. 20) 3 Screen Mute (See p. 21) 4 Volume Mute 00 to 01 5 Volume Control 00 to 64 6 [Contrast]...

  • Page 32: Transmission / Receiving Protocol

    Transmission / Receiving Protocol 1 Power (Command: k a) ►To control Power On/Off of the set. (Depending on Model) Transmission Transmission (k)(a)( )([Set ID])( )([Data])(Cr) (Command1)(Command2)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Off] [Data] 01 : [On] (Command1) : First command to control the TV. (j, k, m or x) (Command2) : Second command to control the TV.
  • Page 33 3 Screen Mute (Command: k d) 6 [Contrast] (Command: k g) ►To select screen mute on/off. ►To adjust screen contrast. You can also adjust contrast in the picture settings. Transmission Transmission (k)(d)( )([Set ID])( )([Data])(Cr) (k)(g)( )([Set ID])( )([Data])(Cr) [Data] 00 : Screen mute off (Picture on) / Video mute off [Data] 01 : Screen mute on (Picture off) Data Min : 00 to Max : 64 [Data] 10 : Video mute on...
  • Page 34 9 [Tint] (Command: k j) 12 Remote Control Lock Mode (Command: k m) ►To adjust the screen tint. ►To lock the front panel controls on the monitor and remote control. You can also adjust tint in the picture settings. Transmission Transmission (k)(m)( )([Set ID])( )([Data])(Cr) (k)(j)( )([Set ID])( )([Data])(Cr)
  • Page 35 15 [Energy Saving] (Command: j q) 17 [Equalizer] (Command : j v) ►To reduce the power consumption of the TV. You can also adjust ►To adjust equalizer. Energy Saving in picture settings. Transmission Transmission (j)(v)( )([Set ID])( )([Data])(Cr) (j)(q)( )([Set ID])( )([Data])(Cr) Power Saving Level Function...
  • Page 36 18 Tune Command (Command: m a) 19 Programme [Skip/Add] (Command: m b) ►Select channel to following physical number. ►To set skip status for the current Programme. Transmission Transmission (m)(a)( )([Set ID])( )([Data] 00)( )([Data] 01)( )([Data] 02)(Cr) (m)(b)( )([Set ID])( )([Data])(Cr) [Data] 00 : High channel data [Data] 00 : [Skip] [Data] 01 : Low channel data...
  • Page 37 22 [Input] select (Command: x b) (Main Picture Input) * Real data mapping ►To select input source for main picture. 00 : Step 0 Transmission (x)(b)( )([Set ID])( )([Data])(Cr) Step 10 ([Set ID] 10) [Data] Structure Step 15 ([Set ID] 15) 10 : Step 16 ([Set ID] 16) 64 :...
  • Page 38 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. MODEL SERIAL NO.
