Indoor Unit Installation
WARNING
• Only use accessories, optional equipment and spare parts made or approved by DAIKIN.
• Installation shall be done by an installer, the choice of materials and installation shall comply with the applicable legislation.
In Europe, the EN378 is the applicable standard that shall be used.
1.
Installing the mounting plate
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring points
on the wall.
2) Secure the mounting plate to the wall with screws.

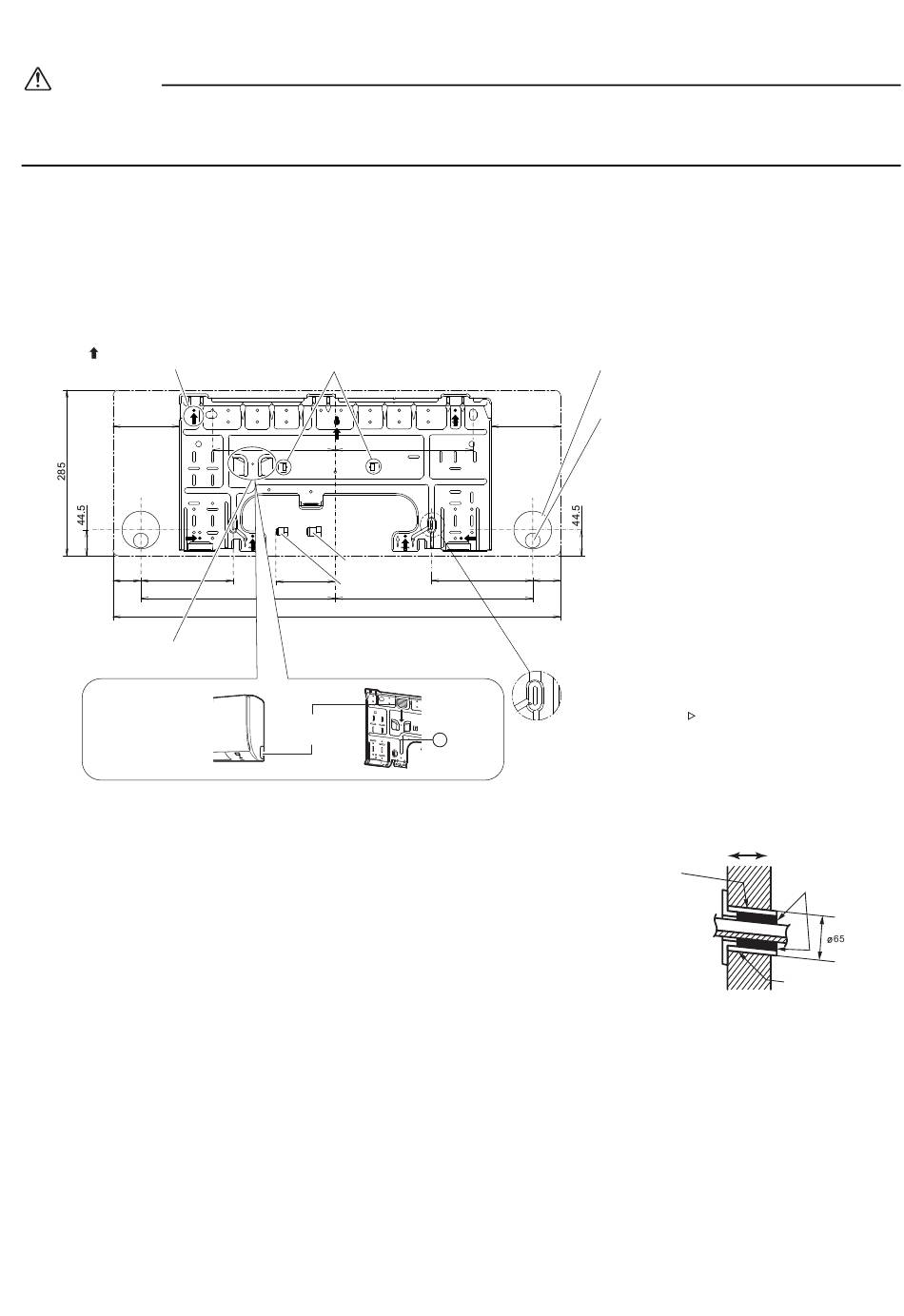

Recommended mounting plate retention spots and dimensions
Recommended mounting plate
retention spots (7 spots in all)
117
48 170
Place the pipe port cover
in this pocket.
The removed pipe
port cover can be
kept in the mounting
plate pocket.
2.
Boring a wall hole and installing wall embedded pipe
• For walls containing metal frame or metal board, be sure to use a wall
embedded pipe and wall cover in the feed-through hole to prevent possible
heat, electrical shock, or fire.
• Be sure to caulk the gaps around the pipes with caulking material to
prevent water leakage.
1) Bore a feed-through hole of 65mm in the wall so it has a down slope
toward the outside.
2) Insert a wall pipe into the hole.
3) Insert a wall cover into wall pipe.
4) After completing refrigerant piping, wiring, and drain piping, caulk pipe hole gap with putty.
English
Place a leveler
on these tabs.
213 237
Gas pipe end
230
Liquid pipe end
337
770
Removed pipe
port cover
116.5
A
170 48
337
Use a tape measure
as shown.
Position the end of
the tape measure at
A
Mounting
plate
Through-the-wall
hole Ø65
Drain hose position
.
Inside Outside
Wall embedded pipe
(field supply)
Wall hole cover
(field supply)
Caulking
Wall embedded pipe
(field supply)
