HOW TO CONNECT YOUR SPEAKERS
Step 1: If the PA system is turned on, turn it off before making any connection.
Step 2: Connect the speaker to the 100 V output of the PA amplifier (black clamp = negative
pole).

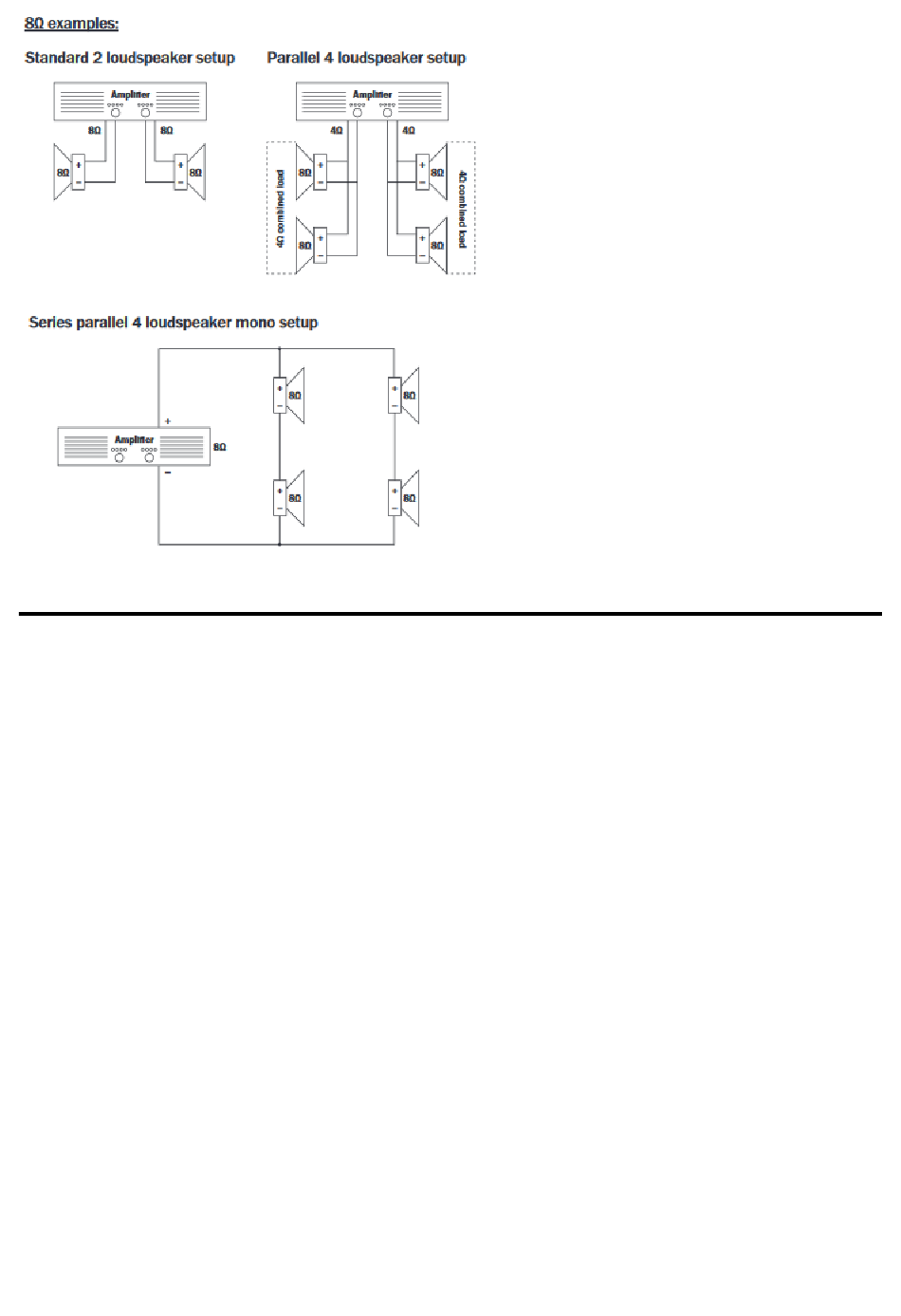

Step 3: Alternatively it is possible to connect the speaker to a low-impedance amplifier output.
Step 4: When connecting several speakers, make sure that all speakers have the same polarity
and that the amplifier is not overloaded.
Step 5: Adjust the rotary switch to the desired power rating for the 100 V operation or select the
8 Ωposition, for directly operating the speaker at a low-impedance amplifier output.
5
