 Connect the (+) wire to the red connecter on the speaker
 Connect the (‐) wire to the black connecter on the speaker
Use the switch on the back of the speaker to chose output power. The speakers can be used on either
8 Ohm or 100V line systems with 4W, 8W, 16W and 30W taps available for 100V use.

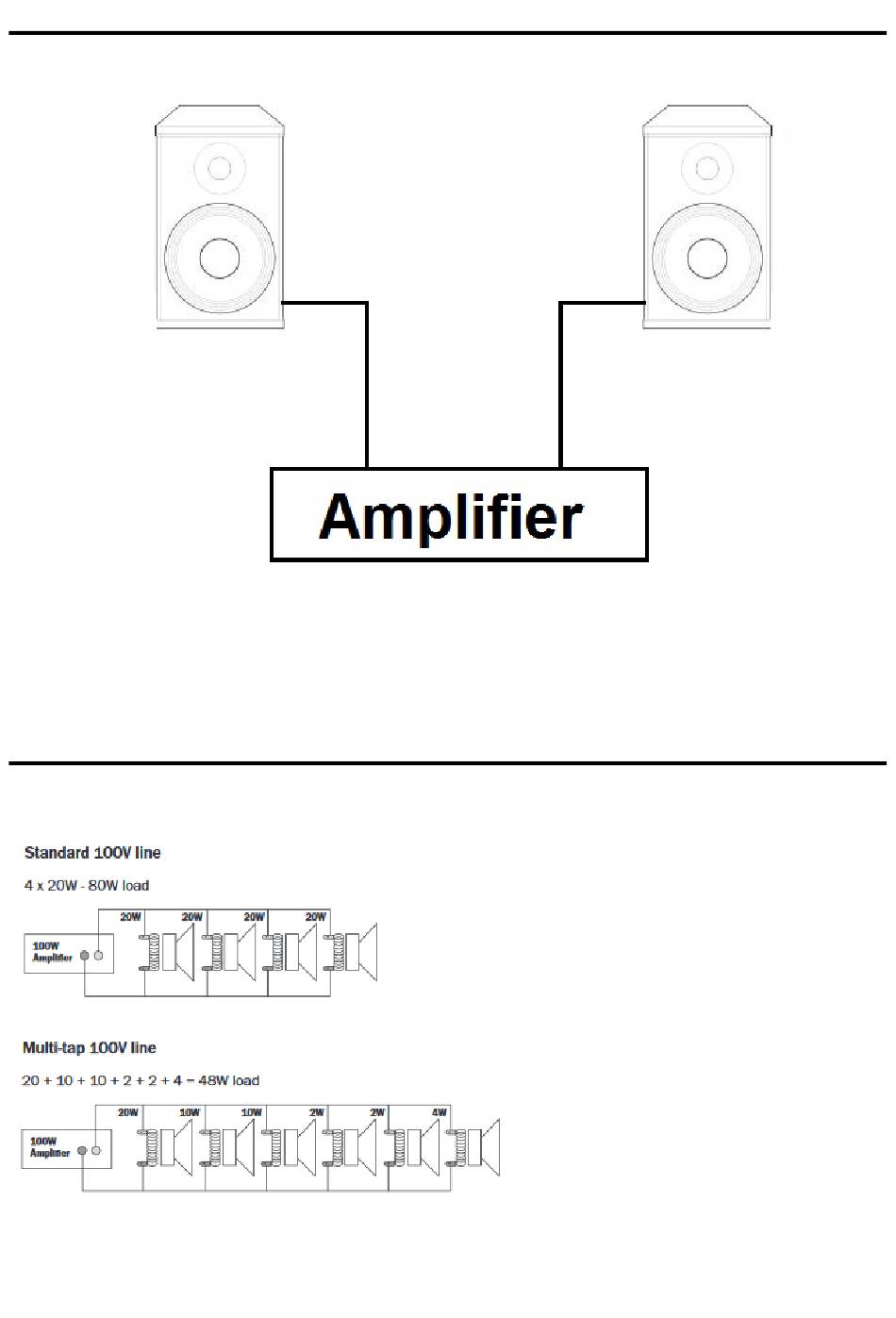

BASIC CONNECTIONS

100V CONNECT EXAMPLES
