Eminent CamLine Pro EM6331 Manual

Pan/tilt full hd ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EM6331

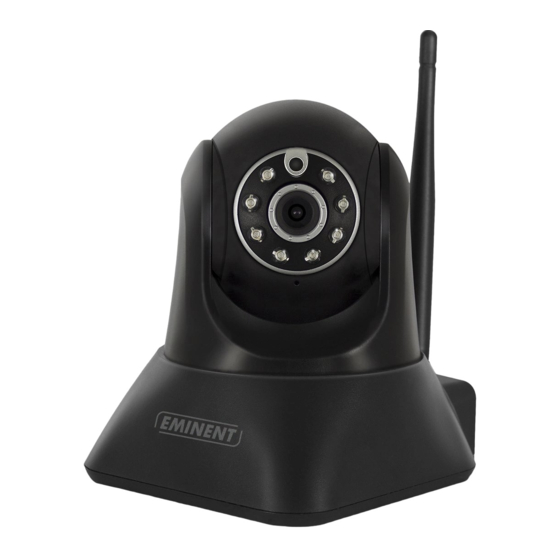

CamLine Pro Pan/Tilt Full HD IP camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CamLine Pro EM6331 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eminent CamLine Pro EM6331

Summary of Contents for Eminent CamLine Pro EM6331

  • Page 1 EM6331 CamLine Pro Pan/Tilt Full HD IP camera...

  • Page 2: Table Of Contents

    ENGLISH EM6331 – CamLine Pro Pan/Tilt Full HD IP camera Table of contents 1.0 Introduction ......................3 1.1 Packing contents ....................4 1.2 Requirements to access the camera..............4 1.3 Hardware components..................4 2.0 Installing the camera ..................... 6 2.1 micro SD-Card installation .................

  • Page 3: Introduction

    11.0 Warning and points of attention ................. 43 12.0 Warranty conditions ................... 45 1.0 Introduction Congratulations with the purchase of this high-quality Eminent product! This product has undergone extensive testing by Eminent’s technical experts. Should you experience any problems with this product, you are covered by Eminent warranty.

  • Page 4: Packing Contents

    ENGLISH 1.1 Packing contents The following parts need to be present in the packing: • EM6331 • Power supply • Quick install guide • Network cable • Mounting bracket with screws and plugs • Window sticker • ID/Password card 1.2 Requirements to access the camera. It is very easy to access the video images of the EM6331 on your smartphone, tablet or PC.
  • Page 5 ENGLISH The major components on the back panel of the EM6331 are: 1. Power jack – this is the place to plug in the power adapter. The power needed for this EM6331 is 5V/2A, please make sure you are using the correct power adapter. 2.

  • Page 6: Installing The Camera

    ENGLISH 2.0 Installing the camera A few short and simple steps are necessary to connect and assign the camera, and to enjoy the use of the camera. Use the following steps to connect the camera. 2.1 micro SD-Card installation The video streams can be recorded and be stored onto an internal micro SD-Card. To install the micro SD-Card insert the micro SD-card into the Micro SD-card reader at the back of the camera.

  • Page 7: Connecting The Camera To Your Network Using A Network Cable

    ENGLISH 2.3 Connecting the camera to your network using a network cable This step can be skipped if you wish to configure the camera using the WiFi smart config. We advise to connect the camera first with a network cable. Once the camera works correctly, you can use your wireless network.

  • Page 8: Installing/Removing The Camera In The App On Apple/Android Device

    ENGLISH 2.5 Installing/removing the camera in the APP on Apple/Android device 1. Open “CamLine Pro”. 2. Select the “+” (A). 3. Choose for option 1,2 or 3 (B) the option that matches the best with your setup situation and press “Add camera”. 4.

  • Page 9: Remove The Video Stream From The Camera Overview In The Main Screen

    (Windows). Before you can view the video of the camera, you need to install the software ”CamLine Pro”. 1. Download the PC software from our website www.eminent-online.com 2. Unzip the file on your windows PC 3. Click the file setup.exe 4.

  • Page 10: Adding The Camera To A Wireless Network

    10 | ENGLISH 2.7 Adding the camera to a wireless network There are 3 options to connect the EM6331 to your wireless network. First option is to configure the settings by using the WiFi smart configuration, the APP settings and the third option with the PC (Windows) software settings.

  • Page 11: Connecting To Wi-Fi Using The App

    11 | ENGLISH 2.7.2 Connecting to Wi-Fi using the App. 1. Ensure the camera is connected to the network with an Ethernet cable. 2. Start the App “CamLine Pro”. 3. Make sure the camera you wish to configure to connect to the WiFi is already added to the camera list and is already listed in the camera overview.
  • Page 12 12 | ENGLISH 3. Select the camera in the camera list 4. Press from the camera view of the camera you wish to connect to the WiFi connection. 5. The settings menu will be displayed 6. Go to the Menu option “Wi-Fi setting”...
  • Page 13 13 | ENGLISH 7. Click “Search” to search for available wireless networks. 8. Select the WiFi connection you wish to connect your camera to (if the camera is recently restarted please be patient and wait for the Wireless connection to be displayed by repeatedly pressing “Search”).

  • Page 14: Viewing Images

    14 | ENGLISH 3.0 Viewing images You can view the images both on your computer and on your smartphone screen, as we explain in the sections below. Optionally, you can install the supplied software, so you can find the camera directly with your computer and make recordings with your computer.

  • Page 15: Menu Of The App

    15 | ENGLISH 4.2 Menu of the app 4 camera views APP information WiFi Smart config instruction video...

  • Page 16: Overview And Control Of The Camera

    16 | ENGLISH Android 4.3 Overview and control of the camera Portrait view...
  • Page 17 17 | ENGLISH Landscape view Press the currently displayed stream to get more options Option overview (swipe to the left to view all available options) Mute Record video (locally) Take snapshot (locally) Change video quality Manage camera pre-sets Mirror horizontally Mirror vertically Change the environments frequency Optical zoom + (only available for certain models)

  • Page 18: Settings Of The Camera

    18 | ENGLISH 4.4 Settings of the camera 1. Move camera to the top of the camera list 2. View recordings stored on the SD-card 3. View recordings stored locally 4. Camera settings 5. Remove camera from overview 4.4.1 Move camera to the top of the camera list Using this option, you can move the selected camera to the top of the camera list.

  • Page 19: View Recordings Stored On The Sd-Card

    19 | ENGLISH 4.4.2 View recordings stored on the SD-card 4.4.3 View recordings stored on the locally 4.4.4 Remove camera from overview...

  • Page 20: Camera Settings

    20 | ENGLISH 4.4.5 Camera settings 4.5 Camera settings 4.5.1 Reconnect 4.5.2 Remove this device...

  • Page 21: Reboot This Device

    21 | ENGLISH 4.5.3 Reboot this device 4.6 Advanced settings The settings of the camera are available in the menu option “Advanced settings”. 4.6.1 Camera password Here you can change the password of the camera. Set new password...

  • Page 22: Time Zone Settings

    22 | ENGLISH 4.6.2 Time zone settings Here you can change the time zone settings and DST (summertime). Select time zone Select time server Enable DST (summertime)

  • Page 23: Wifi

    23 | ENGLISH 4.6.3 WiFi Here you can set the WiFi settings for your CamLine Pro camera to connect to your WiFi Router/AP. Select WiFi network Enter WiFi password 4.6.4 Alarm settings Manage the Alarm settings. Enable/disable the motion detector. Select the event after an event has been triggered.
  • Page 24 24 | ENGLISH Change the sensitivity of the Change the sensitivity of the sound Select a Camera preset to point the motion detection. detection. camera at after an event. Android Set the sound detect sensitivity Set the motion detect sensitivity Configure the phones notification to silent, ringtone, vibrate or Ringtone and vibrate.

  • Page 25: Ftp Settings

    Set the server settings for your e-mail server for the camera to be able to send an e- mail on an alarm event. Eminent has added popular e-mail servers to the predefined SMTP server list. If you wish to use one of the following email providers, you can use the “>” at the server option and select the corresponding mail provider from the list.

  • Page 26: Sd Card Settings

    26 | ENGLISH The server settings will be entered you still need to enter the displayed sender address, your e-mail user account, password and the recipient e-mail address and press “OK” If the e-mail provider is not listed, you will need to set the server settings manually. Enter the e-mail providers SMTP Select the corresponding e-mail settings.

  • Page 27: Ptz Settings

    27 | ENGLISH The following recording settings are available: 1. Format SD card: The SD card will be formatted (all data and recordings will be erased). 2. Alarm: The camera will start recording to the SD-card on an alarm event (Motion detection needs to be enabled).

  • Page 28: Camline Pro Pc Software

    28 | ENGLISH 5.0 CamLine Pro PC software 5.1 The overview of the CamLine Pro PC software 10 11 12 13 14 15 18 19 22 23 24 25 4 16 17 20 21 1. Camera list 18. Horizontal mirroring 2.

  • Page 29: Software Settings

    29 | ENGLISH 5.2 Software settings 5.2.1 Software settings • Run at start up (Software will start automatically after Windows is started). • Use last viewed streams at start up (Show the last viewed streams at start • Exit to verify identity •...

  • Page 30: Recording

    30 | ENGLISH 5.3.2 Recording Manage the cameras recording schedule, the storage drive(s) for the recordings and the duration of the recordings.

  • Page 31: Alarm

    31 | ENGLISH 5.3.3 Alarm Change the settings and events on an alarm event and press “Apply” FTP settings Set the settings for a FTP server for the camera to be able to save the snapshots and video recordings (for video recording micro SD card should be installed) to the FTP server on an alarm event.

  • Page 32: Wifi Setting

    32 | ENGLISH 5.3.4 WiFi setting 5.3.5 Date/Time Set the time and time zone or sync the time with your PC.

  • Page 33: Device Settings

    33 | ENGLISH 5.3.6 Device settings Pan/Tilt: Change the settings for the Pan/Tilt feature Network: Here you can set the network settings of the camera manually.
  • Page 34 34 | ENGLISH SD card: Set the recording settings for the SD card. Playback recordings on the SD card and format the SD card. The following options are available: Alarm recording: Starts recording if movement is detected Full time recording: Will record continuously No recording: No recording Format SD: The SD card will be formatted (all data and recordings will be deleted from the SD card).
  • Page 35 35 | ENGLISH Power: Change the environments power frequency ONVIF: Change the Onvif settings (Open Network Video Integration Forum)

  • Page 36: Playback Local Recordings

    36 | ENGLISH The ONVIF specification defines a common protocol for the exchange of information between network video devices including automatic device discovery, video streaming and intelligence metadata. Video quality: Change video settings 5.4 Playback local recordings Open the Playback feature by pressing the button.
  • Page 37 37 | ENGLISH 5. Select the day you wish to playback. 6. Below the camera overview you will see different markings in the time bar, these are markings of the time periods the CamLine Pro software has found local recordings. 7.

  • Page 38: Pan/Tilt

    38 | ENGLISH Playback function bar: 7 8 9 10 11 12 13 14 1. Play 2. Stop 3. Next 4. Stop all 5. Mute 6. Volume 7. Snapshot 8. Clear selection 9. Synchronize time 10. Backup 11. Open a file 12.

  • Page 39: The Webpage Of The Camera

    ENGLISH 6.0 The webpage of the camera The Eminent camera is also an IP camera with its own webpage. This means you can login to the webpage by using the camera’s IP Address. Use the following steps to login to the webpage and change any of the camera settings.

  • Page 40: The Layout Of Camline Pro

    40 | ENGLISH 6.2 The layout of CamLine Pro Change video resolution Pan/Tilt control Hor. & vert. Patrol Go to preset Save preset Settings menu The menu options are the same as the settings menu of the PC software except for FTP service settings and Maintenance.

  • Page 41: Alarm Settings

    41 | ENGLISH 6.4 Alarm settings In this setup menu you can determine what should happen if an alarm event is triggered. You can choose from the following options: • E-mail alarm: An e-mail will be send to an e-mail recipient on an alarm event. •...

  • Page 42: Restore Factory Settings

    42 | ENGLISH 7.0 Restore factory settings For some reason, for example you forgot the web login password, you may want to set the EM6331 to the factory default settings. The only thing you need to do is using a stick to press the “reset”...

  • Page 43: Upgrade Device Firmware

    The latest Frequently asked questions for your product can be found on the support page of your product. Eminent will update these pages frequently to assure you have the latest information. Visit www.eminent-online.com for more information about your product.
  • Page 44 A power socket is needed which should be close and easy accessible from the device. Repairing of the device should be done by qualified Eminent staff. Never try to repair the device yourself. The warranty immediately voids when products have undergone self-repair and/or by misuse.

  • Page 45: Warranty Conditions

    Eminent warranty. Products are not covered by the Eminent warranty when exposed to incorrect/improper use, external influences or when opening the service parts of the product by parties other than Eminent.
