User's manual
w w w.v t e c h p h o n e s . c o m
Models:
LS6315/LS6315-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DECT 6.0 LS6315 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for VTech DECT 6.0 LS6315 Series

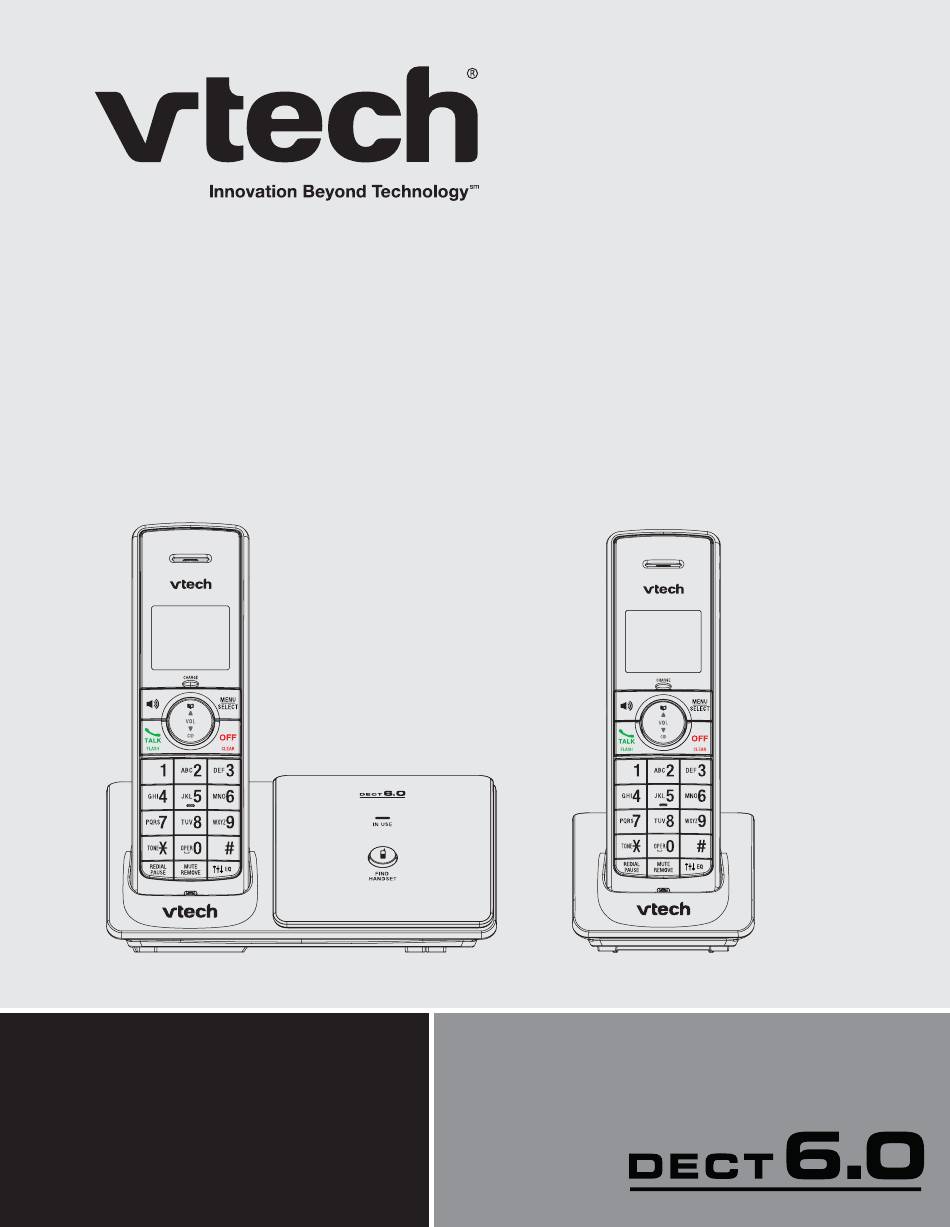

  • Page 1 User’s manual w w w.v t e c h p h o n e s . c o m Models: LS6315/LS6315-2...
  • Page 2 Important safety instructions on page 51 of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product.
  • Page 3 Table of contents Getting started ......1 Find handset........18 Call waiting ........18 Parts checklist ......... 1 Equalizer........18 Telephone base and charger installation........2 Chain dialing........19 Battery installation ......3 Redial list........20 Battery charging......4 Dial a redial entry ......20 Installation options ......
  • Page 4: Table Of Contents

    Table of contents Save a call log entry to the directory ....... 37 Delete from the call log ....38 Call log display screen messages........38 Appendix........39 Handset display screen messages........39 Handset and telephone base indicators ........41 Battery...........
  • Page 5 Getting started Parts checklist Your telephone contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Telephone base Battery Telephone Battery line cord power adapter (1 for LS6315, 2 for LS6315-2) compartment cover (1 for LS6315, 2 for LS6315-2) Charger and charger adapter Handset...
  • Page 6 Getting started Telephone base and charger installation Install the telephone base and charger(s) as shown below. Make sure that the electrical outlet is not controlled by a wall switch. If you subscribe to DSL (digital subscriber line) high-speed Internet service through your telephone line, you must install a caller ID problems caused by DSL interference.
  • Page 7 Getting started Battery installation Install the battery as shown below. If the battery compartment cover is on the handset, press on the indentation and slide the cover to remove. Plug the battery connector securely into the socket inside the handset battery compartment, matching the color-coded label.
  • Page 8 Getting started Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use.
  • Page 9 Getting started Installation options Your telephone base is ready for tabletop use. If you want to mount your telephone on a wall, use the provided wall-mount bracket to connect with a standard dual-stud telephone wall-mounting plate. If you do not have this mounting plate, you can purchase one from many hardware or consumer electronics retailers.
  • Page 10 Getting started Wall-mount to tabletop installation If the telephone line cord and power adapter cord are bundled, untie Slide the black wall-mount bracket up and remove it from the wall plate. power adapter from the power outlet. Slide the telephone base up and remove it from the wall-mount bracket. See Telephone base and charger installation on page 2.
  • Page 11 Getting started Telephone base layout IN USE light Flashes when there is an incoming call, or another telephone sharing the same line is in use. On when the handset /FIND HANDSET is in use. Press to page all system handsets (page 18).
  • Page 12 Getting started Handset layout CHARGE light On when the handset is charging in the telephone base or charger (page 3). VOL/ (volume/directory) Press to enter the directory when the telephone is not in use (page 31). While in a menu, press to scroll up. During a call, press to increase the listening volume (page 16).
  • Page 13: The Directory

    Appendix Handset display screen messages The telephone number entered is already Already saved stored in the directory. There are no call log entries. Cal l log empty Calling another handset. Cal ling handset X (for models with three or more handsets) Cal ling other handset (for models with two handsets) There are no directory entries.
  • Page 14 Appendix Handset display screen messages Communication between handset and No signal, telephone base is lost during a call. cal l ended One handset is already viewing the call Not available log or directory and another handset at this time attempts to review it. The handset cannot communicate with Out of range OR the telephone base.
  • Page 15: Handset And Telephone Base Indicators

    Appendix Handset and telephone base indicators Handset lights On when the handset speakerphone is in use. CHARGE On when the handset is charging in the telephone base or charger. Telephone base lights IN USE On when the telephone line is in use. On when you are registering a handset.
  • Page 16: Battery

    Appendix Battery It takes up to 16 hours for the battery to be fully charged. When it is fully charged, you can expect the following performance: Operation Operating time While in handset use (talking*) Up to seven hours While in speakerphone mode (talking*) While not in use (standby**) Up to seven days *Operating times vary depending on your actual use and the age of the battery.
  • Page 17: Expand Your Telephone System

    Appendix Expand your telephone system The handsets provided with your telephone system are pre-registered. Each handset is assigned a number that shows on the handset display. Additional handsets registered to the telephone system are assigned in sequential order. For instance, if the telephone system already has HANDSET 1 and HANDSET 2, the new registered handset is assigned HANDSET 3.
  • Page 18: Replace A Handset

    Appendix Replace a handset If you want to replace a handset or re-assign the designated handset number of a registered handset, you must deregister all the handsets and then individually register each handset. To make deregistration easier, read all of the instructions on this page before you begin.
  • Page 19: Troubleshooting

    Appendix Troubleshooting For Customer Service, visit our website at www.vtechphones.com, or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or dial 1 (800) 267-7377. My telephone does not work at all. • Make sure the battery is installed and charged correctly (page 3-4). For optimum daily performance, return the handset to the telephone base or charger after use.
  • Page 20 Appendix Troubleshooting Low battery shows on screen. • Place the handset in the telephone base or charger for recharging. • Remove and reinstall the battery and use it until fully depleted, then recharge the handset in the telephone base or charger for up to 16 hours. •...
  • Page 21 Appendix Troubleshooting • Test a working telephone at the telephone wall jack. If another telephone has the same problem, the problem is in the telephone wall jack. Contact your telephone service provider. • The telephone line cord may be malfunctioning. Install a new telephone line cord. •...
  • Page 22 Appendix Troubleshooting • The location of your telephone base can impact the performance of your cordless phone. For better reception, install the telephone base in a centralized location within elevating the telephone base improves overall performance. • Disconnect the telephone base from the telephone wall jack and plug in a corded telephone.
  • Page 23 Appendix Troubleshooting The telephone does not receive caller ID or the telephone does not show caller ID during call waiting. • Make sure you subscribe to caller ID with call waiting features provided by your telephone service provider. • The caller may not be calling from an area which supports caller ID. •...
  • Page 24 Appendix Troubleshooting I cannot retrieve voicemail messages. • If you subscribe to voicemail service from your telephone service provider (charges may apply), contact your telephone service provider for more information on how to access your voicemail. I subscribe to a non-traditional telephone service that uses my computer to establish connections, and my telephone doesn’t work.
  • Page 25: Important Safety Instructions

    Appendix Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
  • Page 26: Precautions For Users Of Implanted Cardiac Pacemakers

    Appendix Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that: Pacemaker patients •...
  • Page 27: Maintenance

    Appendix Maintenance Taking care of your telephone Your cordless telephone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it. Avoid water Your telephone can be damaged if it gets wet.
  • Page 28: About Cordless Telephones

    VTech product service centers. Please call 1 (800) 8 BATTERY for information on Ni-MH battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its commitment to protecting our environment and conserving natural resources. ®...
  • Page 29: Warranty

    Warranty What does this limited warranty cover? The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with the Product operating instructions.
  • Page 30 Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential, or similar damages (including, but not cost of substitute equipment, and claims by third parties) resulting from the use of this Product.
  • Page 31: Fcc, Acta And Ic Regulations

    Appendix FCC, ACTA and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation.
  • Page 32 Appendix FCC, ACTA and IC regulations (continued) This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected.
  • Page 33 Appendix Frequency Crystal controlled PLL synthesizer Control Transmit Handset: 1921.536-1928.448 MHz frequency Telephone base: 1921.536-1928.448 MHz Channels Nominal Maximum power allowed by FCC and IC. Actual operating range effective range might vary according to environmental conditions at the time of use. Size Handset: 6.35 X 1.83 X 1.16 in (161.38 X 46.40 X 28.39 mm) Telephone base: 6.11 X 3.54 X 2.75 in (155.20 X 90.00 X 69.90 mm)
  • Page 34: Index

    Index About cordless telephones 54 FCC, ACTA and IC regulations 57 Add a handset 43 Find handset 18 Alphabetical search 31 Answer a call 16 Answer an incoming call during an Handset display screen messages 39 intercom call 21 Handset icons 41 Handset lights 41 Home area code 14 Battery 4...
  • Page 35 Index Redial list 20 Register a handset 43 Replace a handset 44 Review the call log 35 Ringer tone 11 Ringer volume (handset) 11 Ringer volume (telephone base) 11 Save a call log entry to the directory 37 Search the directory 31 Share an outside call 22 Silence the ringer 17 Speakerphone 16...
  • Page 36 A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, Oregon 97008 Distributed in Canada by VTech Technologies Canada, Ltd., Richmond, B.C. V6W 1L5 Copyright © 2009 for VTECH TELECOMMUNICATIONS LTD. Printed in China.
