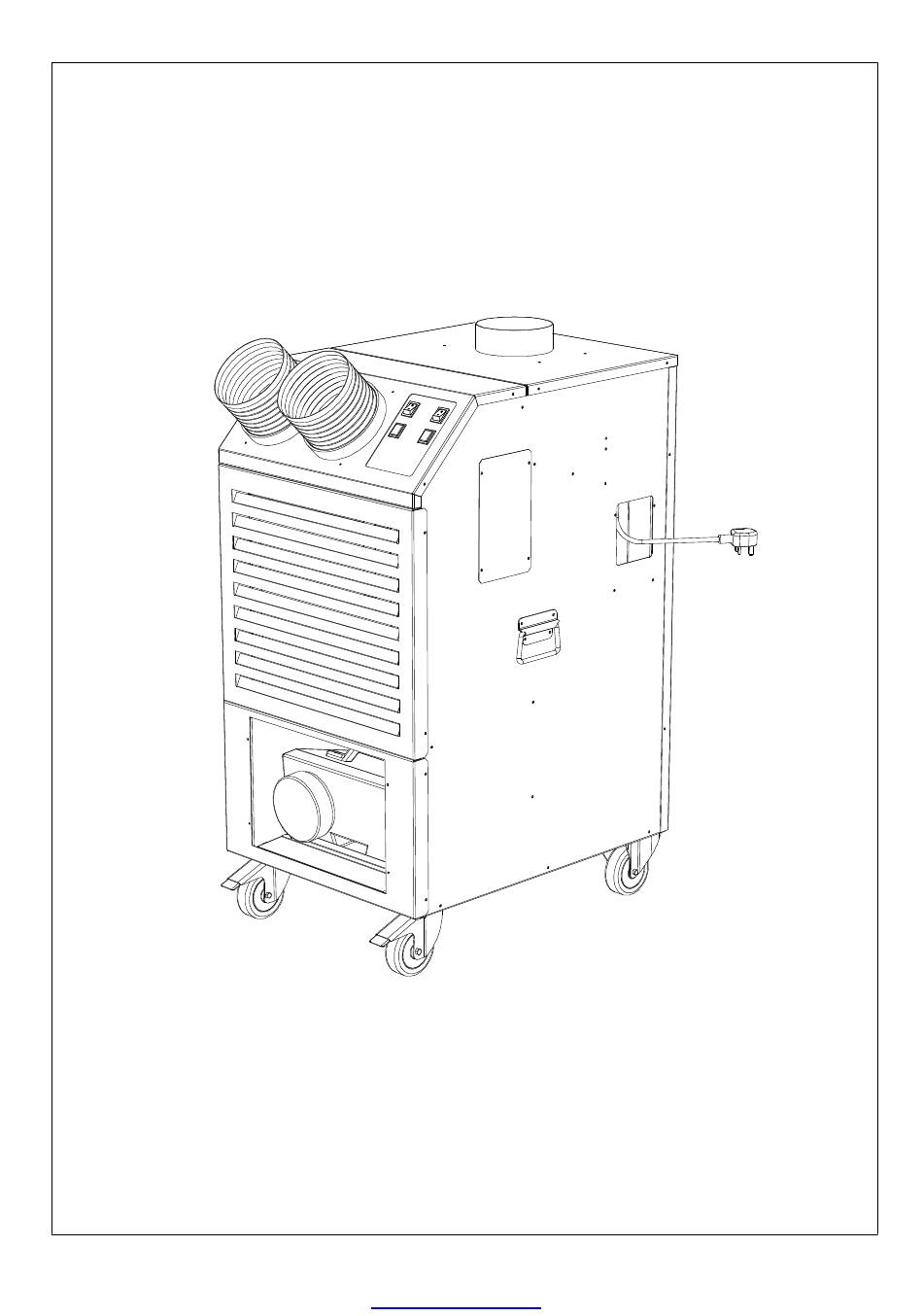

- Page 1 MCM230 MCM230 POWERDUCT PORTABLE AIR CONDITIONER. PRODUCT MANUAL. PDF created with pdfFactory trial version www.pdffactory.com...
- Page 2 WARNINGS These instructions should be read by: The specifying engineer. The installation engineer. The user. The service engineer. • Failure to follow these instructions may result in risk of personal injury or damage to the equipment. • Damage due to a failure to follow these instructions will invalidate the warranty.
- Page 3 Set up and operation: • The unit is designed to operate between 21 C and 35 C. Operation outside of these temperatures could cause compressor failure and will invalidate the warranty. If the temperature in the room is above 35 C it is recommended that all the doors and windows are opened and the unit run on Fan only to reduce the temperature.
- Page 4 Operation and controls: Cooling on Fans on rocker switch rocker switch Exhaust Tank full discharge lamp Discharge hoses Power on lamp Water drain tank Locking castors Optional Thermostat: The MCM230 may come with an optional thermostat. To achieve maximum cooling capacity rotate the thermostat fully anti-clockwise.
- Page 5 Maintenance: 1: Check and clean the evaporator and condenser heat exchanger coils. Build up of dust and dirt can severly effect the performance of the machine. Remove the front and rear panels and clean with compressed air. 2: Periodically check the water tank drain mechanism is operating correctly and the drain hose is present and in good condition.
- Page 6 Exploded view: PDF created with pdfFactory trial version www.pdffactory.com...
- Page 7 Spare Parts: ITEM No PART No DESCRIPTION PRICE BW0201220 TOP REAR PANEL FA010304 CONDENSER FAN BW0201221 CENTRE PANEL BW0201222 REAR PANEL FR030211 CONDENSER COIL FR010122 COMPRESSOR EL020108 MAINS CABLE ME040305 TRUNK HANDLE BW0201223 RIGHT SIDE PANEL ME010211 100mm FIXED CASTOR BW0201224 BASE PANEL ME010212...
- Page 8 PDF created with pdfFactory trial version www.pdffactory.com...
