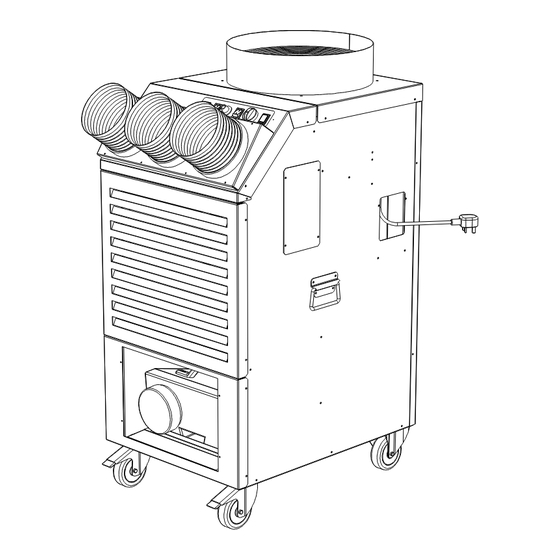

- Page 1 MCM280 MCM280 PORTABLE AIR CONDITIONER. PRODUCT MANUAL. PDF created with pdfFactory trial version www.pdffactory.com...
-
Page 2: Specifications
• Minimum operating temperature 21 C. Specifications: The MCM280 is a Mono-block portable air conditioning unit. It is connected to a 13 Amp. 230Vac. 50Hz (60Hz on selected models)power supply and comes fitted with a fused uk moulded plug. It is recommended that the supply to the machine should be protected by a 30mA RCD PDF created with pdfFactory trial version www.pdffactory.com... -
Page 3: Setup And Operation
Set up and operation: • The unit is designed to operate between 21 C and 35 C. Operation outside of these temperatures could cause compressor failure and will invalidate the warranty. If the temperature in the room is above 35 C it is recommended that all the doors and windows are opened and the unit run on Fan only to reduce the temperature. -
Page 4: Operation And Controls
Operation and controls: Cooling on Variable fan rocker speed switch controller Fans on rocker switch Power on Thermostat lamp Tank full lamp Discharge hoses Exhaust discharge Water drain Locking castors tank PDF created with pdfFactory trial version www.pdffactory.com... -
Page 5: Maintenance
Maintenance: 1: Check and clean the evaporator and condenser heat exchanger coils. Build up of dust and dirt can severly effect the performance of the machine. Remove the front and rear panels and clean with compressed air. 2: Periodically check the water tank drain mechanism is operating correctly and the drain hose is present and in good condition. -
Page 6: Exploded View

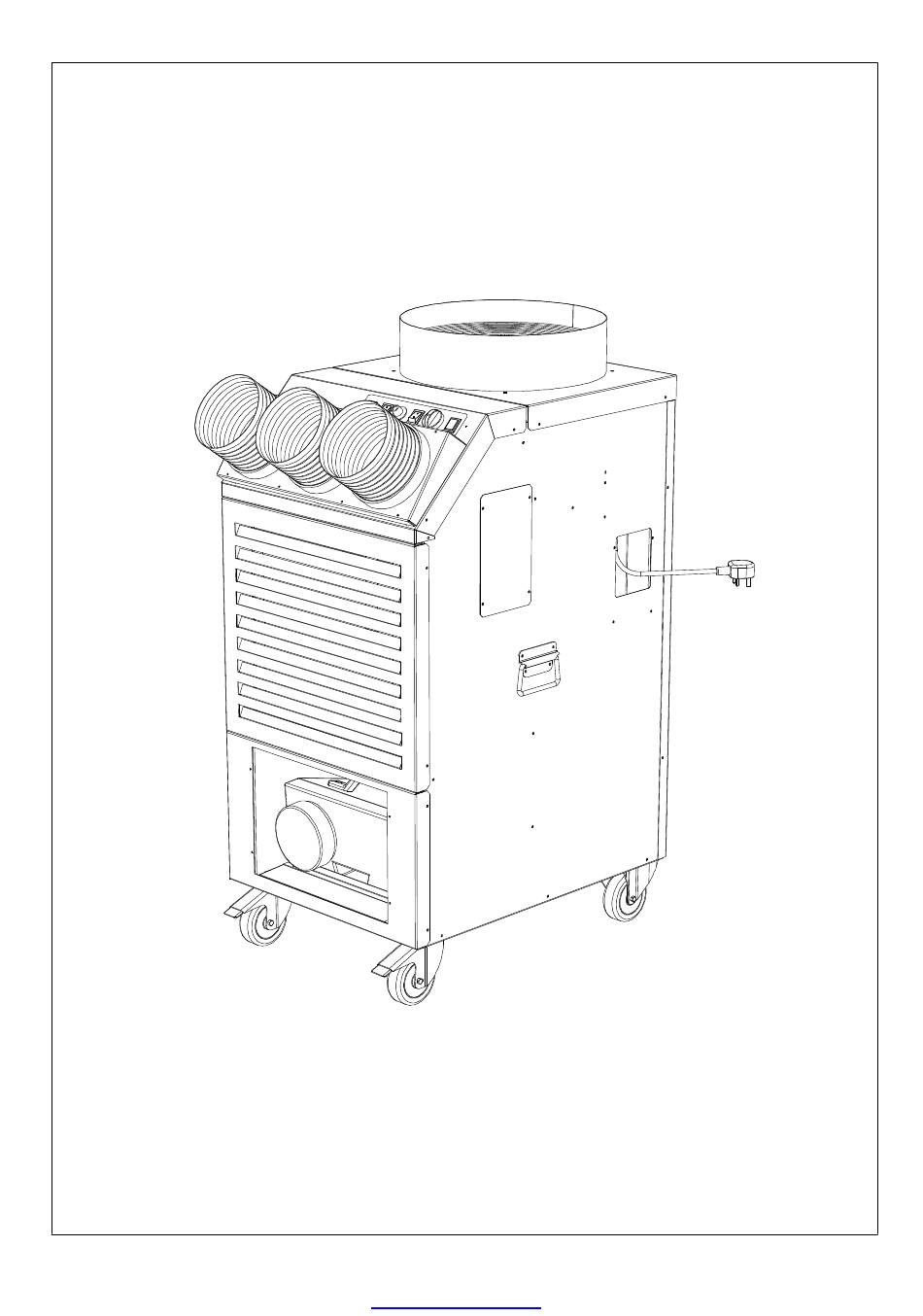

Exploded view: PDF created with pdfFactory trial version www.pdffactory.com... -
Page 7: Spare Parts
Spare Parts: ITEM No PART No DESCRIPTION PRICE BW0201219 TOP REAR PANEL FA010124 CONDENSER FAN BW0201221 CENTRE PANEL BW0201222 REAR PANEL FR030211 CONDENSER COIL FR010123 COMPRESSOR EL020108 MAINS CABLE ME040201 CABLE GLAND AND LOCKNUT ME040305 TRUNK HANDLE BW0201223 RIGHT SIDE PANEL ME010211 100mm FIXED CASTOR ME010212... - Page 8 PDF created with pdfFactory trial version www.pdffactory.com...
