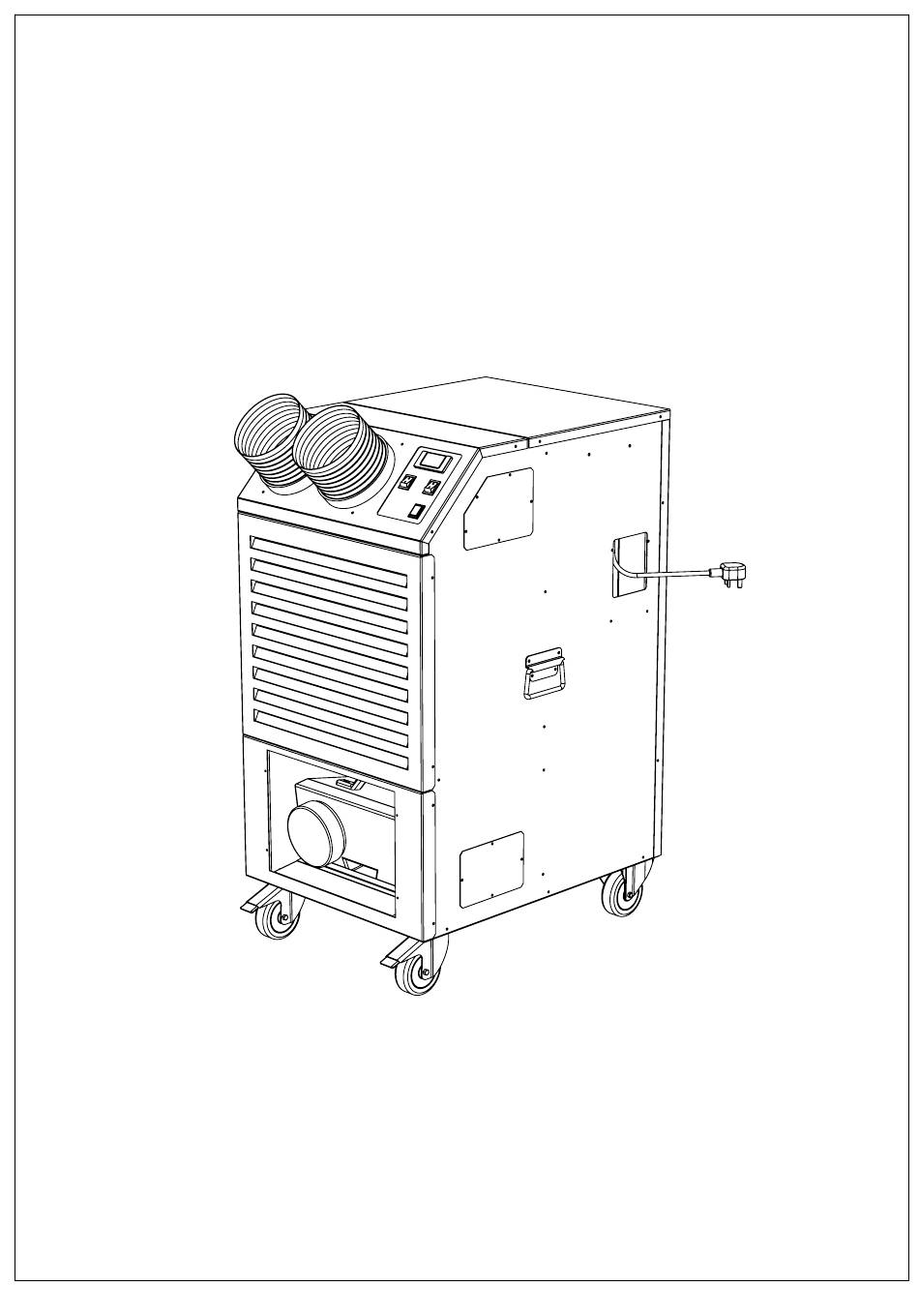

- Page 1 MCe 6.0-21 MCe 6.0-21 PORTABLE AIR CONDITIONER. PRODUCT MANUAL. SHEET 1 OF 13...
- Page 2 TABLE OF CONTENTS • Warnings and important information-------------------------------------------P3-4 • Technical specification--------------------------------------------------------------P4 • Set up and operation-----------------------------------------------------------------P5-6 • Setting the digital thermostat-----------------------------------------------------P7 • Control diagrams----------------------------------------------------------------------P8 • Maintenance----------------------------------------------------------------------------P9-10 • Spare parts------------------------------------------------------------------------------P11-12 • Wiring diagrams-----------------------------------------------------------------------P13 SHEET 2 OF 13...
- Page 3 WARNINGS These instructions should be read by: The specifying engineer. The installation engineer. The user. The service engineer. • Failure to follow these instructions may result in risk of personal injury or damage to the equipment. • Damage due to a failure to follow these instructions will invalidate the warranty.
- Page 4 This appliance contains an A2L refrigerant classified as mildly flammable. Always read the user and service manual before operation. The minimal charge within the appliance does not require a minimum room size for safe operation. WARNING. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- Page 5 Set up and operation: To prevent transport damage the appliance is shipped with the rear exhaust spigot supplied loose. The rear exhaust spigot must be fitted before use. Tools required: N02 PZ screwdriver. Note! Spigot is offset. 4 x M5 fixings with star washers.
- Page 6 Set up and operation cont'd: • The unit is designed to operate between 21 C and 35 C. Operation outside of these temperatures could cause compressor failure and will invalidate the warranty. If the temperature in the room is above 35 C it is recommended that all the doors and windows are opened and the unit run on Fan only to reduce the temperature.
- Page 7 Setting the digital thermostat: How to see the set point: • The set point is the minimum temperature the air-conditioner will operate down to. • To see the set point push and immediately release the SET key: the display will show the set point value.
- Page 8 Operation and controls: Digital controller Cooling on rocker switch Fans on rocker switch Control panel. Tank full Discharge lamp hoses Exhaust spigot Water drain Locking castors tank SHEET 8 OF 13...
- Page 9 Maintenance and upkeep: Maintenance and service work should only be carried out by competent technicians with experience and qualifications in the handling of A2L refrigerants. The appliance should always be disconnected from the power supply before any work is carried out. Before maintenance work is carried out all technicians should: a) Carry out safety checks to ensure the risk of ignition is minimised.
- Page 10 Routine checks: 1: Check and clean the evaporator and condenser heat exchanger coils. Build up of dust and dirt can severly effect the performance of the machine. Remove the front and rear panels and clean with compressed air. 2: Periodically check the water tank drain mechanism is operating correctly and the drain hose is present and in good condition.
- Page 11 Exploded view: SHEET 11 OF 13...
- Page 12 Spare Parts: SHEET 12 OF 13...
- Page 13 MCe 6.0-21 Wiring diagram SHEET 13 OF 13...
