Page 1: User Manual

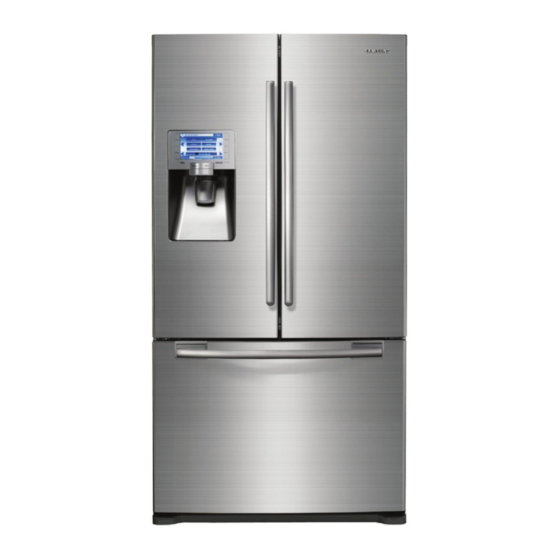

RFG299 ** Refrigerator user manual English imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register... -
Page 2: Water Filtration System
Features of your new Refrigerator KEy FEatuREs oF youR nEw REFRiGERatoR Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient features. • twin Cooling system The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system, the Freezer and Refrigerator cool more efficiently. -
Page 3: Safety Information
Safety Information saFEty inFoRMation Before using your new Samsung French Door Refrigerator, please read this manual thoroughly to ensure that you know how to safely and efficiently operate the features and functions that your new appliance offers. Because the following instruction covers various models, the characteristics of your Refrigerator may differ slightly from the Refrigerator described in this manual. - Page 4 Safety Information Do not put undue stress on the power cord or place heavy articles on it. • Placing heavy articles on the power cord may create the risk of explosion or fire. Do not insert the power plug with wet hands. • It may cause electric shock.
- Page 5 Refrigerator immediately and contact your samsung Electronics service Center. after your Refrigerator is in operation, do not touch the cold surfaces in the Freezer compartment.
- Page 6 • Wipe excess moisture from the inside and leave the doors open to keep odor and mold from developing. Service warranty and Modification • Any changes or modifications performed by a 3rd party on this finished appliance is not covered under Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party modifications. Children can get trapped inside Refrigerators. Before you throw away your old Refrigerator or Freezer, make sure that you;...
-
Page 7: Table Of Contents
Contents SETTING UP YOUR FRENCH DOOR REFRIGERATOR OPERATING YOUR SAMSUNG FRENCH DOOR REFRIGERATOR TROUBLESHOOTING 08 Getting ready to install the refrigerator 09 Removing the refrigerator doors 11 Disassemble the freezer drawer 12 Reattaching the refrigerator doors 14 Assemble the freezer drawer 15 Adjusting the doors 16 Making minor adjustments between doors... -
Page 8: Setting Up Your French Door Refrigerator
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways (both width and height), thresholds, ceilings, stairways, etc. The following chart details the exact height and depth of Samsung French Door Refrigerator. MoDEL... -
Page 9: Setting Up The Refrigerator
sEttinG uP tHE REFRiGERatoR Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and functions of the appliance. By completing the following steps, your Refrigerator should be fully operational. 1. - Page 10 Setting up your French Door Refrigerator 2. Disconnect two connectors ( at each side of the top cap and the one connector ( ) on left side door. Remove the tube ( ) with pressing the dark gray color part ( ) of the water line coupler.
-
Page 11: Disassemble The Freezer Drawer
DisassEMBLE tHE FREEzER DRawER 1. Take out the upper drawer by lifting it up. 2. Remove the tilting pocket( ) by pulling on both brackets( upward at the same time. 3. Take out the lower basket( ) by lifting the basket up from the rail system. -
Page 12: Reattaching The Refrigerator Doors
Setting up your French Door Refrigerator REattaCHinG tHE REFRiGERatoR DooRs assemble the Refrigerator doors 1. Reattach the lower left and right door hinges( With a Philips head screwdriver, insert and tighten the screw ( ) into the lower left and right door hinges. With a wrench(13/16”), insert and tighten the 2 hex head bolts ( ) into the lower left and right door... - Page 13 Setting up your French Door Refrigerator REattaCHinG tHE REFRiGERatoR DooRs 4. Connect the water line ( ) and then insert a clip on the coupler with pulling tube. Connect the one connector( ) on left side door and two connectors ) at each side of the top cap.
-
Page 14: Assemble The Freezer Drawer
Setting up your French Door Refrigerator assEMBLE tHE FREEzER DRawER 1. Pull out the rails fully on each side of the cabinet. 2. Attach the freezer door front onto the open slots on the sides. 3. Tighten 4 hex head bolts completely with a socket wrench(7/16inch). 4. -
Page 15: Adjusting The Doors
aDJustinG tHE DooRs Now that the doors are back on the Refrigerator, you want to make sure the Refrigerator is level so that you can make final adjustments. If the Refrigerator is not level, it will not be possible to get the doors perfectly even. when the Left door is lower than the Right door. -
Page 16: Making Minor Adjustments Between Doors
Setting up your French Door Refrigerator MaKinG MinoR aDJustMEnts BEtwEEn DooRs Remember a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the Refrigerator. When the left door is lower than the right door. -
Page 17: Adjusting The Freezer Drawer Level
aDJustinG tHE FREEzER DRawER LEVEL Adjustment part 1. Locate the height-adjuster ( Unscrew the four Phillips screws ( 2. Loosen the controller screw( 3. Find the best level to align the door slope. After adjustment, first tighten screw( ) in the freezer drawer. ) slightly to loosen the door. -
Page 18: Checking The Water Dispenser Line
CHECKinG tHE watER DisPEnsER LinE A water dispenser is one of the helpful features on your new Samsung Refrigerator. To help promote better health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. -
Page 19: Installing The Water Line
instaLLinG tHE watER LinE Connecting the water line to the Refrigerator. There are several items that you need to purchase to complete this connection. You may find these items sold as a kit at your local hardware store. 1/4” compression nut copper tubing plastic tubing ferrule... - Page 20 Setting up your French Door Refrigerator 4. Remove the filter cap and insert the filter into the filter housing. 5. Slowly turn the water filter 90º clockwise to align with the printing mark on the cover, locking the filter in position. Make sure to align the water filter label mark with center of cover filter printing as illustrated.
-
Page 21: Operating Your Samsung
Operating your SAMSUNG French Door Refrigerator DiGitaL PanEL This refrigerator comes with an LCD touch screen which enables you to easily make many settings as well as view Photo images uploaded from a memory card. Function Processor Display Interface Graphic User Interface (GUI) is an easy access interface for users. Touch Screen allows access to all display functions. -
Page 22: Plug In
Operating your SAMSUNG French Door Refrigerator Plug in. When the refrigerator is plugged in or the reset button is pressed, the “Current Date/Time” screen will be on. How to set the time. 1. Choose the desired date and time by pressing the <... -
Page 23: Slide Show
▶ The photos for the Slide show can be selected from the ‘Photo Album’.(refer to page 35) ▶ When photos are not selected from the‘Photo Album’, the screen shows 13 photos pre-loaded by Samsung. 2. To stop the Slide show, press the [Exit] button, and then the “Home” screen will be displayed. -
Page 24: Home
Operating your SAMSUNG French Door Refrigerator Home. When the “Home” button is pressed, the panel shows the “Home” view. “Home” shows the Calendar, freezer/fridge temp, water filter status and other general functions. How to use the Home mode. 1. Choose the [Home] button. - Page 25 How to set the ice off. 1. Press the [Ice Off/Hold 3 sec for Child Lock] button for less than 3 seconds. Slide Show ▶ When pressing the [Ice Off/Hold 3 sec for Child Lock] button for more than 3 seconds, the Lock function will be activated.
-
Page 26: Child Lock
Operating your SAMSUNG French Door Refrigerator Child Lock. When the Child Lock function is activated by pressing the [Ice Off/Hold 3 sec for Child Lock] button for more than 3 seconds, all the buttons and the touch screen will not work. -
Page 27: Cooling Off
Cooling off. Cooling Off stops cooling in both the freezer and refrigerator compartments but does not shut off electrical power to the refrigerator. How to use the cooling off. 1. Press and hold the [Slide Show] button and [Lighting] button simultaneously for 3 seconds. Slide Show 2. -
Page 28: Door Open Alarm
Operating your SAMSUNG French Door Refrigerator Door open alarm. When the door is open for more than 3 minutes, it triggers the Door Open alarm sound. ▶ The alarm stops right after the door is closed. Calendar. The Calendar shows the date and indicates holidays. -
Page 29: Temp. Control
temp. Control. To change the Freezer/Fridge temperatures, refer to the following (make sure that it is not locked.) How to change the freezer and fridge temperature. Freezer 1. Choose the [Temp. Control] button. 2. Choose the desired freezer temperature using the “ “... - Page 30 Operating your SAMSUNG French Door Refrigerator How to set Power Freeze and Power Cool. The Power Freeze and Power Cool features can be used to quickly lower the temperature of the freezer or fridge. If you select the Power Freeze or Power Cool, the inside temperature of the Freezer or Fridge will decrease for about two and a half hours.
-
Page 31: Water Filter
If you use this function, energy consumption will increase. water Filter. To reduce risk of water damage to your property DO NOT use generic brands of water filters in your SAMSUNG Refrigerator. USE ONLY SAMSUNG BRAND WATER FILTERS. WARNING SAMSUNG will not be legally responsible for any damage, including, but not limited to property damage caused by water leakage from use of a generic water filter. -
Page 32: Photo Album
Replacement water Filter For a replacement water filter, you can visit your local home improvement center or contact the Samsung Parts distributor. Be sure the replacement water filter has the SAMSUNG logo on the box and on the water filter. - Page 33 The Memory slot is only for SD/SDHC/MMC/HS MMC type memory cards. ● It reads only JPEG images. ● Up to a 10 mega pixel JPEG images(3872*2592, 24bit) can be saved. ● (When images are larger than 10 mega pixel or their definitions are changed, they cannot be displayed on the screen.) If there are many photos saved on the Memory card, it will take awhile for the preview function to load.
- Page 34 Multiple selection is possible. ▶ To delete all the photos in the Photo Album, select ▶ the [Delete All] button. There are 13 photos that have been pre-loaded by ▶ Samsung. These Photos explain product features and cannot be deleted.
- Page 35 How to set the slide show. 1. Choose the [Photo Album] button. 3. The slide show preview begins with the selected photos. If the preview contains all the photos you desire ▶ for the slide show, click OK; if not, click Cancel to select more photos.
-
Page 36: Nutrition Facts
Operating your SAMSUNG French Door Refrigerator nutrition Facts. Nutrition facts about various foods is displayed. How to use the nutrition facts. 1. Choose the [Nutrition Facts] button. 3. To find a food by its first letter, select the [Search Alphabetically] button. -
Page 37: Conversions
Conversions. You can convert the current units to those you want to use. How to use the conversions. 1. Choose the [Conversions] button. 3. Choose the desired ‘Amount’ using the “ settings. You can customize the following in the Settings mode. Energy Saver, Brightness, Screen Saver, Volume Control, Touch Screen Correction, Date/Time. - Page 38 Operating your SAMSUNG French Door Refrigerator 3. After “Energy Saver Deactivated” window is displayed, the Energy Saver function is turned Off and the screen shows [Energy Saver Off]. Energy Saver Button shows the current set condition. How to set the screen brightness.
- Page 39 How to set the screen saver. When not using the panel for awhile, the Photo Album’s Slide Show feature can be set as a Screen Saver. 1. Choose the [Screen Saver] button. 2. After setting the “Screen Saver Running Time” with the “ “Screen Saver Running Time”...
- Page 40 Operating your SAMSUNG French Door Refrigerator How to set the volume control. You can control the volume of the alert sounds. 1. Choose the [Volume Control] button. 3. To apply your new settings, press [OK] button. 40_ Operating 2. Control the alert sound volume using the [Low], [High] buttons.
- Page 41 How to change the Current Date/ttime. 1. Choose the [Current Date/Time] button. 2. Choose the desired date and time. 3. To apply your new settings, press [OK] button. This product uses parts of the software from the Independent JPEG Group. ✽...
-
Page 42: Parts And Features
Operating your SAMSUNG French Door Refrigerator PaRts anD FEatuREs Use this page to become more familiar with the parts and features of the Refrigerator. Ice-Maker Foldable-Shelf Slide-Shelf Vertical Hinged Section Vegetable & Fruit Drawers Tilting Pocket When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid scratching the other door. -
Page 43: Storing Food In The Refrigerator
FooD in tHE REFRiGERatoR The Samsung French Door Refrigerator has been designed to provide you with maximum space saving features and functions. Here are some of the customized compartments we have created to keep your food fresher longer. In order to further prevent odor from seeping into the ice compartment, stored food should be wrapped securely and as airtight as possible. -
Page 44: Using The Cool Select Pantry
Operating your SAMSUNG French Door Refrigerator usinG tHE CooL sELECt PantRy™ The Cool Select Pantry™ is a full-width drawer with adjustable temperature control. This pantry can be used for large party trays, deli items, pizza, beverages or miscellaneous items. There is a temperature control which can adjust the amount of cold air allowed into the pantry. -
Page 45: Removing The Refrigerator Accessories
REMoVinG tHE REFRiGERatoR aCCEssoRiEs 1. Door Bins & Dairy Compartment To remove - Simply lift the bin up and pull straight out. To relocate - Slide it in above the desired location and push down until it stops. Injury may occur if the door bins are not firmly assembled. Do not allow children to play with bins. -
Page 46: Using The Doors
Operating your SAMSUNG French Door Refrigerator 4. Cool select Pantry™ To remove the pantry - Pull the pantry out to full extension. To relocate the pantry - Push the rails to the back of the To remove the divider - Pull the pantry completely out to full extension and raise the front side of the... -
Page 47: Removing The Freezer Accessories
REMoVinG tHE FREEzER aCCEssoRiEs 1. tilting Pocket To remove - Pull the brackets( sound and remove the pocket To replace - Hook the ends of the pocket into both brackets ) and push down until it locks into place. 2. auto Pull out Drawer To remove - Pull the drawer out to full extension. -
Page 48: Cleaning The Refrigerator
Operating your SAMSUNG French Door Refrigerator CLEaninG tHE REFRiGERatoR Caring for your Samsung French Door Refrigerator prolongs the life of your appliance and helps keep the refrigerator free of odor and germs. Cleaning the interior Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. -
Page 49: Replacing The Interior Light
Cleaning the Rubber door seals If the rubber door seals are dirty, the doors may not close properly, and the refrigerator will not operate efficiently. Keep the door seals free of dust or stain by cleaning the doors with a mild detergent and damp cloth. -
Page 50: Water Filter Chart
Operating your SAMSUNG French Door Refrigerator watER FiLtER CHaRt Performance Data Sheet For Samsung Model DA97-06317A Using Replacement Cartridge DA29-00003G This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specifi ed in NSF/ANSI 42 and 53. -
Page 51: Water Filter Certification
Operating your SAMSUNG French Door Refrigerator watER FiLtER CERtiFiCation Operating _51... -
Page 52: Food Storage Tips
Operating your SAMSUNG French Door Refrigerator FooD stoRaGE tiPs Foods Refrigerator DAIRY PRODUCTS Butter 2-3 Weeks Milk 1-2 Weeks Cream Cheese, 2-4 Weeks cheese food, and cheese spread Hard Cheese(unopened) 3-4 Months Hard Cheese(opened) 2 Months Cottage Cheese 10-15 Days... - Page 53 Operating your SAMSUNG French Door Refrigerator FooD stoRaGE tiPs Foods Refrigerator FISH AND SHELLFISH Fish Fatty Fish (mackerel, 1-2 Days trout,salmon) Lean Fish (cod, 1-2 Days flounder, etc) Frozen or Breaded Shellfish Shrimp (uncooked) 1-2 Days Crab 3-5 Days Cooked Fish or...
-
Page 54: Troubleshooting
Troubleshooting PRoBLEM The Refrigerator does not work at all or it does not chill sufficiently. The food in the Refrigerator is frozen. You hear unusual noise or sounds. The front corners and vertical hinged section of the appliance are hot and condensation is occurring. - Page 55 Troubleshooting PRoBLEM When the Display function do not work. There is nothing on the “Portable Memory Device” screen even after inserting a memory card. LCD Screen is off frequently. Afterimage appears on the screen. Border line appears on the screen. Input point in the Touch Screen is not functioning correctly.
-
Page 56: Warranty
Samsung or Samsung authorized service center. Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulatedX herein, with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products become the property of Samsung and must be returned to Samsung. - Page 57 OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL...
- Page 58 (800-726-7864) 800-SAMSUNG CANADA (800-726-7864) In an effort to promote recycling this user manual is printed on recycled paper. OR VISIT US ONLINE AT Samsung Electronics America, Inc. 85 Challenger www.samsung.com Samsung Electronics Canada Inc. Customer www.samsung.com/ca Service, 55 Standish Court Mississauga, Ontario WRITE Road Ridgefield Park, NJ 07660...
