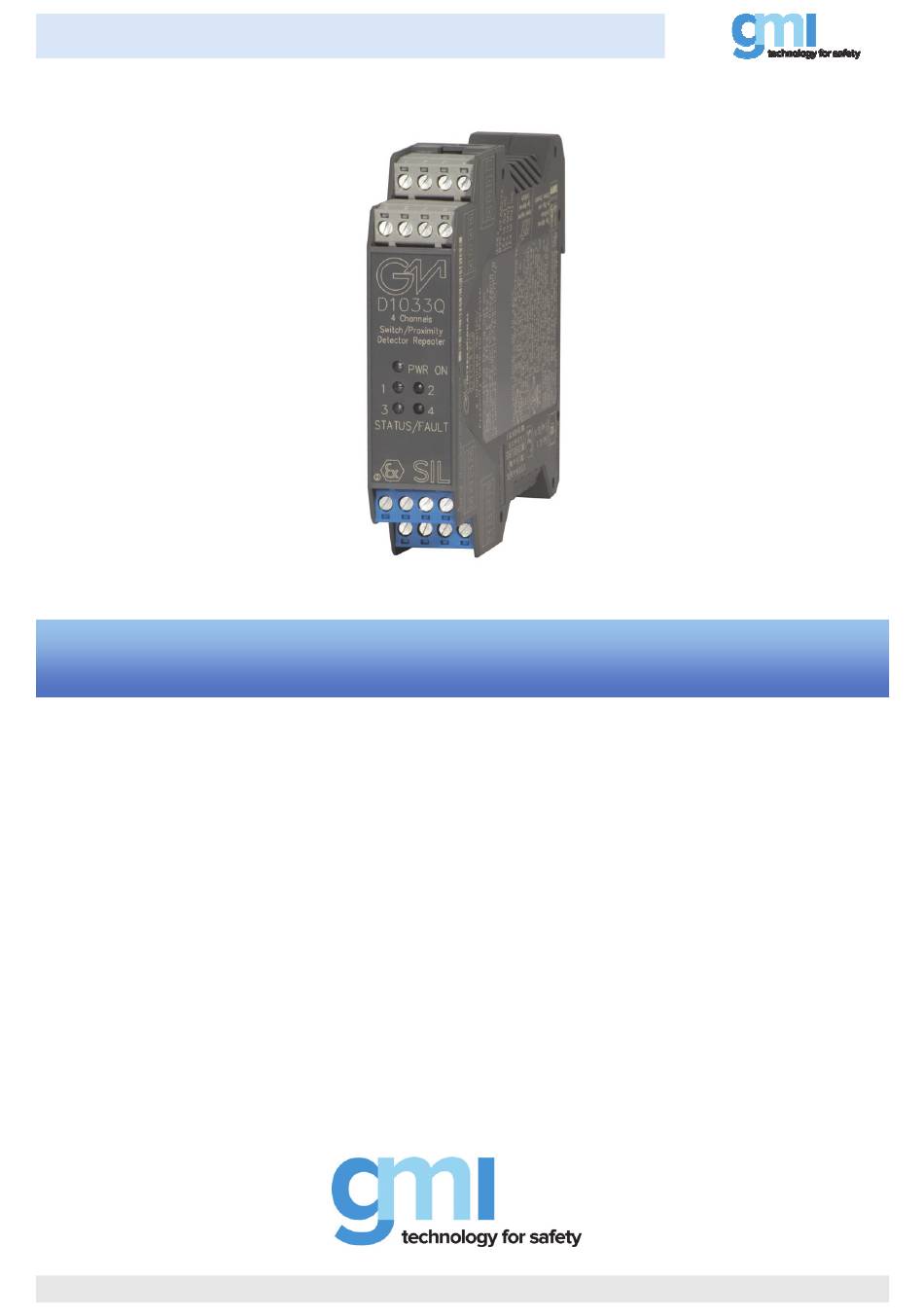

- Page 1 D1033D - D1033Q INSTRUCTION & SAFETY MANUAL SIL 2 Switch/Proximity Detector Repeater Transistor Output DIN-Rail Models D1033D, D1033Q D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output ISM0043-15...
-
Page 2: Technical Data
Power dissipation: 1.3 W for 4 channels D1033Q, 0.9 W for 2 channels D1033Q with 24 V supply voltage, input closed and transistors energized. Max. power consumption: at 30 V supply voltage, short circuit input and transistors energized, 1.5 W for 4 channels D1033Q, 1.1 W for 2 channels D1033D. -
Page 3: Ordering Information
High Density, four channels per unit. Simplified installation using standard DIN Rail and plug-in terminal blocks. 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier. G.M. International ISM0043-15 D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output... -
Page 4: Hazardous Area
(Co/Ca, Lo/La, Lo/Ro) given in the Associated Apparatus parameters for the effective gas group. See parameters on enclosure side and the ones indicated in the table below: D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output G.M. International ISM0043-15... - Page 5 For Division 1 and Zone 0 installations, the configuration of Intrinsically Safe Equipment must be FM approved under Entity Concept (or third party approved); for Division 2 installations, the configuration of Intrinsically Safe Equipment must be FM approved under non-incendive field wiring or Entity Concept (or third party approved). G.M. International ISM0043-15 D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output...
-
Page 6: Function Diagram
CLASS II, DIVISION 1, GROUPS E, F, G, CLASS III, DIVISION 1, GROUPS A, B, C, D T-Code T4, CLASS I, ZONE 2, GROUP IIC T4 CLASS I, ZONE 0, GROUP IIC MODEL D1033Q Supply 24 Vdc voltage free Proximity... - Page 7 PFDavg vs T[Proof] table (assuming Proof Test coverage of 99%), with determination of SIL supposing module contributes >10% of total SIF dangerous failures: T[Proof] = 10 years PFDavg = 1.54 E-03 - Valid for SIL 2 Systematic capability SIL 3. G.M. International ISM0043-15 D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output...
- Page 8 Open (De-energized transistor as safe state condition) Safety Function and Failure behavior: D1033Q is considered to be operating in Low Demand mode, as a Type A module, having Hardware Fault Tolerance (HFT) = 0. The failure behaviour of D1033Q is described by the following definitions: □...
- Page 9 The unit cannot be repaired by the end user and must be returned to the manufacturer or his authorized representative. Any unauthorized modification must be avoided. G.M. International ISM0043-15 D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output...
-
Page 10: Operation
On the section “Function Diagram” and enclosure side a block diagram identifies all connections and configuration DIP switches. Identify the number of channels of the specific card (e.g. D1033D is a dual channel model and D1033Q is a quad channel model), the function and location of each connection terminal using the wiring diagram on the corresponding section, as an example: Connect 24 Vdc power supply positive at terminal “3”... - Page 11 For SIL applications. Input Output Input Output IN / OUT NO-NC or Operation NC-NO Input Output Input Output NO-NO or NC-NC For SIL applications. G.M. International ISM0043-15 D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output...
- Page 12 IN / OUT NO-NC or Operation NC-NO Input Output Input Output NO-NO or NC-NC For SIL applications. D1033Q Configuration Summary Table Channel Channel IN/OUT Operation SW1-2 SW1-4 SW1-6 SW1-8 Line fault detection SW1-1 SW1-3 SW1-5 SW1-7 Disabled NO-NC or NC-NO...
- Page 13 8 positions service NO-NO or puropose. NC-NC Mode Switch Switch 4 positions 8 positions No Fault Fault ND Mode Output Switch No Fault 8 positions NC Mode G.M. International ISM0043-15 D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output...
- Page 14 Line fault detection SW1-1 SW1-5 SW1-3 SW1-7 Disabled Enabled De-energize Channel Output (only A Output section) For SIL applications. Enabled Fault Output (only B Output section) D1033 - SIL 2 Switch / Proximity Detector Repeater Transistor Output G.M. International ISM0043-15...
