Connect Tech BlueStorm/Express User Manual

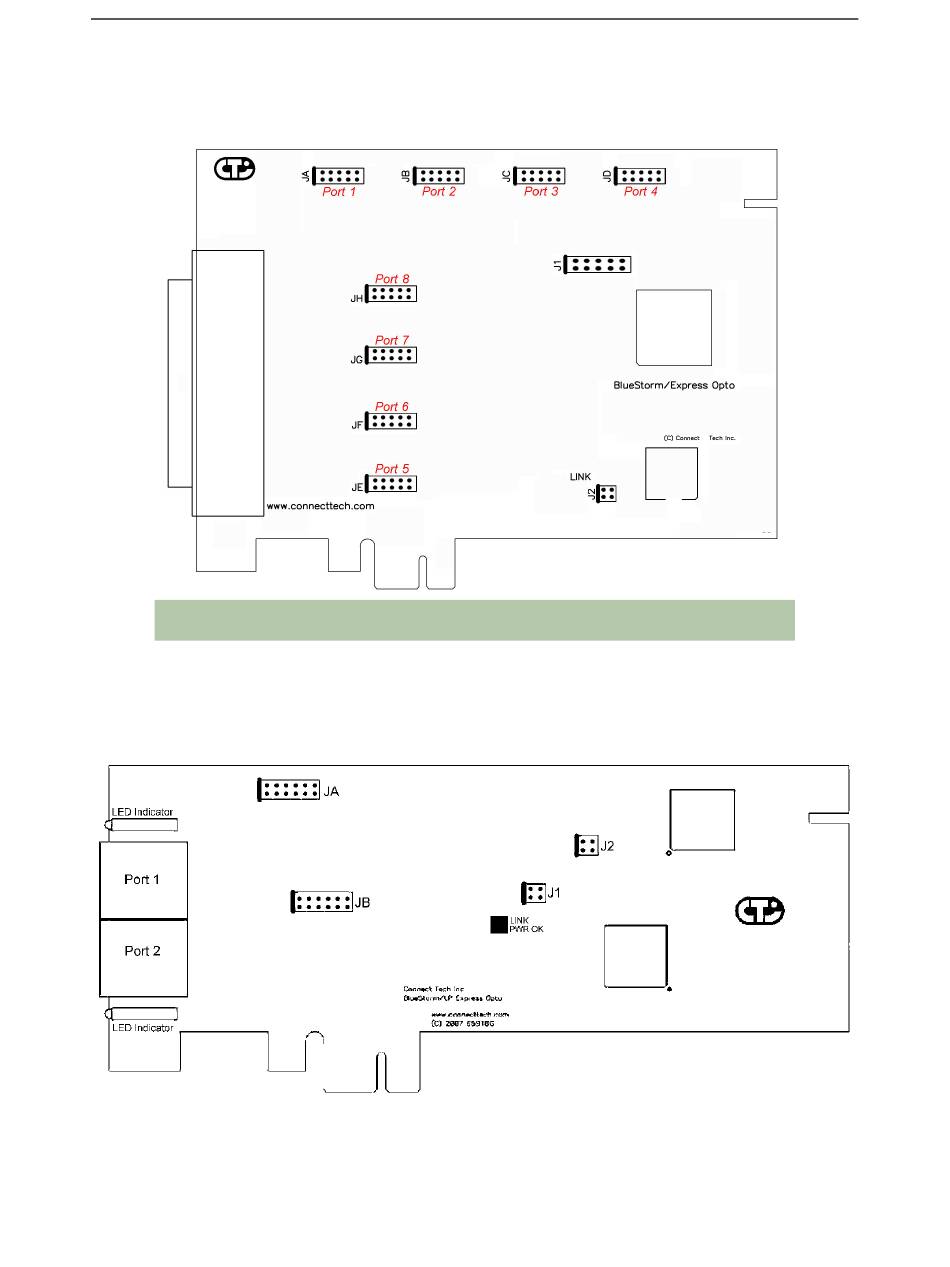

Figure 4: BlueStorm/Express Opto (1 kV) RS-232/422/485 eight port model hardware components
Note: The above example is an eight port model where ports 5 through 8 feature
1 kV optical isolation and ports 1 through 4 are non-isolated.
Figure 5: BlueStorm/Express LP Opto RS232/422/485 two port model hardware components
Port 1
10
(BBG003)
(BCG001)
Port 2
Revision 0.18
