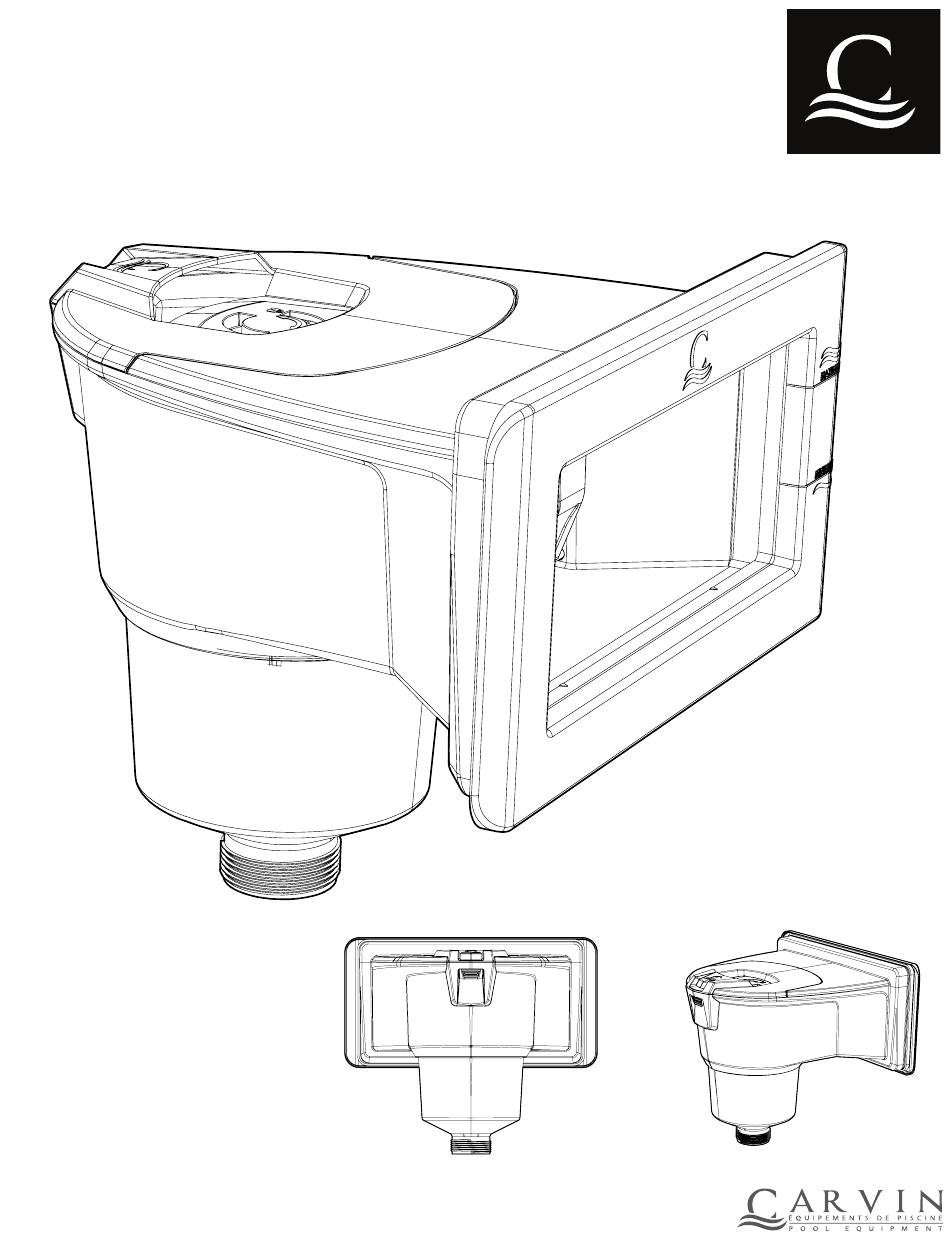

- Page 1 SKIMTECH 500 User Manual for Above-Ground skimmer CARVIN POOL EQUIPMENT | 4000 boul. Casavant Ouest, Saint-Hyacinthe, Québec, Canada, J2S 9E3 ® M22906000 EN| © 2021 Le Groupe VIF Inc. All rights reserved.
-
Page 2: Table Of Contents
This manual contains information on how to do that; please read it carefully before installing and using the pool. If a problem should arise, or if you have any questions about your product, consult an authorized CARVIN retailer or distributor. -
Page 3: Installation
CARVIN ® SKIMTECH 500| USER MANUAL INSTALLATION STEP 1 Add the sealing washer on each screw. Before starting the installation of your skimmer & return, make sure you have all the necessary tools listed below. Check the contents in the box make sure everything is there before starting your installation. - Page 4 ® CARVIN SKIMTECH 500 | USER MANUAL STEP 5 STEP 8 From the outside, aligned the skimmer body holes with the face plate holes. Insert basket from the top opening of the skimmer. Install the rest of the screws, slightly tightened, DO NOT FORGET TO ADD SEALING WASHER.
-
Page 5: Water Return Installation Steps
LINER WATER RETURN GASKET STEP 12 Connect the skimmer to the pump inlet. We recommend to use a Carvin quick connect fitting (not included). OUTSIDE POOL INSIDE POOL FROM THE OUSIDE STEP 2 From the inside of the pool, locate the hole and gasket through the liner. - Page 6 CARVIN ® SKIMTECH 500 | USER MANUAL STEP 3 STEP 6 From the inside of the pool, slide the water return body part through the cuts, until it From the inside, install the adjustable eyeball parts. touches the wall. Do not tight the assembly, as you need to adjust the direction of the jet, SEE NEXT STEP FOR DETAILS.
-
Page 7: Filling The Pool
CARVIN ® SKIMTECH 500 | USER MANUAL FILLING THE POOL VACUUMING Raise the water level up to the minimum height (check the logo on the decorative 1- Fill the vacuum pipe using the water from the return until not more air bubble plate). -
Page 8: Remplacement Parts
BASKET SKIMMER ABOVE GROUND CARVIN SKIMTECH 500 (WHITE) WHITE 43132000R WEIR SKIMMER ABOVE GROUND CARVIN SKIMTECH 500 (WHITE) WHITE 43135000R FACE PLATE SKIMMER ABOVE GROUND CARVIN SKIMTECH 500 (WHITE) WHITE 43136000R DECORATIVE PLATE SKIMMER ABOVE GROUND CARVIN SKIMTECH 500 (WHITE) SKIMTECH 500 (GRAY) GRAY... -
Page 9: Consumer Information
After following the troubleshooting section of this manual and after contacting your workmanship at the time of manufacturing, at its discretion VIF will replace or repair dealer or distributor, if you have any problems with your Product, contact CARVIN ®...
