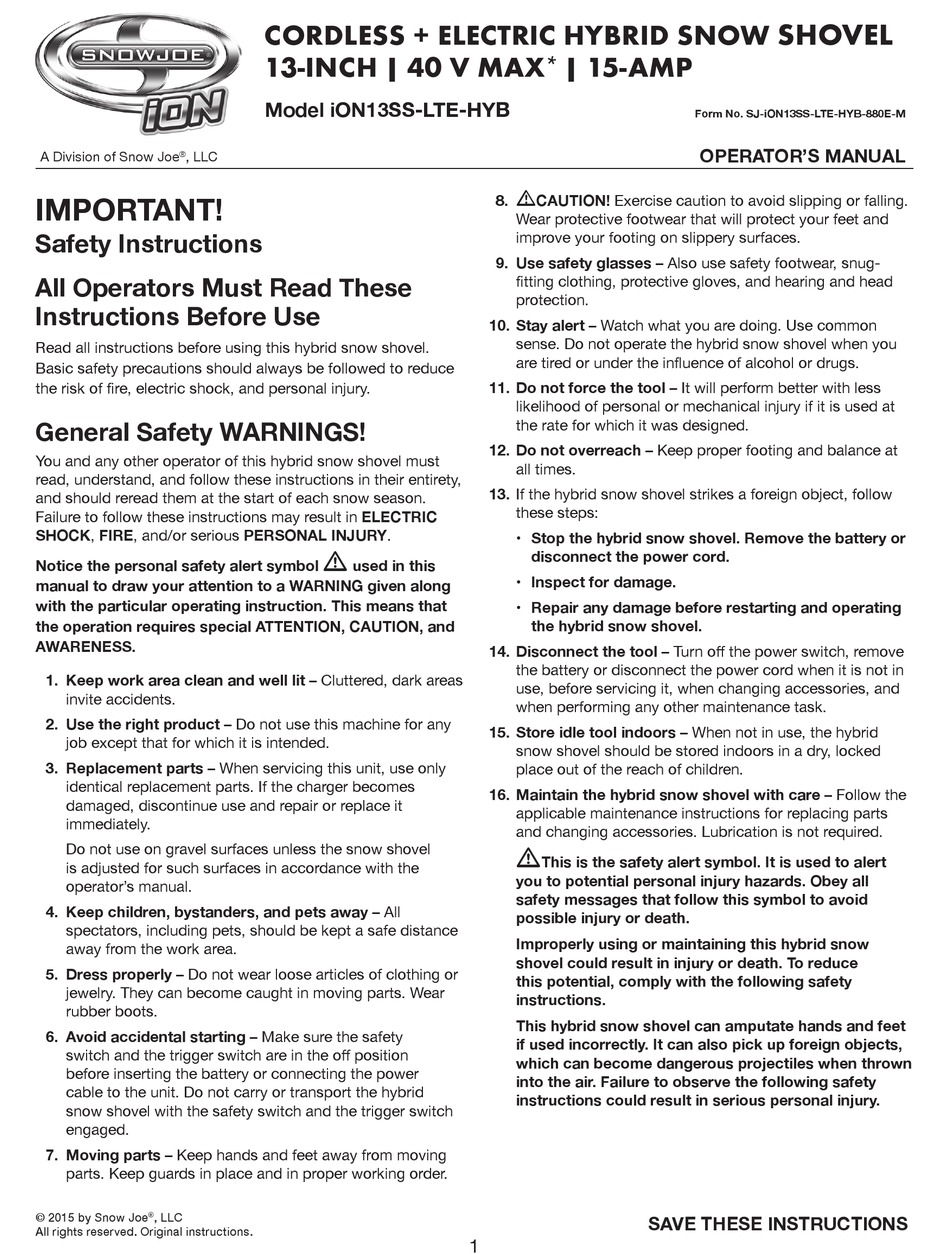

SNOWJOE iON13SS-LTE-HYB Operator's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

A Division of Snow Joe

, LLC

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Read all instructions before using this hybrid snow shovel.

Basic safety precautions should always be followed to reduce

the risk of fire, electric shock, and personal injury.

General Safety WARNINGS!

You and any other operator of this hybrid snow shovel must

read, understand, and follow these instructions in their entirety,

and should reread them at the start of each snow season.

Failure to follow these instructions may result in ELECTRIC

SHOCK, FIRE, and/or serious PERSONAL INJURY.

Notice the personal safety alert symbol

manual to draw your attention to a WARNING given along

with the particular operating instruction. This means that

the operation requires special ATTENTION, CAUTION, and

AWARENESS.

1. Keep work area clean and well lit – Cluttered, dark areas

invite accidents.

2. Use the right product – Do not use this machine for any

job except that for which it is intended.

3. Replacement parts – When servicing this unit, use only

identical replacement parts. If the charger becomes

damaged, discontinue use and repair or replace it

immediately.

Do not use on gravel surfaces unless the snow shovel

is adjusted for such surfaces in accordance with the

operator's manual.

4. Keep children, bystanders, and pets away – All

spectators, including pets, should be kept a safe distance

away from the work area.

5. Dress properly – Do not wear loose articles of clothing or

jewelry. They can become caught in moving parts. Wear

rubber boots.

6. Avoid accidental starting – Make sure the safety

switch and the trigger switch are in the off position

before inserting the battery or connecting the power

cable to the unit. Do not carry or transport the hybrid

snow shovel with the safety switch and the trigger switch

engaged.

7. Moving parts – Keep hands and feet away from moving

parts. Keep guards in place and in proper working order.

, LLC

CORDLESS + ELECTRIC HYBRID SNOW

13-INCH | 40 V MAX* | 15-AMP

Model iON13SS-LTE-HYB

used in this

CAUTION! Exercise caution to avoid slipping or falling.

Wear protective footwear that will protect your feet and

improve your footing on slippery surfaces.

9. Use safety glasses – Also use safety footwear, snug-

fitting clothing, protective gloves, and hearing and head

protection.

10. Stay alert – Watch what you are doing. Use common

sense. Do not operate the hybrid snow shovel when you

are tired or under the influence of alcohol or drugs.

11. Do not force the tool – It will perform better with less

likelihood of personal or mechanical injury if it is used at

the rate for which it was designed.

12. Do not overreach – Keep proper footing and balance at

all times.

13. If the hybrid snow shovel strikes a foreign object, follow

these steps:

• Stop the hybrid snow shovel. Remove the battery or

disconnect the power cord.

• Inspect for damage.

• Repair any damage before restarting and operating

the hybrid snow shovel.

14. Disconnect the tool – Turn off the power switch, remove

the battery or disconnect the power cord when it is not in

use, before servicing it, when changing accessories, and

when performing any other maintenance task.

15. Store idle tool indoors – When not in use, the hybrid

snow shovel should be stored indoors in a dry, locked

place out of the reach of children.

16. Maintain the hybrid snow shovel with care – Follow the

applicable maintenance instructions for replacing parts

and changing accessories. Lubrication is not required.

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all

safety messages that follow this symbol to avoid

possible injury or death.

Improperly using or maintaining this hybrid snow

shovel could result in injury or death. To reduce

this potential, comply with the following safety

instructions.

This hybrid snow shovel can amputate hands and feet

if used incorrectly. It can also pick up foreign objects,

which can become dangerous projectiles when thrown

into the air. Failure to observe the following safety

instructions could result in serious personal injury.

SAVE THESE INSTRUCTIONS

SHOVEL

Form No. SJ-iON13SS-LTE-HYB-880E-M

OPERATOR'S MANUAL

Table of Contents

Need help?

Do you have a question about the iON13SS-LTE-HYB and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE iON13SS-LTE-HYB

Page 1 SHOVEL CORDLESS + ELECTRIC HYBRID SNOW 13-INCH | 40 V MAX* | 15-AMP Model iON13SS-LTE-HYB Form No. SJ-iON13SS-LTE-HYB-880E-M OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! CAUTION! Exercise caution to avoid slipping or falling. Wear protective footwear that will protect your feet and Safety Instructions improve your footing on slippery surfaces.
Page 2: Operation
Training • Never operate the hybrid snow shovel without proper guards and other safety devices in place and in proper • Read, understand, and follow all instructions on the working order. machine and in the manual before operating this unit. •...
Page 3: Battery + Charger Safety Instructions
This hybrid snow shovel is double-insulated, eliminating the Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must need for a separate grounding system. Use only identical be obeyed at all times to ensure safe use. Safe use can only replacement parts.
Page 4 ® ® 9. Avoid damage and shocks. Immediately replace batteries 1-866-SNOWJOE (1-866-766-9563) for assistance. that have been dropped from a height of more than one • Battery chemicals cause serious burns – Never let a meter or those that have been exposed to violent shocks, damaged battery pack contact the skin, eyes, or mouth.
Page 5: Electrical Safety
+ Sun Joe ® ® ® customer service center at 1-866-SNOWJOE 5. Do not keep the battery charger in places where the (1-866-766-9563). temperature is liable to reach over 104°F (40°C). In particular, do not leave the battery charger in a car that is 3.
Page 6 ® extension cord with lighted end (Model PJEXT50-B). Visit snowjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563). • Do not use an extension cord over 100 ft (30 m). • Do not touch the appliance or its plug with wet hands or while standing in water.
Page 7: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, WARNING! Do not expose the and follow all instructions in the unit to rain or wet conditions.
Page 8: Technical Data
Know Your Hybrid Snow Shovel Read the owner’s manual and safety rules carefully before operating your hybrid snow shovel. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Page 9: Carton Contents
® ® upper and lower tubes and secure the other end with the 1-866-SNOWJOE (1-866-766-9563). joint-fixing knob (Figs. 3 & 4). NOTE: Do not discard the shipping carton and packaging NOTE: You may have to carefully move the wiring inside material until you are ready to use your new hybrid snow the tube to one side if it blocks the path of the bolt.
Page 10: Charger Operation
Positioning the Adjustable Handle 1. Loosen the handle knob. 2. Move and rotate the adjustable handle to a comfortable working position (Fig. 5). Lights Light Indicators Charge level button Fig. 5 The battery is at 30% capacity and requires charging The battery is at 60% capacity and requires charging soon The battery is at full capacity...
Page 11: Charging The Battery
When you insert Snow Joe + Sun Joe customer service center at ® ® the battery into the charger, the bottom red light will 1-866-SNOWJOE (1-866-766-9563) for assistance. illuminate to indicate that the battery is charging (Fig. 9).
Page 12 7. When charging is complete, remove the battery from the • If the unit has the power cord connected WITHOUT the battery inserted: the unit will start with in AC mode. charger by pulling the push lock button and sliding the battery backward to unlock it from the charger (Fig. 10). • If the unit has the battery inserted WITHOUT the power cord connected: the unit will start in DC mode.
Page 13 If you are using DC power mode: 4. Note that the hybrid snow shovel has a polarized male plug – one prong in the plug is slightly longer and wider 1. Open the battery compartment cover and slide the battery than the other (Fig.
Page 14: Operating Tips
Hang the shovel so it will not be misplaced or damaged. Fig. 18 Maintenance To order genuine replacement parts or accessories for the Belt Snow Joe iON13SS-LTE-HYB hybrid snow shovel, please visit ® snowjoe.com or contact the Snow Joe + Sun Joe customer ®...
Page 15: Replacing The Belt
4. Disassemble the right side cover by removing the five (5) 7. Remove the old auger from the housing (Fig. 23). screws that hold it in place (Fig. 20). Fig. 23 Fig. 20 Auger 8. Install the replacement auger by following the above steps in reverse order (Fig.
Page 16: Replacing The Scraper Blade
+ Sun Joe ® ® ® Fig. 27 customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. 2. Remove the battery from the hybrid snow shovel before storing. 3. Store the hybrid snow shovel indoors in a locked, dry 4 screws place out of the reach of children to prevent unauthorized use or damage.
Page 17: Service And Support
6. Do not dispose of batteries in fire. 7. Batteries should be recycled or disposed of as per state and local guidelines. Service and Support If your Snow Joe iON13SS-LTE-HYB hybrid snow shovel ® requires service or maintenance, please call the Snow Joe ® Sun Joe customer service center at 1-866-SNOWJOE ®...
Page 18 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
Page 19 We’re here to help Monday through Friday from 9AM to 6PM EST. or guard of your product. All products require a valid proof You can reach us at 1-866-SNOWJOE (1-866-766-9563), online of purchase. at snowjoe.com, via email at help@snowjoe.com or tweet us @snowjoe. EXCLUSIONS: EXPORTS: •...
