About night quiet mode

The night quiet mode function makes the outdoor unit run more
quietly at nighttime. This will reduce the cooling capacity of the unit.
Explain Night quiet mode to the customer and confirm if customer
wants to use this mode.
9.3.1

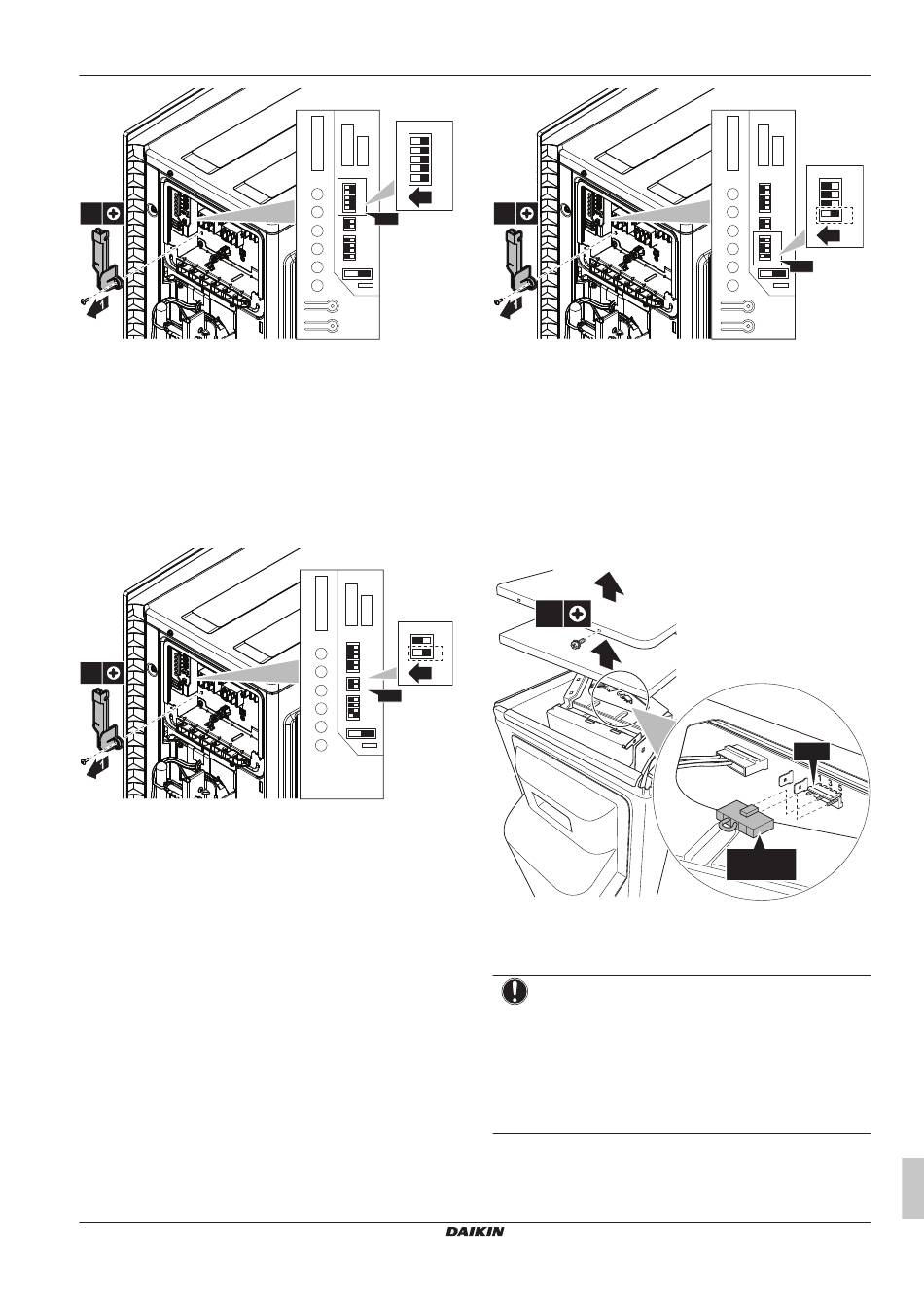

To turn ON the night quiet mode

1 Remove the switch cover on the service PCB.
1×
2 Set the night quiet mode switch (SW6-1) to ON.
9.4

About heat mode lock

Heat mode lock limits the unit to heat operation.
9.4.1

To turn ON heat mode lock

1 Remove the switch cover on the service PCB.
2 Set the heat mode lock switch (SW5-1) to ON.
