SAS-IPCAM115
SAS-IPCAM116
MANUAL
IP CAMERA

Advertisement

loading
Need help?

Need help?

Do you have a question about the SAS-IPCAM115 and is the answer not in the manual?

Questions and answers

Related Manuals for Konig SAS-IPCAM115

Summary of Contents for Konig SAS-IPCAM115

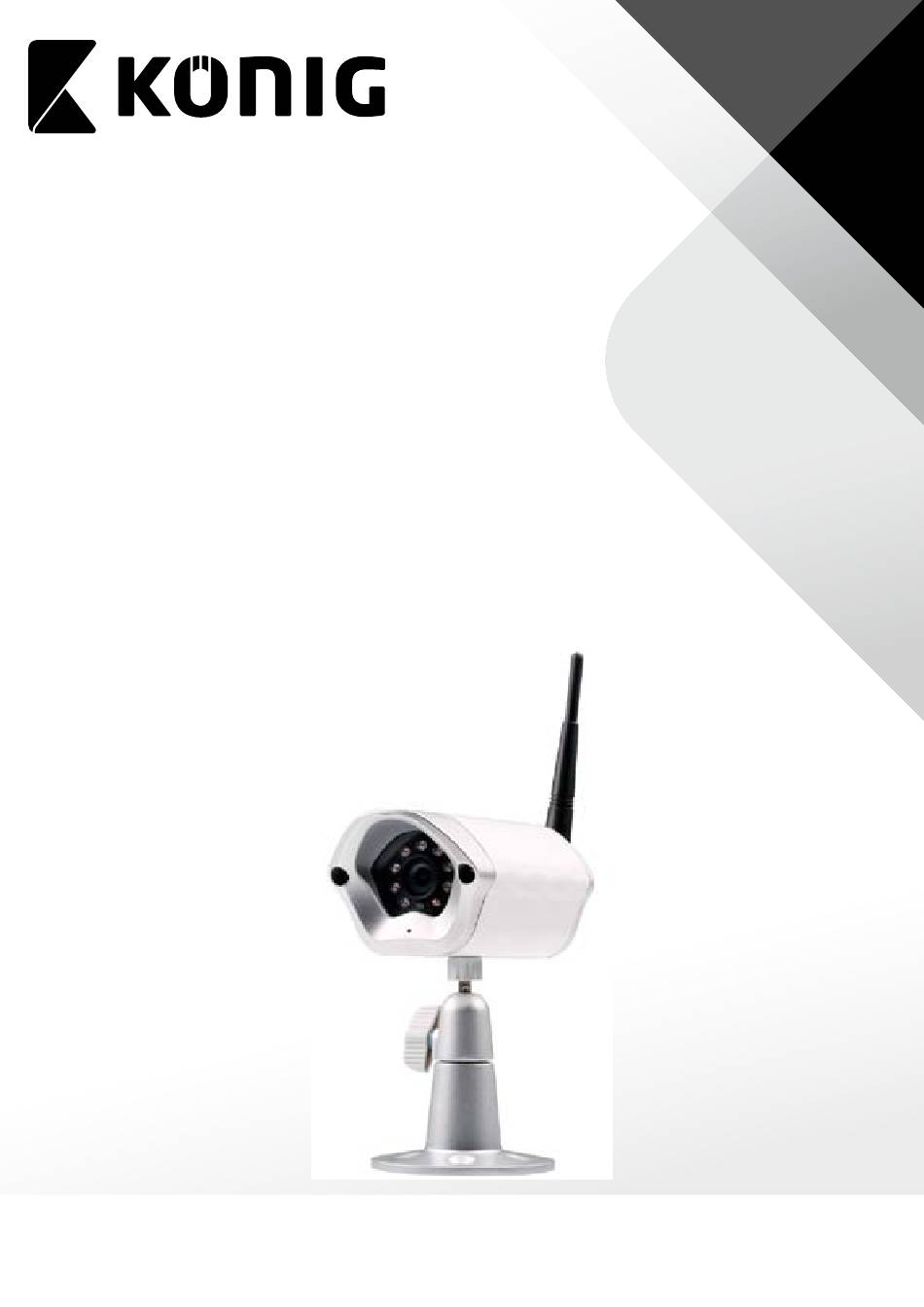

  • Page 1 SAS-IPCAM115 SAS-IPCAM116 MANUAL IP CAMERA...

  • Page 2: Table Of Contents

    ENGLISH Table of contents • Introduction: • Safety precautions: • Packaging content: • System requirements: • Product description: • User instructions: • Maintenance: • Warranty: • Disclaimer: • Disposal: Introduction: The plug-and-play IP camera enables people to watch over their properties. It is easy to set up and requires no complex configuration.

  • Page 3: Product Description

    ENGLISH Product description: 1. Mount 2. Microphone 3. Antenna 4. IR LED for night vision 5. Camera lens 6. Light intensity sensor 7. WPS/RESET button (behind rubber cover) 8. 12V power cord User instructions: A. Hardware Installation 1. Please find a location to install uCare Cam that is within good WiFi signal reach of your home Router.
  • Page 4 ENGLISH B. Hardware Installation 1. Download the Smartphone APP “uCare Cam” from App store(iOS) or Play Store (Android). 2. Search for APP name “uCare Cam”, then download and install it into Smartphone. 3. After the software installation is complete, the icon will appear Click on this to run the APP.
  • Page 5 ENGLISH User will need to input a management ID and Password to enter this Tab. Default management ID: admin Default Password: 0000 If you forget your password, you can reset the uCare Cam by pressing the WPS/REST button at the back of the camera for 10 seconds. This will restore uCare Cam to factory settings. You will need to set up the WiFi connection again after you reset the camera.
  • Page 6 ENGLISH 1. Make sure the status LED on uCare Cam is blinking Red and Green. If the status LED is not blinking Red and Green, please press and hold the WPS/REST button for 10 seconds to reset uCare Cam. Wait for 1-2 minutes for it to restart and the LED should become Red and Green.
  • Page 7 ENGLISH your Router supports WPS is to look for a button that says “WPS” on the Router. It may also be called “AOSS” or “QSS”. 1. Press and hold the WPS/REST button for 10 seconds at the back of the camera. It will reset and restart the uCare Cam.
  • Page 8 ENGLISH 7. Please enter a Camera name (2 to 20 characters) and default password “0000” or "00000000". You are encouraged to change the default password after setup for security purposes. Then click “OK” in the top right corner. 8. The camera will restart and the Smartphone App will automatically connect to the camera in Live View.
  • Page 9 ENGLISH Method 2: Scan QR Code at back of uCare Cam 1. Make sure your Smartphone is connected to the internet. Open up the Smartphone APP “uCare Cam” and click on the “+” at the top right of the screen. 2.
  • Page 10 ENGLISH Method 1: Scan for uCare Cam in local intranet 1. Make sure your Smartphone is connected to the same Router as your uCare Cam. Open up the Smartphone APP “uCare and click on the “Click here to import installed Cam”...
  • Page 11 ENGLISH 2. Click in the “UID” field to enter typing mode. 3. Type in 20 digit code exactly as printed underneath the QR code in back of uCare Cam. 4. Please enter a Camera name (2 to 20 characters) and the camera password. Default password is 0000 or 00000000.
  • Page 12 ENGLISH Typical scenario will be that the uCare Cam is installed at home or in the office and the Smartphone has a 3G/3.5G/4G internet connection. Typical frame rate will be around VGA 640x480 10~15fps. 3) Relay Mode uCare Cam and Smartphone cannot establish a point to point network connection link. uCare Cam must send Audio/Video data to a Relay Server and the Smartphone will retrieve data from the Relay server.
  • Page 13 ENGLISH Take Photo Connection Status Information Playlist User can view, delete, and copy picture files. Camera file folder File list per camera...
  • Page 14 ENGLISH File delete Photo view Settings Manage uCare Cam (Default manager name: admin , Default Password: 0000 ) Only one User can manage a camera that is online and connected to Smartphone APP at any one time. Here, User can: •...
  • Page 15 ENGLISH 1) Change WiFi Router User can remotely switch the camera to connect to a different WiFi Router. 2) Alert & Notify Setting / Warning & Notify Setting The camera has a number of hardware alarm detection possibilities. User can set the desired trigger and notification. When a new event is generated, the APP will notify the User either through email or through a Phone Push Message.
  • Page 16 ENGLISH Set Email Alerts To setup your email to receive motion/sound/etc. alerts, please login to the “Settings” page with Manager name and password (default: admin / 0000). 1) Click on “Alert & Notify Setting” or “Warning & Notify Setting”. 2) Click on “Email snapshot alert” 3) You will see a variety of options.
  • Page 17 ENGLISH • SMTP Mail Settings – only either SMTP or Gmail mail settings can be set. Please enter your email provider’s SMTP server settings. You may need to contact your email provider for the server settings. Please enter your email address and email password. This account will be used as the “Sender”...
  • Page 18 ENGLISH 4) SD Card Recording Setting User can insert a microSD card into the camera to enable the recording function. Trigger Recording: The camera will automatically start recording when a trigger event (motion, sound, and other events) have occurred. The camera will record for 60 seconds. If another trigger event occurs, the camera will record for another 60 seconds;...
  • Page 19 The two-level password management system allows the user to safely and effectively manage the camera. First layer: Camera password – able to view the camera. Default value is 0000 (SAS-IPCAM115) or 00000000 (SAS- IPCAM116 Second layer: Manager’s Name and Password – able to view and set uCare Cam settings.
  • Page 20 ENGLISH J. Update your uCare Cam firmware 1. Download firmware and un-compress the file. 2. Copy “update.bin” to microSD Card top folder, for example H:\ 3. Turn off power to uCare Cam and insert microSD card into uCare Cam microSD slot in back of uCare Cam.
  • Page 21 User can change their WiFi channel to avoid interference and get better signal and coverage. https://play.google.com/store/apps/details?id=com.farproc.wifi.analyzer&feature=search_ result 6) What is the default account name and password? Ans: Default password for IPCam is “0000”(SAS-IPCAM115) or "00000000"(SAS-IPCAM116), default manager account is “admin”, password is “0000”...
  • Page 22 ENGLISH 7) Why can’t uCare Cam connect with WiFi Router using WPS Mode? a. Make sure Router’s WPS function is enabled. b. Please try Router model if WPS mode setup failed. 8) What is the frequency of email alert and smartphone notify alert? Ans: Once motion or sound detection is triggered, then uCare Cam will send email and phone notify immediately.

  • Page 23: Disposal

    ENGLISH Maintenance: Clean the product only with a dry cloth. Do not use cleaning solvents or abrasives. Warranty: Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.

This manual is also suitable for:

Sas-ipcam116
