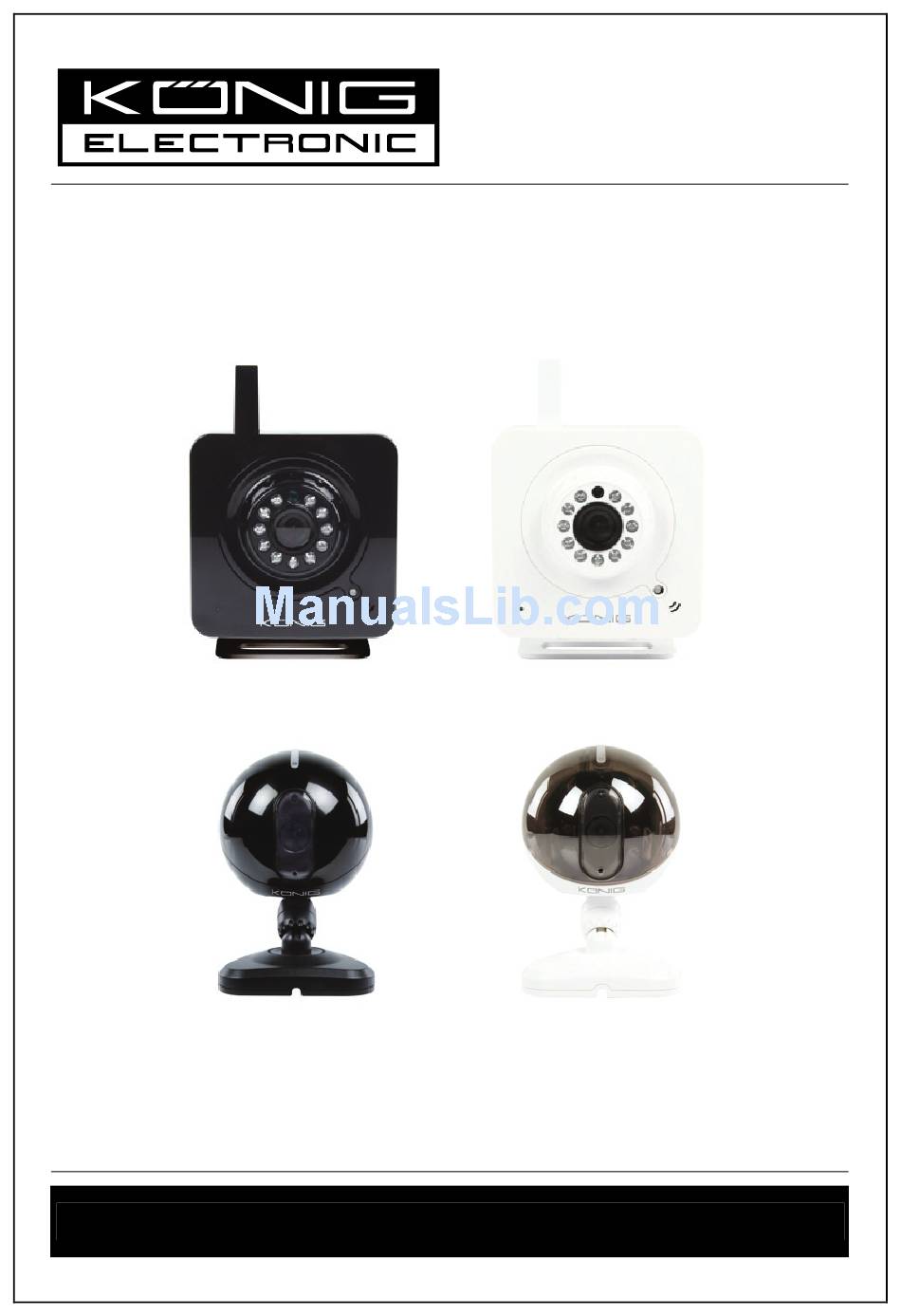

- Page 1 SEC-IPCAM100B(W) SEC-IPCAM105B(W) MANUAL (p. 2) IP camera 2013-07-30...
- Page 2 System requirements: • Device running on iOS 5.0 or above • Device running on Android 4.0 or above • WiFi Router Technical specifications: Specifications: SEC-IPCAM100B/W SEC-IPCAM105B/W Video codec: MJPEG VGA 640x480 / QVGA 320x240 / QQVGA 160x120 Resolution: Frame rate:...
-
Page 3: Product Description
Specifications: SEC-IPCAM100B/W SEC-IPCAM105B/W Wireless security: Wireless security: WEP/WPA/WPA2 wireless encryption Wireless transmit output Wireless transmit output power: 16.5 dBm for 11b, 13.5 dBm for 11g, power: 13.5 dBm for 11n (+/- 1.5dBm) Video features: Adjustable image size and quality, Time stamp and text overlay, Flip View Angle: H:39.3°, V:26.8°, D:46.5°... - Page 4 Back Connection for camera mount Loudspeaker For 2-way Audio communication 5V DC input SEC-IPCAM105B/W Front LED indicator for status of IP camera Light intensity sensor for IR LED IR LED for 5 metre night view Microphone...
- Page 5 Back WPS/Reset button for 5V DC input set-up and reset Slot for Micro SD card User instructions: A. Hardware Installation 1. Please find a location to install the uCare Cam that is within good WiFi signal reach of your home router. 2.
- Page 6 C. uCare Cam APP Overview Default camera password: 0000 Default manager name: admin Default manager password: 0000 There are 4 major function tabs at the bottom of the App main screen. Camera List Tab This is the main App screen. In this tab, all of the cameras which have been added will be listed.
- Page 7 Method 2: Use Router Mode You will first need to connect to the router that is available inside the uCare Cam, configure the WiFi settings for your home router, then the uCare Cam will restart and connect to your home router. Write down, or have handy, the SSID of your WiFi router and your WiFi password.
- Page 8 E. Android – Setup uCare Cam WiFi There are two methods to set up the uCare Cam to connect to a new WiFi Router. Method 1: Use WPS (WiFi Protected Setup) Available if your WiFi router supports WPS and it is set to use WPA or WPA2 security encryption. WEP security encryption is not supported for WPS mode.
- Page 9 7. Please enter a Camera name (2 to 20 characters) and the default password “0000”. You are encouraged to change the default password after setup for security purposes. Then click “OK” in the top right corner. 8. The camera will restart and the Smartphone App will automatically connect to the camera in Live View.
- Page 10 6. You will see the Camera name now in Camera List view. It should indicate that the Camera is “Online”. To connect to the Camera, please click on the Camera name. If the Camera is not “Online”, you may need to force reconnect. To force reconnect, click on the right arrow and click on “Reconnect”. Click on the Camera name once it shows “Online”.
- Page 11 Method 1: Scan for the uCare Cam in local intranet 1. Make sure your smartphone is connected to the same router as your uCare Cam. Open up the Smartphone App “uCare Cam” and click on the “Click here to import installed WiFiCam” at the top of the screen.
- Page 12 6. Please enter a Camera name (2 to 20 characters) and the camera password. The default password is 0000. Click “OK” on the bottom of the screen. 7. You will see the Camera name now in Camera List view. It should indicate that the Camera is “Online”. To connect to the Camera, please click on the Camera name.
- Page 13 When using 3G/3.5G/4G to connect to uCare Cam, the App will use P2P mode. • If the smartphone download speed is too slow, the App will switch to relay mode. The user can force the App to reconnect to the uCare Cam and it will try P2P mode again. To force reconnect, press and hold the camera name on the Camera list.
- Page 14 Playlist User can view, delete, and copy picture files. Camera file folder File list per camera File delete Photo view Settings Manage uCare Cam (Default manager name: admin, Default Password: 0000) Only one user can manage a camera that is online and connected to the smartphone App at any one time.
- Page 15 Here, the user can: • Check Camera Info • Change WiFi Router • Change Alarm Settings – “Warning & Notify Setting” • Set Real-time video • Check SD Card Recording • Play SD Card Video • Set Password • Change Date & Time 1) Change WiFi Router User can remotely switch the camera to connect to a different WiFi router.
- Page 16 Set Email Alerts To setup your email to receive motion/sound/etc. alerts, please login to the “Settings” page with Manager name and password (default: admin / 0000). 1) Click on “Alert & Notify Setting” or “Warning & Notify Setting”. 2) Click on “Email snapshot alert” 3) You will see a variety of options.
- Page 17 • Email snapshot alert – Turn email on/off • Motion detection enabled – Turn motion detection on/off • Sensitivity – Motion detection sensitivity (High, Medium, Low) • Sound detection enabled – Turn sound detection on/off • SD card remove detection – Send alert if SD card is removed •...
- Page 18 4) SD Card Recording Setting User can insert a microSD card into the camera to enable the recording function. Trigger Recording: The camera will automatically start recording when a trigger event (motion, sound, and other events) have occurred. The camera will record for 60 seconds.
- Page 19 5) Play SD Card Video Click on the Video file to play. 6) Password Setting The two-level password management system allows the user to safely and effectively manage the camera. First layer: Camera password – able to view the camera. Default value is 0000 Second layer: Manager’s Name and Password –...
- Page 20 7) Date & Time User can only adjust the Time Zone. The Date and Time will be factory set and the user cannot change it. App Info In the App info page, the user can see options related to the App, not specific to a camera. To go to the App info page, please click on the top right hand corner of screen.
- Page 21 3. Turn off power to the uCare Cam and insert microSD card into the uCare Cam microSD slot in the back of the uCare Cam. 4. Turn power on to the uCare Cam. 5. The uCare Cam will start reading data from the microSD card and upgrade the firmware. The LED colour will blink red and green during this process.
- Page 22 5) How to check your WiFi signal and coverage by Android App -- WiFi Analyzer Ans: There is a free android app “WiFi Analyzer” that can scan and show all WiFi SSID’s around. User can change their WiFi channel to avoid interference and get better signal and coverage. https://play.google.com/store/apps/details?id=com.farproc.wifi.analyzer&feature=search_result 6) What is the default account name and password? Ans: Default password for IPCam is “0000”, default manager account is “admin”, password is “0000”...
