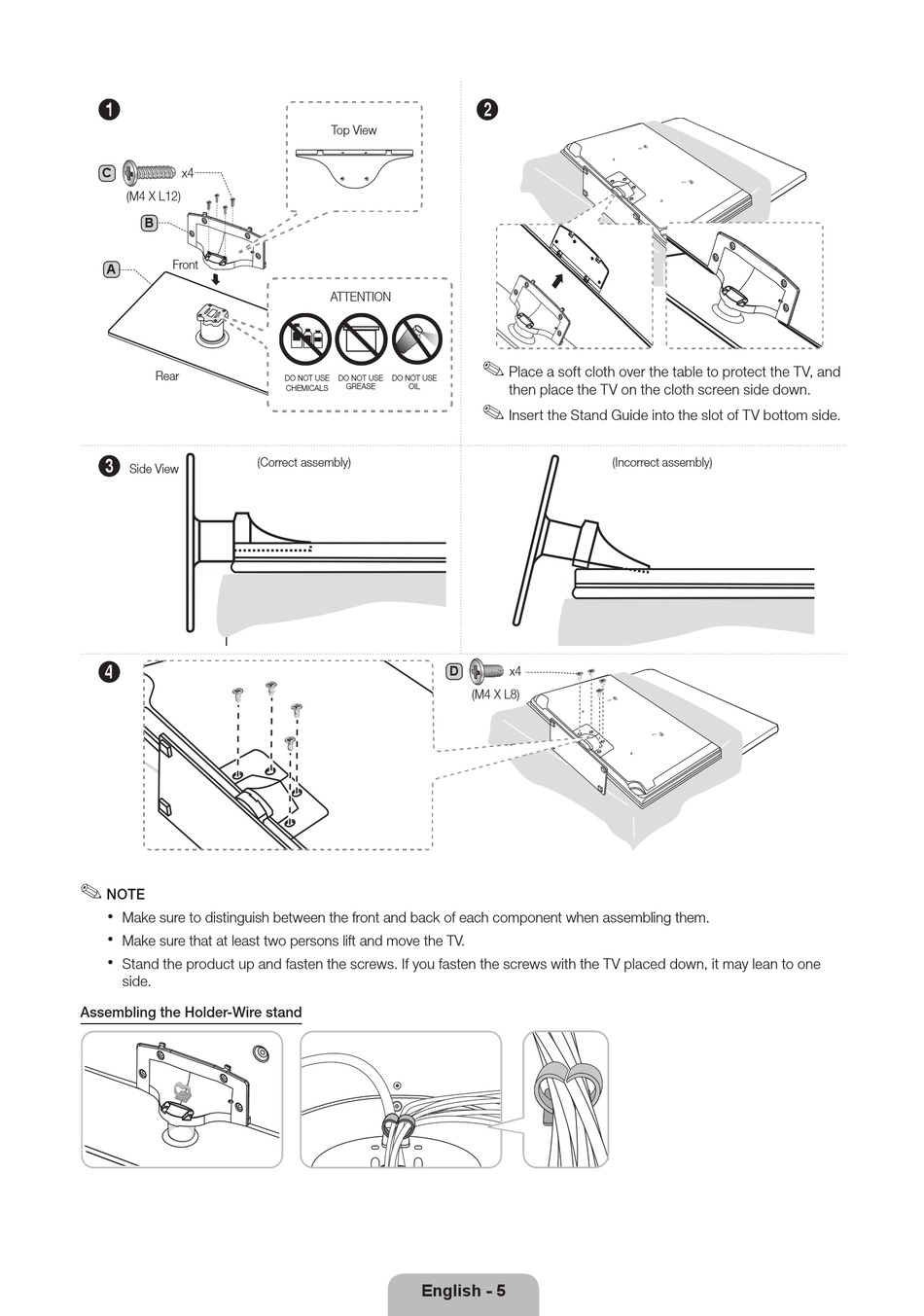

Assembling The Holder-Wire Stand - Samsung UN40D6400UF User Manual

1
C
x4
(M4 X L12)
B
Front
A
Rear
3
Side View
4
✎
NOTE
x
Make sure to distinguish between the front and back of each component when assembling them.
x
Make sure that at least two persons lift and move the TV.
x
Stand the product up and fasten the screws. If you fasten the screws with the TV placed down, it may lean to one
side.

Assembling the Holder-Wire stand

Top View
ATTENTION
DO NOT USE DO NOT USE DO NOT USE
GREASE OIL
CHEMICALS
(Correct assembly)
English - 5
2
✎
Place a soft cloth over the table to protect the TV, and
then place the TV on the cloth screen side down.
✎
Insert the Stand Guide into the slot of TV bottom side.
(Incorrect assembly)
D
x4
(M4 X L8)
