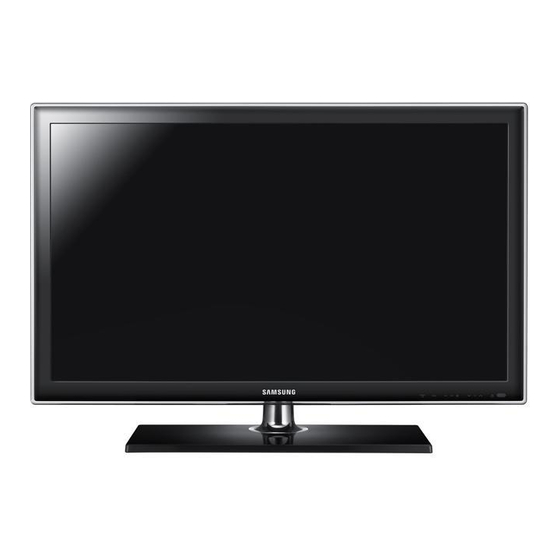

Samsung UN19D4000ND E-manual

19" class (18.5" diag.) led 4000 series tv un19d4000nd user manual (ver.1.0).
Hide thumbs

Advertisement

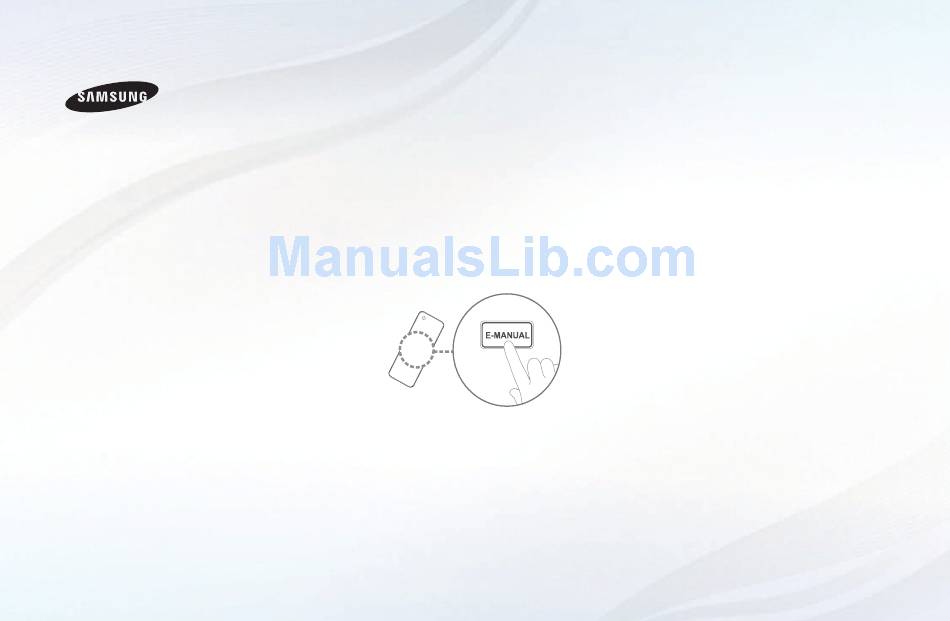

E-MANUAL
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model _____________ Serial No. _____________

Advertisement

Table of Contents

   Also See for Samsung UN19D4000ND

   Related Manuals for Samsung UN19D4000ND

   Summary of Contents for Samsung UN19D4000ND

  • Page 1 E-MANUAL imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model _____________ Serial No. _____________...
  • Page 2: Table Of Contents

    Contents Channel Setting • Using the Channel menu (Watch TV) • Memorizing Channels • Other Features Basic Features • Picture Menu • Sound Menu Preference Features • Network for LED 5 series 32-46 inches • System Menu • Support Menu Advanced Features • My Contents • Anynet+ • AllShare™ for LED 5 series 32-46 inches Other Information • Troubleshooting • Anti-theft Kensington Lock • License...
  • Page 3: Using The Channel Menu (watch Tv)

    ❑ ❑ Using❑the❑Channel❑menu❑(Watch❑TV) Press the CONTENT button to select Watch❑TV, and then select the desired menu item. Choose from Schedule❑Manager, Channel❑List, and Manager. ❑ ■ Schedule❑Manager ❑ CONTENT❑→❑Watch❑TV❑→❑Schedule❑Manager❑→❑ENTERE Select the Schedule menu item to access the Viewing let you display the channel you want at the time of your choice. Watch TV Timer❑Viewing Schedule❑Manager...
  • Page 4 Using❑Timer❑Viewing You can set the TV to display a desired channel automatically on a day and at a time of your choice. You must set the current time first using the System menu to use this function. To use Timer❑Viewing, follow these steps: Press the ENTERE button on the Press the ENTERE button to add a scheduled viewing.
  • Page 5 ● Repeat: Select Once, Manual, select Manual, you can set the day you want. A check (c) mark indicates a day you selected. ● Date: You can set a desired date. Date is available only when you select ● Start❑Time: You can set the start time you want. If you want to edit or cancel a scheduled viewing, select the scheduled viewing on the Schedule❑List, and then select ◀...
  • Page 6 ❑ ■ Channel❑List ❑ CONTENT❑→❑Watch❑TV❑→❑Channel❑List❑→❑ENTERE Channel❑List you press the Channel button on your remote control. On the Channel❑List, you can view Added❑Channels, channels. When you press the CH❑LIST button on the remote control, the Channel❑List ◀ at once. ● Added❑Channels: Show all added (memorized) channels.
  • Page 7 The TV displays❑Favorites Favorites. If you want to view the list of favorite channels quickly, press the CH❑LIST button, and then press the ► (CH❑Mode) button to display 1-5. If you have favorites in more than one Favorite Group, press the ► (CH❑Mode) to view the other groups.
  • Page 8 ● ● L (CH❑Mode❑/❑Channel): Toggles between the Favorites❑list (if you have added favorites using Add❑to❑Favorites)❑and the Added❑Channels. When you press the other channels using L(Channel) button. ● ● E (Watch❑/❑Information): Press to watch the channel you selected. / Displays details of the selected program. ●...
  • Page 9 How❑to❑use❑Timer❑Viewing❑in❑Channel❑List❑(digital❑channels❑only)❑ You can use Timer❑Viewing viewing. The TV will turn on and display the digital channel program when the program begins. To schedule a digital program, follow these steps: Press the CH❑LIST button, then select a desired digital channel. Press the (Program❑View) button.
  • Page 10 ❑ ■ Channel❑Manager ❑ CONTENT❑→❑Watch❑TV❑→❑Channel❑Manager❑→❑ENTERE Using Channel❑Manager, you can add, edit, or delete Added and Favorite channels. You can also edit channel names - for analog channels only. ● ) Added❑Ch.: Show all added channels. ● ) All❑Channels: Show all currently available channels.
  • Page 11 Using the colored buttons with ● Red (Antenna): Switches between ● Blue (Sorting): Sorts the channel list by channel number or by name. Using the Arrow buttons with Highlight a channel in the first column on the left, and then press the Left arrow button.
  • Page 12 Channel❑Status❑Display❑Icons Icon An analog channel. A selected channel. A favorite channel. Displays the ◀ Channel❑Manager❑Option❑Menu❑ Manage channels using the Channel❑Manager❑menu options (Watch, Favorites❑/❑Edit❑Favorites,❑Channel❑Name❑Edit,❑Add❑/ All).The Option menu items that appear may differ depending on the channel status and type. Description Channel❑Manager option menu.
  • Page 13 Use the arrow buttons to select a channel, and then press the check appears next to the channel. You can select more than one channel by highlighting each channel with the cursor, and then pressing ENTERE. Press the TOOLS button on your remote control. Select an option, and then press ENTERE to activate the option or change its settings.
  • Page 14 ● Add❑to❑Favorites / Edit❑Favorites: you selected is not already a favorite. selected is already a favorite. Using❑Add❑to❑Favorite❑to❑add❑a❑channel❑to❑the❑Favorites❑List: Select Add❑to❑Favorites, and then press the ENTERE button. The Favorites screen appears. Add❑to❑Favorites etc. You can add a favorite channel to any one of the groups. Select a group ◀...
  • Page 15 Using❑Edit❑Favorites❑to❑delete❑a❑channel❑from❑the❑Favorites❑List: Select Edit❑Favorites, and then press the ENTERE button. The screen appears. Favorite The Favorite Group you assigned to that channel is checked. Select the group, and then press ENTERE. The check disappears. Select OK, press ENTERE, and then press ENTERE again. Using❑Edit❑Favorite❑to❑move❑a❑channel❑from❑one❑Favorite❑Group❑to❑another: ◀...
  • Page 16 ● Channel❑Name❑Edit to a channel. For example, Hist, Food, Golf, etc. This makes it easier to find and select the channel. ● Add❑/❑Delete: Add a channel or delete a channel from the channel list. When you use the channel button on your remote control to change channels, your TV only displays the channels on the channel list.
  • Page 17 Adding❑a❑Channel❑to❑the❑Channel❑List: Select a deleted channel on the ENTERE button. Deleted channels are grayed out. Press the TOOLS button on your remote control. The Options menu appears. Select Add, press ENTERE, and then press ENTERE again. NOTE ◀ ● Your TV will display all channels, including channels you deleted from the channel list, on the ●...
  • Page 18 ● only appears if you have selected a deleted channel on the Channels ● only appears if you have selected an added channel on the Delete Added❑Ch. ● Deselect❑All: Deselect all the selected channels. Deselect❑All ● Select❑All: Select all the channels in the channel list. To use, choose in the Options menu, and then press ENTERE.
  • Page 19: Memorizing Channels

    ❑ ❑ Memorizing❑channels ❑ MENUm❑→❑Channel❑→❑ENTERE Your TV memorizes channels and adds the memorized channels to the Channel❑ List❑with the function. Before your TV can memorize channels, Auto❑Program you must specify the signal source, either or Cable. If you select cable, when you start Auto❑Program, you must also specify the cable system type, STD, HRC, or IRC.
  • Page 20 ❑ ■ Antenna❑(Air❑/❑Cable)❑t To begin the memorizing procedure, follow these steps: Push MENUm → 1.❑ 2.❑ Select Antenna,❑and then press❑ENTERE. Select the source of your TV signal, Auto❑Program. Selecting or Cable❑to Air. Outside the menu, you can do the same thing by pressing ◀...
  • Page 21 ❑ ■ Auto❑Program❑ Scans for channels automatically and stores them in the TV’s memory. To start Auto❑Program, follow these steps: Push MENUm → Select Auto❑Program, and then press ENTERE. Select If you selected will already be selected. ◀ Select Search If you selected Cable, the Cable System screen appears.
  • Page 22 Select STD, HRC, or IRC, and then press ENTERE. Repeat for Analog❑Cable❑System. Select Search After all the available channels are stored, channels. When done, the can take up to 30 minutes How❑to❑Stop❑Auto❑Programming Press the ENTERE button. ◀ A message will ask button.
  • Page 23: Other Features

    ❑ ❑ Other❑Features ❑ MENUm❑→❑Channel❑→❑ENTERE ❑ ■ Clear❑Scrambled❑Channel This function filters out scrambled channels after This process may take up to 20~30 minutes. How❑to❑Stop❑the❑Clear❑Scrambled❑Channels❑Function Press the ENTERE button to select Stop. ◀ Press the š button to select Yes. Press the ENTERE button. This function is only available in Auto❑Program Cable...
  • Page 24 ❑ ■ Fine❑Tune❑ (analog channels only) If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, fine tune the channel manually. ●...
  • Page 25 ❑ ❑ Changing❑the❑Preset❑Picture❑Mode ❑ MENUm❑→❑Picture❑→❑Picture❑Mode❑→❑ENTERE ❑ ■ Picture❑Mode❑ Picture modes apply preset adjustments to the picture. Select a mode using the up and down arrow keys, and then press ENTERE. mode, you can only select Entertain❑and Standard. ● Dynamic: Suitable for a bright room. ●...
  • Page 26 ❑ MENUm❑→❑Picture❑→❑Samsung❑MagicAngle❑→❑ENTERE ● Samsung❑MagicAngle: When viewing the screen at an angle from below or bove by setting the appropriate mode for each position you can obtain a similar picture quality as viewing the screen directly from the front. ◀...
  • Page 27 ❑ ■ Backlight❑/❑Contrast❑/❑Brightness❑/❑Sharpness❑/❑Color❑/❑Tint❑(G/R)❑ Your television has several options for adjusting picture quality. Select an option using the up and down arrow keys, and then press ENTERE. Use the arrow keys to adjust the option value or select an option setting. When done, press ENTERE.
  • Page 28 ❑ ■ Screen❑Adjustment ❑ MENUm❑→❑Picture❑→❑Screen❑Adjustment❑→❑ENTERE Screen❑Adjustment an option using the up and down arrow keys, and then press ENTERE. Use the arrow keys to select an option in the sub-menu, and then press ENTERE. ● Picture❑Size: If you have a cable box or satellite receiver, it may have its own set of screen sizes as well.
  • Page 29 4:3: Sets the picture to Do not set your TV to on the left and right, or top and bottom of the screen may cause image retention (screen burn) which is not covered by the warranty. Screen❑Fit: When your TV inputs HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals, displays the full image without any cut-off.
  • Page 30 ● Position: Adjusts the picture position. is set to Zoom1, Zoom2, To use the follow these steps: 1.❑ Select the Position, and then press the ENTERE button. 2.❑ Select the Press the ▲ or ▼ button to move the picture up or down. Press the ENTERE button.
  • Page 31 To use the to an HDMI (1080i/1080p) or Component (1080i/1080p) source, follow these steps: 1.❑ Select the Position, and then press the ENTERE button. 2.❑ Select the Press the ▲, ▼, ◄ or ► button to move the picture. Press the ENTERE button. If you want to reset the pictures to its original position, select ◀...
  • Page 32 HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720) You can adjust and store settings for each external device you have connected to an input on the TV. Picture Sizes available by Input Source: ATV, AV Component (480i, 480p, 576i, 576p) ◀...
  • Page 33 ● PC❑Screen❑Adjustment Available in mode only. Coarse❑/❑Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, use the function to adjust the frequency as best Coarse as possible and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned to the center of screen.
  • Page 34 Depending on your version of Windows and your video card, the procedure on your PC will probably differ slightly from the procedure presented here. However, the same basic information will apply in most cases. (If not, contact your computer manufacturer or Samsung Dealer.) mode only. English...
  • Page 35 On your PC, click “Control Panel” on the Windows start menu. Click “Appearance and Themes” in the “Control Panel” window. A display dialog-box appears. Click “Display”. Another display dialog box appears. Click the “Settings” tab on the display dialog-box. ● On the Settings tab, set the correct resolution.
  • Page 36 ❑ ❑ Changing❑the❑Picture❑Options ❑ ■ Advanced❑Settings ❑ MENUm❑→❑Picture❑→❑Advanced❑Settings❑→❑ENTERE Advance❑Settings you can only make changes to Gamma❑and❑White❑Balance. To use, select an option using the up and down arrow keys, and then press ENTERE. Use the arrow keys to change a value or setting, and then press ENTERE.
  • Page 37 ● Black❑Tone❑(Off❑/❑Dark❑/❑Darker❑/❑ Darkest): Select the black level to adjust the screen depth. ● Dynamic❑Contrast❑(Off❑/❑Low❑/❑ Medium❑/❑High): Adjusts the screen contrast. ● Shadow❑Detail: Increases the brightness of dark images. Disabled under ◀ ● Gamma: Adjusts the primary color intensity. ● RGB❑Only❑Mode❑(Off❑/❑Red❑/❑Green❑/❑Blue): Displays the Red, Green and Blue color for making fine adjustments to hue and saturation.
  • Page 38 ● Color❑Space❑(Auto❑/❑Native): Adjusts the range of colors (the color gamut) available to create images. ● White❑Balance: Adjusts the color temperature for a more natural picture. R-Offset❑/❑G-Offset❑/❑B-Offset: Adjusts each color’s (red, green, blue) darkness. R-Gain❑/❑G-Gain❑/❑B-Gain: Adjusts each color’s (red, green, blue) brightness. Reset: Resets the ●...
  • Page 39 ❑ ■ Picture❑Options ❑ MENUm❑→❑Picture❑→❑Picture❑Options❑→❑ENTERE Select an option using the up and down arrow keys, and then press ENTERE. Use the arrow keys to change the setting, and then press ENTERE. mode, you can only make changes to Color❑Tone. ● Color❑Tone❑(Cool❑/❑Standard❑/❑...
  • Page 40 ● Digital❑Noise❑Filter❑(Off❑/❑Low❑/❑Medium❑/❑High❑/❑Auto❑/❑Auto❑Visualization): If the broadcast signal received by your TV is weak, you can activate the Digital❑Noise❑Filter on the screen. When the signal is weak, try each option until the TV displays best picture. Auto❑Visualization: When changing analog channels, displays signal strength. Only available for analog channels.
  • Page 41 ● HDMI❑Black❑Level❑(Low❑/❑Normal): Lets you select the black level on the screen to adjust the screen depth. Available only in ● Film❑Mode❑(Off❑/❑Auto1❑/❑Auto2): Sets the TV so that it senses and then processes film signals from all sources automatically and adjusts the picture for optimum quality.
  • Page 42 ❑ ■ Reset❑Picture❑(OK❑/❑Cancel) Resets your current picture mode to its default settings. ◀ ▶ English...
  • Page 43 ❑ ❑ Changing❑the❑Preset❑Sound❑Modes ❑ MENUm❑→❑Sound❑→❑Sound❑Mode❑→❑ENTERE ❑ ■ Sound❑Mode❑ t ❑ Use the up and down arrow keys to select an option, and then press ENTERE. ● Standard: Selects the normal sound mode. ● Music: Emphasizes music over voices. ● Movie: Provides the best sound for movies. ●...
  • Page 44 ❑ ❑ Sound❑Settings ❑ MENUm❑→❑Sound❑→ ❑ ■ Sound❑Effect (standard sound mode only) Use the up and down arrow keys to select an option, and then press ENTERE. ● SRS❑TruSurround❑HD❑(Off❑/❑On) This function provides a virtual 5.1 channel surround sound experience through a pair of speakers or headphones using HRTF (Head Related Transfer ◀...
  • Page 45 ● Equalizer Use Equalizer to customize sound setting for each speaker. Balance❑: Adjusts the balance between the right and left speaker. (Bandwidth Adjustment): Adjusts the 100Hz❑/❑300Hz❑/❑1kHz❑/❑3kHz❑/❑10kHz volume level of specific bandwidth frequencies. Reset: Resets the equalizer to its default settings. ◀...
  • Page 46 ❑ ❑ Adjusting❑Sound❑Settings ❑ ■ Broadcast❑Audio❑Options ● Preferred❑Language❑ (digital channels only) Use the up and down arrow keys to select a language, and then press ENTERE. Digital-TV broadcasts can simultaneously transmit many audio tracks (for example, simultaneous translations of the program into foreign languages). ◀...
  • Page 47 ● Multi-Track❑Sound❑(MTS)❑ (analog channels only) Select an option using the up and down arrow keys, and then press ENTERE. Mono: Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal. Stereo: Choose for channels that are broadcasting in stereo. SAP: Choose to listen to the Separate Audio Program, which is usually a ◀...
  • Page 48 ❑ ■ SPDIF❑Output The SPDIF (Sony Philips Digital InterFace) outputs an uncompressed digital audio signal when you connect the digital audio jack on the back of the TV to a digital audio in jack on a receiver or home theater. ●...
  • Page 49 ❑ ■ Speaker❑Settings ● Speaker❑Select❑(External❑Speaker❑/❑TV❑Speaker) If you are listening to the sound track of a broadcast or movie through an external receiver, you may hear a sound echo caused by the difference in decoding speed between the TV’s speakers and the speakers attached to your audio receiver.
  • Page 50 ● Auto❑Volume❑(Off❑/❑Normal❑/❑Night) equalizes the volume level on each channel, so that when you change Normal channels, the volume level is the same. Night equalizes and decrease the volume level on each channel, so each channel is quieter. volume low. If connecting to an external device using the HDMI/DVI cable, it is recommended to turn off Auto❑Volume.
  • Page 51 ❑ ■ Reset❑Sound❑(OK❑/❑Cancel) Reset all sound settings to the factory defaults. Select OK, press ENTERE, select OK❑on the pop-up, and then press ENTERE again. ◀ ▶ English...
  • Page 52 ❑ ❑ Setting❑the❑Network❑Connection❑ ❑ ■ Network❑Settings❑ ❑ MENUm❑→❑Network❑→❑Network❑Settings❑→❑ENTERE Set up your network connection so you can use AllShare™ and perform software upgrade. ❑ ■ Network❑Status❑ ❑ MENUm❑→❑Network❑→❑Network❑Status❑→❑ENTERE❑ ◀ Let you check the current network and Internet status. ❑ ■ AllShare❑Settings ❑...
  • Page 53 ❑ ❑ Connecting❑to❑a❑Wired❑Network There are three ways to attach your TV to your LAN using cable: ● You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a LAN cable. See the diagram below. TV Rear Panel External Modem The Modem Port on the Wall...
  • Page 54 ● You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer (router) which is connected to an external modem. Use LAN cable for the connection. See the diagram below. The Modem Port on the Wall ◀...
  • Page 55 ● Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN port on the back of your TV directly to a network wall outlet using a LAN cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.
  • Page 56 ● If you have a Dynamic Network, you should use an ADSL modem or router that supports the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you do not have to enter them manually.
  • Page 57 ❑ ■ Automatic❑Network❑Setup Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps: How❑to❑set❑up❑automatically Go to the Network❑Settings → ENTERE) Settings Select Wired, ◀...
  • Page 58 If the connection process fails, check the LAN port connection. If the automatic process cannot find the network connection values or if you want to set the connection manually, go to the next secton, Manual Network Setup. ◀ Network❑Settings Internet❑is❑connected❑successfully. If❑you❑have❑a❑problem❑using❑any❑Internet❑services,❑contact❑your❑Internet❑service❑...
  • Page 59 ❑ ■ Manual❑Network❑Setup Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address. Getting❑the❑Network❑Connection❑Values To view the Network connection values on most Windows computers, follow these steps: Right click the Network icon on the bottom right of the screen. In the pop-up menu that appears, click Status.
  • Page 60 How❑to❑set❑up❑manually To set up your TV’s cable network connection manually, follow these steps: Go to the Network❑Settings → ENTERE) Settings Select Wired, and then press❑ ENTERE. The network connection screen appears and the verification process starts. ◀ Press ENTERE. The verification process stops.
  • Page 61 In the top entry field, press ENTERE, and then set Press the ▼ button on your remote control to go to the IP Address entry field, and then press ENTERE. Enter the first portion of the IP Address (for example, 105) into the first entry field using the number keys on your remote control.
  • Page 62 When done entering IP❑Address, press ENTERE. Press the down arrow key to go to the Subnet Mask fields, and then press ENTERE. Repeat the same entry process for Subnet❑Mask, Gateway, and Server.❑ When done, select ENTERE. The network connection screen appears and the verification process starts.
  • Page 63 LED 5 series 32-46 inches To connect your TV to your wireless network, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2, or WIS10ABGN), which you connect to your TV’s back or side panel USB port. See the illustration below.
  • Page 64 Samsung’s Wireless LAN adapter is sold separately and is offered by selected retailers, Ecommerce sites, and Samsungparts.com. Samsung’s Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play video over a IEEE 802.11b/g connection, the video may not play smoothly.
  • Page 65 If you select the Pure High-throughput (Greenfield) 802.11n mode and the ◀ Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications. ●...
  • Page 66 – WPS❑(PBC) ◀ – One❑Foot❑Connection – Ad❑hoc ● The TV may not recognize the Samsung Wireless LAN Adapter if it is connected to the TV using a USB hub or USB extension cable other than the cable supplied. English ▶...
  • Page 67 Samsung Wireless LAN Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN Adapter using a USB cable in a place that is not affected by radio interference.
  • Page 68 Connect the extension cable to the USB 1 1.❑ (HDD) port. 2.❑ Connect the extension cable and Samsung Wireless LAN Adapter. ◀ Using double-sided adhesive tape, attach the Samsung Wireless LAN Adapter to the back of the TV near the top. English ▶...
  • Page 69 ❑ ■ Automatic❑Network❑Setup❑ Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network.
  • Page 70 How❑to❑set❑up❑automatically Go to the Network❑Settings screen. (MENUm → Network❑Settings Select Wireless❑(General), and then press ENTERE. The Network function searches for available wireless networks. ◀ When done, it displays a list of the available networks. → Network Select❑a❑network❑connection❑type. → ENTERE) Wired Wireless❑...
  • Page 71 In the list of networks, press the ▲ or ▼ button to select a network, and then press the ENTERE If the wireless router is set to Hidden (Invisible), you have to select Network establish the connection. If the Enter security key screen appears, go to step 6. If you select an wireless router that does not have security, go to step 8.
  • Page 72 You can also enter numbers by pressing the number buttons on your remote control. You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem. When done, use the right arrow button to move the cursor to NEXT, and then press ENTERE.
  • Page 73 ❑ ■ Manual❑Network❑Setup Use Manual Network Setup when connecting your TV to a network that requires a Static IP address or if the automatic connection process has failed. Getting❑the❑Network❑Connection❑Values To view the Network connection values on most Windows computers, follow these steps: Right click the Network icon on the bottom right of the screen.
  • Page 74 How❑to❑set❑up❑manually To set up your TV’s cable network connection manually, follow these steps: Go to the Network❑Settings → ENTERE) Settings Select Wireless❑(General), and then press❑ENTERE. The Network function searches for available wireless networks. When done, it displays a list of the available networks. In the list of networks, press the ▲...
  • Page 75 If the Enter security key screen appears, go to step 6. If you selected an AP or wireless router that does not have security, go to step 8. Enter the security key (Security key or PIN), and then select Done. When you enter the security key (Security key or PIN), use ▲/▼/◄...
  • Page 76 When done, use the r button to move the cursor to NEXT, and then press the ENTERE button. The network connection screen appears and the verification process starts. Press ENTERE to cancel. Select screen. The In the top entry field, press ENTERE, and then set Press the ▼...
  • Page 77 Repeat the entry process for each field in the IP❑Address. If you make a mistake when entering a number, re-enter the number to correct it. You can also press the up or down arrow button to change the number one unit at a time. When done entering the IP❑Address, press ENTERE.
  • Page 78 ❑ ■ WPS(PBC)❑Network❑Setup How❑to❑set❑up❑using❑WPS(PBC) If your router has a PBC (WPS) button, follow these steps: Go to the Network❑Settings screen. (MENUm → Network❑Settings Select WPS(PBC), and press ENTERE, then press ◀ ENTERE again. Press the WPS(PBC) button on your router within 2 minutes. Your TV automatically acquires all the network setting values it needs and connects to your network.
  • Page 79 ❑ ■ One❑Foot❑Connection❑Network❑Setup One❑Foot❑Connection automatically to a Samsung Wireless router. If your non-Samsung router does not support One❑Foot❑Connection, you must connect using one of the other methods. You can check for equipment that supports samsung.com. How❑to❑Set❑Up❑Using❑One❑Foot❑Connection❑ ◀ Turn on the router and your TV.
  • Page 80 Select One❑Foot❑Connection, and press ENTERE, then press ENTERE again. Place the router in parallel with the Samsung Wireless LAN Adapter and no more than 10 inches (25cm) from the Adapter. Wait until the connection is automatically established. The network connection screen appears, and network set up is done.
  • Page 81 You can connect to a mobile device that supports Ad-hoc connections - without going through a wireless router - using the “Samsung Wireless LAN Adapter”. After you connect the TV to a mobile device, you can use the files on device.
  • Page 82 Select OK, and press ENTERE. The TV searches for the mobile device. When the TV finishes searching for mobile devices, input the generated Network❑Name❑(SSID) connect. If network does not operate normally, check the (SSID) malfunction. If a device is connected once, it is added to the Network Setting list. When you connect it again, you can find it in the Network Setting list.
  • Page 83 The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider. If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG. English...
  • Page 84 ❑ ❑ Setting❑the❑Time ❑ MENUm❑→❑System❑→❑Time❑→❑ENTERE ❑ ■ Time❑ The current time will appear every time you press the INFO button. ● Clock: Set the clock to use the various timer features of the TV. If you disconnect the power cord, you have to set the clock again. Clock❑Mode: Set the current time manually or automatically.
  • Page 85 ● Manual: Set the current time manually. Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually. Clock❑Set: Set the Month, Day, Year, Hour, Select Clock❑Set. Select date or time, and then press ENTERE. Use the number buttons or the up and down arrow buttons to enter numbers.
  • Page 86 DST❑(Off❑/❑On): Switches the DST (Daylight Saving Time) function on or off. This function is only available when the Time❑Zone: Select your time zone. This function is only available when the ❑ ❑ Using❑the❑Sleep❑Timer ❑ MENUm❑→❑System❑→❑Time❑→❑Sleep❑Timer❑→❑ENTERE ● Sleep❑Timer t : Automatically shuts off the TV after a preset period of ◀...
  • Page 87 ❑ ❑ Setting❑the❑On/Off❑Timer ❑ MENUm❑→❑System❑→❑Time❑→❑ENTERE On❑Timer so that your TV turns on automatically at a time and on a day of your choosing. ● On❑Timer: You can set up three separate On❑Timer Timer❑1, On❑Timer❑2, On❑Timer❑3) You must set the clock before ◀...
  • Page 88 On❑Time: Set the hour, minute, am/pm. Use the number buttons or the up and down arrow keys to enter numbers. Use the left and right arrow buttons to change entry fields. Volume: Set the desired volume level. Use the left and right arrow buttons to change the volume level.
  • Page 89 If there is only one photo file in the USB, the Slide Show will not play. A folder with a name that is too long cannot be selected. Each USB device you use is assigned its own folder. When using more than one of the same type of USB device, make sure the folders assigned to each USB device have different names.
  • Page 90 ● Off❑Timer: You can set up three separate Off❑Timer Timer❑1, Off❑Timer❑2, Off❑Timer❑3) You must set the clock before you can use Off❑Timer. Setup: Select Mon~Fri,❑Mon~Sat,❑Sat~Sun Manual If you select Manual, you can choose the days you want ◀ Timer to turn off your TV. The c mark indicates days you’ve selected.
  • Page 91 ❑ ❑ Blocking❑Programs ❑ MENUm❑→❑System❑→❑Security❑→❑ENTERE ❑ ■ Security When you access the Security functions for the first time, the PIN input screen appears. Enter a 4 digit PIN you will remember. The PIN screen closes and the Securty Menu appears. Every time you access the Security functions, the PIN screen appears and you must enter that PIN.
  • Page 92 TV❑Rating: Lets you you block TV programs based on their ratings. This function allows you to control which TV programs your children can watch. Rating displays a grid with locks. The following categories are on the left side: – TV-Y: Young children / TV-Y7: Children 7 and over / TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / MA: Mature audience The following categories are on top:...
  • Page 93 Similarly, if you click adult group will be blocked (TV-G, TV-PG, ratings (D,❑L,❑S,❑V) work similarly. So, if you block the L sub-rating in PG, then the L sub-ratings in blocked. To unblock a category, click the lock. To unblock all the categories in a row, click the lock under ALL.
  • Page 94 Movie❑Rating(MPAA): You can block movies based on their MPAA rating. The Motion Picture Association of America (MPAA) has implemented a rating system that provides parents or guardians with advanced information on which films are appropriate for children. Movie❑Rating categories: – G: General audience (no restrictions).
  • Page 95 To block certain content, you select a lock, and press ENTERE (That is, you “click it”.). For example, click the lock and you block all X-rated movies. The rating categories are also grouped so that clicking one category blocks all the categories a parent would block along with it. For example, if you block the PG-13 category, then R,...
  • Page 96 Canadian❑English❑Rating: You can block TV programs based on their Canadian English rating. Canadian❑English❑Rating ratings categories: – C: Programming intended for children under age 8. / C8+: Programming generally considered acceptable for children 8 years and over to watch on their own. / G: General programming, suitable for all audiences. / PG: Parental Guidance.
  • Page 97 To block certain content, you select a lock, and press ENTERE (That is, you “click it”.). For example, click the 18+ lock and you block all TV programs rated 18+. The rating categories are also grouped so that clicking one category blocks all the categories a parent would block along with it.
  • Page 98 Canadian❑French❑Rating: You can block TV programs based on their French Canadian rating. Canadian❑French❑Rating ratings categories: – G: General / 8❑ans+: Programming generally considered acceptable for children 8 years and over to watch on their own. / 13❑ans+: Programming may not be suitable for children under the age of 13. / 16❑ans+: Programming is not suitable for children under the age of 16.
  • Page 99 To block certain content, you select a lock, and press ENTERE (That is, you “click it”.). For example, click the 18 ans+ lock and you block all TV programs rated 18 ans+. The rating categories are also grouped so that clicking one category blocks all the categories a parent would block along with it.
  • Page 100 Downloadable❑U.S.❑Rating: Parental restriction information you can use while watching DTV channels. NOTE ● If information is not downloaded from the broadcasting station, Downloadable❑U.S.❑Rating ● Parental restriction information is automatically downloaded while you watch DTV channels. It may take several seconds. ●...
  • Page 101 ● Parental restriction levels differ depending on the broadcasting station. The default menu name and change depending on the downloaded information. ● Even if you set the on-screen display to another language, the Downloadable❑U.S.❑Rating ● Blocking one rating level will automatically block other categories that deal with more sensitive material.
  • Page 102 ● Change❑PIN: The for your PIN and enter it in Enter❑New❑PIN. Re-enter the same 4 digits in Confirm❑New❑PIN. When the Confirm screen appears, press the The TV has memorized your new PIN. How❑to❑watch❑a❑restricted❑program❑or❑movie If the TV is tuned to a restricted program or movie, the will block it.
  • Page 103 ❑ ❑ Picture❑In❑Picture❑(PIP) ❑ MENUm❑→❑System❑→❑PIP❑→❑ENTERE ❑ ■ PIP❑ You can watch a program whose signal has passed through the TV’s tuner and watch one external video source simultaneously. For example, if you have a cable box connected to the Cable In jack, you can use cable box and watch a movie from a Blu-ray player attached to the HDMI In jack.
  • Page 104 ● You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke. ● When Program❑Rating❑Lock ● PIP Settings The picture from the external video source will be in the main screen and the picture from the TV’s tuner will be in the PIP sub-picture window.
  • Page 105 ● PIP❑(Off❑/❑On): Activate or deactivate the PIP function. ● Air/Cable❑(Air❑/❑Cable): Select either for the sub-screen. ● Channel: Select the channel for the sub-screen. ● (Õ / Ã): Select a size for the sub-picture. Size ● Position ● Sound❑Select❑(Main❑/❑Sub): You can choose to listen to the sound from the ◀...
  • Page 106: Picture Menu

    ❑ ❑ Economical❑Solutions ❑ ■ Eco❑Solution ● Energy❑Saving❑(Off❑/❑Low❑/❑Medium❑/❑High❑/❑Picture❑Off): Lets you adjust the brightness of the TV in order to reduce power consumption. If you select Picture❑Off, the screen is turned off, but the sound remains on. Press any button to turn on the screen again. ●...
  • Page 107 Min❑Backlight: When minimum screen brightness. Eco❑Sensor darker in most cases) depending on the surrounding light intensity. You can control the screen’s minimum brightness with the function. ● No❑Signal❑Power❑Off❑(Off❑/❑15❑min.❑/❑30❑min.❑/❑60❑min.): Sets how quickly the TV switches to standby mode if it is receiving no signal. Disabled when an attached PC is in power saving mode.
  • Page 108 ❑ ■ Auto❑Protection❑Time❑ ● Auto❑Protection❑Time❑(Off❑/❑2❑hours❑/❑4❑hours❑/❑8❑hours❑/❑10❑hours): If the screen remains idle with a still image for a period of time you define, the TV activates the screen saver to prevent the formation of burnt in ghost images on the screen. ◀ ▶...
  • Page 109 ❑ ❑ Other❑Features ❑ MENUm❑→❑System❑→❑ENTERE ❑ ■ Menu❑Language Set the menu language. Select Menu❑Language, Choose a language, and then press the ENTERE button. Choose English, Español, or Français. ◀ and then press the ENTERE button. English ▶...
  • Page 110 ❑ ■ Caption (On-Screen Text Messages) ● Caption❑(Off❑/❑On): You can switch the caption function on or off. If captions are not available, they will not be displayed on the screen. The Caption feature does not work with devices connected to the TV through the Component, HDMI or PC input jacks.
  • Page 111 Default❑/❑Service1~Service6❑/❑CC1~CC4❑/❑Text1~Text4: (digital channels only) The Digital Captions function works with digital channels. Service1~6 the broadcast. ● Digital❑Caption❑Options: (digital channels only) Size: Options include Default, Small, Standard and Large. The default is Standard. Font❑Style: Options include Default and Styles 0 to 7. The default is Style 0. ◀...
  • Page 112 Background❑Color: You can change the background color of the caption. Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. The default is Black. Foreground❑Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing. Background❑Opacity: This adjusts the opacity of the caption background.
  • Page 113 NOTE ● Digital❑Caption❑Options Default ● The availability of captions depends on the program being broadcast. ● Default ● You cannot set the Foreground and Background to the same color. ● You cannot set both the Opacity ◀ are available only when you can select Service1❑~❑Service6 setting follows the standards set by the broadcaster.
  • Page 114 ❑ ■ General ● Game❑Mode❑(Off❑/❑On): When you have connected a game console such as PlayStation™ or Xbox™ to the TV, you can enjoy a more realistic gaming experience if you set NOTE ● Precautions and limitations for Game❑Mode: – Before disconnecting a game console and connecting another external device, set Game❑Mode❑to Off.
  • Page 115 ● Game❑Mode or PC. ● Game❑Mode turn Game Mode on before you have attached the game console, you may notice reduced picture quality. ● Game❑Mode – Picture❑Mode Movie. ◀ is not available when you’ve set the input source to to On❑only after connecting a game console. If you is On: is set to Standard...
  • Page 116 ● Menu❑Transparency❑(Bright❑/❑Dark): Set the Transparency of the menu. ● Boot❑Logo❑(Off❑/❑On): Display the Samsung logo when the TV is turned on. ● TV❑name for LED 5 series 32-46 inches selecting from a list of names (for example, Home TV) or by keying in a name manually.
  • Page 117 ❑ ■ Anynet+(HDMI-CEC) For details on set up options, refer to the “Anynet+(HDMI-CEC)” instructions. ◀ ▶ English...
  • Page 118 ❑ ■ DivX®❑Video❑On❑Demand Shows the registration code authorized for the TV. If you connect to the DivX web site and register using that code, you can download the VOD registration file. If you activate the VOD registration using My❑Contents, the registration is completed.
  • Page 119 ❑ ■ Network❑Remote❑Control❑(On❑/❑Off)❑ for LED 5 series 32-46 inches Turn on/off or give permission to Samsung mobile phones devices to connect with and control the TV. You must have a Samsung Mobile phone/device which supports Network Remote Control. For more details, refer to each device’s manual.
  • Page 120 ❑ ❑ Support❑MENU ❑ MENUm❑→❑Support❑→❑ENTERE ❑ ■ e-Manual You can read the introduction and instructions about the TV features stored in your TV. For the detailed information about e-Manual Screen, refer to “How to use the e-Manual” in the User Manual. ◀...
  • Page 121 Yes: Select Yes if the test picture does not appear or there is noise or distortion in the test picture. There may be a problem with the TV. Contact Samsung’s Call Center for assistance. ◀ ▶...
  • Page 122: Sound Menu

    MUTE button. Yes: Select Yes if you can hear sound from only one speaker or from neither speaker during the sound test. There may be a problem with the TV. Contact Samsung’s Call Center for assistance. Speaker❑Select External❑Speaker or have muted the sound by pressing the...
  • Page 123 ◀ RF or PC Issues, and Other Issues. If your TV seems to be having a problem, access the trouble shooting guide for a solution. If none of these troubleshooting tips apply, contact the Samsung customer service center. English ▶...
  • Page 124 ❑ ■ Software❑Upgrade Software❑Upgrade upgrade your TV’s software to the latest version. Current❑Version: version already installed in the TV. The current version is displayed in the following format: Year/Month/ Day_Version number. ◀ menu lets you This is the software English Software❑Upgrade Current Version 2011/01/18_000001...
  • Page 125 Upgrading❑to❑the❑Latest❑Version You can upgrade in three ways: ● By USB ● By Online ● By Standby Mode Upgrade The three methods are explained in the following pages. Be careful not to turn off the power until the upgrade is complete. The TV will turn off and on automatically after completing the firmware upgrade.
  • Page 126 By❑USB To upgrade by USB, follow these steps: Visit www.samsung.com. Download the latest USB software upgrade exe archive to your computer. Copy the folder to a USB flash drive. Turn on the TV, and then insert the USB flash drive into the USB port of the TV.
  • Page 127 ❑ By❑Online for LED 5 series 32-46 inches By❑Online function lets you download the upgrade software directly from the Internet into your TV and then upgrade the software in one operation. To use By Online, you must have configured your TV to connect to your network and the TV must be connected to the Internet.
  • Page 128 When the download is complete, the Upgrade Query window appears with three choices: Upgrade Now, Upgrade Later, or Don’t Upgrade. If you select Upgrade Now, the TV upgrades the software, turns off, and then turns on automatically. If you do not make a selection in one minute or select Upgrade Later, the TV stores the new upgrade software.
  • Page 129 Alternative❑Software Alternative❑Software earlier, but you decided not to install immediately, or a file downloaded by the TV Standby❑Mode❑Upgrade To upgrade by Alternative❑Software, follow these steps: If upgrade software has been downloaded, you will see the software version number to the right of Alternative❑Software. Select Alternative❑Software, and then press the ENTERE button.
  • Page 130 Standby❑Mode❑Upgrade❑ You can set the Standby❑Mode❑Upgrade upgrade software when it is in Standby mode. In Standby mode, the TV is off, but its Internet connection is active. This allows the TV to download upgrade software automatically, when you are not using it. Because the TV is turned on internally, the screen may glow slightly.
  • Page 131 ● On: If you select On, the TV will automatically download new upgrade software when it is in Standby mode with the power off. If it downloads new upgrade software, the TV will ask you if you want to install it when you turn the TV on.
  • Page 132 ❑ ■ Contact❑Samsung View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centers and how to download products and software. ❑ ■ Contents❑Home You❑can❑enjoy❑useful❑and❑various❑contents.
  • Page 133: My Contents

    ❑ ❑ Using❑the❑My❑Contents Enjoy photos, music and movie files saved on a USB Mass Storage Class (MSC) device and/or your PC. Press the CONTENT button to select My❑Contents. Press ▲/▼ button to select the desired menu (Videos, Photos, Music), then press the ENTERE button.
  • Page 134 To view content on a USB device, you must plug the device into a USB jack on the TV. To view content located on your PC, you must have connected your TV and your PC to your LAN and downloaded and installed AllShare PC Software on your PC.
  • Page 135 ● Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. only supports USB Mass Storage Class (MSC) devices. MSC English ▶...
  • Page 136 ● USB (HDD) is not supported. ● Connect USB HDDs to the dedicated port, USB 1 (HDD), only. for LED 5 series 32-46 inches ● Do not disconnect the USB device while it is loading. ● The higher the resolution of the image, the longer it takes to display on the screen.
  • Page 137 ● The TV cannot play MP3 files with DRM that have been downloaded from a for-pay site. Digital Rights Management (DRM) is a technology that supports the creation, distribution, and management of digital content in an integrated and comprehensive way, including protecting the rights and interests of content providers, preventing illegal copying of contents, and managing billings and settlements.
  • Page 138 ● If the TV has no input during the time set in Auto❑Protection❑Time, the Screensaver will run. ● The power-saving mode of some external hard disk drives may be released automatically when your connect them to the TV. ● If you use a USB extension cable, the TV may not recognize the USB device or may not be able to read the files on the device.
  • Page 139 My❑Contents. To use My❑Contents download “AllShare PC Software” and the Share Manager users manual from “www.samsung.com.” For more information on how to configure your TV and connect it to your network, see ‘Network Connection’. ◀ We recommend you locate both your TV and PC in the same network subnet.
  • Page 140 You need a router and/or modem to connect your PC to the Internet. For information about connecting your PC to your network, see the instructions for the router or modem. The following playing media from a PC connected through a network: ●...
  • Page 141 Depending on the Internet server, when you use network connection: ● The sorting method may vary. ● Play❑Continuously may not be supported. – Play❑Continuously memorizes only the point where the most recent user stopped playing a video.) ● The � (REW), µ (FF) or � (Pause) buttons may not work depending ◀...
  • Page 142 ❑ ❑ My❑Contents❑Selection❑Screen To play a file, move to the file using the ◄/►/▲/▼ buttons, and then press the ENTERE or � (Play) button. The TV plays the file. The My❑Contents❑screen may differ depending on how you accessed the screen or how files are sorted. Information: Displays the selected content category (Music,...
  • Page 143 ❑ ■ Videos Playing❑a❑Video Press the ◄/►/▲/▼ button to select the desired video in the file list. Press the ENTERE button or � (Play) button. – The file name appears on the ◀ top with its playing time. – If video time information is unknown, playing time and the progress bar are not displayed.
  • Page 144 – During video playback, you can search using the ◄ and ► button. – Press the RETURN button to exit the movie. In this mode, you can play movie clips contained in a game, but you cannot play the game itself. While a movie is playing, press the TOOLS button to access additional functions such as Repeat❑Mode, Picture❑Size, Picture❑Mode, and Mode.
  • Page 145 ● Supported Video Formats File❑Extention Container *.avi *.mkv ◀ Video❑Codec Resolution Divx 3.11 / 4.x 1920x1080 / 5.1 / 6.0 H.264 BP / MP 1920x1080 / HP MPEG4 SP / 1920x1080 Motion JPEG 640x480 English Frame❑rate❑ Bit❑rate❑ Audio❑Codec (fps) (Mbps) 6 ~ 30 MP3 / AC3 6 ~ 30...
  • Page 146 File❑Extention Container *.asf ◀ *.wmv Frame❑rate❑ Video❑Codec Resolution Divx 3.11 / 4.x 1920x1080 / 5.1 / 6.0 H.264 BP/MP/ 1920x1080 MPEG4 SP / 1920x1080 Motion JPEG 640x480 Window Media 1920x1080 Video v9 English Bit❑rate❑ Audio❑Codec (fps) (Mbps) 6 ~ 30 MP3 / AC3 6 ~ 30 / LPCM /...
  • Page 147 File❑Extention Container *.mp4 *.3gp 3GPP ◀ *.vro Video❑Codec Resolution H.264 BP / MP 1920x1080 / HP MPEG4 SP / 1920x1080 H.264 BP / MP 1920x1080 / HP MPEG4 SP / 1920x1080 MPEG1 1920x1080 24 / 25 / 30 MPEG2 1920x1080 24 / 25 / 30 English Frame❑rate❑...
  • Page 148 File❑Extention Container *.mpg *.mpeg *.ts *.tp *.trp ◀ Frame❑rate❑ Video❑Codec Resolution MPEG1 1920x1080 24 / 25 / 30 MPEG2 1920x1080 24 / 25 / 30 H.264 1920x1080 MPEG2 1920x1080 24 / 25 / 30 H.264 1920x1080 1920x1080 English Bit❑rate❑ Audio❑Codec (fps) (Mbps) AC3 / MPEG /...
  • Page 149 Other❑Restrictions NOTE ● Video content will not play, or not play correctly, if there is an error in the content or the container. ● Sound or video may not work if the contents have a standard bit rate/ frame rate above the compatible Frame/sec listed in the table above. ●...
  • Page 150 ● Some USB/digital camera devices may not be compatible with the TV. ● Video content can not be played, if there are many contents in one file. ● Supports up to H.264, Level 4.1 ● H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.
  • Page 151 Playing❑movie❑continuously❑(Resume❑Play) If you exit a movie when it is playing, you can play the movie later from the point where you stopped it. Select the movie file you stopped and want to resume by pressing the ◄ or ► button. Press the �...
  • Page 152 ❑ ■ Music Playing❑Music Press the ◄/►/▲/▼ button to 1.❑ select the desired music file in the file list. Press the ENTERE button or � (Play) button. – You can use the � (REW), ◀ µ❑(FF), Pause, Stop, and Play buttons on the bottom of your remote control control during playback.
  • Page 153 While a music file is playing, press the TOOLS button to access additional functions such as Repeat❑Mode, Shuffle❑Mode, Sound❑Mode, and Information. My❑Contents extensions are not displayed, even if they are saved on the same USB device. If the sound is abnormal when you play MP3 files, adjust the in the Sound problem.)
  • Page 154 Playing❑selected❑music Press the the music files. Using the arrow keys, highlight a file you want to play, and then press ENTERE. A check appears in the check box of the selected file. Repeat for each file you want to play. Press the TOOLS button, and then select Play❑Selected❑Contents.
  • Page 155 ❑ ■ Photos Viewing❑a❑Photo❑(or❑Slide❑Show) Press the ◄/►/▲/▼ button to 1.❑ select the desired photo in the file list. Press the ENTERE button. ● To view files manually, one at a time, press the left or right ◀ arrow buttons. ● To start the slide show, press the ENTERE button when the file you selected is displayed.
  • Page 156 During a Slide❑Show, press the TOOLS button to access additional functions such as Slide❑Show❑Speed, Background❑Music, Zoom, and Rotate. You can add background music to a slide show if you have music files on your USB device or PC by setting menu, and then selecting music files to play.
  • Page 157 ❑ ❑ My❑Contents❑-❑Additional❑Functions Sorting❑the❑file❑lists Press the button in the file list to sort the files. Checks indicate which media the sort criteria apply to. Sort Criteria Displays the whole folder. You can Folder❑View view a photo by selecting the folder. Sorts and displays the file titles in Title❑Search❑❑...
  • Page 158 Sort Criteria Sorts music files by artist in Artist alphabetical order. Sorts music file by album in Album alphabetical order. Genre Sorts music files by the genre. Sorts and shows photo files by Monthly month. ◀ Operation Videos English Music Photos ▶...
  • Page 159 Videos/Music/Photos❑Play❑Option❑menus When playing a file, press the TOOLS button. Checks indicate which media the options apply to. Option Name Title❑Search ◀ Time❑Search❑ Shuffle❑Mode Repeat❑Mode Operation You immediately load a video file file you select. You can search a video at one minute intervals using the ◄...
  • Page 160 Option Name Picture❑Size Picture❑Mode Sound❑Mode ◀ Subtitle❑Language Operation You can adjust the picture size to your preference. You can adjust the picture setting. You can adjust the sound setting. You can enjoy a video in a supported languages. The function is only enabled when stream-type files which support multiple audio formats are played.
  • Page 161 Option Name Subtitle❑Setting Start❑Slide❑Show❑/❑ ◀ Pause❑Slide❑Show Slide❑Show❑Speed Background❑Music Operation You can play a video with Subtitles. This function only works if the subtitle file has the same file name as the video file and the appropriate file extension. For example, Avatar. ttxt.
  • Page 162 Option Name Background❑Music❑ Setting Zoom ◀ Rotate Information Operation You can select background music when watching a Slide Show. You can zoom into images in full screen mode. Use the ENTERE button to increase or decrease the zoom. Use the arrow buttons to select the area to enlarge.
  • Page 163 Anynet+ with your Samsung TV’s remote control. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
  • Page 164 Anynet+❑Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+❑Menu Description View❑TV Changes Anynet+ mode to TV broadcast mode. Device❑List Shows the Anynet+ device list. (device_name) Shows the connected device menus. For example, if a DVD player is connected, the disc menu of the DVD player will appear.
  • Page 165 Anynet+❑Menu Description Shows the title menu of the connected device. For example, if a DVD player is connected, the title menu of the movie in the DVD (device_name) player will appear. Title❑Menu Depending on the device, this menu may not be available. Sound is played through the receiver.
  • Page 166 ❑ ❑ Setting❑Up❑Anynet+❑ ❑ MENUm❑→❑System❑→❑Anynet+❑(HDMI-CEC)❑→❑ENTERE ❑ ■ Anynet+❑(HDMI-CEC) Anynet+❑(HDMI-CEC)❑(Off❑/❑On): To use the Anynet+ Function, you must set Anynet+❑(HDMI-CEC) When the Anynet+❑(HDMI-CEC) operations are deactivated. Auto❑Turn❑Off❑(No❑/❑Yes): Set an Anynet+ Device to turn off automatically when ◀ the TV is turned off. Auto❑Turn❑Off same time as the TV turns off.
  • Page 167 ❑ ❑ Switching❑between❑Anynet+❑Devices❑ Press the TOOLS button, select Anynet+❑(HDMI-CEC), and then press ENTERE Select Device❑List, and then press the ENTERE●button. If you cannot find a device you want, press the Select a device, and then press the ENTERE button. You can switch to the selected device.
  • Page 168 ❑ ❑ Listening❑through❑a❑Receiver❑ You can listen through a receiver (i.e Home Theater) instead of the TV speaker. Select Receiver Press the EXIT button to exit. If your receiver supports audio only, it may not appear in the device list. The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO OUT (OPTICAL) jack of the TV.
  • Page 169 NOTE ● You can only control Anynet+ devices using the TV remote control, not the buttons on the TV. ● The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device. ● The Anynet+ functions do not operate with other manufacturers’ products.
  • Page 170 ❑ ❑ Troubleshooting❑for❑Anynet+ Problem ● Anynet+ does not work. ● ● ● ◀ ● Possible❑Solution Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. You can connect only one receiver (home theater) connected. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI cable connections.
  • Page 171 Problem ● Anynet+ does not work. ● ● ● ◀ ● Possible❑Solution Check whether the TV remote control is in Check whether the remote control is Anynet+ compatible. Anynet+ does not work in certain situations. (Searching channels, operating My❑Contents etc.) When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again.
  • Page 172: Anynet

    Problem ● I want to start Anynet+. ● ● I want to exit Anynet+. ● ◀ ● Possible❑Solution Check if the Anynet+ device is properly connected to the TV and check if the❑Anynet+❑(HDMI-CEC) System menu. Press the TOOLS button to display the Anynet+ menu and select a menu you want.
  • Page 173 Problem ● The message ‘Connecting❑ to❑Anynet+❑ ● device...’ appears on the screen. ● The Anynet+ device does not ◀ play. Possible❑Solution You cannot use the remote control when the TV is in the process of configuring Anynet+ or switching to a view mode. Use the remote control after the TV has finished Anynet+ configuration or has finished switching to Anynet+.
  • Page 174 Problem ● The connected device is not ● displayed. ● ● ● ◀ ● ● The TV sound is not output through the receiver. Possible❑Solution Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI cable is properly connected. Check whether Anynet+❑(HDMI-CEC) System...
  • Page 175 For more information, visit “www.samsung.com” or contact the Samsung call center. Mobile devices may need additional software installation. For details, refer to each device’s user’s guide. If your Samsung TV connects to a non-Samsung DLNA server, a compatibility ◀ issue may occur during video playback.
  • Page 176 By connecting your Samsung TV to a network via AllShare™, you can use Samsung’s original functions as follows: – Playback of various video formats (DivX, MP4, 3GPP, AVI, ASF, MKV, etc.) – Video thumbnail feature – Bookmark function (to resume video playback) –...
  • Page 177 ❑ ❑ Setting❑Up❑AllShare™ ❑ MENUm❑→❑Network❑→❑AllShare❑Settings❑→❑ENTERE ❑ ■ AllShare❑Settings❑ ● Media❑(On❑/❑Off): Enables or disables the media function. When the media function is on, you can control Media contents play using mobile phones or other devices that support DLNA ◀ DMC. AllShare❑Settings Media English ►...
  • Page 178 ❑ ■ Media Shows a list of mobile phones or connected devices which have been set up to use the Media function with this TV. function is available in all devices which support DLNA DMC. Media ● Allow / Deny: Allows/Blocks the devices. ●...
  • Page 179 Using❑the❑Media❑Function❑ You can play media contents including videos, photos and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network. NOTE ● To turn off the media contents transmission from the devices, set in the AllShare❑Settings.
  • Page 180: Troubleshooting

    ❑ ❑ Troubleshooting If the TV seems to have a problem, first review this list of problems and solutions. If none of these troubleshooting tips apply, visit samsung.com, then click on Support, or call Samsung customer service at 1-800-SAMSUNG. Issues Poor picture ◀...
  • Page 181 Issues The TV image does not look as good as it did in the store. ◀ Solutions❑and❑Explanations Store displays are typically tuned to digital, HD (high definition) channels. ● If you have an analog cable/satellite box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.
  • Page 182 Issues The picture is distorted: macroblock error, small block, dots, pixelization. ◀ Color is wrong or missing. Solutions❑and❑Explanations ● The compression of video contents may cause picture distortion, especially in fast moving pictures such as sports and action movies. ● A weak signal can cause picture distortion.
  • Page 183 Issues There is poor color or brightness. There is a dotted line ◀ on the edge of the screen. The picture is black and white. Solutions❑and❑Explanations ● Adjust the Picture options in the TV menu. (go to Mode❑/❑Color❑/❑Brightness❑/❑Sharpness) ● Adjust the Energy❑Saving MENU - System...
  • Page 184 Issues When changing channels, the picture freezes or is distorted or delayed. Sound Problem ◀ There is no sound or the sound is too low at maximum volume. Solutions❑and❑Explanations ● If the TV is connected to a cable box, please try to reset the box.
  • Page 185 Issues The picture is good but there is no sound. ◀ Solutions❑and❑Explanations ● Set the Speaker❑Select Sound menu. ● If you are using an external device, check the device’s audio output option (Ex. You may need to change your cable box’s audio option to HDMI if you have the box connected to your TV using an HDMI cable.).
  • Page 186 Issues The speakers are making an inappropriate noise. No Picture, No Video ◀ The TV will not turn Solutions❑and❑Explanations ● Check the cable connections. Make sure a video cable is not connected to an audio input. ● For Antenna or Cable connections, check the signal information.
  • Page 187 Issues The TV turns off automatically. ◀ Solutions❑and❑Explanations ● Ensure the Sleep❑Timer menu. ● If your PC is connected to the TV, check your PC power settings. ● Make sure the AC power cord is plugged in securely to the wall outlet and the TV. ●...
  • Page 188 Issues There is no picture/ video ◀ Solutions❑and❑Explanations ● Check the cable connections. (Remove and reconnect all cables connected to the TV and external devices). ● Set your external device’s (Cable/Sat Box, DVD, Blu- ray etc) video outputs to match the connections to the TV input.
  • Page 189 Issues RF(Cable/Antenna) Connection The TV is not receiving all channels. ◀ No Caption on digital channels. Solutions❑and❑Explanations ● Make sure the coaxial cable is connected securely. ● to add available channels to the Auto❑Program channel list. Go to MENU - then select Auto and make sure to select the correct Cable TV signal type.
  • Page 190 Issues The picture is distorted: macroblock, error, small block, dots, pixelization. PC Connection “Mode❑Not❑ ◀ Supported” message appears. “PC” is always shown on the source list, even if a is not connected. Solutions❑and❑Explanations ● Compression of video contents may cause picture distortion.
  • Page 191 If you are using an HDMI connection, check the audio output setting on your PC. for LED 5 series 32-46 inches ● The Samsung Wireless USB dongle is required to use a wireless network. ● Make sure the network connection is set to (General).
  • Page 192 Issues Software Upgrade over the network fails. Others Purple/green rolling horizontal bars and buzzing noise from ◀ the TV speakers with Component cable connection. Solutions❑and❑Explanations ● Network❑Settings ● If you have latest SW version, SW upgrade will not proceed. ● Remove the left and right audio connections from the set-top-box.
  • Page 193 Issues The picture will not display in full screen. ◀ The remote control does not work. Solutions❑and❑Explanations ● HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3) contents. ● Black bars will appear on the top and bottom of the screen when you watch movies that have aspect ratios different from your TV.
  • Page 194 ● Program the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set top box user manual for the SAMSUNG TV code. ● Check the supported resolution of the TV and adjust the external device’s output resolution accordingly. Refer to resolution settings in this manual.
  • Page 195 Issues There is a plastic smell from the TV. Signal❑ Information unavailable in the Self❑ Diagnosis Test menu. TV is tilted to the right ◀ or left side. Channel menu is grey out (unavailable). Solutions❑and❑Explanations ● This smell is normal and will dissipate over time. ●...
  • Page 196 Issues Your settings are lost after 30 minutes or every time the TV is turned off. You have intermittent loss of audio or video. ◀ Solutions❑and❑Explanations ● If TV is in the Store❑Demo picture settings every 30 minutes. Please change from Store❑Demo mode to &❑Play...
  • Page 197 Issues menu is not available. You see small particles when you look closely at the edge of the frame of the TV. POP (TV’s internal ◀ banner ad) appears on the screen. Solutions❑and❑Explanations ● functionality is only available when you are using an HDMI, PC, or Component ●...
  • Page 198: Anti-theft Kensington Lock

    The appearance and locking method may differ from the illustration below depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use. The Kensington Lock is not supplied by Samsung. ◀ Please find a “K” icon on the rear of the TV.
  • Page 199 To lock the product, follow these steps: Wrap the Kensington lock cable around a large, stationary object such as desk or chair. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable. Insert the locking device into the Kensington slot on the product ( 1 ).
  • Page 200: License

    ❑ ❑ License TheaterSound, SRS and the Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. ◀ Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;...
  • Page 201 DivX Certified® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under license. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified®...

Comments to this Manuals

Symbols: 0
Latest comments:
  • Dave Dodge Dec 27, 2014 09:18:
    I just want to download a manual, not software. I am extremely annoyed that when I purchase a product I don't get a good manual and then when I try to obtain a full manual via download I have to jump through a bunch of hoops. Just make it available in PDF format so I can easily download the content without adding more software on my computer. I am so sick and tired of these electronic​s companies and the BS you have to go through to get the simplest damn thing.
