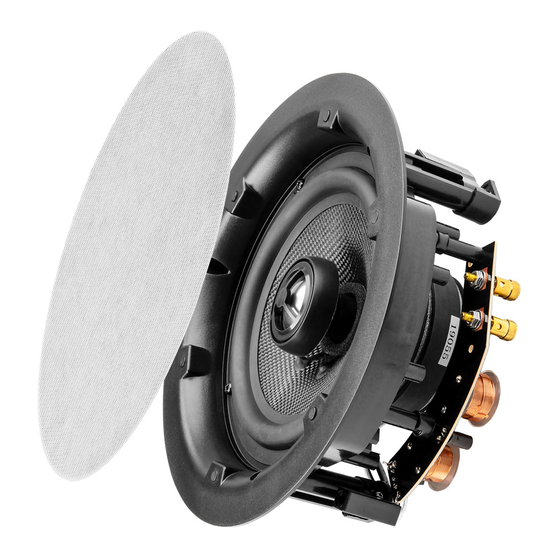

OSD Audio ACE640T Install Manual

Preparation:
Tools For Installation
- Pencil - Wire Cutter
- Drill - Phillips Screwdriver
- Tape Measure - Utility Knife
Considerations
- Where is the best place to install the speakers?
- Where do the speakers sound the best?
- Separate the speakers 6 - 10 feet apart.
Installation:
Cut Out
NOTE: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw.
Trace along the included template. Cut along the traced line using a
drywall saw or rotary drill. Use a piece of sandpaper to sand down the
cut out edge for a smoother contour. (See Diagram 1.)
Connection
When connecting any speakers to the amplifier always make sure
the power is off. Locate the connection terminals on the back of
your amplifier. Always make sure to connect audio out from the
back of your amplifier to the speakers correctly.
(See Diagram 2.)
NOTE: Not all Amplifier can safely play more than one pair of
speakers at once. Please refer to your amplifier owner's manual for
impedance and wattage compatibility.
ACE640T INSTALL GUIDE
Speaker Wire Guide
- Safety Eye Wear 18AWG minimum - for distances up to ...................... 10 ft
- Gloves 16AWG - from ............................................... 10 to 50 ft
- Sandpaper 14AWG - from ............................................. 50 to 100 ft

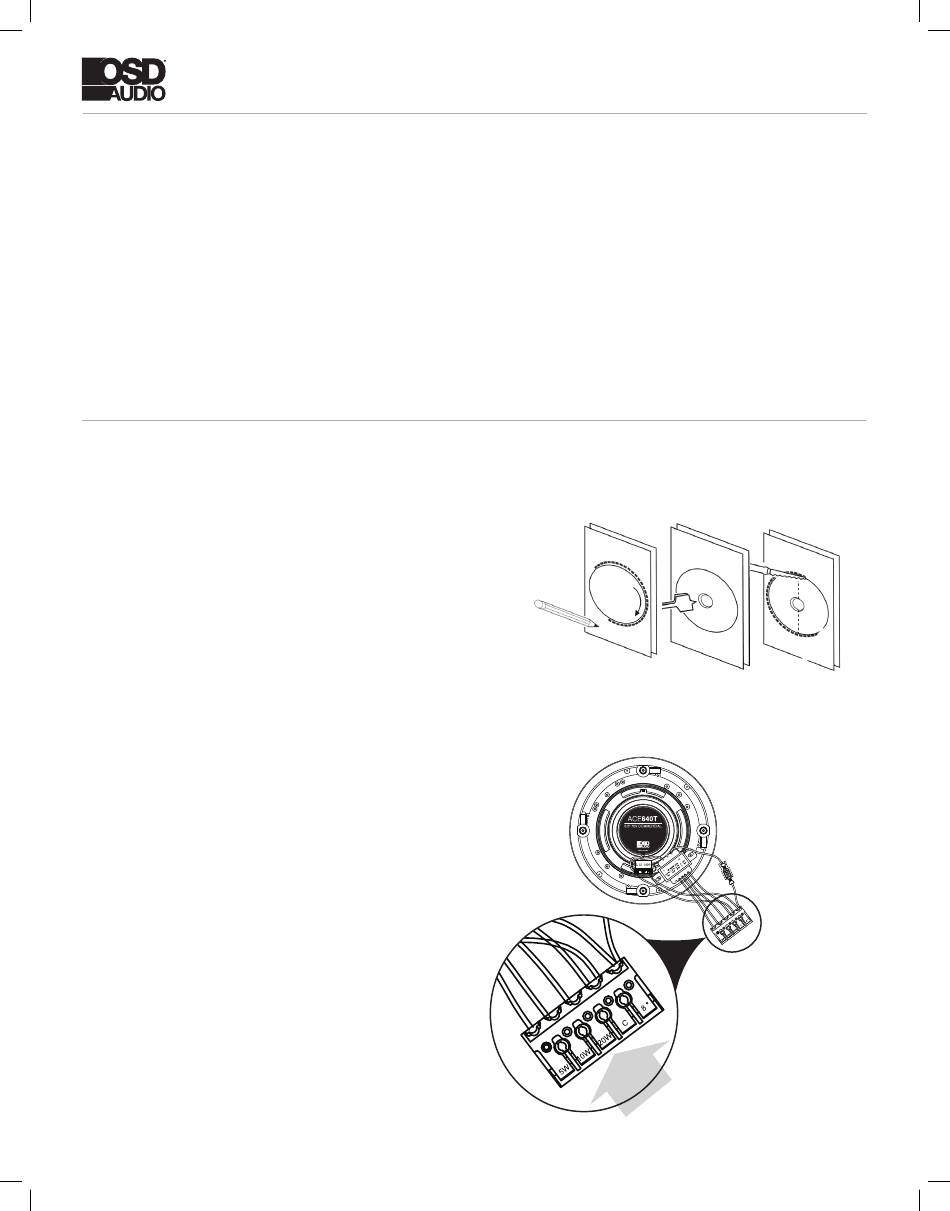

Diagram 1
Diagram 2
Attach the Common lead to
C then use the other lead
to connect to the deisred
Transformer Setting.
Transformer
Terminal Block
