OSD Audio ARCH-1 Owner's Manual

OSD
AUDIO
SPEAKER CONNECTION

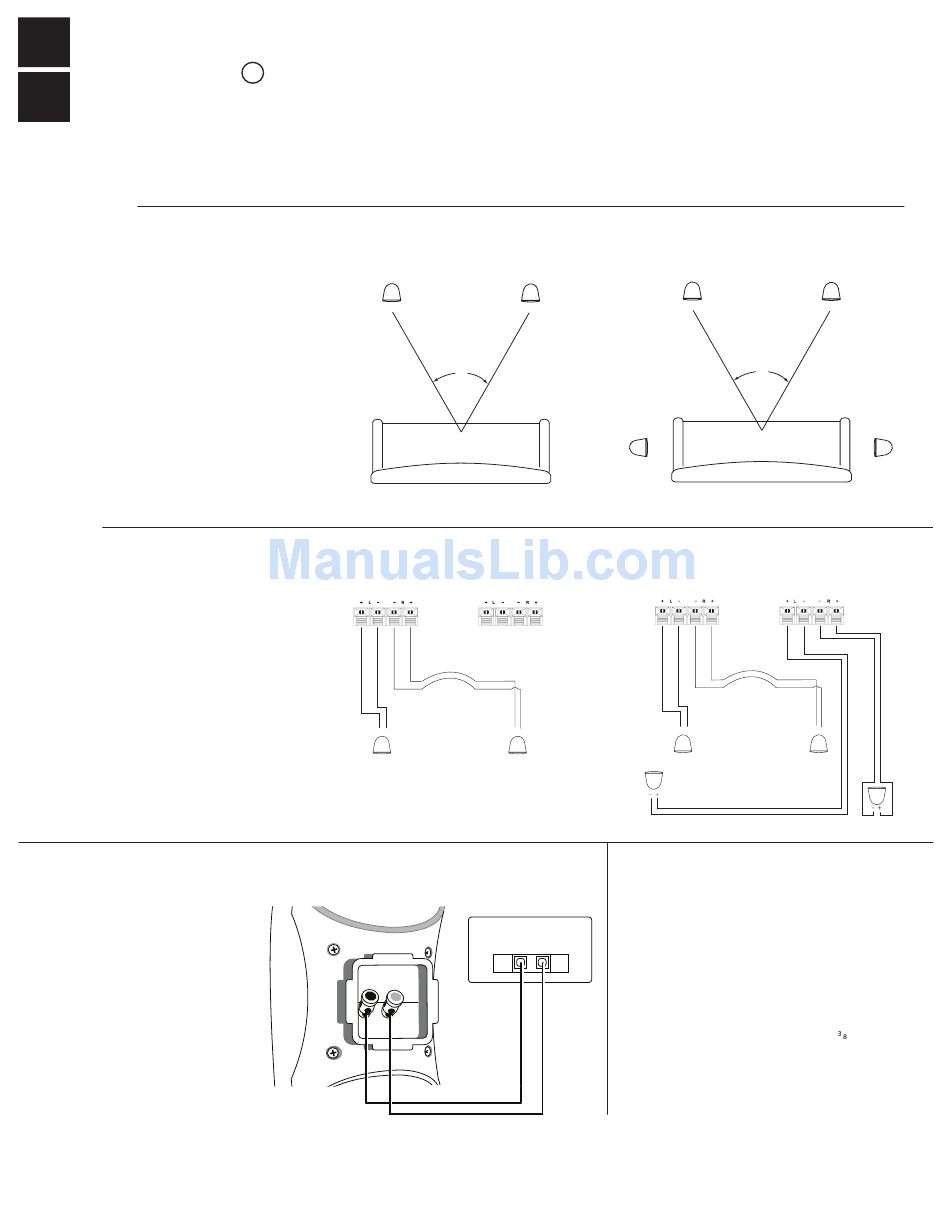

Left and Right Main Channel Speakers – For optimum
performance, place your speakers 6 to 15 feet (2 to 4.5m) apart
and at least 24 inches (60.8cm) from side walls. They may also
be toed-in slightly for better stereo imaging. The listening position
should be approximately 1 to 1.5 times the distance separating
the speakers. Refer to figures 1 and 2 for placement.
Rear Surround Channel Speakers – Rear surround speakers are
designed to recreate the sense of space and ambiance that many
of today's surround sound technologies provide. ARCH-1 surround
speakers can be placed on the wall directly adjacent to or on the
wall behind the listening position using the foot as the mounting
bracket. Refer to Diagram 2 for placement.
CONNECTIONS
Conventional Connection – Using 16-gauge or larger speaker
wire, connect the RED "positive" (+) terminal of the LEFT
speaker to the RED "positive" (+) terminal of your amplifier's
LEFT channel. Connect the BLACK "negative" (-) terminal of the
LEFT speaker to the BLACK "negative" (-) terminal of your
amplifier's LEFT channel. Repeat this procedure for connecting
all remaining speakers to the appropriate amplifier
channels. Refer to Figure 3 and 4. Make sure no bare wires
from any of the connections touch any other bare wires or
terminals as this could cause a short and damage your
equipment.
The speakers have coded terminals that
accept a variety of wire connectors. The most
common connection is shown in the diagram
to the left. To ensure proper polarity, connect
each + terminal on the back of the amplifi er
or receiver to the respective + (red) terminal
on each speaker, as shown. Connect the –
(black) terminals in a similar way. See the
owner's guides that were included with your
amplifi er, receiver and television to confi rm
connection procedures.
R
Diagram 1
LEFT
FRONT
Diagram 3
FRONT
+ -
LEFT
FRONT
_
+
RIGHT
FRONT
45
LISTENING AREA
SURROUND
+ -
RIGHT
FRONT
Receiver or Amplifier
_
+
ARCH-1
Owner's Manual
Diagram 2
LEFT
FRONT
45
LEFT
REAR
LISTENING AREA
Diagram 4
FRONT SURROUND
+ -
LEFT
FRONT
LEFT
REAR
Specification ARCH-1
Speaker Type:
4" Multi-Purpose All
Weather Loudspeaker
Tweeter:
1" Aluminum Tweeter
Woofer:
Dual 4" Polypropylene
Impedance:
4 - 8 Ohms
Sensitivity:
90dB 1W/1M
Frequency Response:
60Hz-20kHz
Power Handling::
150 Watts
Dimensions Satellite:
14 ¼" x 5 ⁄ " x 10 ¼"
Unit of Measure:
Each
Warranty:
10 Years
RIGHT
FRONT
RIGHT
REAR
+ -
RIGHT
FRONT
RIGHT
REAR
