VENTILATION SYSTEM (PREPARING OVEN FOR INSTALLATION)

This Microwave Oven/Hood is designed for adaptation to three types of hood ventilation systems. Select the type required for your
installation.
Recirculating — non-vented, ductless. Follow installation procedure (A). Recirculating requires the use of the Charcoal Filter,
which has already been installed in the oven.
Horizontal Exhaust — outside ventilation. Follow installation procedure (B).
Vertical Exhaust — outside ventilation. Follow installation procedure (C).
(A) RECIRCULATING: Non-Vented, Ductless Operation
The unit is shipped assembled for recirculating.
1. The Exhaust Damper Assembly 9 is not required for recirculating operation.
NOTE:
2. The Charcoal Filter should be replaced every 6 to 12 months, depending on use.
3. The Charcoal Filter RK-240 is also sold as an accessory. See Page 8 for ordering information.
(B) HORIZONTAL EXHAUST: Outside Ventilation
1. Remove 2 screws from back edge and 3 screws from the top center of Fan Cover Bracket. Save 2 screws to be used later and
discard remaining 3. Remove Fan Cover Bracket by sliding it in the opposite direction of the arrow on the Fan Cover Bracket,
as shown in Figure 7.
2. Lift Hood Fan Unit carefully and slip wires out of cavity. See Figure 8. CAUTION: Do not pull or stretch hood fan wiring.
3. Rotate the Hood Fan Unit 180˚ so that the fan blade openings are facing the back of the oven. See Figure 9 (A). Replace Hood
Fan Unit into the oven. Be careful not to pinch the wire and the Hood Fan Unit. See Figure 9 (B).
4. Put the wire back into the cavity. See Figure 10.

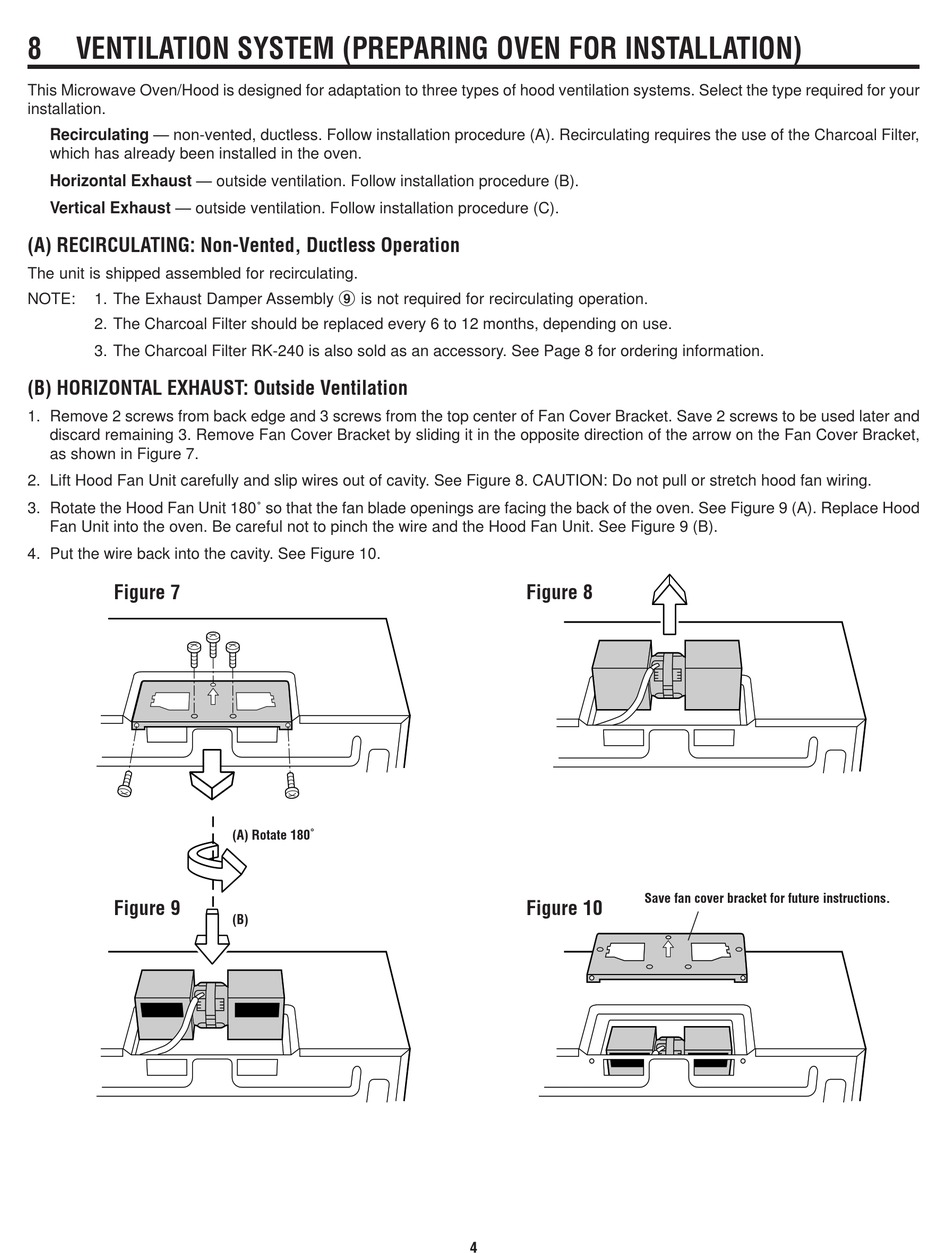

Figure 7
Figure 9
(A) Rotate 180˚
(B)
Figure 8
Save fan cover bracket for future instructions.
Figure 10
