TRANSLATION OF THE ORIGINAL INSTRUCTIONS
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
Contents
40
40
44
45
46
47
47
47
49
49
50
50
57
59
61
63
64
64
64
64
64
65
66
66
67
67
68
68
70
39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIM3963D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smeg SIM3963D

Summary of Contents for Smeg SIM3963D

  • Page 1: Table Of Contents

    5.5 Section cut from the countertop 5.6 Mounting TRANSLATION OF THE ORIGINAL INSTRUCTIONS We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com...

  • Page 2: Instructions

    Instructions 1 Instructions • Keep children under the age of 8 away from the appliance when it 1.1 General safety instructions is in use. • Cleaning and maintenance must Risk of personal injury not be carried out by • During use the appliance and its unsupervised children.
  • Page 3 Instructions • Do not place metal objects, such • Installation and servicing should as dishes or cutlery, on the hob be carried out by qualified surface during use as they may personnel in accordance with overheat. current standards. • Do not insert pointed metal •...
  • Page 4 Instructions • Fire hazard: Never leave objects • Do not use rough or abrasive on the cooking surfaces. materials or sharp metal scrapers. • DO NOT FOR ANY REASON • Do not use cleaning products USE THE APPLIANCE AS A containing chlorine, ammonia or SPACE HEATER.
  • Page 5 Instructions • Use cables withstanding a • Activate the controls lock when temperature of at least 90°C. you have children or pets which could reach the hob. • The tightening torque of the screws of the terminal supply • After use the cooking zones wires must be 1.5 - 2 Nm.

  • Page 6: Appliance Purpose

    Instructions • Let the cooking surface cool 1.3 Manufacturer’s liability down before closing the cover. • The manufacturer declines all liability for damage to persons or • People who have pacemakers or property caused by: other similar devices fitted must make sure that the operation of •...

  • Page 7: Disposal

    Instructions 1.6 Disposal • Deliver the appliance to the appropriate recycling centre for This appliance conforms to the electrical and electronic WEEE European directive equipment waste, or return it to (2012/19/EU) and must be the retailer when purchasing an disposed of separately from other equivalent product, on a one for waste at the end of its service life.

  • Page 8: How To Read The User Manual

    Instructions 1.7 How to read the user manual This user manual uses the following reading conventions: Instructions General information on this user manual, on safety and final disposal. Description Description of the appliance and its accessories. Information on the use of the appliance and its accessories, cooking advice.

  • Page 9: Description

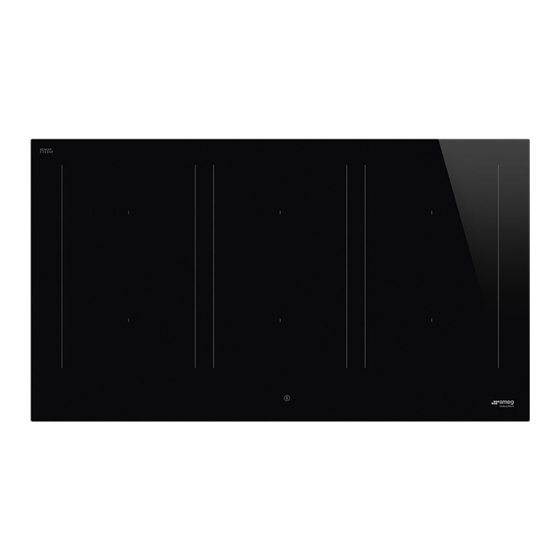

    Description 2 Description 2.1 General Description 90 cm = Left cooking zones = Centre cooking zones = Right cooking zones 2.2 Control panel 1 Special functions buttons 2 Timer setting area 3 Cooking zones setting area 4 Scroll bar 5 On/Off button...
  • Page 10 Description Maximum absorbed power table (Watt) Dimensions Level 9 Booster Double Booster H x L (mm) Single zone 180 x 240 2100 W 2500 W 3000 W Multizone 360 x 240 3000 W 3700 W * power levels are approximate and may vary according to the pan used or the settings made. Advantages of induction cooking Power control The hob is fitted with a power control...

  • Page 11: Use

    3 Use Improper use Risk of damage to surfaces 3.1 Instructions High temperature • Do not use the hob if the pyrolytic cycle is taking place inside any oven installed Danger of burns below. • Never place pans with bases which are •...

  • Page 12: Preliminary Operations

    3.2 Preliminary operations List of symbols In order to remove any moisture that could On/Off button: turns the hob on or off. have accumulated during the manufacturing process and for the electronic circuits and Pause button: pauses cooking. control keypad to work properly: 1.
  • Page 13 Minimum cookware diameter Unsuitable cookware: • Copper, stainless steel, aluminium, Make sure that the minimum diameter of the fireproof glass, wood, ceramic and pans are those indicated in the following terracotta cookware. table, for both configurations. To see whether the pan is suitable, bring a Ø...
  • Page 14 Limiting the cooking duration Advice on energy-saving The hob has an automatic device which • The diameter of the base of the pan must limits the duration of use. not exceed the width of the silk-screened cooking zone. If the cooking zone settings are not changed, the maximum duration of •...
  • Page 15 Power levels Switching on the cooking zone automatically The power in the cooking zone can be adjusted to various levels. The table shows The hob is provided with an the levels suitable for various types of automatic pan sensing system. cooking.
  • Page 16 2. Move your finger to the left or right on Quick selection the scroll bar to select the power level, This function allows you to quickly set the cooking zones to the from or activate the Booster required power. function (see “Booster Function”). After switching on the hob and having selected a cooking zone: 1.
  • Page 17 After switching on the hob and having Double Booster function selected a cooking zone: The Double Booster function allows more 1. Place a finger on the left-hand side of the power to be supplied compared to the scroll bar. Booster function. After having activated the Booster function for a cooking zone, press “P”...
  • Page 18 The same parameters are set on both cooking zones. It is only possible to activate the Multizone function between cooking zones that are vertically connected (F and R). Example of incorrect pan position This function automatically divides the power equally between both of the hot plates in use.

  • Page 19: Special Functions

    Cooking guidelines Residual heat The table below shows the power values Improper use which can be set, together with the Danger of burns corresponding type of food. Settings may vary depending on the amount of food and • Supervise children carefully as they consumer taste.
  • Page 20 Pause function Grill Function This function is used to This function pauses the operation automatically activate the of all the cooking zones. Multizone function for the left zones only. It is used when using a To activate the Pause function: griddle or cooking with long pans.

  • Page 21: Additional Functions

    • After the heating time has elapsed, the Controls lock cooking zone reverts to the previously selected power level. This function allows you to disable all the buttons of the appliance. This function can be deactivated by pressing and holding the set power level for at least 3 seconds, or by selecting a lower This is useful when cleaning the appliance power level.
  • Page 22 4. When the time elapses, a series of beeps • The flashing symbol will appear will sound. Press any button to deactivate above the cooking zone display. them. 3. Use the + and - buttons to select the required time. A maximum of 9 hours and 59 minutes can be set.

  • Page 23: User Menu

    4. After 10 seconds, the timer will start the User menu options table new countdown or will be deactivated. Option Description Maximum total power (kW) - Change An independent timer can be set by the installer only during timed cooking. Option not selectable Button volume Recall Function...
  • Page 24 Press all the buttons of the cooking zones in 7. Press the segments of the scroll bar sequence in a clockwise direction starting (except the first two) to select the from the front left. Every effective touch will available options. be confirmed by a beep.

  • Page 25: Error Codes

    Option U4 modifies the brightness of the Exiting the user menu display. 10 levels can be selected. There are two ways to exit from the user • 0: maximum brightness. menu: • 9: minimum brightness. 1. Press the button. Any modifications Option U5 allows you to display the will be discarded and the hob will be countdown of the minute minder timer and...

  • Page 26: Cleaning And Maintenance

    Cleaning and maintenance 4 Cleaning and maintenance 4.3 Ordinary weekly cleaning Clean and maintain the hob once a week 4.1 Instructions using an ordinary glass cleaning product. Always follow the manufacturer’s Improper use instructions. The silicon in these products Risk of damage to surfaces creates a protective, water-repellent membrane which also resists dirt.

  • Page 27: What To Do If

    Cleaning and maintenance Changes in colour do not affect the The cooking results are unsatisfactory: operation and stability of the glass. These • Make sure that the cooking temperature are not alterations to the material of the hob is not too high or too low. but just residues which have not been The hob smokes: removed and have then carbonised.

  • Page 28: Installation

    Installation 5 Installation • 380-415 V 3N~ 5.1 Electrical connection Power voltage Danger of electrocution 5 x 2.5 mm² five-core cable. • Have the electrical connection performed by authorised technical personnel. • 220-240 V 3~ / 380-415 V 2N~ • Use personal protective equipment. •...

  • Page 29: Instructions For The Installer

    Installation Fixed connection 5.3 Power limitation procedure (for installer only) Fit the power line with an all-pole circuit breaker in compliance with installation In order to modify the maximum power regulations. The circuit breaker should be absorbed by the appliance, you have to located near the appliance and in an easily access the user menu (see “User menu”).

  • Page 30: Safety Instructions

    Installation Table of power draws 5.5 Section cut from the countertop Minimum Maximum The following operation requires Model power (kW) power (kW) building and/or carpentry work and must therefore be carried out 90 cm 11.1 by a competent tradesman. 5.4 Safety instructions Installation can be carried out on various materials such as masonry, Heat production during appliance...
  • Page 31 Installation Flush built-in model For this kind of hobs additional milling is needed in the recessed hole if you wish to install the hob flush with the work surface. min. min. min. min. 20-60 Hob seal To prevent leakage of liquid between the frame of the hob and the countertop, place the adhesive seal provided along the entire outer edge of the hob before assembly.

  • Page 32: Mounting

    Installation After laying the adhesive seal (A) on the glass surface and after positioning and securing the hob, fill the edges with insulating silicone (B) and wipe away any excess. In the event the hob needs to be removed, cut the silicone using a cutter before attempting to remove it (C).
  • Page 33 Installation opens on rear Failure to install the double-layer wooden base exposes the user to possible accidental contact with Spring clips sharp or hot parts. To ensure the hob is fixed and centred as accurately as possible, the clips provided Ventilation must be positioned as described below: The illustrations below show two examples...
  • Page 34 Installation Position of slot for clips...
