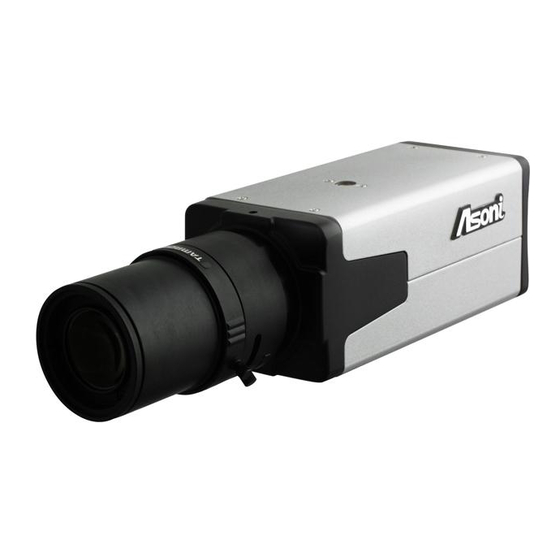

2 Mega-Pixel
H.264 CMOS Network Camera
CAM642M
User's Manual
Date: 7/20/2012
Firmware Version: V1.0.32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM642M and is the answer not in the manual?

Questions and answers

Related Manuals for Asoni CAM642M

Summary of Contents for Asoni CAM642M

  • Page 1 2 Mega-Pixel H.264 CMOS Network Camera CAM642M User’s Manual Date: 7/20/2012 Firmware Version: V1.0.32...

  • Page 2: Table Of Contents

    Content Content ............................1 Preface ..........................3 Product Specifications ....................... 3 Product Installation ......................5 A. Hardware Installation ...................... 5 B. Monitor Setting ........................ 6 C. IP Assignment................. 錯誤! 尚未定義書籤。 Live Video ..........................9 Configuration ........................13 A. System ........................... 13 System Information ......................
  • Page 3 Connects to ADSL with Fixed Public IP Address ..............47 Connects to ADSL with Floating Public IP Address (PPPoE) ..........48 C. Intranet + Internet ......................50 Connects to Internet with Fixed Public IP Address .............. 50 Connects to Internet with Floating Public IP Address ............52 Factory Default ........................

  • Page 4: Preface

    1. Preface This camera is a professional 2 Mega-Pixel CMOS network camera which builds in web server. User views real-time video via IE browser. This camera supports H.264, JPEG and MPEG4 (3GPP Only) video compression which provides smooth and high quality video. This camera is an easy-to-use network camera which is designed for home security application.
  • Page 5 System Video Resolution 1600x1200, 1280x1024, 1280x960, 1280x720 800x592, 640x480, 320x240, 176x144 Compression Format H.264 / MJPEG / MPEG-4 (3GPP only) Frame Rate Up to 15FPS@1600x1200, 22FPS@1280x1024, 25FPS@1280x960, 30FPS@1280x720 Triple Streaming Yes (2 for live view, 1 for 3GPP) 3GPP Yes, Live view with 3G mobile phone Video Bitrate Adjustment CBR, VBR Video Adjustment...

  • Page 6: Product Installation

    3. Product Installation A. Hardware Installation     The RJ-45 connector allows connect the Ethernet cable. Network Connector:  To connect the DC 12V power adapter. Power Jack:  The 3.5mm jack allows connect to an earphone or amplified Audio Out: speaker, you can hear the voice of the remote site from the earphone or speaker.

  • Page 7: Monitor Setting

    B. Monitor Setting 1. Right-Click on the desktop. Select “Properties” Change color quality to “Highest (32bit)”.

  • Page 8: Ip Assignment

    PC must be in the same subnet. For more information about subnets, please consult your network administrator. “Asoni IP Search” is a utility that provides an easier, more efficient way to configure the IP address and network settings of the network camera in Local Network (LAN).
  • Page 9 2. IP Search searches all the network devices which connect to the intranet and lists on the window. Click [Search] button to search again. 3. From the list, click and select the device with the MAC Address that corresponds to the device that is to be configured.

  • Page 10: Live Video

    4. Live Video Start the IE browser, type the IP address of the network camera in the address field: http://<IP of camera> If the “HTTP Port” has been changed from “80”, type the URL as: http://<IP of camera>:<HTTP Port> After link to the camera, it will show a dialogue box.
  • Page 11 When popup the following dialogue box, click [Yes].
  • Page 12 The web page of the device shows as following. If you are using IE 8.0 or above, please click “Compatibility View” icon to make this web page works properly: ⑤ ① ② ③ ④ ⑥  Streaming : Select the streaming 1 or 2 from the pull-down list to display. ...
  • Page 13  Online Visitor : Shows how many users connect to this network camera.  Function Buttons : Click these buttons will perform the following functions. Original Size : Click this button to display the original size of video. Shrink View : Click this button to shrink the video to fit the window for view. Full Screen : Click this button or double-click the video, the video will change to full screen mode.

  • Page 14: Configuration

    5. Configuration Click [Configuration] button to get into the configuration page. Click [Live View] button to back to the Live-View page. A. System System Information Set up the camera name, select language, and set up the camera time. System Information...
  • Page 15 Server Information MAC Address: The MAC address of the Ethernet network card in the device. Server Name: You can type a name into this field to identify this device. Show on Status Bar: Determine whether show the server name on the Status Bar. Default Language: Select the default language for the user interface.
  • Page 16 Time Setting Date Format: Select the format to display the date. Time Zone: Select the GMT to match your time zone. Enable Daylight Saving: If using “Daylight Saving”, enable this option and select the start and end time. Synchronize with NTP Server: Select this option and type the IP address of a NTP (Network Time Protocol) server, this device will synchronize the time with the NTP server via network.
  • Page 17 The date and time remain the same: Keep the current date and time without change. After set up, click [Apply] to save the settings.

  • Page 18: User Management

    User Management You can add, remove and manage the users in this page. This device supports 3 user groups:  Administrator: The administrator can view, operate and configure all functions and settings of this device.  Guest: The users in Guest group can only view the live video in Live-View page. ...
  • Page 19 Edit: To change the username and password, click [Edit] and modify the administrator or user in the pop-up window. Remove: To remove the user, click [Remove].

  • Page 20: System Upgrade

    System Upgrade This page allows user to upgrade firmware, restart device and restore the factory default settings. System Upgrade Firmware Upgrade The firmware can be upgraded online. To update the firmware, click [Browse…] to select the new firmware file, and then click [Upgrade] to the procedure.

  • Page 21: System Logs

    System Logs System Logs System Status Logs Click the [View] button on the right side to list the logs of system status. Motion Trigger Logs Click the [View] button on the right side to list the logs of motion detection. All Logs Click the [View] button on the right side to list all logs.

  • Page 22: Video/Audio Setting

    B. Video/Audio Setting Video Format This device supports H.264/MJPEG and MPEG4 (only for 3GPP streaming) Triple Mode and Triple Streaming, set the video parameters in this page. Video Format...
  • Page 23 Original Video Original Video: Select the Original Video from the pull-down list. The Original Video will affect the selection of Resolution and Video Frame Rate of streaming 1 and 2, please refer to the table below to know the supported resolutions and highest FPS in different Original Video: Original Video = 1600x1200@15fps Available Resolution and Highest FPS for Streaming 1/2 Output:...
  • Page 24 Streaming 1 and 2 Output Setting Basic / Advanced Mode: Select the mode to configure the parameters. Advanced mode provides more detail parameters for setting. Resolution: Select the resolution from the pull-down list. Please refer to the above tables for the supported resolutions. Frame Rate Per Second: The video refreshing rate per second.
  • Page 25 Since the bandwidth of 3G is not fast usually, the 3GPP streaming will be set to the following configuration:  Resolution – Fixed to 176x144.  Frame Rate –Fixed to 5FPS.  Video Format – Fixed to MPEG4.  Audio Format – Fixed to AMR. 3GPP Path: Assign a name to identify the 3GPP video stream To view the live video with a 3G mobile phone or PDA, open “Streaming Player”...

  • Page 26: Image Setting

    Image Setting Image Setting Privacy Mask For the security purpose, there are 3 areas can be setup for privacy masks, the masked areas will not be shown in Live-View and recorded file. To set up or clear the privacy mask, click [Draw/Clear Area] button, and then use mouse to drag the area on the video.
  • Page 27 video. Automatic Gain Control: Adjust this function according to the environment. Backlight Compensation: This device supports “Back Light Compensation”, enable/disable this function by selecting ON or OFF. AWB Gain - Red: Adjust the gain level of red color for the automatic white balance. AWB Gain - Blue: Adjust the gain level of blue color for the automatic white balance.

  • Page 28: Audio Setting

    Audio Setting This device supports 2-way audio. Audio from Device to Local PC For this device to local PC, select [Enable] and then click [Apply] to start this function. If set to [Disable], the [Voice] icon on Live View page is not workable. Audio Setting Audio from Local PC to This Device For local PC to this device, click [Chatting] icon on the Live View page.

  • Page 29: Network Setting

    C. Network Setting Network Setting Network Setting...
  • Page 30 IP Assignment DHCP: If this device behinds a router and the router provides DHCP service, using DHCP, this device will get all network parameters from the router automatically. Static: Assign IP address, subnet mask, gateway, and DNS manually. Port Assignment Set the port if necessary.
  • Page 31 RTSP Server Setting RTSP Server: The video stream can be direct retrieve via RTSP connection, you can close this function by disable this option. RTSP Port: Set the port for transfer the video and audio. The default is “554”, change the port if you want to use router’s NAT (Network Address Translation) to make this device can be linked from Internet.
  • Page 32 keeping the RTSP connection, this device will terminate the RTSP connection. If select “Disable”, this device will always keep the RTSP connection. If the “Time-out” error happens on NVC side, please disable this function. After set up, click [Apply] to save the settings.

  • Page 33: Mail / Ftp / Samba Setting

    Mail / FTP / Samba Setting To send out the event video to E-mail, FTP or Samba network storage, please set up the configuration first. Mail / FTP/ Samba...
  • Page 34 Mail Setting Login Method: This device provides 2 kinds of mail settings. “Anonymous” for the mail server which doesn’t need login with user name and password. “Account” for the mail server which needs login with user name and password. Send Mail Server: The IP address or URL of the send-mail server.
  • Page 35 FTP Port: The port of the FTP service. Default is 21. Store Path: The path to save the sent video file. FTP Mode: Select “PORT” or “PASV to fit the FTP server. “PORT” is for sending file to an Active FTP server; “PASV” is for sending file to a Passive FTP server. Auto Create Folder by Date: If select “Yes”, a folder will be created under the “Store Path”...

  • Page 36: Pppoe Setting

    PPPoE Setting If this device connects to an ADSL modem directly and want to use PPPoE connection, set the parameters in this page. PPPoE Setting PPPoE Connection Select [Enable] to use PPPoE. Type in user name and password for the ADSL connection.

  • Page 37: Ddns Setting

    DDNS Setting This device supports DDNS, set the parameters in this page. DDNS Setting DDNS Setting There are several DDNS providers can be selected. Select the provider from the pull-down list, input Hostname, User name, Password and the Schedule Update time, and then click [Apply] to connect to the DDNS provider.
  • Page 38 Update Failed, check your internet connection: Network connection failed. Update Failed, please check the account information with you provider: input hostname, username or password may be wrong.

  • Page 39: Event Handling

    D. Event Handling Event Setting This device supports multiple event settings. Event Motion Detection This device allows 3 areas for detect motion. When motion detection is triggered, it...
  • Page 40 can send the video or snapshot to specific mail address; transmit the video or snapshot to remote FTP server or Samba network storage. Set the Area: To set up or clear the motion area, click [Draw/Clear Area] button on “Set Area” row, and then use mouse to drag the area on the video. Adjust the Sensitivity: To adjust the sensitivity of detection, select the level from the pull-down list.
  • Page 41  Save to Samba: When the motion detection is triggered in this area, send the recorded video or snapshot to the Samba network storage. To set the mail account FTP site and Samba network storage, please refer to Configuration  Network Setting  Mail&FTP page.
  • Page 42 Motion! The moving object will be detected when it is in any of the 3 motion areas, and the motion is triggered! Record File Setting There are 3 methods to record the event video and send out via E-mail, FTP: Video: When an event (Motion Detection) is triggered, the video will be recorded as still image with AVI format.
  • Page 43 To avoid the “frame drop” situation, please reduce the bitrate of the video. We recommend connect the device in LAN (Local Network) and set the video as CBR, and Bitrate less than 1.5Mbps. After set up, click [Apply] to save the settings.

  • Page 44: Schedule

    Schedule This function provides the schedule for the following:  Send Snapshot with the Scheduled Time: automatic send a snapshot to the E-mail address, FTP server or Samba network storage. The interval time can be set.  Activate and Stop the Motion Detection with Scheduled Time: if the “Enable Configuration ...
  • Page 45 Send Snapshot with Scheduled Time Enable / Disable: To enable or disable the schedule function. Snapshot: Select the method to send out the snapshot.  E-mail: Automatic send the snapshot to the specific mail address, the interval time of the snapshot pictures is depending on the Interval setting. ...

  • Page 46: Network Configuration

    6. Network Configuration A. Intranet Only Connects to PC Directly If you want to connect the camera to PC directly for the very first time setup, please refer to the figure below for the connection. Ethernet Cable Camera This device supports Auto-MDI/MDIX, IP Address: 192.168.1.200 IP Address: 192.168.1.2 you can use a straight or cross-over...

  • Page 47: Connects To An Exist Lan

    Connects to an Exist LAN If the camera will be used in a local network (LAN) and don’t allow to access via Internet, please refer to the figure below for the connection. Intranet (LAN) Camera 1 Switch Router or IP Sharing IP Address: 192.168.1.200 IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0...

  • Page 48: Internet Only

    B. Internet Only Connects to ADSL with Fixed Public IP Address If the camera connects to Internet with an ADSL modem and the public IP address of ADSL is fixed, please refer to the figure below for the connection. Internet (WAN) Camera 3G Mobile Phone IP Address: 60.220.20.250...

  • Page 49: Connects To Adsl With Floating Public Ip Address (Pppoe)

    Connects to ADSL with Floating Public IP Address (PPPoE) If the camera connects to Internet with an ADSL modem and the public IP address of ADSL is variable, the camera can use PPPoE function for the connection. Internet (WAN) Camera 3G Mobile Phone Configure the PPPoE Setting ADSL...
  • Page 50 After enable the DDNS, assume the registered URL is “test.dyndns.org”, now the camera can be linked with following URLs: Client Link Address Remark http://test.dyndns.org With audio: Must enable “3GPP Stream” in 3G Mobile rtsp://test.dyndns.org/3g Configuration  Video/Audio Phone Without audio: ...

  • Page 51: Intranet + Internet

    C. Intranet + Internet Connects to Internet with Fixed Public IP Address If the camera will be added into a local network (LAN), and will be accessed via both Intranet and Internet, please refer to the figure below for the connection. Intranet (LAN) Internet (WAN) 3G Mobile Phone...
  • Page 52  Set Subnet Mask of Router, PC and cameras.  Set Gateway of PC and cameras with the same IP address. The Gateway is the IP address of router.  Set the IP address of a valid DNS into cameras. An invalid DNS will cause the domain name can’t be resolved and reached, such as email address.

  • Page 53: Connects To Internet With Floating Public Ip Address

    With audio: rtsp://60.220.20.250:555/3g Camera 2 Without audio: rtsp://60.220.20.250:555/3gx Connects to Internet with Floating Public IP Address If the public IP address of ADSL connection is variable, you can enable DDNS function to get a fixed URL to instead of the IP address. Note: only one device can enable the DDNS function in the local network (LAN), multiple devices use DDNS will update to the DDNS provider too frequently, and the DDNS provider will block your URL.

  • Page 54: Factory Default

    7. Factory Default To recover the default password and other settings, please follow the steps: 1. Power off this device. 2. Release the 4 screws on the rear panel, and then remove the rear panel. 3. Use a screw driver to push the "Factory Default Button", keeping push it and don't release.
