SyncMaster 930MP

Advertisement

Table of Contents
loading

Related Manuals for Samsung SyncMaster 930MP

Summary of Contents for Samsung SyncMaster 930MP

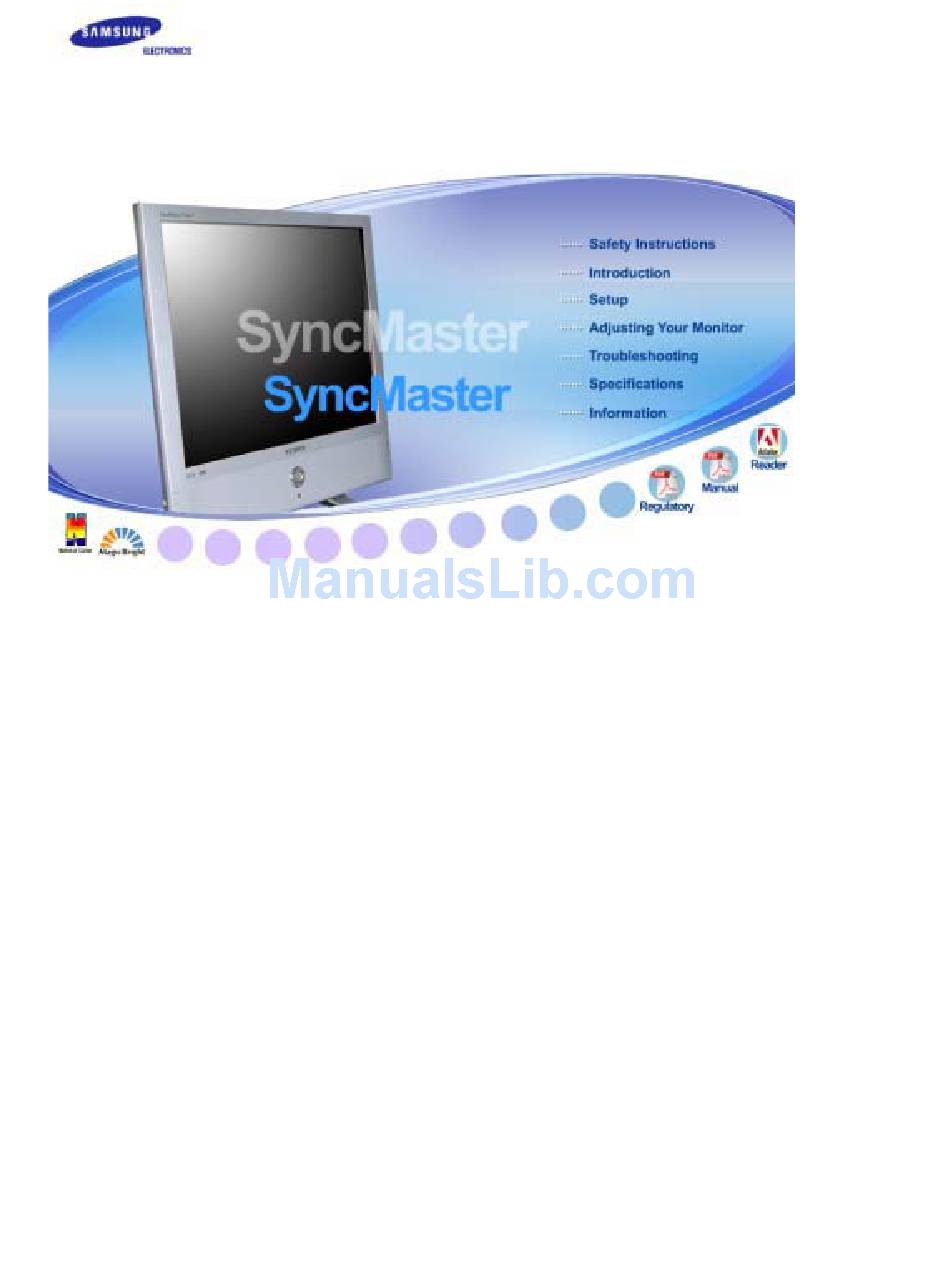

  • Page 1 SyncMaster 930MP...
  • Page 2 Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Power When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to the active screen mode. Do not use a damaged or loose plug.

  • Page 3: Installation

    Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause an electric shock or fire. Use only a properly grounded plug and receptacle. An improper ground may cause electric shock or equipment damage. Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.
  • Page 4 Set down the monitor carefully. The monitor could be damaged or broken. Do not place the monitor face down. The TFT-LCD surface may be damaged. Installing a wall bracket must be done by a qualified professional. Installation by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual.
  • Page 5 Use the recommended detergent with a smooth cloth. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth. A dirty connector may cause an electric shock or fire. Contact a Service Center or Customer Center for interior cleaning once a year. Keep the product's interior clean.
  • Page 6 Do not try to move the monitor by pulling only the wire or the signal cable. This may cause a breakdown, electric shock or fire due to damage to the cable. Do not move the monitor right or left by pulling only the wire or the signal cable.
  • Page 7 Be careful that adapter should not be in contact with water and therefore not be wet. This may cause malfunction, an electric shock or fire. Do not use adapter by the waterside or outside particularly when it rains or snows. Be careful that adapter should not be wet while cleaning floor with water.
  • Page 8 Exposure to strong vibrations may be fire hazard and shorten the life of the monitor. When moving the monitor, turn the power switch off and unplug the power cord. Make sure that all cables, including the antenna cable and cables connecting to other devices, are disconnected before moving the monitor.
  • Page 9 Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Monitor Manual Warranty Card User's Guide, Monitor Driver, Quick Setup Guide (Not available in all locations) Natural Color software Cable...
  • Page 10 D-Sub Cable Audio Cable Sold separately DVI Cable(option) Others Remote Control Front Power Cord Radio Antenna DC Adapter Batteries (AAA X 2) Connecter 1. MENU 2. AUTO 3. ENTER/FM RADIO 4. SOURCE 5. PIP MagicBright™ 8. + VOL - 9. Power button / Power indicator 10.
  • Page 11 1. MENU Use this button for open the on-screen menu and exits from the menu screen or closes screen adjustment menu. 2. AUTO Use this button for auto adjustment. If you change resolution in the control panel, Auto function will be executed. >>Click here to see an animation clip 3.
  • Page 12 adjusts the audio volume. >>Click here to see an animation clip 9. Power button / Power indicator Use this button to turn the monitor on and off./ Power Indicator shows PowerSaver mode by green blinking. 10. Remote Control Sensor Aim the remote control towards this spot on the Monitor. PowerSaver described in the manual for further information regarding power saving functions.
  • Page 13 3. AUDIO terminal 4. COMPONENT terminal 5. FM RADIO / TV connection terminal 6. EXT(RGB) connection terminal Audio connection terminal DVD/DTV left / right audio connection terminal (R/L) DVD/DTV Component(P ,Y) terminal FM RADIO ANT connection terminal TV connection terminal For more information >...
  • Page 14 7. AV connection terminal Connecting the Monitor Remote Control The performance of the remote control may be affected by a TV or other electronic devices operated near the monitor, causing malfuction due to interference with frequency. S-Video connection terminal (Input) Video connection terminal (Input) Left(L) / Right(R) audio connection terminal (Input) Headphone connection terminal (Output)
  • Page 15 1. POWER Use this button to turn the monitor on and off. 2. CHANNEL Selects TV channels in the TV mode. You may use this button in PIP mode as well. 3. +100 Press to select channels over 100. For example, to select channel 121, press "+100", then press "2" and "1". -/-- (One/Two-Digit channel selection ) Use to select a channel numbered ten or over.
  • Page 16 15. AUTO Adjusts the screen display automatically. 16. P.MODE, M/B (MagicBright™) When you press this button, current mode is displayed on the lower center of the screen. TV / AV / Ext. / S-Video /Component Mode : P.MODE( Picture Mode ) The Monitor has four automatic picture settings that are preset at the factory.

  • Page 17: Connecting The Monitor

    Connecting the monitor 1. Connecting to a Computer Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.

  • Page 18: Connecting To Other Devices

    If you connect properly your monitor using the DVI connector but get a blank or fuzzy screen, check to see if the monitor status is set to analogue. Press Source button to have the monitor double- check the input signal source. 2.
  • Page 19 1. Input devices such as DVDs, VCRs or Camcorders are connected to the Video or S-Video terminal of the monitor using the RCA or S-Video cable. S-Video, RCA cable and SCRAT cable is optional. 2. Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted. 3.
  • Page 20 1. Connect the CATV or antenna coaxial cable to the Antenna terminal on the rear of the monitor. You need to use a coaxial antenna cable. When using an interior antenna terminal: Check the antenna terminal on the wall first and connect the antenna cable. When using an outdoor antenna: If you are using an outdoor antenna, use a professional for installation if possible.

  • Page 21: Using The Stand

    3. Select Component using the SOURCE button on the monitor's front. 4. Connecting Headphone You may connect your Headphone to the monitor. 1. Connect your Headphone to the Headphone connection terminal. Using the Stand This monitor supports various types of VESA-standard bases. You need to either fold or remove the base in use in order to install a VESA base.
  • Page 22 You may install a VESA base 2. Removing the base You can separate the base from the monitor. 3. Install a VESA base 1. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen. 2.
  • Page 23 Samsung Electronics will not be responsible for damages caused by using a base other than those specified. When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor.
  • Page 24 4. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage. http://www.samsung-monitor.com/. 5. Monitor driver installation is completed.
  • Page 25 Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung-monitor.com/ http://www.samsungusa.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ ®...
  • Page 26 8. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage. http://www.samsung-monitor.com/ 9. Click the "Close" button, then click "OK" button continually.
  • Page 27 10. Monitor driver installation is completed. ® ® Microsoft Windows 2000 Operating System When you can see "Digital Signature Not Found" on your monitor, follow these steps. 1. Choose "OK" button on the "Insert disk" window. 2. Click the "Browse" button on the "File Needed" window. 3.
  • Page 28 Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
  • Page 29 How to delete the Natural Color software program Select "Setting" / 'Control Panel" on the "Start" menu and then double-click "Add/Delete a program". Select Natural Color from the list and then click the [Add/Delete] button.
  • Page 30 Input Available Mode : PC / DVI Description Source Use to select PC, TV or other external input source connected to the Monitor. Use to select the screen of your choice. - The direct button on the remote control is 'SOURCE' button.
  • Page 31 1) PIP • ON/ Off : Turn the PIP Screen on or off. - The direct button on the remote control is 'PIP' button. 2) Source • PC / DVI : TV / Ext.(Scart is mainly used in Europe.) / AV / S-Video / Component Mode : Select the input source for the PIP.
  • Page 32 Description MagicBright™ MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of the image you are watching. Currently four different modes are available: Entertain, Internet,Text and Custom. Each mode has its own pre-configured brightness value. You can easily select one of four settings by simply pressing the MagicBright™...
  • Page 33 : Adjusts the Brightness of the PIP window on the screen. 3) Sharpness : Adjusts the difference between the lightest and darkest areas of the PIP window. 4) Color : Adjusts the Color of the PIP window on the screen. 5) Tint : Adds a natural tone to the PIP window.
  • Page 34 • Normal • Zoom 1 • Zoom 2 - ZOOM1, ZOOM2 are not available in 1080i(or over 720p) of DTV. - Digital Noise Reduction. Digital NR You can turn the Noise Elimination feature On/Off. The Digital Noise Elimination feature allows you to enjoy clearer and crisper images.
  • Page 35 preference. 1) Bass : Emphasize low frequency audio. 2) Treble : Emphasize high frequency audio. 3) Balance : Allows you to adjust the sound balance between the left and right speakers. Ballance allows you to adjust the sound balance between the left and right speakers and you can hear the sound even when the sound value is set to 0.
  • Page 36 Available Mode : PC / DVI Description Air/CATV The channel system can be set in several different ways. • Air • STD • HRC • IRC • AFN STD, HRC, IRC, AFN, and Air identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area.
  • Page 37 Available Mode : PC / DVI Description Area When you turn the power on of the product for the first time since it released from a factory, menu to select location will appear. Configuration Choose the region and country where you use the monitor. This is because broadcasting type varies according to region and country.

  • Page 38: Self-Test Feature Check

    Self-Test Feature Check Check the following items yourself before calling for service. Contact the that you cannot solve by yourself. Self-Test Feature Check Not Supported Mode Maintenance and Cleaning Symptoms & Recommended Actions 1. Self-Test Feature Check Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.
  • Page 39 Finish. Do not use benzene, thinner or other flammable substances, or a wet cloth. We recommend a Samsung cleansing agent is used to prevent damage to the screen. Never use acetone, benzene or thinner. (They may cause flaws or deformation of the screen surface.) The user will be required to pay costs and related expenses for repair of damages caused by him/her.
  • Page 40 6. Symptoms and Recommended Actions A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the computer or the video card, this can cause the monitor to become blank, have poor coloring, noise, Video mode not supported, etc. In this case, first check the source of the problem, and then contact service center or your dealer.
  • Page 41 Picture rolls vertically. Image is not clear. Picture is blurred. Picture image is unstable and vibrates. Ghost images are shown in the picture. The image is too light or too dark Screen color is inconsistent. Color image is distorted with dark shadows.
  • Page 42 Q & A Question How can I change the frequency? How can I adjust the resolution? How can I set the Power Saving function? How can I clean the outer case/LCD Panel? Check if the power cord is securely connected. Check if a special fluorescent or neon lamp is on in the vicinity.
  • Page 43 General General Model Name SyncMaster 930MP LCD Panel Size 19" Diagonal Display area 376.32(H) x 301.056(V) Pixel Pitch 0.294(H) x 0.294(V) Type a-si TFT active matrix Synchronization Horizontal 31 ~ 81kHz Vertical 56 ~ 85Hz Display Color 16,777,216 Colors Resolution...

  • Page 44: Preset Timing Modes

    Preset Timing Modes Power saving mode EPA/ENERGY 2000 Green Green, Blinking Less than 2W (Off-mode) ® compliant and ENERGY2000 ® Partner, SAMSUNG has determined that this ® guidelines for energy efficiency. Power off (Power button) Black Less than 1W (110Vac)
  • Page 45 If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. Table 1.
  • Page 46 Germany Norway Spain Israel Denmark Portugal Countries Netherlands Austria Singapore Indonesia Australia Broadcasting Systems SECAM-B Iran Iraq Saudi arabia Countries Syria Lebanon Egypt Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency.
  • Page 47 Service AUSTRALIA : Samsung Electronics Australia Pty Ltd. Customer Response Centre 7 Parkview Drive, Homebush Bay NSW 2127 Tel : 1300 362 603 http://www.samsung.com.au/ BRAZIL : Samsung Eletronica da Amazonia Ltda. R. Prof. Manoelito de Ornellas, 303, Terro B Chacara Sto. Antonio, CEP : 04719-040...
  • Page 48 Gustavo A.Madero C.P.07700, Mexico D.F. Mexico TEL. 52-55-5747-5100 Fax. 52-55-47 52 02 RFC: SEM950215S98 http://www.samsung.com.mx/ IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V. Saturno NO.44, Col. Nueva Industrial Vallejo Gustavo A.Madero C.P.07700, Mexico D.F. Mexico TEL. 52-55-5747-5100 EXPORTADO POR: Samsung Electronics CO.,LTD.
  • Page 49 Tel. 214 148 114/100 Fax. 214 148 133/128 Free Line 800 220 120 http://www.samsung.pt/ SOUTH AFRICA : Samsung Electronics,5 Libertas Road, Somerset Office Park, Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa Tel : 0027-11-549-1621 Fax : 0027-11-549-1629 http://www.samsung.co.za/...
  • Page 50 Téminos Sync Signal Sync (Synchronized) Signals refer to the standard signals that are required to display desired colors on the monitor. They are divided into Vertical and Horizontal Sync Signals. These signals display normal color images by the set resolution and frequency. Types of Sync Signals Separate This is a scheme of transmitting individual vertical sync signals to the monitor.

  • Page 51: For Better Display

    Channel Fine Tuning This feature allows the viewer to fine-tune the TV channel to obtain the best viewing conditions. The Samsung LCD TV has both automatic and manual channel fine-tuning features to enable the viewer to adjust their desired settings.
  • Page 52 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

  • Page 53: Mpr Ii Compliance

    MPR II Compliance European Notice (Europe only) TCO'95-Ecological requirements for personal computers (TCO'95 applied model only) TCO'99-Ecological requirements for personal computers (TCO'99 applied model only) TCO'03-Ecological requirements for personal computers (TCO'03 applied model only) TCO'03 Recycling Information (TCO'03 applied model only) Medical Requirement Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA only) MPR II Compliance...
  • Page 54 the equipment according to the instruction manual. TCO'95-Ecological requirements for personal computers (TCO'95 applied model on AB general requirements AB2 Written Eco-document acompanying the products Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase ha contributed to reducing the burden on the environment and to the further development of environmentally-adapted electronic products.
  • Page 55 Labelled products must meet strict environmental demands, for example in respect of the reduction of electric and magnetic fields, along with physical and visual ergonomics and g usability. TCO Development Unit 1996-11-29 On the page this folder you will find a brief summary of the environmental requirements m this product.
  • Page 56 CFCs (freons) are sometimes used for washing printed circuit boards and in the manufac of expanded foam for packaging. CFCs break down ozone and thereby damage the ozon layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

  • Page 57: Cfcs (Freons)

    presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs(fr and chlorinated solvents, among other things. The product must be prepared for recycling the manufacturer is obliged to have an environmental policy which must be adhered to in country where the company implements its operational policy.
  • Page 58 printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in th stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased of skin cancer (malignant melanoma) as a consequence. Lead** Lead can be found in picture tubes, display screens, solders and capacitors. Lead damag nervous system and in higher doses, causes lead poisoning.
  • Page 59 For recycling information for TCO'03 certified monitors, for the residents in the following countries, please contact the company corresponding to your region of residence. For tho who reside in other countries, please contact a nearest local Samsung dealer for recyclin information for the products to be treated in environmentally acceptable way.
  • Page 60 Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA on LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS For details see lamprecycle.org, eiae.org, or call 1-800-Samsung...

  • Page 61: Product Information (Image Retention Free)

    PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
  • Page 62 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.
