Installation Instructions

Installation Clearance Requirements

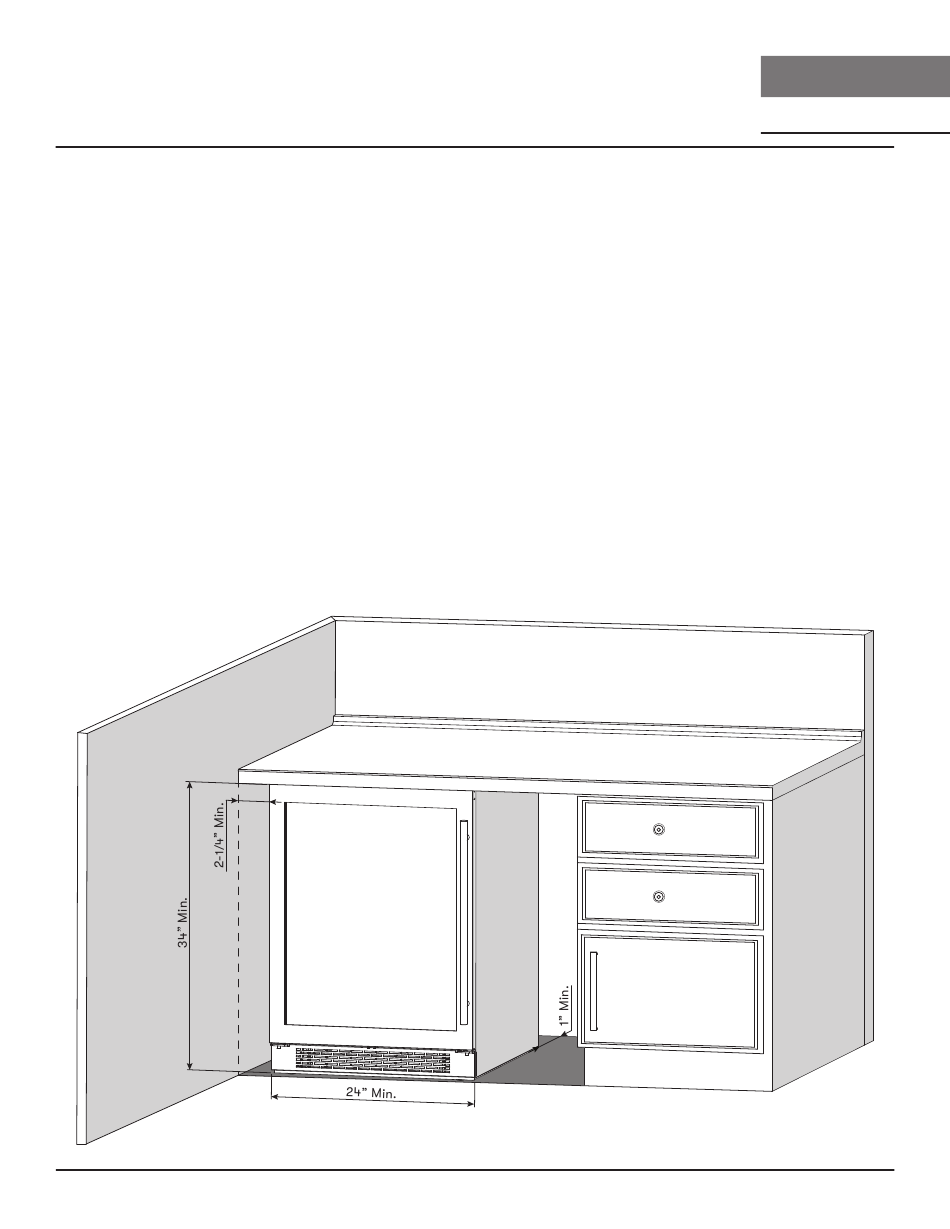

When installing the wine cooler under a counter, follow the recommended spacing dimensions shown.
►
For proper clearance of the electrical plug, allow at least 1" of clearance at the back as shown in
the diagram.
►
An installation next to a wall will require a minimum 2-1/4" door clearance to accommodate the
Brisas handle.
►
The cabinet should allow at least 24" for the width and 34" for the height to accommodate the
wine cooler.
►
The power cable is located on the back right of the unit and has a length of 72" to accommodate
multiple outlet locations.
►
Once you are ready to install the unit, you must adjust the feet to level the wine cooler.
►
The installation should allow the unit to be pulled forward for servicing, if necessary.
