LG 49UN7300PUC Owner's Manual
Hide thumbs
Also See for 49UN7300PUC:
- Owner's manual (67 pages) ,
- Owner's manual (34 pages) ,
- Owner's manual (65 pages)
Table of Contents
Advertisement
Quick Links
49UN7300AUD
50UN6955ZUF
55UN6955ZUF
49UN7300PUC
50UN7300AUD
55UN7300AUD
49UN7300PUF
50UN7300PUC
55UN7300PUC
50UN7300PUF
55UN7310PUC
55UN7300PUF

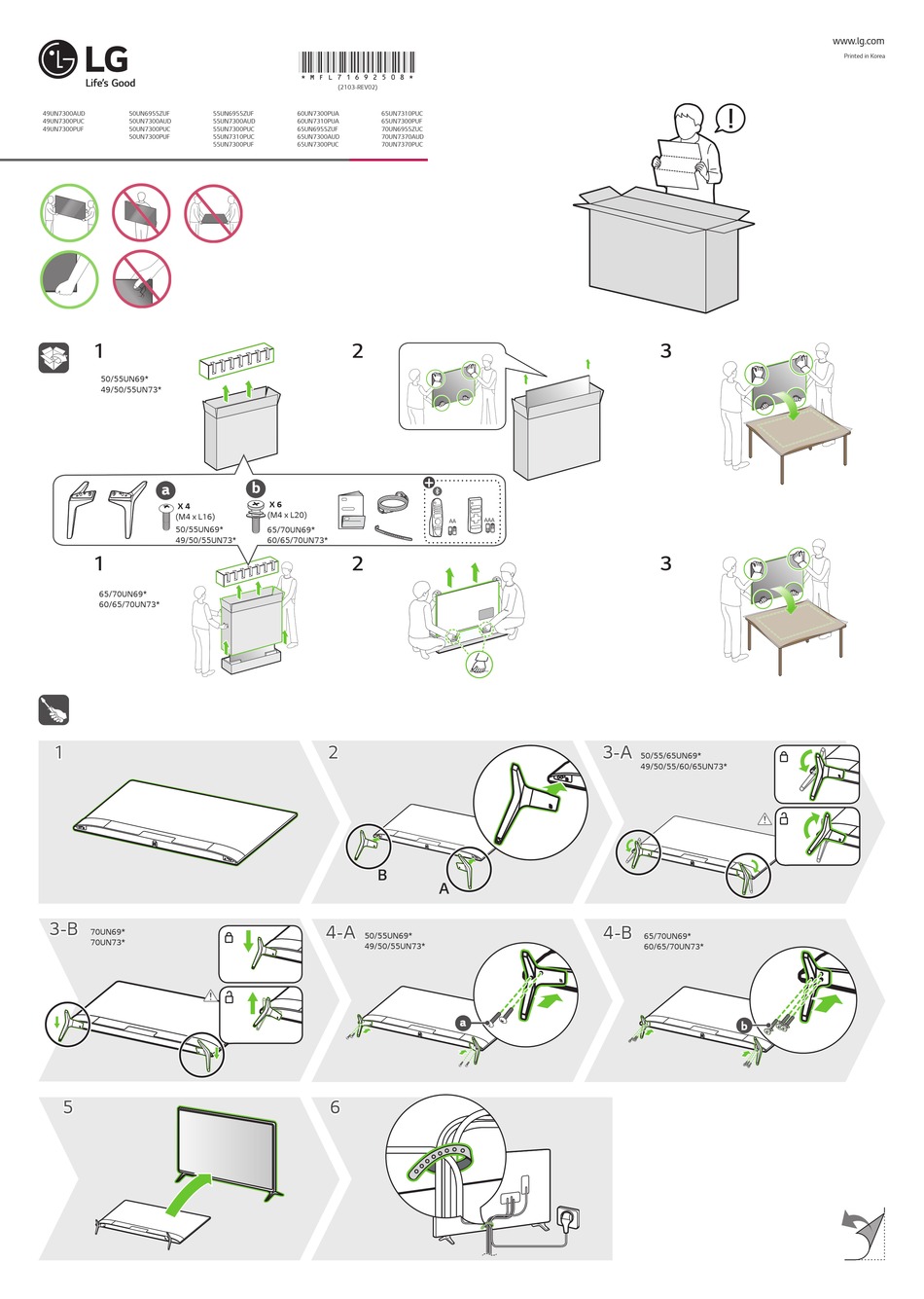

1
50/55UN69*
49/50/55UN73*
a
X 4
(M4 x L16)
50/55UN69*
49/50/55UN73*
1
65/70UN69*
60/65/70UN73*
1
3-B
70UN69*
70UN73*
5
*MFL71692508*
(2103-REV02)
60UN7300PUA
65UN7310PUC
60UN7310PUA
65UN7300PUF
65UN6955ZUF
70UN6955ZUC
65UN7300AUD
70UN7370AUD
65UN7300PUC
70UN7370PUC
2
b
X 6
(M4 x L20)
65/70UN69*
60/65/70UN73*
2
2
B
4-A
50/55UN69*
49/50/55UN73*
6
AAA
AA
3-A
A
4-B
a
3
3
50/55/65UN69*
49/50/55/60/65UN73*
65/70UN69*
60/65/70UN73*
b
www.lg.com
Printed in Korea
