Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care
06/09

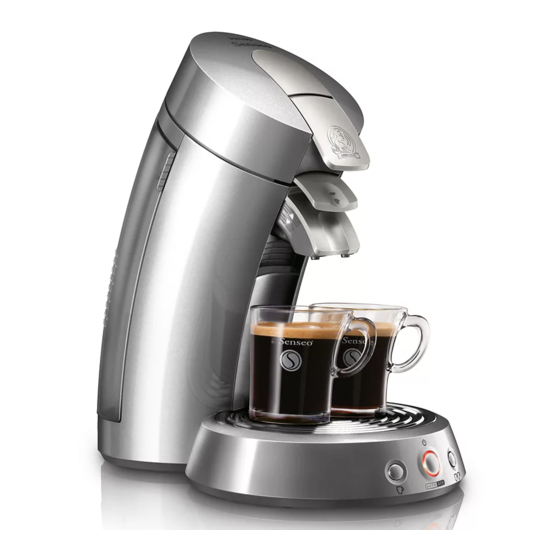

Coffee Maker Senseo
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power
- Contents reservoir
- Colour setting
- Sap coding
Water level
sensor S1
L
Pump M
N
Printed in the Netherlands
© Copyright reserved
HD7824/50
: 220 - 240 V
: 50 - 60 Hz
: 1450 W
: 1.2 W
: 1200 cc
: Chrome Silver
: HD7824/50/B
Water level
sensor S2
Temp.
Sensor
Boiler
Fuse
CONTROL
PCB
Fuse
Push buttons
Subject to modification
/B
Advertisement
Related Manuals for Philips Senseo HD7824/50/B
Summary of Contents for Philips Senseo HD7824/50/B
- Page 1 - Sap coding : HD7824/50/B Water level sensor S2 Water level Temp. sensor S1 Sensor Boiler Fuse Pump M CONTROL Fuse Push buttons Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification 06/09...
-
Page 2: Repair Instruction
HD7824/50/B DISASSEMBLY- AND RE-ASSEMBLY ADVISE To remove the back cover, follow below steps: Volume adjustment - Remove Screw (see exploded view). The new PCB circuit board makes it possible to adjust the volume output by means of pushing the one-cup and two-cup - Remove valve outlet. - Page 3 REPAIR INSTRUCTION & PARTS LIST HD7824/50/B Automatic filling procedure: Restoring the Boiler_empty_flag to production default: The Senseo PCB contains an automatic fi lling procedure Some times it is needed that the boiler of the Senseo have to software routine. be emptied. This fi...
-
Page 4: Exploded View
EXPLODED VIEW HD7824/50/B... - Page 5 EXPLODED VIEW HD7824/50/B...
