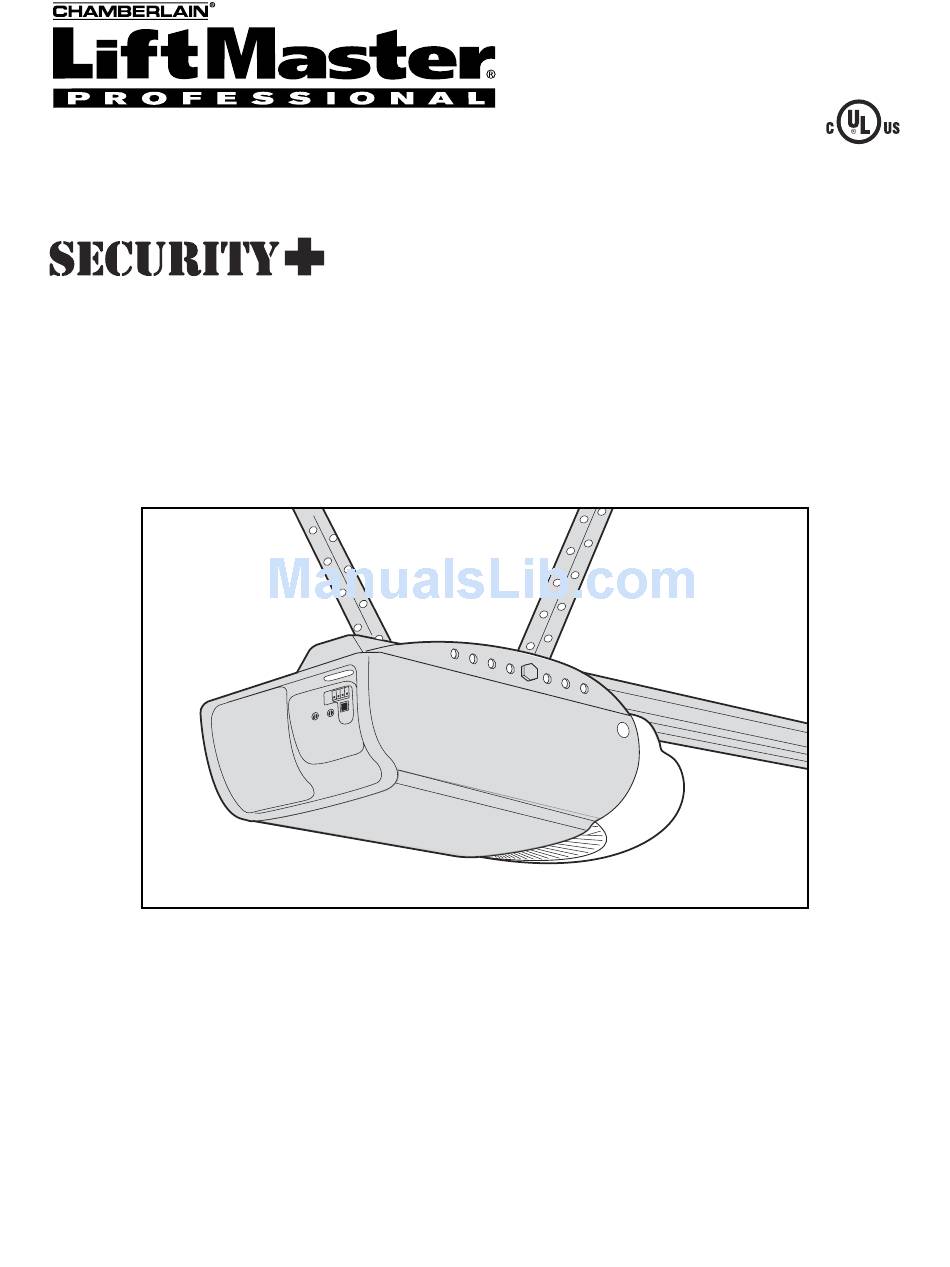

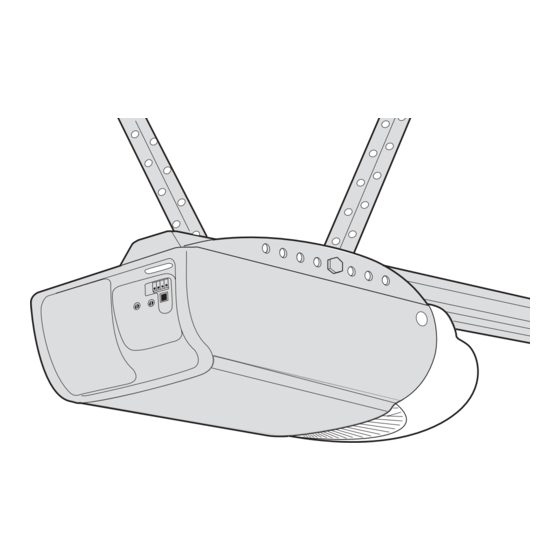

GARAGE DOOR OPENER
Models 3110 1/3 HP
3220 1/2 HP
3220-267 1/2 HP
For Residential Use Only
Owner's Manual
Please read this manual and the enclosed safety materials carefully!
Fasten the manual near the garage door after installation.
The door WILL NOT CLOSE unless the Protector System
properly aligned.
Periodic checks of the opener are required to ensure safe operation.
The model number label is located on the front panel of your opener.
®
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.liftmaster.com
®
is connected and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chamberlain 3110

  • Page 1 GARAGE DOOR OPENER Models 3110 1/3 HP 3220 1/2 HP 3220-267 1/2 HP For Residential Use Only Owner’s Manual ■ Please read this manual and the enclosed safety materials carefully! ■ Fasten the manual near the garage door after installation.
  • Page 2: Table Of Contents

    Safety Symbol and Signal Word Review This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual. WARNING...
  • Page 3: Preparing Your Garage Door

    To prevent damage to garage door and opener: • ALWAYS disable locks BEFORE installing and operating the opener. • ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage. Tools needed During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below.
  • Page 4: Planning

    Planning Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.
  • Page 5: Carton Inventory

    Carton Inventory Your garage door opener is packaged in two cartons which contain the motor unit and all parts illustrated below. Accessories will depend on the model Models 3220 Model 3110 Multi-Function Lighted Door Control Panel Door Control Button Motor Unit with a Light Lens...
  • Page 6: Assembly Step

    Fasten the Rail to the Motor Unit To avoid installation difficulties, do not run the garage door opener until instructed to do so. To aid in assembly and installation, replace the foam packing around the motor unit. Remove it after Installation Step 4.
  • Page 7: Assembly

    4. Disable all locks and remove all ropes connected to garage door BEFORE installing opener to avoid entanglement. 5. Install garage door opener 7 feet (2.13 m) or more above floor. 6. Mount emergency release handle 6 feet (1.83 m) above floor.
  • Page 8: Installation Step

    INSTALLATION STEP 1 Determine the Header Bracket Location WARNING To prevent possible SERIOUS INJURY or DEATH: • Header bracket MUST be RIGIDLY fastened to CAUTION structural support on header wall or ceiling, otherwise garage door might not reverse when required. DO NOT install header bracket over drywall.
  • Page 9: Install The Header Bracket

    INSTALLATION STEP 2 Install the Header Bracket You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do not install the header bracket over drywall.
  • Page 10: Attach The Rail To The Header Bracket

    Header Wall Header Bracket Rail Bracket Rail Garage Door HARDWARE SHOWN ACTUAL SIZE Clevis Pin 5/16"x2-3/4" INSTALLATION STEP 3 Attach the Rail to the Header Bracket • Position the opener on the garage floor below the header bracket. Use packing material as a protective base.
  • Page 11: Install The Protector System

    INSTALLATION STEP 4 Install The Protector System The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR When properly connected and aligned, the sensor will detect an obstacle in the path of its electronic beam.
  • Page 12: Installing The Brackets

    INSTALLING THE BRACKETS Be sure power to the opener is disconnected. Install and align the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the floor. They may be installed in one of three ways, as follows: Garage door track installation (preferred): •...
  • Page 13: Mounting And Wiring The Safety Sensors

    MOUNTING AND WIRING THE SAFETY SENSORS • Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension (Figure 5).
  • Page 14: Position The Opener

    INSTALLATION STEP 5 Position the Opener Follow instructions which apply to your door type as illustrated. SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK A 2x4 laid flat is convenient for setting an ideal door-to-rail distance. • Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.
  • Page 15: Hang The Opener

    Lag Screw 5/16"-18x1-7/8" Hex Bolt 5/16"-18x7/8" Nut 5/16"-18 To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing any brackets into masonry. Figure 1 Measure...
  • Page 16: Install The Door Control

    CAUTION INSTALLATION STEP 7 Install the Door Control Locate door control within sight of the door at a minimum height of 5 feet (1.5 m) where small children cannot reach, and away from moving parts of the door and door hardware.
  • Page 17: Install The Lights

    • Reverse the procedure to close the lens. • If the bulbs burn out prematurely due to vibration, replace with a Garage Door Opener bulb. NOTE: Use only standard light bulbs. The use of short neck or speciality light bulbs may overheat the endpanel or light socket.
  • Page 18: Electrical Requirements

    WARNING INSTALLATION STEP 10 Electrical Requirements CAUTION To avoid installation difficulties, do not run the opener at this time. To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet.
  • Page 19: Fasten The Door Bracket

    INSTALLATION STEP 12 Fasten the Door Bracket Follow instructions which apply to your door type as illustrated below or on the following page. A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel.
  • Page 20: One-Piece Doors

    ONE-PIECE DOORS Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also. • Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.
  • Page 21: Connect Door Arm To Trolley

    INSTALLATION STEP 13 Connect Door Arm to Trolley Follow instructions which apply to your door type as illustrated below and on the following page. SECTIONAL DOORS ONLY • Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley.
  • Page 22: All One-Piece Doors

    ALL ONE-PIECE DOORS 1. Assemble the door arm, Figure 4: • Fasten the straight and curved door arm sections together to the longest possible length (with a 2 or 3 hole overlap). • With the door closed, connect the straight door arm section to the door bracket with the 5/16"x1-1/4"...
  • Page 23: Adjust The Up And Down Travel Limits

    ADJUSTMENT STEP 1 Adjust the UP and DOWN Travel Limits Limit adjustment settings regulate the points at which the door will stop when moving up or down. To operate the opener, press the Door Control push bar. Run the opener through a complete travel cycle. •...
  • Page 24: Adjustment

    ADJUSTMENT STEP 2 Adjust the Force Force adjustment controls are located on the back panel of the motor unit. Force adjustment settings regulate the amount of power required to open and close the door. If the forces are set too light, door travel may be interrupted by nuisance reversals in the down direction and stops in the up direction.
  • Page 25: Test The Safety Reversal System

    The door will not move more than an inch (2.5 cm), and the opener lights will flash. The garage door opener will not close from a remote if the indicator light in either sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).
  • Page 26: Operation

    • The wall-mounted Door Control: Hold the push button or bar down until the door starts to move. • The Keyless Entry (See Accessories): If provided with your garage door opener, it must be programmed before use. See Programming. When the opener is activated (with the safety reversing sensor correctly installed and aligned) 1.
  • Page 27: Using The Wall-Mounted Door Control

    Using the Wall-Mounted Door Control Press the push button to open or close the door. Press again to reverse the door during the closing cycle or to stop the door while it’s opening. THE MULTI-FUNCTION DOOR CONTROL Press the push bar to open or close the door.
  • Page 28: Maintenance Schedule

    CARE OF YOUR OPENER LIMIT AND FORCE ADJUSTMENTS: Weather conditions may cause some minor changes in door operation requiring some re-adjustments, particularly during the first year of operation. Pages 23 and 24 refer to the limit and force adjustments. Only a screwdriver is required.
  • Page 29: Having A Problem

    1. My door will not close and the light bulbs blink on my motor unit: The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. • Verify the safety sensors are properly installed, aligned and free of any obstructions.
  • Page 30: Diagnostic Chart

    Replace Receiver Logic Board. Installed Safety Sensor Your garage door opener is programmed with self-diagnostic capabilities. The “Learn” button/diagnostic LED will flash a number of times then pause signifying it has found a potential issue. Consult Diagnostic Chart below. Symptom: One or both of the Indicator lights on the safety sensors do not glow steady.
  • Page 31: Programming

    The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure.
  • Page 32: To Add, Reprogram Or Change A Keyless Entry Pin

    To Add, Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. USING THE “LEARN” BUTTON 1. Press and release the “learn” button on motor unit. The learn indicator light will glow steadily for 30 seconds.
  • Page 33: Repair Parts

    REPAIR PARTS Rail Assembly Parts Installation Parts KEY PART 41A4795 12B569-1 12B569-2 81C168 41C4677 1D4828-1 41A4836 25C20 PART 41A5273-1 41A4166 41A2828 371LM 373LM 10A20 29B137 41A5047 178B34 41A4353 41A5034 41A5266-1 41B4494-1 178B35 41A4675-7 114A3077 114A3077SP Owner’s manual-Spanish DESCRIPTION Hardware bag (includes sprocket coupling) Left rail bracket Right rail bracket...
  • Page 34: Motor Unit Assembly Parts

    DESCRIPTION Screw drive RPM kit Worm gear and retainer Low voltage wire harness High voltage wire harness Receiver logic board assy. Cover (Model 3110) (Model 3220) Drive coupling hub Light socket Light lens Chassis with rail bracket Motor support bracket...
  • Page 35: Accessories

    395LM Remote Light Control: Enables homeowner to turn on a lamp, television or other appliance from their car with their garage door opener remote or from anywhere in their home with an additional LiftMaster Security✚ ® Remote Control: ®...
  • Page 36: Liftmaster Service Is On Call

    (Model 3220) or for a period of two years (Model 3110) from the date of purchase]. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, maintenance and testing.
