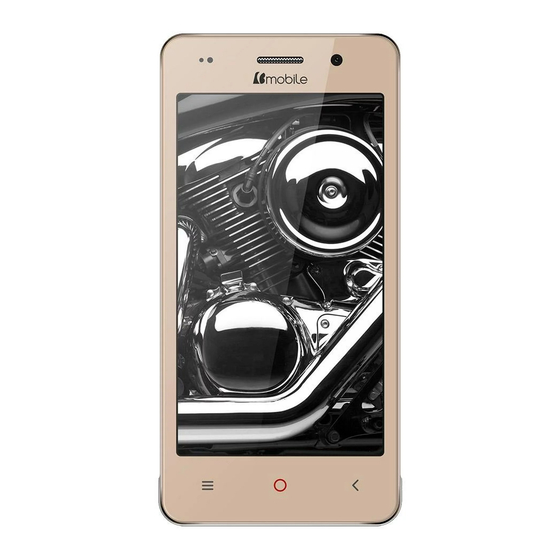

Bmobile AX705 User Manual
  1. Manuals
  2. Brands
  3. Bmobile Manuals
  4. Cell Phone
  5. AX705
  6. User manual

Bmobile AX705 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
USER MANUAL
Mobile Phone
Model: AX705

Table of Contents

1. Foreword ................................................................................. .1
2. Getting know your phone.........................................................4
3. Starting up the device ................................................................6
4. Introduce the basic phone function ...........................................9
5. Technical Specifications ............................................................17
6. FCC Cautions............. ............................................................18
Android, Google, Google Play and other marks are trademarks of Google Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AX705 and is the answer not in the manual?

Questions and answers

Related Manuals for Bmobile AX705

Summary of Contents for Bmobile AX705

  • Page 1: Table Of Contents

    USER MANUAL Mobile Phone Model: AX705 Table of Contents 1. Foreword ................. .1 2. Getting know your phone…………..........4 3. Starting up the device ..............6 4. Introduce the basic phone function ...........9 5. Technical Specifications ............17 6. FCC Cautions………….............18 Android, Google, Google Play and other marks are trademarks of Google Inc.

  • Page 2: Foreword

    FOREWORD Safety In order to ensure the phone is used safely and correctly, please read the precautions below carefully before use. 1.1 General precaution •Your phone is only suitable for the battery and charger approved by our company or else it may cause the battery to leak, overheat, explode or even catch fire.
  • Page 3 1.2 Precaution for the use of charger •Do not cause short circuit to the charger, or it may cause electric shock, fumes and damage to the charger. •Do not use the charger if the power wire is broken, or it may cause fire and electric shock. •Please remove accumulated dust on the power plug.
  • Page 4 •Dirty sockets can cause poor contact and power down, and even make recharging unavailable. So, please clean them periodically. 1.4 Common Precaution Mobile Phone: •Please use the phone in an environment with temperature between -20 - 45  and humidity of <75%.

  • Page 5: Getting Know Your Phone

    -- Places with ambient temperature less than 0 or over 40 , wet or dusty places with strong vibrations (it may cause malfunction) -- Places near electrical appliances (it may affect the image and sound) like TV set, radio, etc. -- Adapter shall be installed near the equipment and shall be easily accessible.
  • Page 6 1. Front Camera 2. Receiver 3. Proximity Sensor...

  • Page 7: Starting Up The Device

    4. LCD Display 5. Settings/Home/Back button 6. Microphone 7. Turn on / Off Button 8. Volume Buttons 9. USB / Charger Connector 10. Back Camera 11. Headphone connector (Jack 3.5) 12. LED Flash 13. Loud Speaker The number of icons in the main desk or the main menu will be according the quantity of applications installed on your device.
  • Page 8 •Make sure your device is turned off. •Firmly hold the device with the front panel facing down. •Slide your finger into the groove designed to open it and gently pull open the back cover. To install the SIM card •Remove the battery if it is installed. •Locate the SIM card slot, and then insert the SIM card with its gold contacts and its cut-off corner as shown in the diagram.
  • Page 9 To install the battery 1. Align the battery’s exposed copper contacts with the battery connectors at the bottom part of the battery compartment. 2. Insert the contacts side of the battery first and then gently push the battery into place. Replace the back cover.

  • Page 10: Introduce The Basic Phone Function

    As the battery is being charged while the device is on, a charging icon appears in the title bar in the Home screen. After the battery has been fully charged, a full battery icon appears in the title bar of the Home screen. Warning: •...
  • Page 11 home screen. (2) On Home screen, click icon on the bottom of the screen (Main menu icon) to enter the main menu screen, slide your fingertip left and right along the screen to reveal the more applications. 4.2. Home screen (1) Read your notifications When you see a notification in the status bar, touch the bar and slide your finger down the screen to open the list of...
  • Page 12 Ongoing notifications report activities such as call forwarding ON, current call status, song playing. Notifications report the arrival of new messages, calendar events, and alarms. You can clear notifications list by selecting ‘Clear’ notifications at the top of the notifications window. To open the message, reminder or other notification, you can touch the items.
  • Page 13 must first touch & hold i t to enter move mode. The object will magnify when it’s ready to be moved. •Without lifting your finger (or you’ll drop out of move mode), drag the object to the new position. To move an item to a section of the Home screen not in view, move it to the edge of the screen and hold it there for a moment.
  • Page 14 4.4. GPRS/WIFI network Your device’s networking capabilities allow you to access the Internet or your corporate network through WIFI, GPRS, EDGE or WCDMA. (If available) You can also add and set up a VPN or proxy connection. To use WIFI on your device, you need access to a wireless access point...
  • Page 15 Note: The availability and range of your device’s WIFI signal depends on the number, infrastructure, and other objects through which the signal passes. When your phone is in of the normal WCDMA or HSPA network coverage, and the other side (The receiver’s phone and SIM card) can also be supported the video call function of 3G.To open the Browser you need to be connected to a network.
  • Page 16 4.6. Music Songs that you saved in the memory card or phone storage can be played on this app.
  • Page 17 4.7. Bluetooth The phone supports Bluetooth functions, you can establish a wireless connection between the phone with other compatible devices, and data transmission, and you can establish a wireless connection between devices in the phone with a distance of several meters. Bluetooth connection may be interference by obstacles, such as walls or other electronic device.

  • Page 18: Technical Specifications

    Enter the setting menu; Touch the Bluetooth to open the function, idle screen will display Bluetooth icon in the status bar. Open the Bluetooth discoverable and other devices can search the phone. Before using the phone as a Bluetooth device, you need to pair the phone with the target device. As follows: -Sure your phone has Bluetooth-enabled.

  • Page 19: Fcc Cautions

    Band GSM850MHz/PCS1900MHz/WCDMA850MHz/ WCDMA1900MHz Battery Type Li-ion Battery Capacity 1700 mAh Talk Time 4-5 h Standby Time 200h Battery Time (No prior or separate notice is required for capacity changes) Note: Actual operating conditions depend on the local network environment, SIM, and user behavior.
  • Page 20 any interference received, including interference that may cause undesired operation. 15.21 Information to user Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information to the user Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 21 SAR Information Statement Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.
