1.
Foreword .......................................................................................1
2.
Getting to know your touch phone...............................................4
3.
Starting up your device..................................................................6
4.
Introduce the basic phone function .............................................9
5.
Technical Specifications ...............................................................17
6.
FCC Cautions................................................................................18
Google, Android, Google Play and other marks are trademarks of Google Inc.

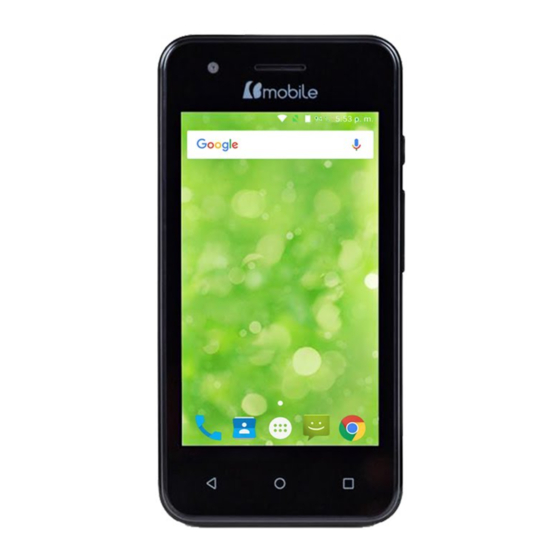

AX681 Mobile Phone
Trade Mark: Bmobile
Table of Contents
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bmobile AX681
Summary of Contents for Bmobile AX681
-
Page 1: Table Of Contents
AX681 Mobile Phone Trade Mark: Bmobile Table of Contents Foreword ..................1 Getting to know your touch phone..........4 Starting up your device..............6 Introduce the basic phone function ..........9 Technical Specifications ...............17 FCC Cautions…………..............18 Google, Android, Google Play and other marks are trademarks of Google Inc. -
Page 2: Foreword
FOREWORD Safety In order to ensure the phone is used safely and correctly, please read the precautions below carefully before use. 1.1 General precaution •Your phone is only suitable for the battery and charger approved by our company or else it may cause the battery to leak, overheat, explode or even catch fire. - Page 3 the charger. •Do not use the charger if the power wire is broken, or it may cause fire and electric shock. •Please remove accumulated dust on the power plug. •Do not put water containers next to the power supply to avoid overheating, fire, electric shock and malfunction in case they come into contact.
- Page 4 1.4 Common Precaution Mobile Phone: •Please use the phone in an environment with temperature between -20 - 45 and humidity of <75%. •Please use the phone far away from regular telephones, TV sets, radio sets and office automation equipment, to avoid affecting the normal use of these equipment and mobile phone. Battery: •Store the battery in cool and ventilated place without direct sunlight.
-
Page 5: Getting To Know Your Touch Phone
GETTING TO KNOW YOUR TOUCH PHONE... - Page 6 Earphones connector Jack (3.5 mm) USB connector Front camera Receiver LCD screen Settings/Home/Back buttons Power On/Off Button Volume Buttons Back camera LED flash Microphone The number of icons in the main desk or the main menu will be according the quantity of applications installed on your device.
-
Page 7: Starting Up Your Device
STARTING UP YOUR DEVICE •Make sure your device is turned off. •Firmly hold the device with the front panel facing down. •Slide your finger into the groove designed to open it and gently pull open the back cover. To install the SIM card •Remove the battery if it is installed. - Page 8 To install a memory card To have additional storage for your images, videos, music and files, you can purchase a memory card and install it in your device. Locate the memory card slot and Insert the memory card into the slot as indicated by the image. To install the battery 1.
- Page 9 Charging the Battery New batteries are shipped partially charged. Before you start using your device, it is recommended that you install and charge the battery. Some batteries perform best after several full charge/discharge cycles. Note: Only the AC adapter and USB sync cable provided with your device must be used to charge the device.
-
Page 10: Introduce The Basic Phone Function
INTRODUCE THE BASIC PHONE FUNCTIONS 4.1. Switch Main Menu style (1) In default Home screen, slide your fingertip left and right along the screen to reveal the more home screen. (2) On Home screen, click icon on the bottom of the screen (Main menu icon) to enter the main menu screen, slide your fingertip up and down along the screen... - Page 11 4.2. Home screen (1) Read your notifications When you see a notification in the status bar, touch the bar and slide your finger down the screen to open the list of notifications displayed in the sliding window. Ongoing notifications report activities such as call forwarding ON, current call status, song playing.
- Page 12 (2) Create Home screen shortcuts and widgets: From the Home screen, touch and hold the blank screen, or click MENU Key and select ‘Wallpaper’. Enter the main menu screen, slide your fingertip left to reveal the widget, select a shortcut to some of your saved information (such as a play list), a widget (a clock) for your Home screen.
- Page 13 4.3. Camera All the pictures you can capture or view on your phone are stored on a memory card, which must be installed in your phone. Before you can use the Camera or view pictures in Pictures, make sure you have a card installed. 4.4.
- Page 14 other phone or computer can internet through the WIFI connect with your touch phone. Step 1: open Setting, then press more, get Tethering &portable hotspot Step 2: open Wi-Fi hotspot, choose Set up Wi-Fi hotspot, and set a new password Step 3: open the WIFI on other touch phones or computers, search the WIFI that your phone as a wireless AP, then input the password, by the way you can net play.
- Page 15 4.5. U-disk storage This phone supports movable storage, i.e., the U-disk function. When the phone is switched on, you see the icon in the status bar on the top of the screen when its connected to a PC by a data line.
- Page 16 4.6. Music Songs that you saved in the memory card or phone storage can be played on this app. 4.7. Bluetooth The phone supports Bluetooth functions, you can establish a wireless connection between the phone with other compatible devices, and data transmission, and you can establish a wireless connection between devices in the phone with a distance of several meters.
- Page 17 4.8 FM Radio The device includes a FM Radio application. To use this function you have to go to the main menu and select it. Is very important that to ensure the right operation of the FM radio you make sure the earphones are plugged in the phone.
-
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Weight 120g Dimensions 127.28x 64.5x 10.95mm Bands 2G 850/900/1800/1900 3G 850/1900 Battery Type Lithium Battery Capacity 1400 mAh Talk Time Standby Time 280h Battery Time (No prior or separate notice is required for capacity changes) Note: Actual operating conditions depend on the local network environment, SIM, and user behavior. -
Page 19: Fcc Cautions
FCC CAUTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designe d to provide reasonable protection against harmful interference in a residential i nstallation. - Page 20 mined by turning the equipment off and on, the user is encouraged to try to corr ect the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •...
- Page 21 following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 22 independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
- Page 23 accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm for body worn must be maintained between the user’s body and the handset, including the antenna.
- Page 24 and should be avoided. Use only the supplied or an approved antenna.
