1. Foreword ....................................................................................1
2. Getting to know your phone......................................................5
3. Starting up your phone................................................................7
4. Introduce the basic phone functions .........................................10
5. Technical Specifications ............................................................18
6. FCC Cautions..........................................................................19

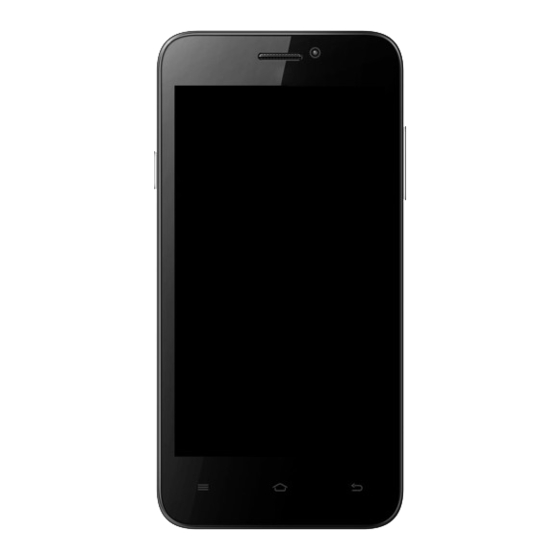

Product Name: Mobile Phone
Model: AX1010
Trade mark: Bmobile
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bmobile AX1010
Summary of Contents for Bmobile AX1010
-
Page 1: Table Of Contents
Table of Contents 1. Foreword ..................1 2. Getting to know your phone…………..........5 3. Starting up your phone..............7 4. Introduce the basic phone functions .........10 5. Technical Specifications ............18 6. FCC Cautions…………..............19 Product Name: Mobile Phone Model: AX1010 Trade mark: Bmobile... -
Page 2: Foreword
FOREWORD Safety In order to ensure the phone is used safely and correctly, please read the precautions below carefully before use. General precaution •Your phone is only suitable for the battery and charger approved by our company or else it may cause the battery to leak, overheat, explode or even catch fire. - Page 3 •Do not charge the battery for over 24 hours continuously. •Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss. Precaution for the use of charger •Do not cause short circuit to the charger, or it may cause electric shock, fumes and damage to the charger.
- Page 4 Cleaning and maintenance •As the phone, battery and charger are not waterproof, do not use them in places of high humidity and avoid them being wet by rain. •Please clean the battery and charger with a soft dry cloth. •Never use alcohol, thinner or solutions, like benzene, to wipe the phone. •Dirty sockets can cause poor contact and power down, and even make recharging unavailable.
- Page 5 •Do not dispose of old batteries as household waste. Give them to specified disposal places and follow any stipulated instructions for disposal. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE INSTRUCTIONS OF YOUR COUNTRY. Charger: •Do not charge under following conditions: -- Places with direct sunlight...
-
Page 6: Getting To Know Your Phone
GETTING TO KNOW YOUR PHONE... - Page 7 1. Front Camera 2. Receiver 3. LCD Display 4. Settings / Home / Back Buttons 5. Microphone 6. Turn On / Turn Off Button 7. Volume Buttons 8. Headphone connector (Jack 3.5) 9. USB Connector 10. Back Camera 11. LED flash 12.
-
Page 8: Starting Up Your Phone
STARTING UP YOUR PHONE •Make sure your device is turned off. •Firmly hold the device with the front panel facing down. •Slide your finger into the groove designed to open it and gently pull open the back cover. To install the SIM card •Remove the battery if it is installed. - Page 9 To install a memory card To have additional storage for your images, videos, music and files, you can purchase a memory card and install it in your device. Locate the memory card slot and Insert the memory card into the slot as indicated by the image. To install the battery 1.
- Page 10 Charging the Battery New batteries are shipped partially charged. Before you start using your device, it is recommended that you install and charge the battery. Some batteries perform best after several full charge/discharge cycles. Note: Only the AC adapter and USB sync cable provided with your device must be used to charge the device.
-
Page 11: Introduce The Basic Phone Functions
INTRODUCE THE BASIC PHONE FUNCTIONS 4.1. Switch Main Menu style (1) In default Home screen, slide your fingertip left and right along the screen to reveal the more home screen. (2) On Home screen, click icon on the bottom of the screen (Main menu icon) to enter the main menu screen, slide your fingertip up and down along the screen to reveal the more applications. - Page 12 4.2. Home screen (1) Read your notifications When you see a notification in the status bar, touch the bar and slide your finger down the screen to open the list of notifications displayed in the sliding window. Ongoing notifications report activities such as call forwarding ON, current call status, song playing.
- Page 13 (2) Create Home screen shortcuts and widgets: From the Home screen, touch and hold the blank screen, or click MENU Key and select ‘Wallpaper’. Enter the main menu screen, slide your fingertip left to reveal the widget, select a shortcut to some of your saved information (such as a play list), a widget (a clock) for your Home screen.
- Page 14 4.3. Camera All the pictures you can capture or view on your phone are stored on a memory card, which must be installed in your phone. Before you can use the Camera or view pictures in Pictures, make sure you have a card installed.
- Page 15 4.4. GPRS/WIFI network Your device’s networking capabilities allow you to access the Internet or your corporate network through WIFI, GPRS, WCDMA. (If EDGE or available) You can also add and set up a VPN or proxy connection. To use WIFI on your device, you need access to a wireless access point Note: The availability and range of your device’s WIFI signal depends on the...
- Page 16 Step 3: open the WIFI on other touch phones or computers, search the WIFI that your phone as a wireless AP, then input the password, by the way you can net play. 4.5. U-disk storage This phone supports movable storage, i.e., the U-disk function. When the phone is switched on, you see the icon in the status bar on the top of the screen when its connected to a PC by a data line.
- Page 17 4.6. Music Songs that you saved in the memory card or phone storage can be played on this app.
- Page 18 4.7. Bluetooth The phone supports Bluetooth functions, you can establish a wireless connection between the phone with other compatible devices, and data transmission, and you can establish a wireless connection between devices in the phone with a distance of several meters. Bluetooth connection may be interference by obstacles, such as walls or other electronic device.
-
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS Weight 120 g Dimensions: 124.5 x 64.9 x 11.4 mm Bands: GSM900MHz / DCS1800MHz / GSM850MHz /PCS1900MHz/WCDMA850MHz/WCDMA1900MHz/ LTE Band2/4/5/7 Battery Type Li-ion Battery Capacity 1700 mAh Talk Time About 8 hours Standby Time About 300 hours Battery Time (No prior or separate notice is required for capacity changes) Note: Actual operating conditions depend on the local network environment, SIM, and user behavior. -
Page 20: Fcc Cautions
could void the user's authority to operate the equipment. FCC CAUTIONS 15.19 Labelling requirements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 21 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information This mobile phone meets the government's requirements for exposure to radio waves.
- Page 22 Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components.
