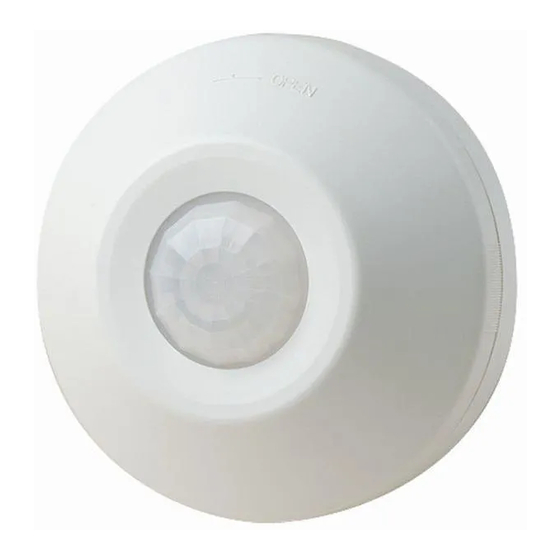

Infra-red Motion Sensor - Ceiling Mounted
•
Please read these instructions carefully before installation and keep safe for future
reference.
IMPORTANT
This product should be installed by a competent person and in accordance with
the current IET Wiring Regulations and Building Regulations.
If in doubt,consult a qualified electrician.
•
Always turn off the mains supply before commencing work.
As the detector responds to changes in temperature, avoid the following situations:-
•
Avoid pointing the detector towards objects with highly reflective surfaces, such
as mirrors etc.
•
Avoid mounting the detector near heat sources, such as heating vents, air
conditioning units, lights etc.
•
Avoid pointing the detector towards objects that may move in the wind, such as
curtains, tall plants etc.
Switch the mains supply OFF first to prevent electric shock.
1. Remove the cover by rotating anti-clock wise.
2. Connect the mains in and load out wires according to Dia:1.
Dia:1
'Orion Range'
Model: OD102
Important Safety Instructions
FIELD OF DETECTION
INSTALLATION
N = Neutral 'IN'
L = Live 'IN'
A = Output to Load
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KingShield Orion OD102
Summary of Contents for KingShield Orion OD102
- Page 1 ‘Orion Range’ Infra-red Motion Sensor - Ceiling Mounted Model: OD102 Important Safety Instructions • Please read these instructions carefully before installation and keep safe for future reference. IMPORTANT This product should be installed by a competent person and in accordance with the current IET Wiring Regulations and Building Regulations.
- Page 2 3. Secure the sensor back plate to the wall using two wood screws (ensure there is no wiring/gas/water services directly behind the screws) Dia:2. Dia:2 TESTING 1. Turn ‘Time’ control fully anti-clockwise and ‘Lux’ control fully clock wise, refer to Dia: 3. Dia:3 2.
