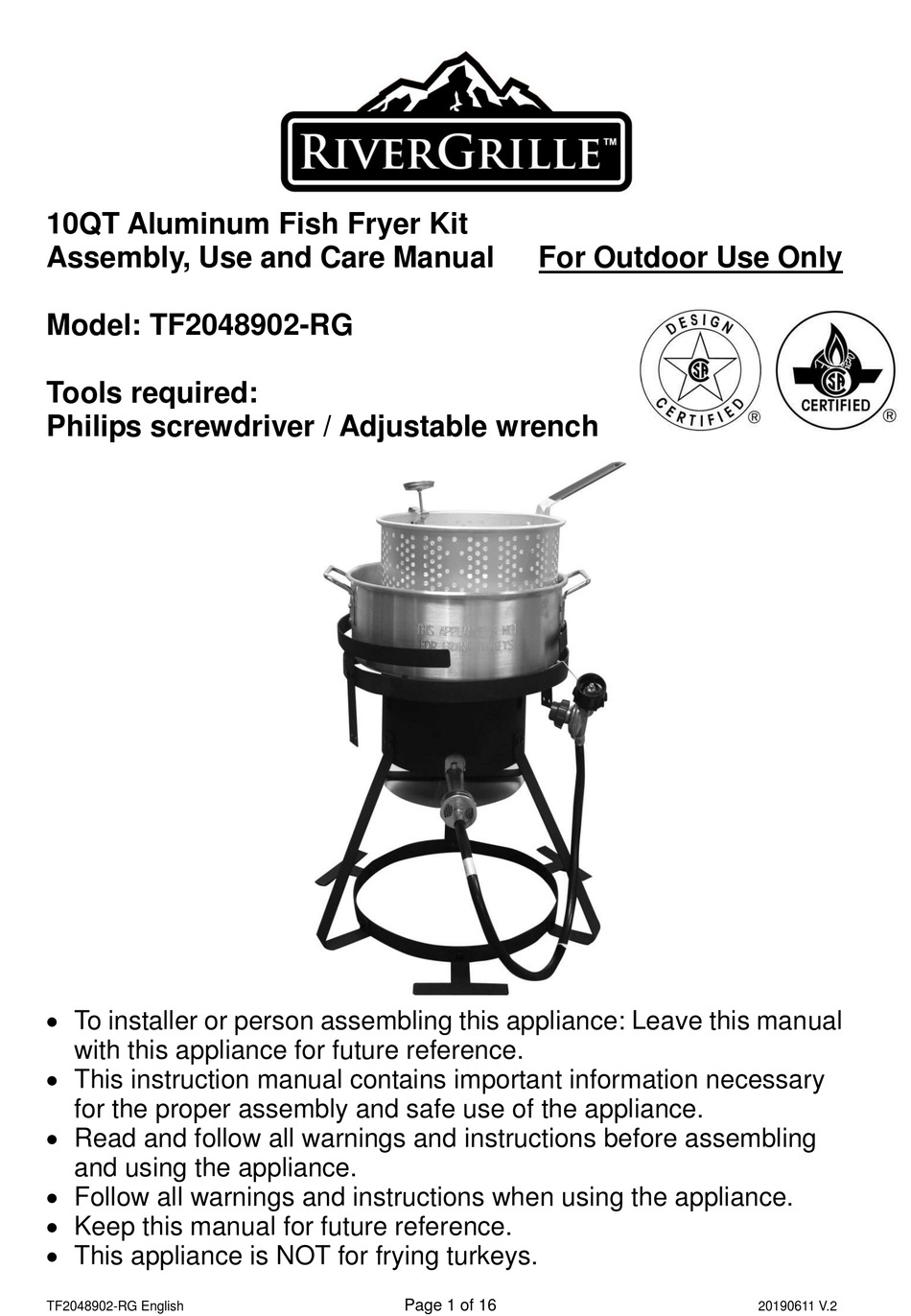

10QT Aluminum Fish Fryer Kit
Assembly, Use and Care Manual
Model: TF2048902-RG
Tools required:
Philips screwdriver / Adjustable wrench
 To installer or person assembling this appliance: Leave this manual
with this appliance for future reference.
 This instruction manual contains important information necessary
for the proper assembly and safe use of the appliance.
 Read and follow all warnings and instructions before assembling
and using the appliance.
 Follow all warnings and instructions when using the appliance.
 Keep this manual for future reference.
 This appliance is NOT for frying turkeys.
TF2048902-RG English
For Outdoor Use Only
Page 1 of 16
20190611 V.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the TF2048902-RG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverGrille TF2048902-RG

Summary of Contents for RiverGrille TF2048902-RG

  • Page 1 10QT Aluminum Fish Fryer Kit Assembly, Use and Care Manual For Outdoor Use Only Model: TF2048902-RG Tools required: Philips screwdriver / Adjustable wrench  To installer or person assembling this appliance: Leave this manual with this appliance for future reference.
  • Page 2 21°F (-6°C). Do not use this appliance under above rated temperature. Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death. Page 2 of 16 TF2048902-RG English 20190611 V.2...
  • Page 3 WARNING: Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. CAUTION CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury. Page 3 of 16 TF2048902-RG English 20190611 V.2...
  • Page 4 Do not move the appliance when in use. Allow the cooking vessel to cool to 115°F (45°C) before moving or storing.  For outdoor use only. If stored indoors, detach and leave cylinder outdoors. Page 4 of 16 TF2048902-RG English 20190611 V.2...
  • Page 5 If you see, smell, or hear escaping gas, immediately get away from the LP tank / appliance and call your FIRE DEPARTMENT.  All spare LP tanks must have safety caps installed on the LP tank outlet. Page 5 of 16 TF2048902-RG English 20190611 V.2...
  • Page 6  To remove gas from LP tank, contact an LP dealer or call a local FIRE DEPARTMENT for assistance. Check the telephone directory under “GAS Companies” for nearest certified LP dealers. Page 6 of 16 TF2048902-RG English 20190611 V.2...
  • Page 7 LP tank valve, resulting in some resistance. An additional one-half to three quarters turn is required to complete connection. TIGHTEN BY HAND ONLY – DO NOT USE TOOLS. Page 7 of 16 TF2048902-RG English 20190611 V.2...
  • Page 8 Customer Service Center at 1 – 888 – 837 – 1380. Use only replacement parts specified by manufacturer. 6. Always close LP tank valve after performing tank test by turning hand wheel clockwise. Page 8 of 16 TF2048902-RG English 20190611 V.2...
  • Page 9 If there is evidence of abrasion, wear, cuts or leaks, the hose assembly must be replaced prior to the appliance being put into operation. The replacement hose assembly shall be that specified by the manufacturer. Page 9 of 16 TF2048902-RG English 20190611 V.2...
  • Page 10 All cleaning and maintenance should only be done when the appliance is cool and with the fuel supply turned off at the LP tank. DO NOT clean any part in a self-cleaning oven. The extreme heat will damage the finish. Page 10 of 16 TF2048902-RG English 20190611 V.2...
  • Page 11 Heat Shield Burner Regulator Hose Assembly Fish Pot Fish Basket Basket Handle 5” Thermometer Hook Hardware List Part Description Diagram Qty. Bolt M6 x 12 Flange Nut M6 Bolt M5 x 10 Page 11 of 16 TF2048902-RG English 20190611 V.2...
  • Page 12 2. Assemble the Leg (2) to the Ring Stand (3) by using 3pcs bolts (A) and 3pcs flange nuts (B). Assemble the Small T-Support Leg (4) by using 3pcs bolts (A) and 3pcs flange nuts (B). Page 12 of 16 TF2048902-RG English 20190611 V.2...
  • Page 13 4. Insert the Regulator Hose Assembly (8) fitting into the burner and tighten. Be sure not to strip threads on brass fitting. DO NOT OVERTIGHTEN. Proper connection is critical for correct operation of the unit. Page 13 of 16 TF2048902-RG English 20190611 V.2...
  • Page 14 5. Mount the Adjustable Pot Tip Guard (5) on to Welded Stand (1) by 4pcs bolts (A) and 4pcs flange nuts (B). 6. Attach the Basket Handle (11) by inserting 4pcs bolts (C) through Fish Basket (10), 4pcs tooth washers (E) and 4pcs nuts (D). Page 14 of 16 TF2048902-RG English 20190611 V.2...
  • Page 15 Prior to lighting, position thermometer clip so that at least 2.75” of thermometer tip is submerged in oil. Reposition thermometer as necessary to cook. Continue to use thermometer until burner is turned off. Page 15 of 16 TF2048902-RG English 20190611 V.2...

  • Page 16: Limited Warranty

    CUSTOMER SERVICE: 1 – 888 – 837 – 1380 For assistance, contact customer service at customerservice@rankam.com or at 1 – 888 – 837 – 1380, 8:00am – 5:00pm, Pacific Standard Time, Mon to Fri Page 16 of 16 TF2048902-RG English 20190611 V.2...
