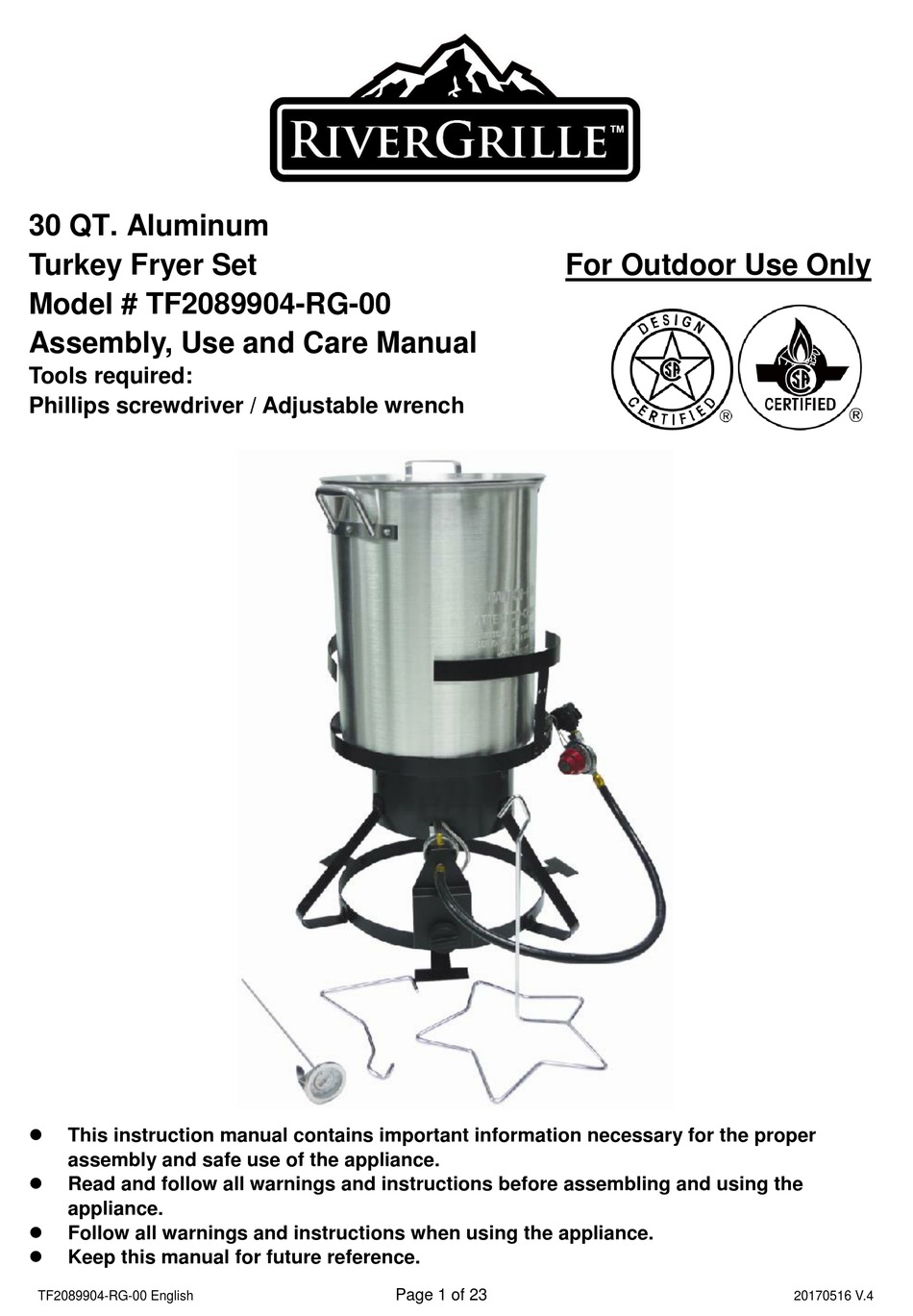

30 QT. Aluminum
Turkey Fryer Set
Model # TF2089904-RG-00
Assembly, Use and Care Manual
Tools required:
Phillips screwdriver / Adjustable wrench
This instruction manual contains important information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the
appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
TF2089904-RG-00 English
For Outdoor Use Only
Page 1 of 23
20170516 V.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the TF2089904-RG-00 and is the answer not in the manual?

Questions and answers

Related Manuals for RiverGrille TF2089904-RG-00

Summary of Contents for RiverGrille TF2089904-RG-00

  • Page 1 30 QT. Aluminum Turkey Fryer Set For Outdoor Use Only Model # TF2089904-RG-00 Assembly, Use and Care Manual Tools required: Phillips screwdriver / Adjustable wrench  This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
  • Page 2 DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING: Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. Page 2 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 3 16. Do not move the appliance when in use. Allow the cooking vessel to cool to 115°F (45°C) before moving or storing. 17. Do not leave the appliance unattended, keep children and pets away from the appliance at all times. Page 3 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 4 Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts or leaks, the hose must be replaced prior to the appliance being put into operation. Page 4 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 5 If you see, smell, or hear escaping gas, immediately get away from the LP tank / appliance and call your fire department.  All spare LP tanks must have safety caps installed on the LP tank outlet. Page 5 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 6 Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders. Exchange your tank only for an OPD safety feature-equipped tanks as described in the “LP Tank” section of this manual. Page 6 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 7 Tighten by hand only – do not use tools. NOTE: If you cannot complete connection, disconnect regulator and repeat step 5 and 6. If you are still unable to complete the connection, do not use this regulator! Page 7 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 8 Customer Service Center at 1 – 888 – 837 – 1380. Use only replacement parts specified by manufacturer. Always close LP tank valve after performing tank leak test by turning hand wheel clockwise. Page 8 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 9 Cycle time for timer is around 15 minutes. If the timer is not reset within around 15 minutes, the burner will shut OFF automatically. If this occurs, please follow lighting instructions and continue to cook. Page 9 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 10 To help prevent a blockage and ensure full heat output, clean and inspect burner tube often (once or twice a month). NOTE: Water or air pressure will not normally clear a spider web. Page 10 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 11 NOTE: Clean the entire appliance each year and tighten all hardware on a regular basis (1-2 times a year or more depending on usage). Cleaning should be done where detergents won’t harm patio, lawn or the like. Page 11 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 12 Burner: Wire brush loose corrosion from burner exterior. Clean clogged gas port holes with an opened paper clip. Replace corroded or damaged burners that would emit excess gas.  Cooking surfaces, pots and pans: Clean the cooking surface with soapy water and a nylon cleaning pad. Page 12 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 13 Product Diagram Page 13 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 14 Bar For Timer) Box, Gas Hose & Regulator Assembly 2pcs 9. Burner 10. 30QT Turkey 11. Pot Lid 12. Turkey Stand Fryer 11A. Lid Handle 13. Turkey Hook 14. Regulator Hook 15. Thermometer Page 14 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 15 2. Attach Thermocouple as shown on the right illustration Leave 2 visible thread and tighten the nut. Note: If thermocouple does not have full contact with flame, unit will not stay lit. Page 15 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 16 Small T-Support Leg (5) and fix it with 2pcs Bolt M6 x 12 (A) by going through the supporting bar and then to the timer box. Timer Box Support Bar (5) Page 16 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 17 Prior to lighting, position thermometer clip so that at least 2.75” of thermometer tip is submerged in oil. Reposition thermometer as necessary to cook. Continue to use thermometer until burner is turned off. Page 17 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 18 Completely pat dry the inside and outside surfaces of the turkey. This is very important as it reduces the splattering of oil. After patting the turkey dry, add herb rubs or seasonings to the skin. Page 18 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 19 Do not leave fryer unattended.  Cook until a golden brown color is achieved. Normal cooking time is 3 1/2 minutes per pound. Page 19 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 20 Using a meat thermometer, check for an internal meat temperature of 180°F.  Remove turkey fryer accessory and allow the turkey to “rest” for 15 minutes to allow the juices to settle into the turkey. Slice and serve! Page 20 of 23 TF2089904-RG-00 English 20170516 V.4...

  • Page 21: Troubleshooting

    LP tank valve. Disconnect the regulator from the LP tank and wait one minute. Reconnect the regulator control valve to the LP tank valve and slowly open the LP tank valve until it is fully open. Page 21 of 23 TF2089904-RG-00 English 20170516 V.4...

  • Page 22: Limited Warranty

    RANKAM (CHINA) MANUFACTURING COMPANY LIMITED 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong Customer Service: – – – 1380 customerservice@rankam.com 8:00am to 5:00pm, Pacific Standard Time, Monday to Friday Page 22 of 23 TF2089904-RG-00 English 20170516 V.4...
  • Page 23 Page 23 of 23 TF2089904-RG-00 English 20170516 V.4...
