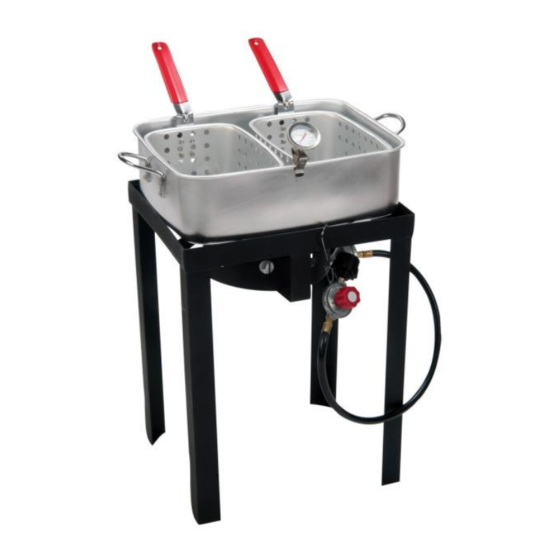

RiverGrille TF2014501-RG-00 Assembly, Use And Care

18qt double fish fryer
Hide thumbs

Advertisement

Quick Links

Download this manual
18QT Double Fish Fryer
Assembly, Use and Care
Model: TF2014501-RG-00
Tools required:
Phillips screwdriver / Adjustable wrench
To installer or person assembling this appliance: Leave this manual with this
appliance for future reference.
This instruction manual contains important information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the
appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
This appliance is not for frying turkey.
TF2014501-RG-00 Eng
For Outdoor Use Only
Page 1
20160930 V.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TF2014501-RG-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverGrille TF2014501-RG-00

Summary of Contents for RiverGrille TF2014501-RG-00

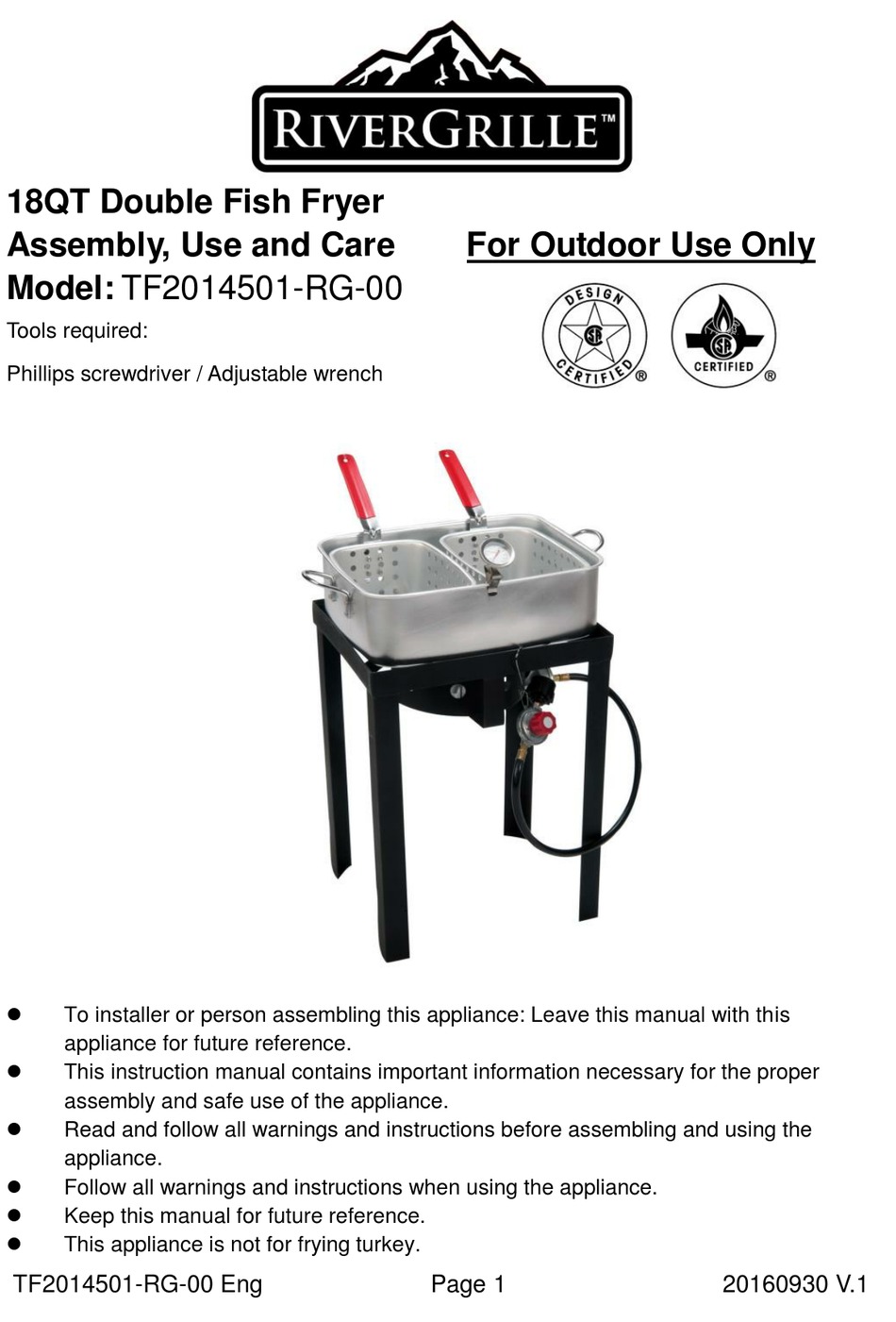

  • Page 1 18QT Double Fish Fryer Assembly, Use and Care For Outdoor Use Only Model: TF2014501-RG-00 Tools required: Phillips screwdriver / Adjustable wrench  To installer or person assembling this appliance: Leave this manual with this appliance for future reference.  This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
  • Page 2 Do not attempt to extinguish an oil or grease fire with water. Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death. TF2014501-RG-00 Eng Page 2 20160930 V.1...
  • Page 3 Warning: Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. CAUTION CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury. TF2014501-RG-00 Eng Page 3 20160930 V.1...
  • Page 4 (4) Remove the food product from the vessel and either mark the water level on the side of the vessel or measure the amount of water in the vessel. (5) Remove the water and completely dry the vessel and the food product. TF2014501-RG-00 Eng Page 4 20160930 V.1...
  • Page 5 LP Gas appliance at an apartment. IF allowed use outside at an apartment. If allowed, use outside on the ground floor with a ten (10) foot clearance form walls or rails.  Before opening LP tank valve, check the coupling nut for tightness. When TF2014501-RG-00 Eng Page 5 20160930 V.1...
  • Page 6 This appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from hot surfaces or splatter from cooking liquids.  Avoid bumping of or impact with the appliance to prevent spillage or splashing of hot cooking liquid. TF2014501-RG-00 Eng Page 6 20160930 V.1...
  • Page 7 The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specifications for LP-gas cylinders of the US Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods. TF2014501-RG-00 Eng Page 7 20160930 V.1...
  • Page 8 Do not smoke during leak test.  Do not use an open flame to check for gas leaks.  Appliance must be leak checked outdoors in well-ventilated area, away from open flames or sparks. TF2014501-RG-00 Eng Page 8 20160930 V.1...
  • Page 9 Tighten by hand only – do not use tools. NOTE: If you cannot complete connection, disconnect regulator and repeat step 5 and 6. If you are still unable to complete the connection, do not use this regulator! TF2014501-RG-00 Eng Page 9 20160930 V.1...
  • Page 10 Customer Service Center at 1-888-837-1380 Use only replacement parts specified by manufacturer. Always close LP tank valve after performing tank test by turning hand wheel clockwise. TF2014501-RG-00 Eng Page 10 20160930 V.1...
  • Page 11 The replacement hose assembly shall be that specified by the manufacturer.  Cleaning and inspection of pressure regulator and hose assembly prior to use. TF2014501-RG-00 Eng Page 11 20160930 V.1...
  • Page 12 Fig.2. Inspect and clean the burner if needed. Reattach orifice/hose to burner. TF2014501-RG-00 Eng Page 12 20160930 V.1...
  • Page 13 Burner: Wire brush loose corrosion from burner exterior. Clean clogged gas port holes with an opened paper clip. Replace corroded or damaged burners that would emit excess gas. Cooking surfaces, pots and pans: Clean the cooking surface with soapy water and a nylon cleaning pad. TF2014501-RG-00 Eng Page 13 20160930 V.1...
  • Page 14 Step 2. Insert the threaded pin on the bottom of the burner into the center hole in the burner bracket. Make sure the alignment pin is seated in the notch on the edge of the burner bracket. Aligned with the burner pins, and secure with the hex nut. TF2014501-RG-00 Eng Page 14 20160930 V.1...
  • Page 15 DO NOT OVERTIGHTEN. Proper connection is critical for correct operation of unit Step 4. Attach the handle by inserting bolts through basket, locking washers and nuts. Step 5. Thread wirer hook through hole on side of regulator. TF2014501-RG-00 Eng Page 15 20160930 V.1...
  • Page 16 Step 6. When transporting or storing LP cooker without tank attached, hook regulator onto burner or cooker stand to prevent damage to regulator. TF2014501-RG-00 Eng Page 16 20160930 V.1...

  • Page 17: Limited Warranty

    DAMAGES, INCLUDING (BUT NOT LIMITED TO) LOSS OF USE OF THE PRODUCT, LOSS OF TIME, INCONVENIENCE, EXPENSES FOR TRAVEL, TRANSPORTATION LODGING EXPENSES, LOSS BY DAMAGE TO PERSONAL PROPERTY OR LOSS OF INCOME, PROFITS OR REVENUE. TF2014501-RG-00 Eng Page 17 20160930 V.1...
  • Page 18 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong CUSTOMER SERVICE: 1-(888) 837-1380 For assistance, contact customer service at customerservice@rankam.com or at (888) 837-1380, Mon to Fri, 8:00am – 5:00pm Pacific Standard time TF2014501-RG-00 Eng Page 18 20160930 V.1...
