ENJOY TV QUAD CORE BOARD
Dragon Board3
User's Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User's Guide.
.Keep the User's Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dragon Board3 and is the answer not in the manual?

Questions and answers

Related Manuals for Geniatech Dragon Board3

Summary of Contents for Geniatech Dragon Board3

  • Page 1 ENJOY TV QUAD CORE BOARD Dragon Board3 User’s Guide Thank you for purchasing this Geniatech product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents 1. Safety Information, P3-4 1.1 Warning, P3 1.2 Precautions, P3 1.3 Handling Cautions, P4 2. Introduction, P5-9 2.1 Package Contents, P5 2.2 Product Features, P5 2.3 Board Placement, P6-8 2.4 Remote Controller, P8 2.5 Setup Connection, P9 2.6 Display when Power Up, P9 3.

  • Page 3: Safety Information

    1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product .

  • Page 4: Handling Cautions, P4

    convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over.

  • Page 5: Introduction

    2. Introduction 2.1 Package Contents Enjoy TV Quad Core Board - Dragon Board3 User’s Guide HDMI Cable IR Remote Controller (IR RC) Optional Remote Controller 2.4G wireless Remote Controller USB wire/wireless Mouse & Keyboard Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 12V, 2A 2.2 Product Features...

  • Page 6: Board Placement, P6-8

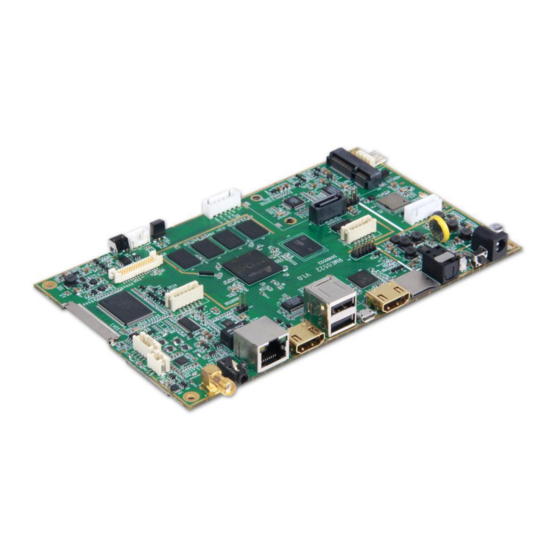

    2.3 Board Placement Front side...
  • Page 7 Back side Item PART NUMBER DESCRIPTION CAMERA INTERNAL CAMERA CONNECTOR POWER JACK POWER JACK POWER SWITCH POWER SWITCH POWER LED SPDIF DIGITAL AUDIO MICRO SD MICRO SD CARD CARRIER HDMI HDMI INPUT USB OTG MICRO USB OTG UART RS232 DUAL USB HEADER HDMI HDMI OUTPUT RJ45...

  • Page 8: Remote Controller, P8

    DEBUG SERIAL PORT DEBUG SERIAL PORT I2C CONNECTOR SATA SATA INTERFACE USB 4 PINS MINI PCI-E MINI PCI-E 3G MODULE SLOT SATA POWER SATA POWER SERIAL PORT SERIAL PORT BACK LIGHT BACK LIGHT DRIVER CONNECTOR 2.4 Remote Controller ① Power ⑩...

  • Page 9: Setup Connection, P9

    2.5 Setup Connection Place Dragon Board3 on a flat platform near the TV, and make sure nothing block the remote control signal. 2.6 Display when Power Up 2.6.1 After power up, the TV will first show a Enjoy TV screen during loading.

  • Page 10: Settings

    Or fail to connect and need reset password. 3.1.3 Once build up the connection with a certain WiFi network successfully, Dragon Board3 will connect this WiFi network automatically when restart. Note: If factory reset, the password of WiFi network have to be reset.
  • Page 11 3.2 Bluetooth...

  • Page 12: Date Usage, P12

    3.3 Ethernet Connect board and Router by RJ45 network cable. Press “ ON” in Ethernet setting, it will connect to network automatically. 3.4 Date usage Show data usage information.

  • Page 13: More

    3.5 More... 3.5.1 VPN Build and set VPN 3.5.2 Portable hotspot 3.5.2.1 Enable Portable hotspot 3.5.2.2 Set up WiFi hotspot Note: WiFi and hotspot connection can not be applied at same time. Disconnect WiFi and connect Ethernet while using hotspot function.
  • Page 14 3.6 Sound 3.6.1 Volumes Increase or decrease sound volumes 3.6.2 Touch Sounds If enable Touch sound, sound will be heard while move remote controller. 3.7 Display 3.7.1 Auto Brightness Auto set brightness to save power 3.7.2 Font size Change the font size of OSD...
  • Page 15 3.8 Storage Shows the storage used of the OS and SD card. 3.9 Apps List all apps installed. You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data.
  • Page 16 3.10 Permissions 3.11 Location...

  • Page 17: Language & Input, P17

    3.12 Security 3.13 Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method.

  • Page 18: Add An Account, P18

    3.14 Reset Back up my data: You can backup your application data, WiFi password and other settings. Factory data rest: You can reset all the settings and apps to factory default. Note: You might want to backup important data before resetting the board. Once you choose to rest to factory default, all data/apps will be deleted.

  • Page 19: Developer Options, P19

    3.16 Date&Time 3.17 Developer options.

  • Page 20: About Device, P20

    3.18 About device.

  • Page 21: Apps Install & Uninstall

    4. Apps Install & Uninstall On Dragon Board3, you can install apps from Android Market over the Internet or other sources, such as other online sources, the internal storage and the USB storage device and SD card that you have mounted onto Dragon Board3.

  • Page 22: Firmware Update

    5. Firmware Update You can download newest firmware from Geniatech Official website: www.geniatech.com...

  • Page 23: Trouble Shooting/Faq

    6. Trouble Shooting/FAQ 6.1 No Picture Refer to the TV user manual for how to select the correct video input channel. 6.2 USB Content cannot be read . The format of USB storage device is not supported . The supported memory size is 32G maximum. .

  • Page 24: Repairs

    We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or contact Geniatech Customer Care before seeking to repair your player.

  • Page 25: Specification

    8. Specification Quad core ARM CORTEX A9 2GHz,3D engine Mali 450MP2 @600MHz 2G DDR3 Android 4.4.2OS Optional DOLBY USB2.0 x2 SATA Port SATA x1 HDMI V1.4a DC Input 12.0V-2A SD Slot Max: 32G Video Output HDMI/CVBS Video Input HDMI Audio Output HDMI/RCA/Optical IR receiver RJ45 10/100M Ethernet interface...

  • Page 26: Trademark Notice

    9. Trademark Notice The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in United States and other countries.
