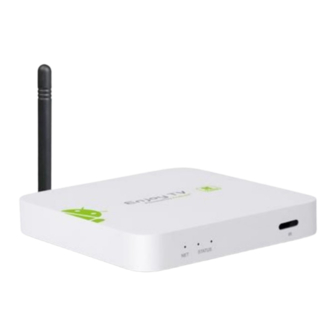

Geniatech ENJOY TV ATV582 User Manual

Dual core box
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Android Box
ENJOY TV QUAL CORE BOX
ATV582
User's Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User's Guide.
.Keep the User's Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com
1

Advertisement

Table of Contents
loading

Related Manuals for Geniatech ENJOY TV ATV582

Summary of Contents for Geniatech ENJOY TV ATV582

  • Page 1 ENJOY TV QUAL CORE BOX ATV582 User’s Guide Thank you for purchasing this Geniatech product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents 1. Safety Information, P3-4 1.1 Warning, P3 1.2 Precautions, P3 1.3 Handling Cautions, P4 2. Introduction, P5-7 2.1 Package Contents, P5 2.2 Product Features, P5 2.3 Panel Introduction, P6 2.4 Remote Controller, P6 2.5 Setup Connection, P7 2.6 Display when Power Up, P7 3.

  • Page 3: Safety Information

    1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product .

  • Page 4: Handling Cautions, P4

    convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over.

  • Page 5: Introduction

    2. Introduction 2.1 Package Contents Enjoy TV Dual Core - ATV582 white/Black User’s Guide HDMI Cable Optional Cable CVBS Cable IR Remote Controller (IR RC) Optional Remote Controller 2.4G wireless Remote Controller USB wire/wireless Mouse & Keyboard Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A 2.2 Product Features Quad Core A9, 1.6~2.0GHz, RAM 2G , ROM built in 16G EMMC ...

  • Page 6: Panel Introduction, P6

    2.3 Panel Introduction 2.4 Remote Controller Note: Button Battery 2025 3V insert with correct polarity (+/-).

  • Page 7: Setup Connection, P7

    2.5 Setup Connection Place ATV582 on a flat platform near the TV, and make sure nothing block the remote control signal. 2.6 Display when Power Up 2.6.1 After power up, the TV will first show a green robot during loading. When loading is finished, it will go to Home screen.

  • Page 8: Settings

    3. Settings Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to select the options, the option selected will be highlighted and confirmed by pressing OK key. Same operation for text input if needed. Select icon then press OK key. Select icon and select icon...

  • Page 10: Date Usage, P10

    3.2 Ethernet Connect Box and Router by RJ45 network cable. Press “ ON” in Ethernet setting, it will connect to network automatically. 3.3 Date usage Show data usage information.

  • Page 11: More

    3.4 More... 3.4.1 VPN Build and set VPN 3.4.2 Portable hotspot 3.4.2.1 Enable Portable hotspot 3.4.2.2 Set up WiFi hotspot Note: WiFi and hotspot connection can not be applied at same time. Disconnect WiFi and connect Ethernet while using hotspot function.
  • Page 12 3.5 Sound 3.5.1 Volumes Increase or decrease sound volumes 3.5.2 Touch Sounds If enable Touch sound, sound will be heard while move remote controller. 3.6 Display 3.6.1 Auto Brightness Auto set brightness to save power 3.6.2 Font size Change the font size of OSD...
  • Page 13 3.7 Storage Shows the storage used of the OS and SD card. 3.8 Apps List all apps installed. You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data.
  • Page 14 3.9 Permissions 3.10 Location...

  • Page 15: Language & Input, P15

    3.11 Security 3.12 Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method.

  • Page 16: Backup & Reset, P16

    3.13 Backup & reset Back up my data: You can backup your application data, WiFi password and other settings. Factory data rest: You can reset all the settings and apps to factory default. Note: You might want to backup important data before resetting the box. Once you choose to rest to factory default, all data/apps will be deleted.

  • Page 17: Developer Options, P17

    3.15 Accessibility 3.16 Developer options.

  • Page 18: About Device

    3.17 About device.

  • Page 19: Apps Install & Uninstall

    4. Apps Install & Uninstall On ATV582, you can install apps from Android Market over the Internet or other sources, such as other online sources, the internal storage and the USB storage device and SD card that you have mounted onto ATV582. You also can manage apps on ATV582 and SD card, install/uninstall apps, stop running apps, or select other options.

  • Page 20: Firmware Update

    5. Firmware Update You can download newest firmware from Geniatech Official website: www.geniatech.com...

  • Page 21: Trouble Shooting/Faq

    6. Trouble Shooting/FAQ 6.1 No Picture Refer to the TV user manual for how to select the correct video input channel. 6.2 USB Content cannot be read . The format of USB storage device is not supported . The supported memory size is 32G maximum. .

  • Page 22: Repairs

    We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or contact Geniatech Customer Care before seeking to repair your player.

  • Page 23: Specification

    8. Specification Quad Core A9r4 CPU @ 2.0GHz Mali 450MP4 @500MHz 2G DDR3 16G, EMMC Android 4.4 OS Optional USB2.0x2 HDMI V1.4a DC Input 5V-2A SD Slot Max: 32G Video Output HDMI/CVBS Audio Output HDMI IR receiver RJ45 10/100M Ethernet interface WiFi IEEE 802.1 b/g/n 2.4G Audio Decoder...

  • Page 24: Trademark Notice

    9. Trademark Notice The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in United States and other countries.
