Model 137B22B
ICP® Pressure Sensor
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ICP 137B22B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCB Piezotronics ICP 137B22B

Summary of Contents for PCB Piezotronics ICP 137B22B

  • Page 1 Model 137B22B ICP® Pressure Sensor Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
  • Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
  • Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...

  • Page 4: Installation

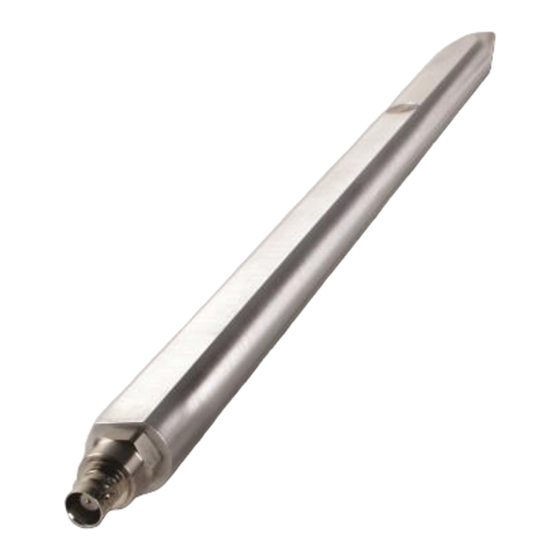

    OPERATION MANUAL FOR FREE FIELD BLAST PRESSURE PROBE Models 137B21X, B22X, B23X, B24X INTRODUCTION ® The Series 137B2XX Free Field Blast ICP Pressure Probe is designed for measuring free field blast and shock tunnel pressure time profiles. ® Designed with an ICP built-in source follower amplifier, the 137B2XX Series offers sensitivities of 1, 20, 10 and 100 mV/psi with full-scale ranges from...

  • Page 5: Maintenance

    POLARITY The 137B2XX Series produces a positive-going output voltage for increasing pressure output. ®ICP is a registered trademark of PCB Piezotronics Drawing Number: 40955 Revision: NR ECO#: 39372...
  • Page 6 Model Number Revision: A ICP® PRESSURE SENSOR 137B22B ECN #: 41884 Performance ENGLISH OPTIONAL VERSIONS Measurement Range(for ±5V output) 500 psi 3447 kPa Optional versions have identical specifications and accessories as listed for the standard model Measurement Range(for ±10V output) 1 kpsi 6895 kpsi except where noted below.
