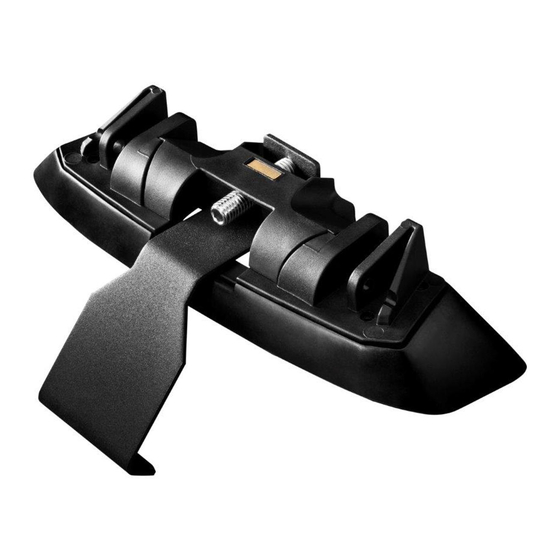

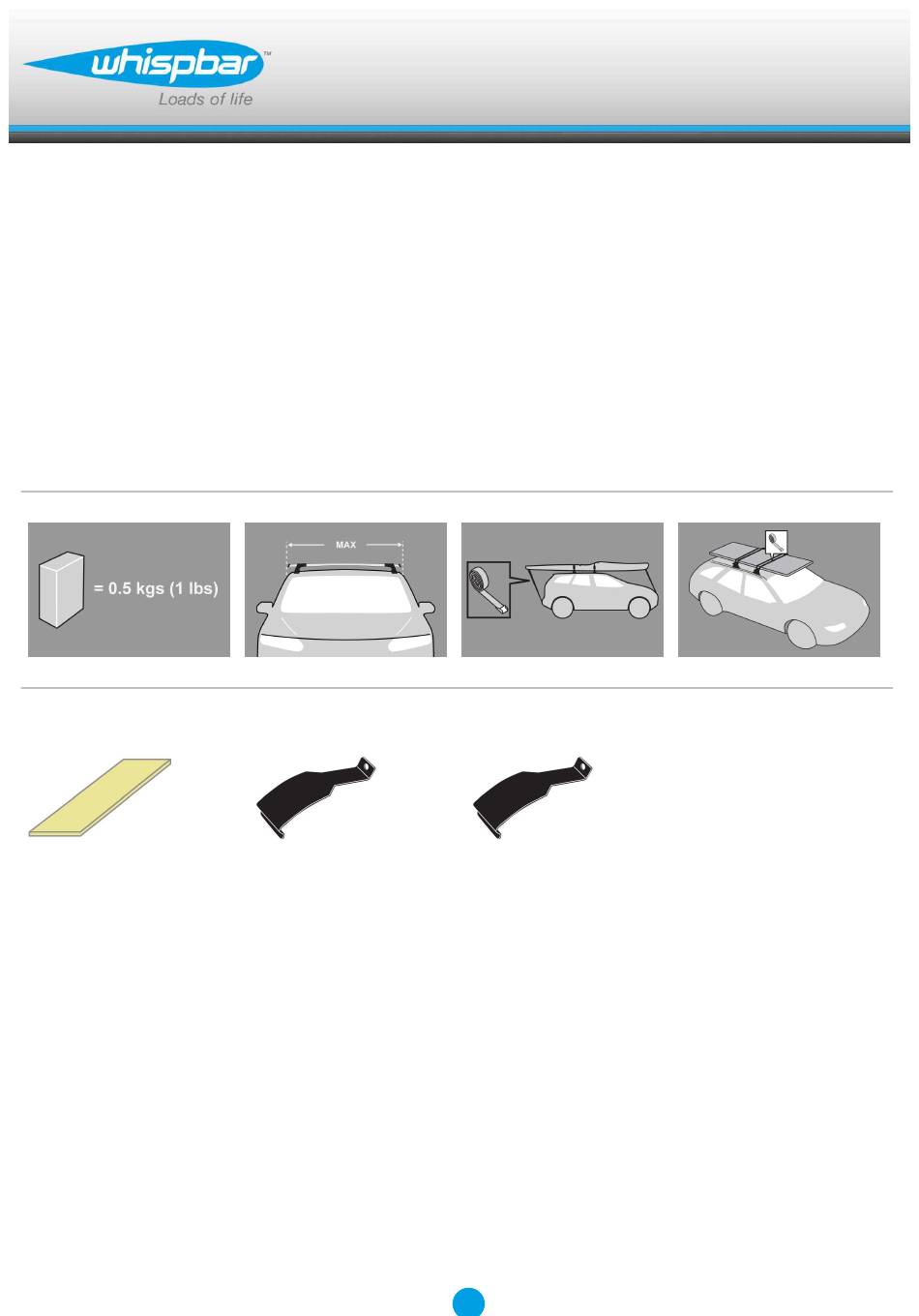

- Page 1 K126W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4C...
- Page 2 Fitting Kit K126W MAX kgs (lbs) Toyota Echo , 5dr Hatch Dec 99-Nov 05 60 kgs (132 lbs) 60 kgs (132 lbs) Echo , 5dr Hatch Sep 99-Oct 05 60 kgs (132 lbs) 60 kgs (132 lbs) Vitz , 5dr Hatch 99-05...
-
Page 3: First Time Installation
Fitting Kit K126W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K126W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K126W Remove locking screw. Apply protective strip as shown. Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number:...
- Page 6 Fitting Kit K126W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K126W Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps directly to edge of roof under the...
- Page 8 Fitting Kit K126W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 9 Fitting Kit K126W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K126W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K126W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K126W Echo, 5dr Hatch Dec 99-Nov 05 (NZ) -370mm 330mm 694mm 635mm -14 -9/16ths" 13" 27 5/16ths" 25" Echo, 5dr Hatch Sep 99-Oct 05 (AU) -370mm 330mm 694mm 635mm -14 -9/16ths" 13" 27 5/16ths" 25" Vitz, 5dr Hatch 99-05 (EU)
-
