Recording With Cubase LE 5

Connect an instrument

6
Connect an instrument such as a
guitar to an R24 INPUT jack and
choose an effect patch.
The chosen effect patch will be applied to the signal
and recorded on the computer via the USB port
See the following for information about how to
choose the R24 input signal
☞
Reference: R24 Operation Manual
Selecting an input signal
Selecting an effect patch
7

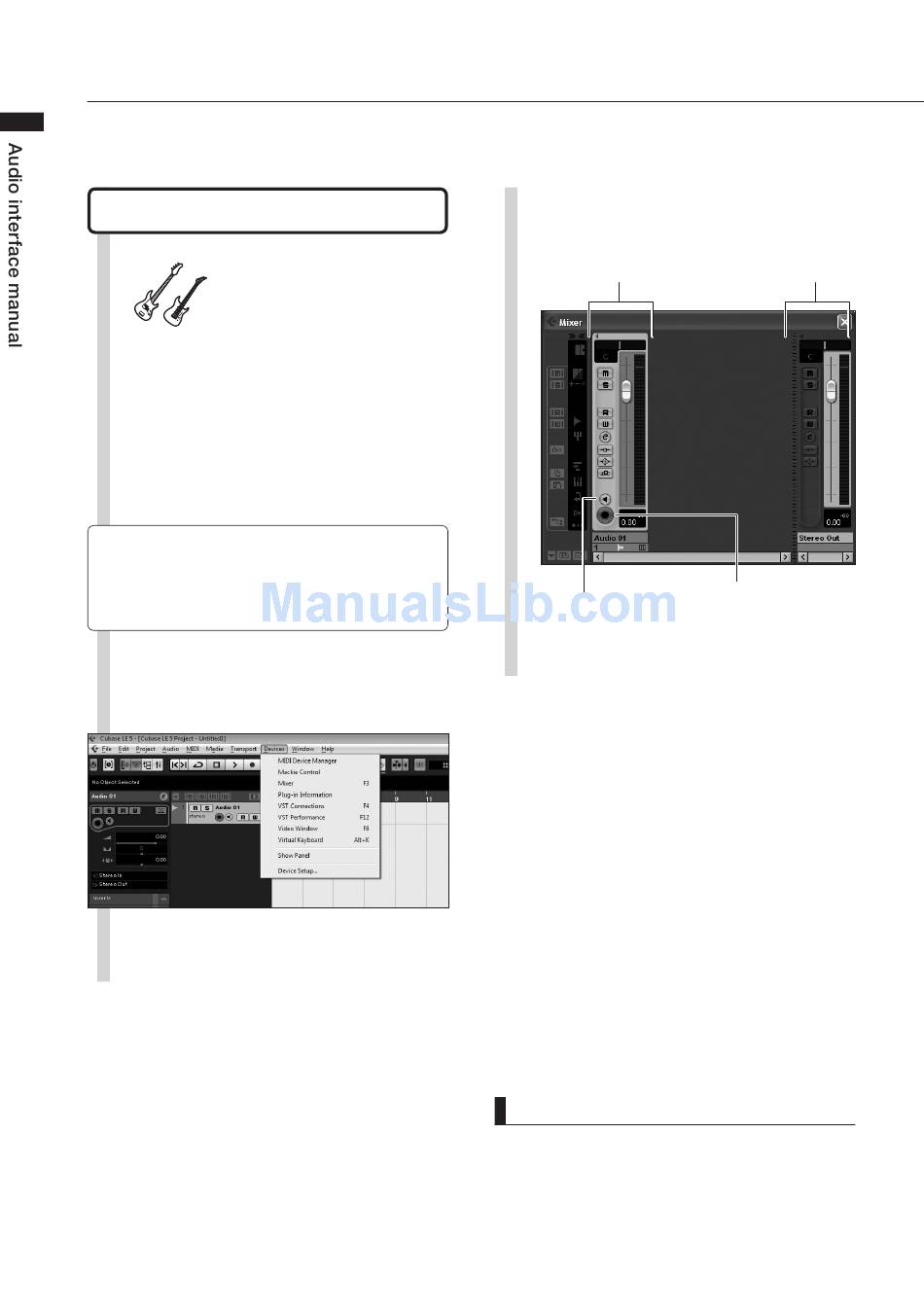

Select "Mixer" from the Cubase LE
5 "Devices" menu.
The mixer window opens, showing the channels
corresponding to the created tracks and the
master channel
17
8
Enable the track for recording.
Channel corresponding
to an audio track
Click the Monitor
button until it lights
orange
HINT
When the Monitor button is lit, the audio track input
level will be displayed in the level meter next to the
fader. When the light is off, the audio track output
level will be displayed.
Master Channel
Click the record enable
button It will light red
and recording will be
enabled
