This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
2M-308034 Rev. (A)
p/n
WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
www.wellsbloomfield.com
IMPORTANT: DO NOT DISCARD THIS MANUAL
fax: 314-781-2714
OWNERS MANUAL

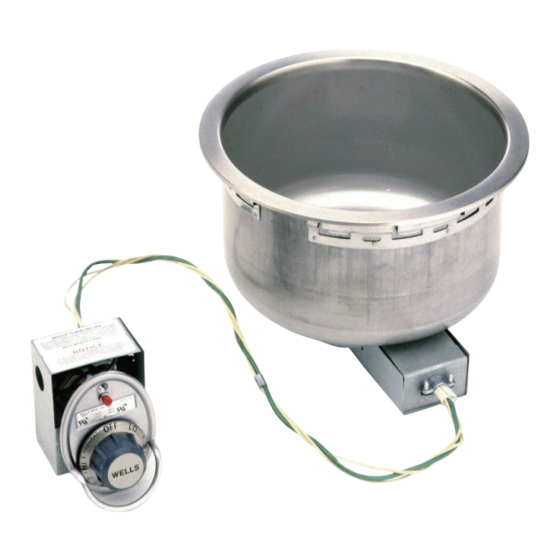

ROUND-WELL
INFINITE SWITCH
SS4, SS4D
SS8, SS8D
SS10, SS10D
SS-10
INSTALLATION
EXPLODED VIEW
WIRING DIAGRAM
012D
DROP-IN
WARMERS
with
CONTROL
MODELS
Includes
USE & CARE
PARTS LIST
12
M012D.01
0824
Advertisement
Related Manuals for Wells SS4D
Summary of Contents for Wells SS4D
- Page 1 Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment.
- Page 2 The for information and other details concerning warranty. prices charged by Wells Bloomfield for its products are SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS Resetting of safety thermostats, circuit breakers, over cleaning schedules, are customer responsibility.
- Page 3 PARTS & SERVICE CUSTOMER SERVICE DATA INTRODUCTION Thank You for purchasing this Wells Bloomfield appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.
- Page 4 FEATURES & OPERATING CONTROLS A. INFINITE SWITCH 1. On INFINITE SWITCH CONTROLLED warmers, power is applied to the heating element based on the control knob position, which varies the duty cycle of the heating element. 2. The desired temperature is controlled by rotating the TEMPERATURE CONTROL KNOB.
- Page 5 Damage Do not operate this appliance if the control panel is damaged. Call to the appliance may result if your Authorized Wells Service Agent for service. these instructions are not followed. The technical content of this manual, including any wiring diagrams, schematics, parts breakdown illustrations and/or adjustment procedures, is intended for use by qualified technical personnel.
- Page 6 INSTALLATION UNPACKING & INSPECTION NOTE: DO NOT discard the carton or other packing Carefully remove the appliance from the carton. Remove all materials until you have protective plastic film, packing materials and accessories from the inspected the appliance for Appliance before connecting electrical power or otherwise performing hidden damage and tested it any installation procedure.
- Page 7 NOTE: Plumb connections properly install the required device. must be made in compliance For SS4D, SS8D and SS10D drainline units, the drain must be with all Federal, State and attached with a union at the drain line fitting. This is necessary Local Plumbing Codes and to provide for future maintenance of the heating element.
- Page 8 CAUTION: between the change in wet or dry operation. SHOCK HAZARD c. Wells Manufacturing recommends operating WET for consistent food heating. DO NOT splash or pour water d. If your wet-operation warmer is allowed to run dry, turn it onto control panel or wiring.
- Page 9 Never use metal implements, wire brushes, abrasive scratch pads or steel wool to clean stainless steel. Warmer pans, insets and other vessels are subject to a harsher environment. Wells Manufacturing uses an very high quality stainless steel (#304DDQ) for our food warmer pans.
- Page 10 Contact your Authorized Wells Service Agency to inspect warmer if water or grease contamination is suspected. 6. Close drain valve. Add proper amount of warm water. Turn control...
- Page 11 CLEANING INSTRUCTIONS WEEKLY CLEANING INSTRUCTIONS CAUTION: CHEMICAL BURN PREPARATIONS: Remove any insets, pans and/or adapter tops. HAZARD Drain or remove water from well if used for wet operation. Deilimng chemicals may be caustic. Wear appropriate FREQUENCY: Weekly, or whenever lime or scale is seen personal protective equipment.
- Page 12 Drain valve damaged or pan(s) Contact your Authorized Wells leaking Service Agency for repairs There are no user-serviceable components in this appliance. In all instances of damage or malfunction, contact your Authorized Wells Service Agency for repairs. WIRING DIAGRAM...
- Page 13 EXPLODED VIEW & PARTS LIST DRAIN SCREEN 5P-21709 POT ASSEMBLY SS-4 - WS-63527 SS-4D - WS-63528 SS-8 - WS-50391 SS-8D - WS-50504 SS-10 - WS-51232 SS-10D - WS-50392 KIT, ELEMENT & SUPPORT* WS-506274 (120V) WS-506275(208/240V) * ELEMENT KIT WS-50387 (120V) WS-50389 (240V) ELEMENT COVER* WS-51878...
- Page 14 PARTS & SERVICE DESCRIPTION PART NO. Always use an inset. DO NOT place food directly ADAPTERS & INSETS into the warmer pan. ADAPTER TOP, convert SS-8 to hold 4 qt. inset 5D-20177 ADAPTER TOP, convert SS-10 to hold 4 qt. inset 5D-20822 ADAPTER TOP, convert SS-10 to hold 7 qt.
- Page 15 DRAIN VALVE EXTENSION KIT, extension from authorized replacement parts, drain to counter front with remote handle, for use contact your Wells authorized with “D” models only, excluding “DM” models 5P-20385 service agency, or call: Wells Bloomfield, LLC 10 Sunnen Dr.,...
- Page 16 WELLS BLOOMFIELD, LLC 10 Sunnen Dr., St. Louis, MO 63143 telephone: 314-678-6314 fax: 314-781-2714 www.wellsbloomfield.com...
