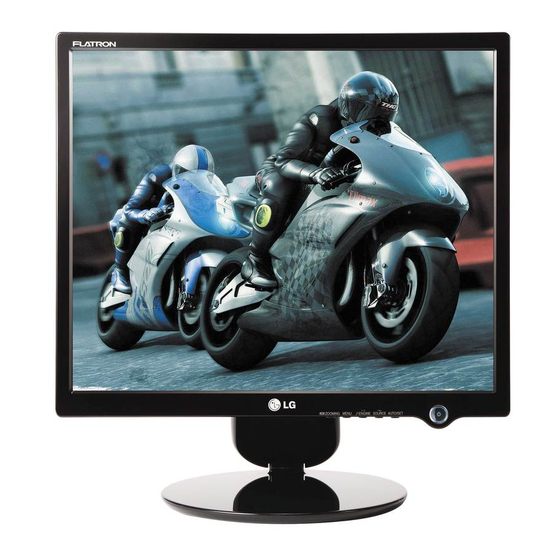

- Page 1 Test Report No.: GETEC-E3-07-044 FCC Class B Certification APPENDIX H : USER’S MANUAL EUT Type: 19” LCD Monitor FCC ID: BEJL1972HS...
- Page 2 User’s Guide L1972H ake sure to read the Important Precautions before using this product. Keep the User's Guide (CD) in an accessible place for future reference. ee the attached label on the unit and show this information to your dealer when asking for service.
-
Page 3: Important Precautions
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. - Page 4 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
-
Page 5: Connecting The Display
Connecting the Display Unfolding the stand base Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. For the desktop monitor, install the computer with the stand unfolded, for Wall mounte plate, install the computer with the stand folded. -
Page 6: Tilt Range
Connecting the Display Folding the stand base Face the front of the monitor dislpay. Than gently push the monitor backwards, following the sequence shown in the picture below. Tilt range Make sure that the angle of the panel is set for your comfort. Tilt Range : 0˚~30 Ergonomic It is recommended that in order to maintain an ergonomic and comfortable viewing... - Page 7 Connecting the Display To adjust the height Height Range : maximum 4.02 inches (100 mm) 102 mm NOTE When the monitor is at maximum height, it may slide down slightly due to the elasticity of the spring.
-
Page 8: Using The Computer
Connecting the Display Using the Computer Make sure to turn off the computer and product. Connect the cable as below sketch map form Connect DVI Cable Connect Dsub Cable (PC) Connect Dsub Cable (Mac) Signal Cable Power Cord Varies according to model. Wall-outlet type PC-outlet type Mac adapter... -
Page 9: Control Panel Functions
Control Panel Functions Front Panel Controls Bottom Control Function At the current display, Use 'ez Zooming' Key, then the display ZOOMING resolution is transferred to the one step low resolution. Use 'ez Zooming' Key one more, the display is back to the original display. - Page 10 Control Panel Functions Control Function Use these buttons to select or adjust functions in the On Buttons Screen Display. Button For more information, refer to page A14. Use this button to make either D-Sub or DVI connector Button (SOURCE Hot key) active.
-
Page 11: On Screen Display (Osd) Control Adjustment
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the display's image size, position and operating parameters is quick and easy with the On Screen Display Control system(OSD). A short example is given below to familiarize you with the use of the controls. - Page 12 On Screen Display (OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu Reference BRIGHTNESS To adjust the brightness, PICTURE contrast and gamma of the CONTRAST screen GAMMA To customize the color of sRGB COLOR PRESET...
-
Page 13: On Screen Display (Osd) Selection And Adjustment
On Screen Display (OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears. - Page 14 On Screen Display (OSD) Selection and Adjustment Main menu Sub menu Description PICTURE To adjust the brightness of the screen. BRIGHTNESS P I C T U R E To adjust the contrast of the screen. CONTRAST Set your own gamma value. : -50/0/50 GAMMA On the monitor, high gamma values display whitish images and low gamma...
- Page 15 On Screen Display (OSD) Selection and Adjustment Main menu Sub menu Description TRACKING CLOCK To minimize any vertical bars or stripes T R A C K I N G visible on the screen background. The horizontal screen size will also change.
-
Page 16: Flatron F-Engine
On Screen Display (OSD) Selection and Adjustment The OSD screen will appear when you touch the (-) button on the of the monitor. Menu Name Icons Sub-menu Name FLATRON F-ENGINE Screen when applied Screen when not applied When you execute F-ENGINE, two tones will appear on the screen as shown. -
Page 17: Troubleshooting
Troubleshooting Check the following before calling for service. No image appears No image appears ● Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet. ● Is the power on and the •... -
Page 18: Display Image Is Incorrect
Troubleshooting Display image is incorrect ● Display Position is • Press the SET/AUTO button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display. -
Page 19: Have You Installed The Display Driver
Troubleshooting Have you installed the display driver? ● Have you installed the • Be sure to install the display driver from the display display driver? driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com. -
Page 20: Specifications
Specifications Display 19 inches (48.26 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 19 inches viewable 0.294 mm pixel pitch Horizontal Freq. Analog : 30 - 83 kHz (Automatic) Sync Input Digital : 30 - 71 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form Separate TTL, Positive/Negative... -
Page 21: Preset Modes (Resolution)
Specifications Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.469 640 x 350 31.468 720 x 400 31.469 640 x 480 VESA 37.500 640 x 480 VESA 37.879 800 x 600 VESA 46.875 800 x 600 49.725 832 x 624 48.363... -
Page 22: Signal Connector Pin Assignment
Specifications Signal Connector Pin Assignment DVI-D Connector Signal(DVI-D) Signal(DVI-D) T. M. D. S. Data2- Hot Plug Detect T. M. D. S. Data2+ T. M. D. S. Data0- T. M. D. S. Data2/4 Shield T. M. D. S. Data0+ T. M. D. S. Data4- T. -
Page 23: Installing The Wall Mount Plate
Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Face the front of the monitor dislpay. Than gently push the monitor backwards, following the sequence shown in the picture below. Separate the Cover Hinge Cap as shown in the picture. -
Page 24: Kensington Security Slot
Specifications Kensington Security Slot Connected to a locking cable that can be purchased separately at most computer stores. - Page 25 Digitally yours...
-
Page 26: Regulatory Information
Regulatory information Regulatory information... -
Page 27: Fcc Compliance Statement
Regulatory Information cont. respecte toutes les exigences du Règlement sur le FCC Compliance Statement matériel brouilleur du Canada. This equipment has been tested and found to comply NOTICE within the limits of a Class B digital device pursuant to Part The regulations are applied only to the products with the 15 of the FCC Rules. - Page 28 Regulatory Information cont. computer and/or display, after a certain period of inactivity, Why do we have environmentally labelled computers? In many countries, environmental labelling has become an shall reduce its power consumption to a lower level, in one established method for encouraging the adaptation of or more stages.
- Page 29 Regulatory Information cont. relevant bio-accumulative TCO’95 requirement permits Monitor Disposal the inclusion of lead, as no replacement has yet been WARNING developed. If you need to dispose of a monitor, ask a qualified service representative for the proper procedure. Improper disposal could Cadmium is present in rechargeable batteries and in the result in personal injury from implosion.
- Page 30 Regulatory Information cont. Approval requirements cover a wide range of issues: ecology, ergonomics, emission of electrical and TCO’99 requires that plastic components weighing more magnetical fields, energy consumption and electrical than 25 grams shall not contain flame retardants with safety. organically bound bromine or chlorine.
- Page 31 The product must be prepared for recycling and the If you want to find out more information about our recycling manufacturer must have a certified environmental program, please contact your local LG vendor or a management system such as EMAS or ISO 14 001 corporate representative of LG.
- Page 32 La LGE. ha annunciato nel 1994 la cosiddetta 'LG http://www.lge.com/experience/social_commitment/enviro Declaration for a Cleaner Environment' (Dichiarazione di ment.jsp LG a favore di un ambiente più pulito), un ideale che da allora funge da principio ispiratore della gestione aziendale. La dichiarazione rappresenta il fondamento che Français consente di intraprendere attività...
- Page 33 LGE. presentó la 'Declaración para un entorno más limpio Declaração é a base que nos tem permitido realizar de LG' en 1994 y este ideal ha servido para guiar nuestros atividades favoráveis ao ambiente com consideração principios empresariales desde entonces. La Declaración atenta aos aspectos econômicos, ambientais e sociais.
- Page 34 ¬ 1994 „Ó‰Û ÍÓÔÓ‡ˆËˇ LGE ÓÔÛ·ÎËÍÓ‚‡Î‡ het milieu 'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚', LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ Environment' (de LG-verklaring met betrekking tot een ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË...
- Page 35 LG 공급업체나 LG 기업 대표부에 문의하시기 바랍니다. ‰ÂÈÒÚ‚Û˛Ú ÒËÒÚÂÏ˚ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ë ‚ÓÁ‚‡Ú‡ ËÒÔÓθÁÓ‚‡ÌÌÓÈ ÔÓ‰Û͈ËË. ÃÌÓ„Ë ÍÓÏÔÓÌÂÌÚ˚ LG 전자는 기업 개선 정책의 하나로 지구 환경 문제를 ·Û‰ÛÚ ‚ÚÓ˘ÌÓ ËÒÔÓθÁÓ‚‡Ì˚ Ë ÛÚËÎËÁËÓ‚‡Ì˚, ‚ ÚÓ 채택함으로써 보다 나은 환경을 만들어 나가기 위한...
