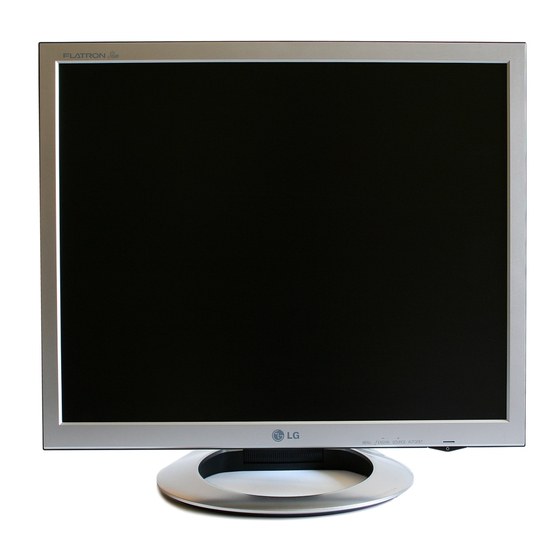

- Page 1 Test Report No.: GETEC-E3-05-087 FCC Class B Class II Permissive Change APPENDIX H : USER’S MANUAL EUT Type: 17” LCD Monitor FCC ID: BEJL1770HN...
- Page 2 User’s Guide L1770H L1970H L1770HQ L1970HR ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and quote this information to your dealer when you require service.
-
Page 3: Important Precautions
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. - Page 4 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
-
Page 5: Connecting The Display
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. For the desktop monitor, install the computer with the stand unfolded, for ARM(wall mounting), install the computer with the stand folded. Unfolding the stand base Place the monitor with its front facing downward on a cushion or soft cloth. -
Page 6: Positioning Your Display
Folding the stand base Face the front of the monitor and push the monitor backwards, following the sequence shown in the picture. This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Do not touch or apply force to the monitor screen while expanding or folding the stand base. -
Page 7: Using The Computer
Connecting the Display Using the Computer Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. Connect the power cable with the AC adapter (AC power supply) , and then plug the cable in the outlet. (Voltage will be automatically controlled.) Digital signal Analog signal DC 12V... - Page 8 Touch button on the front switch panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically.(Only Analog Mode) NOTE ‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.
- Page 9 Using the Fine Window function This model supports Fine Window function. To use this function install the provided software, which is the Forte Manager software. - Please refer to the Forte Manager User's Guide, which has been provided with the software CD for installing instructions. Notice Forte Manager software requires Microsoft Explorer 6.0 or later.
-
Page 10: Control Panel Functions
Control Panel Functions Front Panel Controls Bottom Control Function Use this button to enter or exit the On Screen Display. MENU Button OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Touch and hold the MENU button for serval seconds. - Page 11 Control Panel Functions Control Function Use these buttons to select or adjust functions in the On Buttons Screen Display. hot key Button For more information, refer to page A15 Button SOURCE hot key Use this button to make Dsub or DVI connector active. This feature is used when two computers are connected to the display.
-
Page 12: On Screen Display (Osd) Control Adjustment
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD. - Page 13 On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu Reference BRIGHTNESS To adjust the brightness, PICTURE contrast and gamma of the CONTRAST screen GAMMA PRESET 6500K To customize the color of COLOR 9300K...
-
Page 14: On Screen Display(Osd) Selection And Adjustment
On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Touch the MENU Button, then the main menu of the OSD appears. - Page 15 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE To adjust the brightness of the screen. BRIGHTNESS P I C T U R E To adjust the contrast of the screen. CONTRAST Set your own gamma value. : -50/0/50 GAMMA On the monitor, high gamma values display whitish images and low gamma...
- Page 16 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description TRACKING CLOCK To minimize any vertical bars or stripes T R A C K I N G visible on the screen background.The horizontal screen size will also change. PHASE To adjust the focus of the display.
-
Page 17: Flatron F-Engine
On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the (-) button at the front side of the monitor. Menu Name Icons Sub-menu Name FLATRON F-ENGINE Screen when applied Screen when not applied When you execute F-ENGINE, two tones will appear on the screen as shown. -
Page 18: Troubleshooting
Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the Check and see if the power cord is connected display connected? properly to the power outlet. Is the power indicator Touch the Power button. -
Page 19: Display Image Is Incorrect
Troubleshooting Display image is incorrect Display Position is Touch the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display. Check Control Panel -->... -
Page 20: Have You Installed The Display Driver
Troubleshooting Have you installed the display driver? Have you installed the Be sure to install the display driver from the display driver? display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com. Do you see an Make sure to check if the video card supports "Unrecognized monitor,... -
Page 21: Specifications
Specifications 17inch Display 17 inches (43.27cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 17 inches viewable 0.264mm pixel pitch Sync Input Horizontal Freq. 30 - 83kHz (Analog) 30 - 71kHz (Digital) Vertical Freq. 56 - 75Hz (Automatic) Input Form Separate TTL, Positive/Negative SOG (Sync On Green) Digital Video Input... - Page 22 Specifications 19inch Display 19 inches (48.19cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 19 inches viewable 0.294mm pixel pitch Sync Input Horizontal Freq. 30 - 83kHz (Analog) 30 - 71kHz (Digital) Vertical Freq. 56 - 75Hz (Automatic) Input Form Separate TTL, Positive/Negative SOG (Sync On Green) Digital Video Input...
-
Page 23: Preset Modes (Resolution)
Specifications Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.469 640 x 350 31.468 720 x 400 31.469 640 x 480 37.500 VESA 640 x 480 37.879 VESA 800 x 600 46.875 VESA 800 x 600 49.725 832 x 624 VESA... - Page 24 How to Install the VESA Standard wall mounting This monitor meets VESA-compliant mounting interface pad specifications. Face the front of the monitor and push the monitor backwards, following the sequence shown in the picture. Put the monitor on a soft cloth or cushion with its front facing downward. Turn the 4 screws tight to the end of the standbase.
- Page 25 Digitally yours...
-
Page 26: Regulatory Information
Regulatory information Regulatory information... -
Page 27: Fcc Compliance Statement
Regulatory Information cont. respecte toutes les exigences du Règlement sur le FCC Compliance Statement matériel brouilleur du Canada. This equipment has been tested and found to comply NOTICE within the limits of a Class B digital device pursuant to Part The regulations are applied only to the products with the 15 of the FCC Rules. - Page 28 Regulatory Information cont. computer and/or display, after a certain period of inactivity, Why do we have environmentally labelled computers? In many countries, environmental labelling has become an shall reduce its power consumption to a lower level, in one established method for encouraging the adaptation of or more stages.
- Page 29 Regulatory Information cont. relevant bio-accumulative TCO’95 requirement permits Monitor Disposal the inclusion of lead, as no replacement has yet been WARNING developed. If you need to dispose of a monitor, ask a qualified service representative for the proper procedure. Improper disposal could Cadmium is present in rechargeable batteries and in the result in personal injury from implosion.
- Page 30 Regulatory Information cont. Approval requirements cover a wide range of issues: ecology, ergonomics, emission of electrical and TCO’99 requires that plastic components weighing more magnetical fields, energy consumption and electrical than 25 grams shall not contain flame retardants with safety. organically bound bromine or chlorine.
- Page 31 The product must be prepared for recycling and the If you want to find out more information about our recycling manufacturer must have a certified environmental program, please contact your local LG vendor or a management system such as EMAS or ISO 14 001 corporate representative of LG.
- Page 32 La LGE. ha annunciato nel 1994 la cosiddetta 'LG http://www.lge.com/experience/social_commitment/enviro Declaration for a Cleaner Environment' (Dichiarazione di ment.jsp LG a favore di un ambiente più pulito), un ideale che da allora funge da principio ispiratore della gestione aziendale. La dichiarazione rappresenta il fondamento che Français consente di intraprendere attività...
- Page 33 LGE. presentó la 'Declaración para un entorno más limpio Declaração é a base que nos tem permitido realizar de LG' en 1994 y este ideal ha servido para guiar nuestros atividades favoráveis ao ambiente com consideração principios empresariales desde entonces. La Declaración atenta aos aspectos econômicos, ambientais e sociais.
- Page 34 ¬ 1994 „Ó‰Û ÍÓÔÓ‡ˆËˇ LGE ÓÔÛ·ÎËÍÓ‚‡Î‡ het milieu 'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚', LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ Environment' (de LG-verklaring met betrekking tot een ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË...
-
Page 35: Nom Mark (Mexico Only)
LG 공급업체나 LG 기업 대표부에 문의하시기 바랍니다. ‰ÂÈÒÚ‚Û˛Ú ÒËÒÚÂÏ˚ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ë ‚ÓÁ‚‡Ú‡ ËÒÔÓθÁÓ‚‡ÌÌÓÈ ÔÓ‰Û͈ËË. ÃÌÓ„Ë ÍÓÏÔÓÌÂÌÚ˚ LG 전자는 기업 개선 정책의 하나로 지구 환경 문제를 ·Û‰ÛÚ ‚ÚÓ˘ÌÓ ËÒÔÓθÁÓ‚‡Ì˚ Ë ÛÚËÎËÁËÓ‚‡Ì˚, ‚ ÚÓ 채택함으로써 보다 나은 환경을 만들어 나가기 위한...
