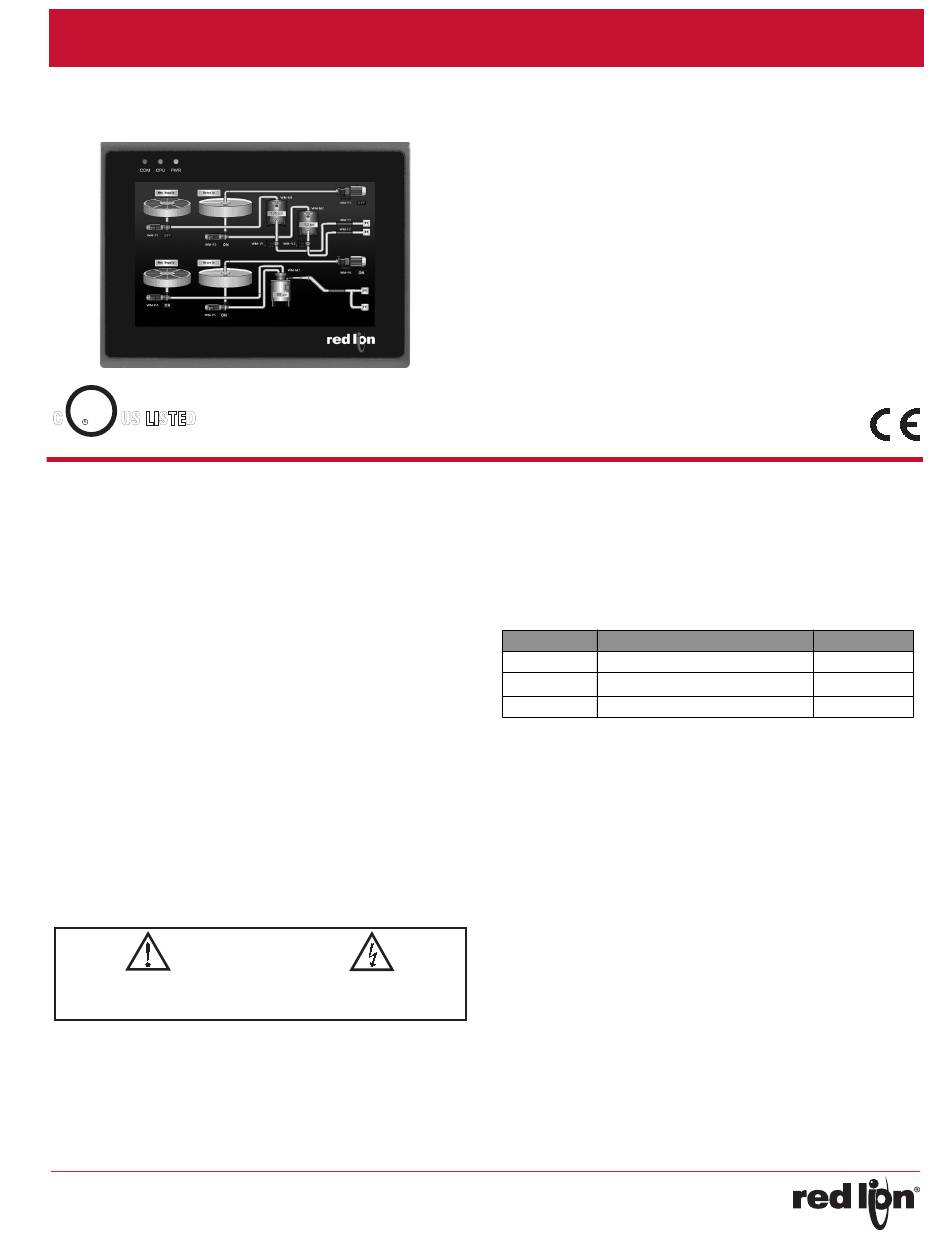

MODEL G304K2 - KADET 2 OPERATOR INTERFACE WITH 4" TFT DISPLAY
U L
C US LISTED
IND. CONT. EQ.
22SV
GENERAL DESCRIPTION

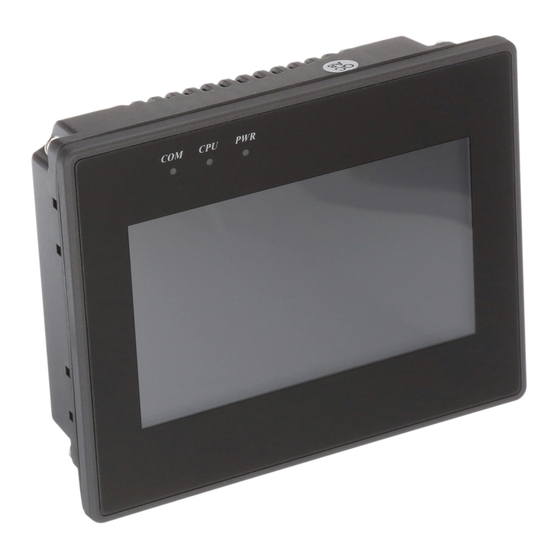

The 4.3-inch G3 Kadet 2 was designed for applications in which
available mounting space is at a premium. Though diminutive in size, the
G304K2 boasts a bright TFT display with 32K-color support. With a
resolution of 480 x 272, the Kadet 2's 4.3-inch display has a higher
resolution and better image clarity than most 6-inch HMIs.
The G304K2 performs the functions of a multiple protocol converter,
using two high-speed RS-232/422/485 communications ports and a 10
Base-T Ethernet port. The Ethernet port supports up to four protocols
simultaneously, allowing dissimilar Ethernet based products to
communicate with one another.
The G3 Kadet 2 range of HMIs is programmed with Red Lion's free
Crimson 3 software. Crimson 3 offers easy to use drag and drop
communications configuration, while the embedded image library allows
the programmer to create intuitive screens and prompts for the operator.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the unit.
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
•
CONFIGURED USING CRIMSON
•
TWO SERIAL COMMUNICATIONS PORTS
(1 RS-485 AND 1 RS-232/422/485 )
•
10 BASE-T/100 BASE-TX ETHERNET PORT COMMUNICATES
WITH UP TO FOUR PROTOCOLS SIMULTANEOUSLY
•
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE FLASH
MEMORY
•
BRIGHT 4.3-INCH TFT ACTIVE MATRIX 32K COLOR 480 X 272
PIXEL DISPLAY
•
THREE FRONT PANEL LED INDICATORS
•
NEMA 4/IP65 FRONT PANEL
•
POWER UNIT FROM 24 VDC ±20%
•
RESISTIVE ANALOG TOUCHSCREEN
CONTENTS OF PACKAGE
- G304K2 Operator Interface.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
- Spare fuse.
ORDERING INFORMATION
MODEL NO.
G304K2 4.3" TFT Operator Interface
CBL
Communications Cables and Adaptor
G3FILM Protective Film
1
Contact your Red Lion distributor or visit our website for selection of
adapters and cables.
Note: If replacing Model G304K000, see Tech Note TNG3K4.
-1-
Bulletin No. G304K2-E
Drawing No. LP0888
Released 2015-11-23
®
3 SOFTWARE
DESCRIPTION PART NUMBER
G304K200
1
CBLxxxxx
G3FILM4K
